ssm普通web项目(非meaven)框架集成

ssm普通web项目(非meaven)框架集成

使用工具:IDEA

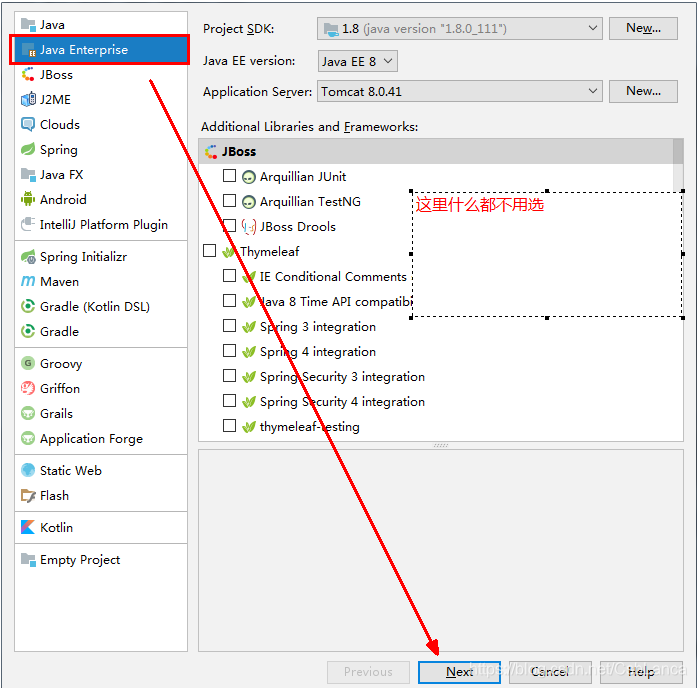

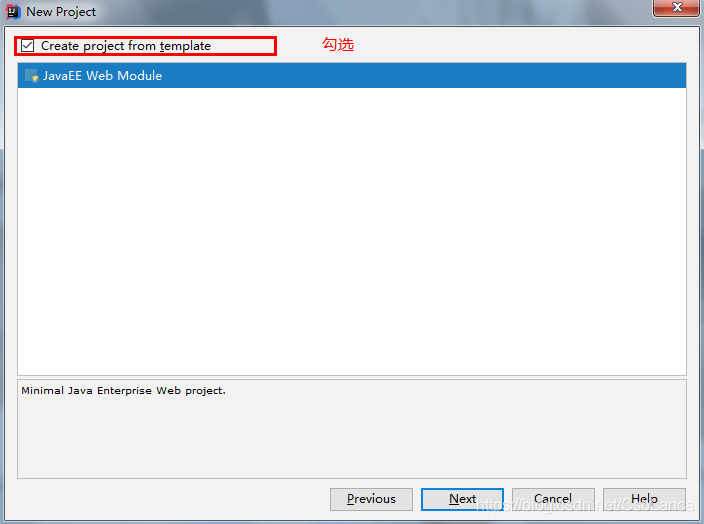

创建项目

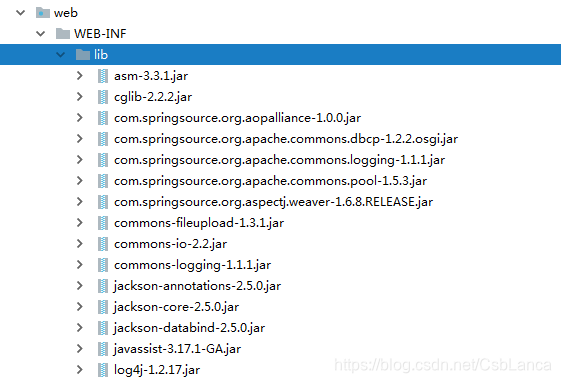

导包:

导包内容:

asm-3.3.1.jar
cglib-2.2.2.jar
com.springsource.org.aopalliance-1.0.0.jar
com.springsource.org.apache.commons.dbcp-1.2.2.osgi.jar
com.springsource.org.apache.commons.logging-1.1.1.jar
com.springsource.org.apache.commons.pool-1.5.3.jar
com.springsource.org.aspectj.weaver-1.6.8.RELEASE.jar
commons-fileupload-1.3.1.jar
commons-io-2.2.jar
commons-logging-1.1.1.jar
jackson-annotations-2.5.0.jar
jackson-core-2.5.0.jar
jackson-databind-2.5.0.jar
javassist-3.17.1-GA.jar
log4j-1.2.17.jar
mybatis-3.2.1.jar
mybatis-spring-1.2.0.jar
mysql-connector-java-5.1.24-bin.jar
slf4j-api-1.7.2.jar
slf4j-log4j12-1.7.2.jar
spring-aop-4.1.2.RELEASE.jar
spring-aspects-4.1.2.RELEASE.jar
spring-beans-4.1.2.RELEASE.jar
spring-context-4.1.2.RELEASE.jar
spring-core-4.1.2.RELEASE.jar
spring-expression-4.1.2.RELEASE.jar
spring-jdbc-4.1.2.RELEASE.jar
spring-test-4.1.2.RELEASE.jar
spring-tx-4.1.2.RELEASE.jar
spring-web-4.1.2.RELEASE.jar
spring-webmvc-4.1.2.RELEASE.jar

这些jar包最好是下载好了的,因为没有使用meaven创建项目

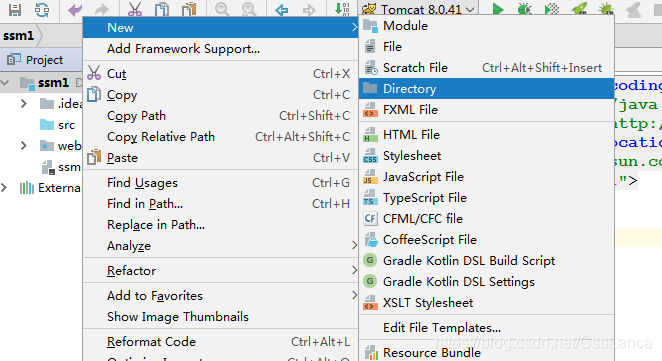

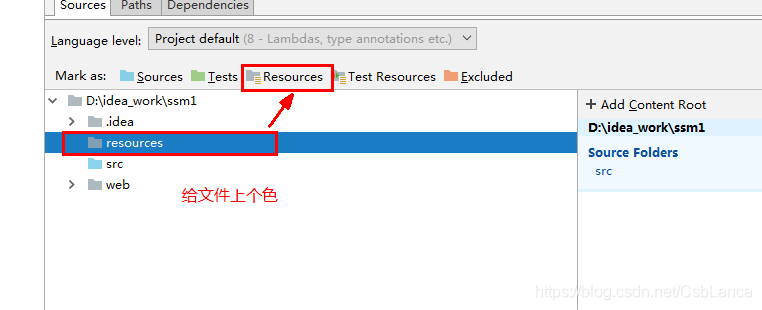

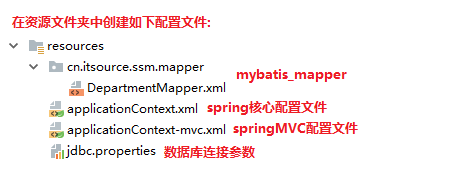

根项目创建resources文件夹



具体的配置文件参数
applicationContext.xml

<?xml version="1.0" encoding="UTF-8"?>
<beans xmlns="http://www.springframework.org/schema/beans"
       xmlns:context="http://www.springframework.org/schema/context"
       xmlns:tx="http://www.springframework.org/schema/tx"
       xmlns:xsi="http://www.w3.org/2001/XMLSchema-instance"
       xsi:schemaLocation="
       http://www.springframework.org/schema/beans http://www.springframework.org/schema/beans/spring-beans.xsd
       http://www.springframework.org/schema/context http://www.springframework.org/schema/context/spring-context.xsd
       http://www.springframework.org/schema/tx http://www.springframework.org/schema/tx/spring-tx.xsd
    ">
    <!--
        1.创建db.properties
        2.引入db.properties
        3.创建数据库源
        4.配置一个bean:sqlSessionFactory
        5.配置mapper
        6.测试domain.mapper
        7.完成service
        8.完成Controller
    -->

    <!--扫描Service层-->
    <context:component-scan base-package="cn.itsource.ssm.service" />

    <!--引入jdbc.properties-->
    <context:property-placeholder location="classpath:jdbc.properties"/>

    <!--创建数据源-->
    <bean id="dataSource" class="org.apache.commons.dbcp.BasicDataSource" destroy-method="close">
        <property name="driverClassName" value="${jdbc.driverClassName}" />
        <property name="url" value="${jdbc.url}" />
        <property name="username" value="${jdbc.username}" />
        <property name="password" value="${jdbc.password}" />
    </bean>

    <!--配置sqlSessionFactory-->
    <bean id="sqlSessionFactory" class="org.mybatis.spring.SqlSessionFactoryBean">
        <!--引入数据源-->
        <property name="dataSource" ref="dataSource" />
        <!--XML的映射-->
        <property name="mapperLocations" value="classpath:cn/itsource/ssm/mapper/*.xml" />
        <!--为所有相应的包中的类取别名-->
        <property name="typeAliasesPackage" value="cn.itsource.ssm.domain" />
    </bean>

    <!--一劳永逸的创建所有映射器mapper-->
    <bean class="org.mybatis.spring.mapper.MapperScannerConfigurer">
        <property name="basePackage" value="cn.itsource.ssm.mapper" />
    </bean>

    <!--mybatis中配置jdbc的事务管理器-->
    <bean id="transactionManager" class="org.springframework.jdbc.datasource.DataSourceTransactionManager">
        <property name="dataSource" ref="dataSource" />
    </bean>

    <!--配置标签支持事务-->
    <tx:annotation-driven transaction-manager="transactionManager" />
</beans>

applicationContext-mvc.xml

<?xml version="1.0" encoding="UTF-8"?>
<beans xmlns="http://www.springframework.org/schema/beans"
       xmlns:context="http://www.springframework.org/schema/context"
       xmlns:mvc="http://www.springframework.org/schema/mvc"
       xmlns:xsi="http://www.w3.org/2001/XMLSchema-instance"
       xsi:schemaLocation="
       http://www.springframework.org/schema/beans http://www.springframework.org/schema/beans/spring-beans.xsd
       http://www.springframework.org/schema/context http://www.springframework.org/schema/context/spring-context.xsd
       http://www.springframework.org/schema/mvc http://www.springframework.org/schema/mvc/spring-mvc.xsd
">
    <!--扫描Controller-->
    <context:component-scan base-package="cn.itsource.ssm.controller" />
    <!--支持SpringMVC的注解-->
    <mvc:annotation-driven />
    <!--静态资源放行-->
    <mvc:default-servlet-handler />
    <!--视图解析器-->
    <bean class="org.springframework.web.servlet.view.InternalResourceViewResolver">
        <property name="prefix" value="/WEB-INF/views/" />
        <property name="suffix" value=".jsp" />
    </bean>
    <!--上传解析器-->
    <!--文件上传解析器-->
    <bean id="multipartResolver" class="org.springframework.web.multipart.commons.CommonsMultipartResolver">
        <!-- 设置上传文件的最大尺寸为1MB -->
        <property name="maxUploadSize">
            <value>1048576</value>
        </property>
    </bean>

    <!--不要这样引入:以后还要集成其它框架(shiro)就集成不了-->
    <!--<import resource="classpath:applicationContext.xml" />-->
</beans>

jdbc.properties

jdbc.driverClassName=com.mysql.jdbc.Driver
jdbc.url=jdbc:mysql:///mybatis
jdbc.username=root
jdbc.password=123456

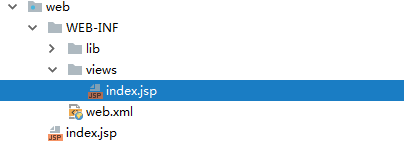

项目结构

web.xml

<?xml version="1.0" encoding="UTF-8"?>
<web-app xmlns="http://java.sun.com/xml/ns/javaee"
           xmlns:xsi="http://www.w3.org/2001/XMLSchema-instance"
           xsi:schemaLocation="http://java.sun.com/xml/ns/javaee
		  http://java.sun.com/xml/ns/javaee/web-app_3_0.xsd"
           version="3.0">
    <!--
        1.配置核心配置器
    -->
    <!-- 解决工程编码过滤器 -->
    <filter>
        <filter-name>characterEncodingFilter</filter-name>
        <filter-class>org.springframework.web.filter.CharacterEncodingFilter</filter-class>
        <init-param>
            <param-name>encoding</param-name>
            <param-value>UTF-8</param-value>
        </init-param>
        <init-param>
            <param-name>forceEncoding</param-name>
            <param-value>true</param-value>
        </init-param>
    </filter>
    <filter-mapping>
        <filter-name>characterEncodingFilter</filter-name>
        <url-pattern>/*</url-pattern>*/
    </filter-mapping>
    <!--读取Spring的核心配置文件-->
    <context-param>
        <param-name>contextConfigLocation</param-name>
        <param-value>classpath:applicationContext.xml</param-value>
    </context-param>
    <!--直接启动Spring-->
    <listener>
        <listener-class>org.springframework.web.context.ContextLoaderListener</listener-class>
    </listener>
    <!--配置核心控制器-->
    <servlet>
        <servlet-name>dispatcherServlet</servlet-name>
        <servlet-class>org.springframework.web.servlet.DispatcherServlet</servlet-class>
        <!--SpringMVC的配置文件-->
        <init-param>
            <param-name>contextConfigLocation</param-name>
            <param-value>classpath:applicationContext-mvc.xml</param-value>
        </init-param>
        <!--随着tomcat启动而启动-->
        <load-on-startup>1</load-on-startup>
    </servlet>
    <servlet-mapping>
        <servlet-name>dispatcherServlet</servlet-name>
        <url-pattern>/</url-pattern>
    </servlet-mapping>
</web-app>

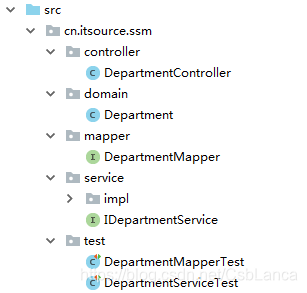

在src创建你需要的文件

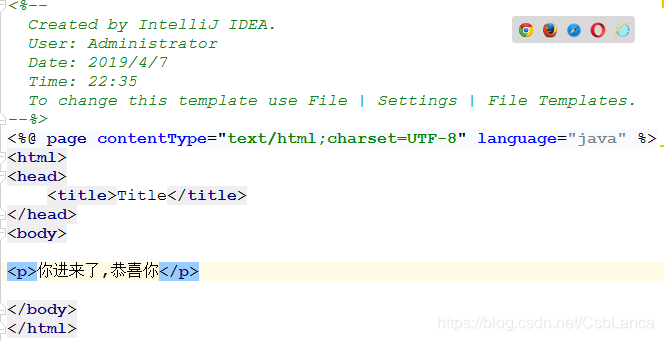

准备一个页面,测试项目是否创建成功

准备Controller

@Controller
@RequestMapping("/department")
public class DepartmentController {
    @Autowired
    private IDepartmentService departmentService;

    @RequestMapping("/index")
    public String index(){
        return "index";
    }

    @RequestMapping("/list")
    @ResponseBody
    public List<Department> list(){
        return departmentService.findAll();
    }
}

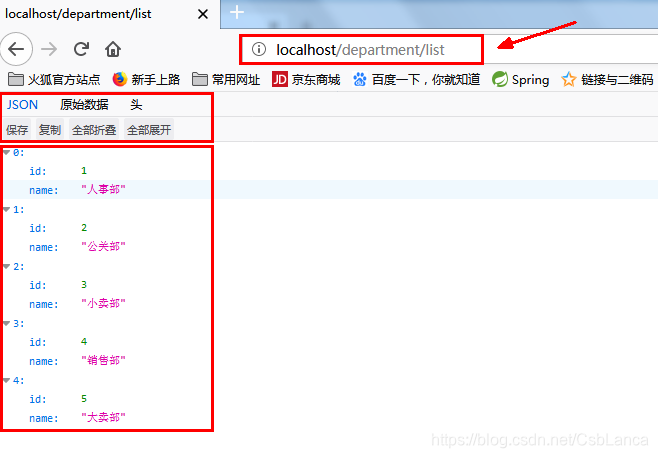

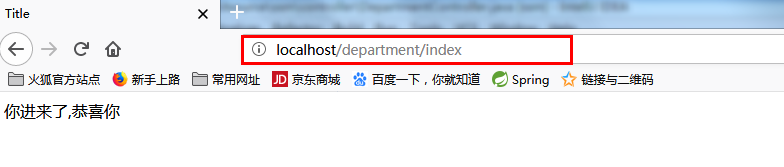

输入路径测试
http://localhost/department/index


有些问题我很难跟你解释,你能懂吗

小结:这个是spring+springMVC+mybatis的普通web项目集成,项目搭建没有使用meaven结构创建,目的就是为了使我们更加清楚整个项目的结构,在使用meaven搭建的时候更加清晰那部分是做什么的,就暂时写这些
