Android 6.0特性Toolbar+ TabLayout +Viewpager实现demo

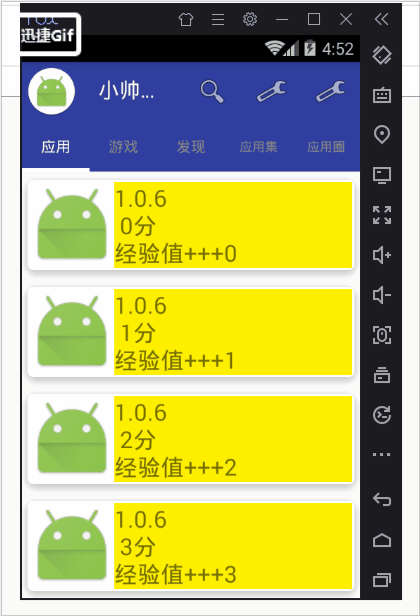

1，实现效果

• Toolbar+ TabLayout +Viewpager

• 使用AppBarLayout 实现滚出效果



2，实现逻辑

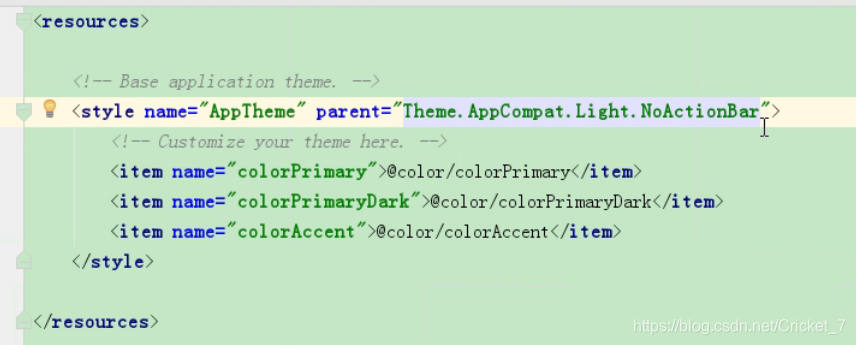

【1】更改主题 添加依赖

compile 'com.android.support:design:23.2.0'

【2】创建布局添加Toolbar+ TabLayout +Viewpager

<?xml version="1.0" encoding="utf-8"?>

<android.support.design.widget.CoordinatorLayout xmlns:android="http://schemas.android.com/apk/res/android"

    xmlns:app="http://schemas.android.com/apk/res-auto"

    xmlns:tools="http://schemas.android.com/tools"

    android:id="@+id/activity_main"

    android:layout_width="match_parent"

    android:layout_height="match_parent"

    android:orientation="vertical"





    tools:context="com.itheima.a007_toolbar.MainActivity">

    <!--AppBarLayout是6.0 design提供管理Toolbar与TabLayout的线性布局

     设置一下哪部将来被滑出屏幕-->

    <android.support.design.widget.AppBarLayout

        android:layout_width="match_parent"

        android:layout_height="wrap_content">

        <android.support.v7.widget.Toolbar

            android:id="@+id/toolbar"

            android:layout_width="match_parent"

            android:layout_height="wrap_content"

            android:background="@color/colorPrimaryDark"

            app:layout_scrollFlags="scroll"

            />





        <android.support.design.widget.TabLayout

            android:id="@+id/tablayout"

            android:layout_width="match_parent"

            android:layout_height="wrap_content"





            android:background="@color/colorPrimaryDark" />

    </android.support.design.widget.AppBarLayout>









&nb
