防火墙安全策略课堂实验

最新推荐文章于 2025-03-07 17:23:41 发布

原创最新推荐文章于 2025-03-07 17:23:41 发布 · 480 阅读

5 ·

CC 4.0 BY-SA版权

文章标签：

#防火墙

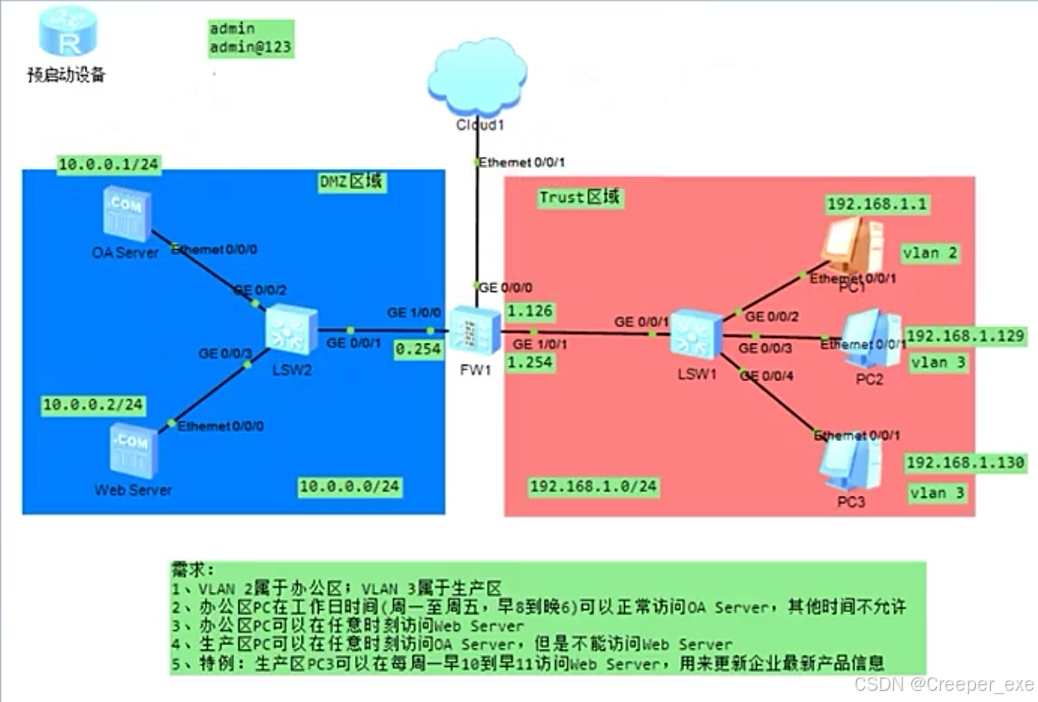

一、实验拓扑，实验要求

在这里插入图片描述

二、需求分析

创建
VLAN 2：办公区
VLAN 3：生产区
访问控制列表 (ACL)：
办公区PC访问OA Server：
允许VLAN 2在周一至周五的8:00至18:00访问OA Server。
拒绝VLAN 2在其他时间访问OA Server。
办公区PC访问Web Server：
允许VLAN 2在任何时间访问Web Server。
生产区PC访问OA Server：
允许VLAN 3在任何时间访问OA Server。
生产区PC访问Web Server：
拒绝VLAN 3访问Web Server，除了PC3在每周一的10:00至11:00。

三、实验配置

1.配置vlan与access、truck接口

[sw1]vlan 2
[sw1]vlan 3
[sw1]interface GigabitEthernet 0/0/1
[sw1-GigabitEthernet0/0/1]port link-type trunk
[sw1-GigabitEthernet0/0/1]port trunk allow-pass vlan all
[sw1-GigabitEthernet0/0/1]interface GigabitEthernet 0/0/2
[sw1-GigabitEthernet0/0/2]port link-type access
[sw1-GigabitEthernet0/0/2]port default vlan 2
[sw1-GigabitEthernet0/0/2]interface GigabitEthernet 0/0/3
[sw1-GigabitEthernet0/0/3]port link-type access
[sw1-GigabitEthernet0/0/3]port default vlan 3
[sw1-GigabitEthernet0/0/3]interface GigabitEthernet 0/0/4
[sw1-GigabitEthernet0/0/4]port link-type access
[sw1-GigabitEthernet0/0/4]port default vlan 3

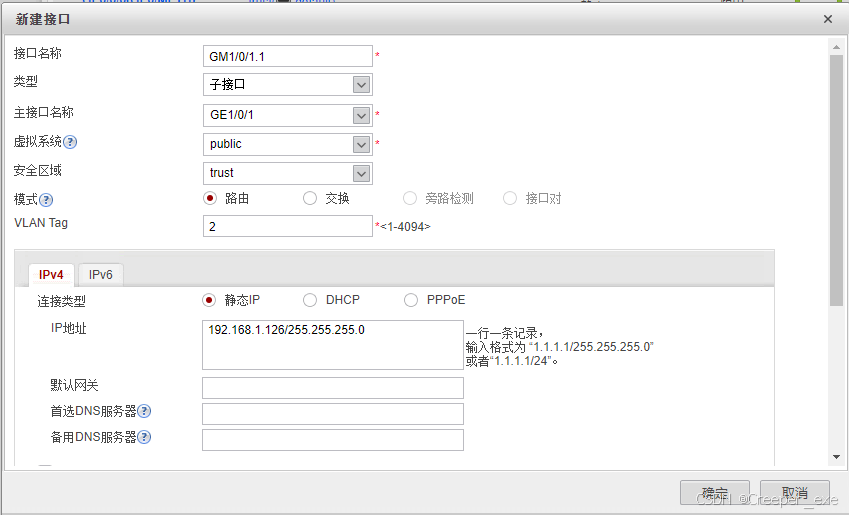

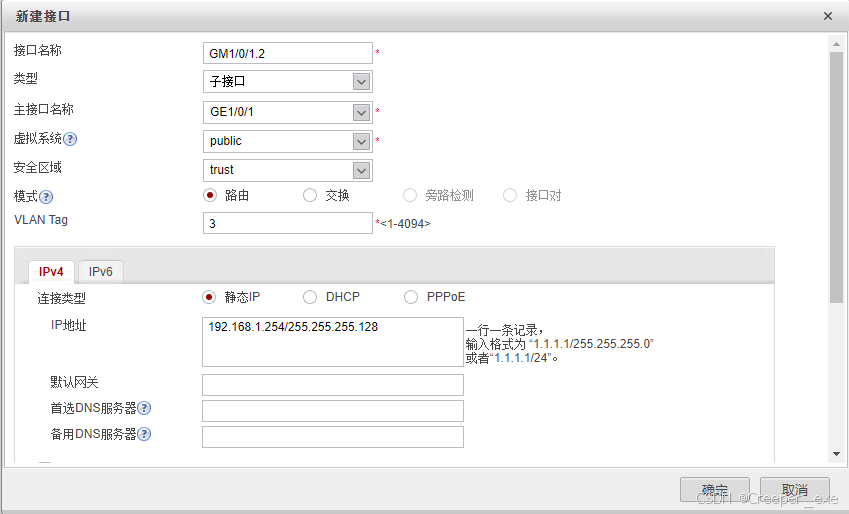

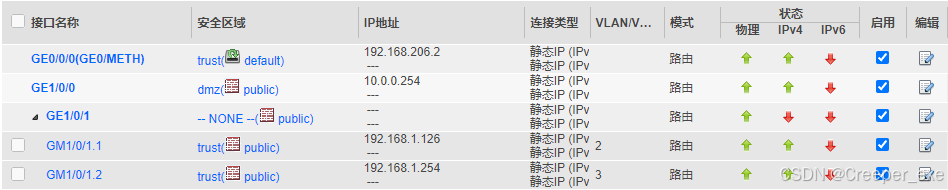

2.web
在这里插入图片描述

[FW]interface GigabitEthernet 1/0/1.1
[FW-GigabitEthernet1/0/1.1]service-manage ping permit
[FW-GigabitEthernet1/0/1.1]interface GigabitEthernet 1/0/1.2
[FW-GigabitEthernet1/0/1.2]service-manage ping permit

3.安全策略

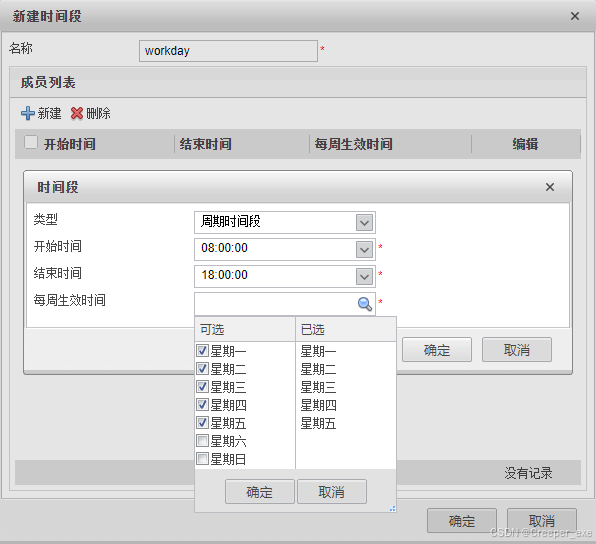

办公区PC在工作日时间可以正常访问OA区其他时间不允许
在这里插入图片描述

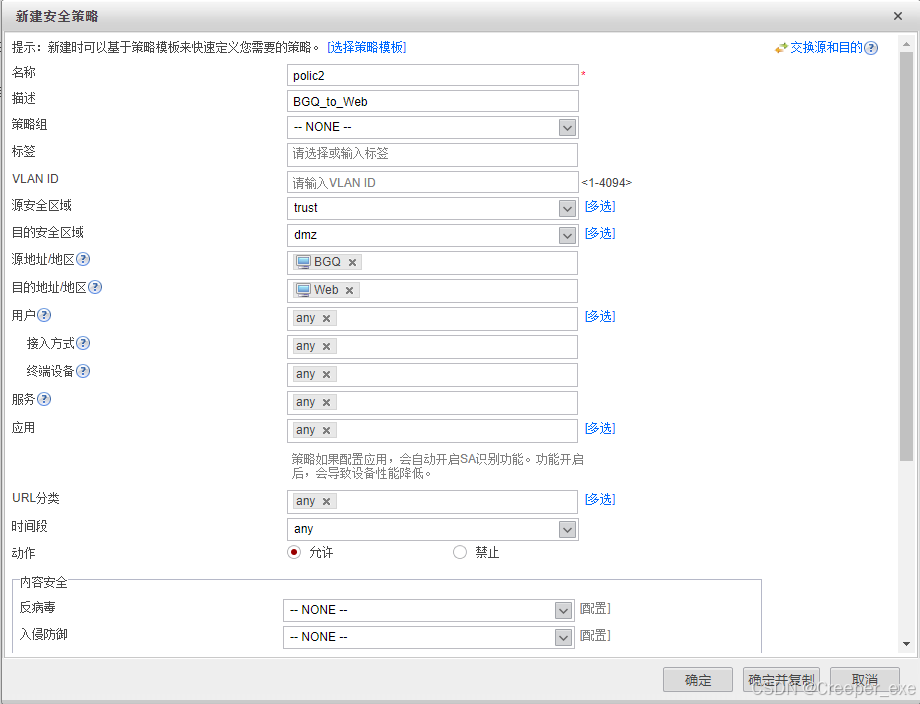

办公区pc可以任意时刻访问Web区

生产区pc可以任意时刻访问oa，但是不能访问web

生产区pc可以在每周一早10-11访问Web，用来更新企业最新产品信息

使用ensp完成的方法

接口配置

[FW]interface GigabitEthernet 1/0/0
[FW-GigabitEthernet1/0/0]ip address 10.0.0.254 24
[FW]interface GigabitEthernet 1/0/1.1
[FW-GigabitEthernet1/0/1.1]ip address 192.168.1.126 25
[FW-GigabitEthernet1/0/1.1]vlan-type dot1q 2
[FW-GigabitEthernet1/0/1.1]interface GigabitEthernet 1/0/1.2
[FW-GigabitEthernet1/0/1.2]ip address 192.168.1.254 25
[FW-GigabitEthernet1/0/1.2]vlan-type dot1q 3
[FW]firewall zone dmz
[FW-zone-dmz]add interface GigabitEthernet 1/0/0
[FW]firewall zone trust
[FW-zone-trust]add interface GigabitEthernet 1/0/1.1
[FW-zone-trust]add interface GigabitEthernet 1/0/1.2
[FW]display zone
[FW]interface GigabitEthernet 1/0/1.1
[FW-GigabitEthernet1/0/1.1]service-manage ping permit
[FW-GigabitEthernet1/0/1.1]interface GigabitEthernet 1/0/1.2
[FW-GigabitEthernet1/0/1.2]service-manage ping permit

安全策略配置

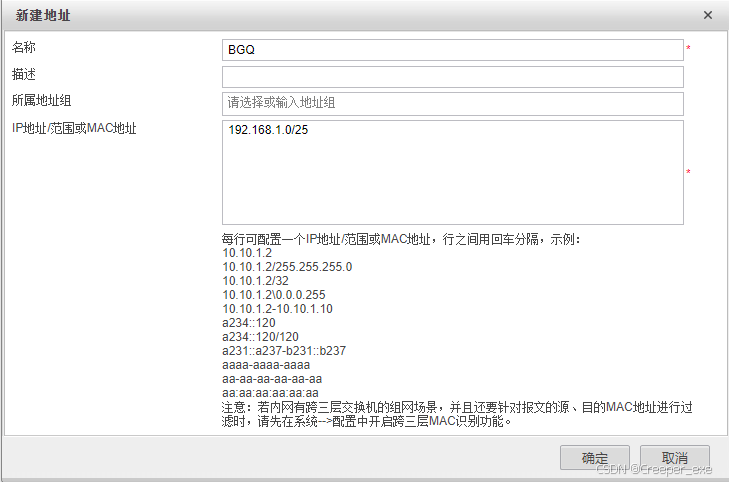

[FW]ip address-set BGQ
[FW-object-address-set-BGQ]address 192.168.1.0 mask 25

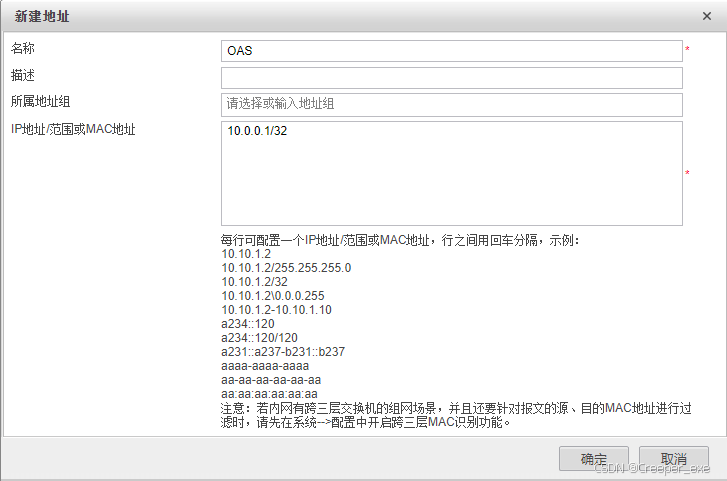

[FW]ip address-set OAS
[FW-object-address-set-OAS]address 10.0.0.1 mask 32

[FW]time-range work
[FW-time-range-work]period-range 08:00:00 to 18:00:00 working-day
[FW]security-policy
[FW-policy-security]rule name polic1
[FW-policy-security-rule-polic1]description BGQ_to_OAS
[FW-policy-security-rule-polic1]source-zone trust
[FW-policy-security-rule-polic1]destination-zone dmz
[FW-policy-security-rule-polic1]source-address address-set BGQ
[FW-policy-security-rule-polic1]destination-address address-set OAS
[FW-policy-security-rule-polic1]time-range work
[FW-policy-security-rule-polic1]action permit

办公区pc可以任意时刻访问web区
[FW]ip address-set Web
[FW-object-address-set-Web]address 10.0.0.2 mask 32
[FW]security-policy
[FW-policy-security]rule name polic2
[FW-policy-security-rule-polic2]description BGQ_to_Web
[FW-policy-security-rule-polic2]source-zone trust
[FW-policy-security-rule-polic2]destination-zone dmz
[FW-policy-security-rule-polic2]source-address address-set BGQ
[FW-policy-security-rule-polic2]destination-address address-set Web
[FW-policy-security-rule-polic2]action permit

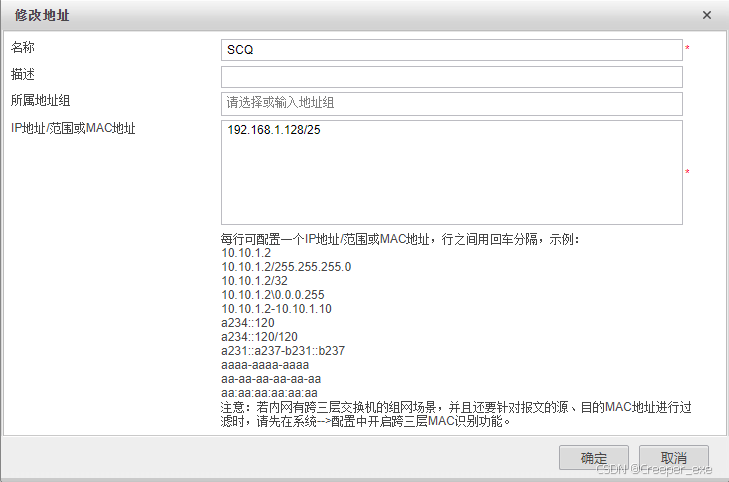

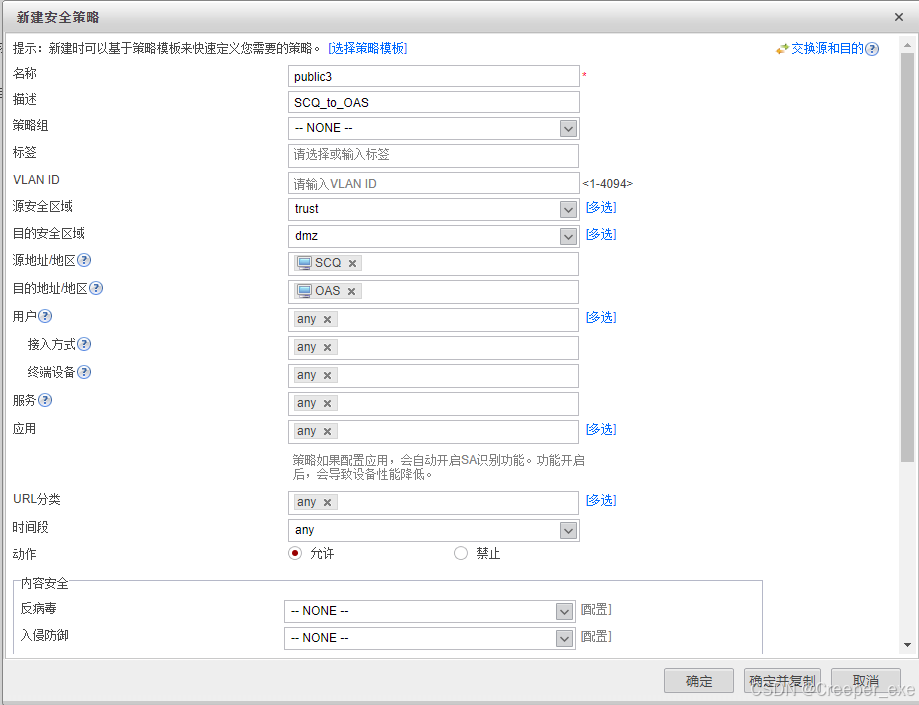

生产区pc可以任意时刻访问oa，但是不能访问web
[FW]ip address-set SCQ
[FW-object-address-set-sc]address 192.168.1.128 mask 25
[FW]security-policy
[FW-policy-security]rule name polic3
[FW-policy-security-rule-polic3]description SCQ_to_OAS
[FW-policy-security-rule-polic3]source-zone trust
[FW-policy-security-rule-polic3]destination-zone dmz
[FW-policy-security-rule-polic3]source-address address-set SCQ
[FW-policy-security-rule-polic3]destination-address address-set OAS
10.0.0.1 32）
[FW-policy-security-rule-polic3]action permit

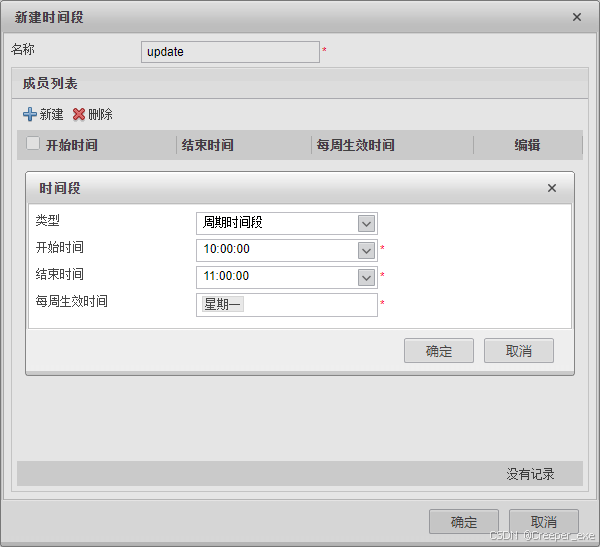

生产区pc可以在每周一早10-11访问web，用来更新企业最新产品信息
[FW]time-range update
[FW-time-range-update]period-range 10:00:00 to 11:00:00 Mon
[FW]security-policy
[FW-policy-security]rule name polic4
[FW-policy-security-rule-polic4]description SCQ_to_Web
[FW-policy-security-rule-polic4]source-zone trust
[FW-policy-security-rule-polic4]destination-zone dmz
[FW-policy-security-rule-polic4]source-address address-set SCQ
[FW-policy-security-rule-polic4]destination-address address-set Web
[FW-policy-security-rule-polic4]time-range update
[FW-policy-security-rule-polic4]action permit

四、结果测试

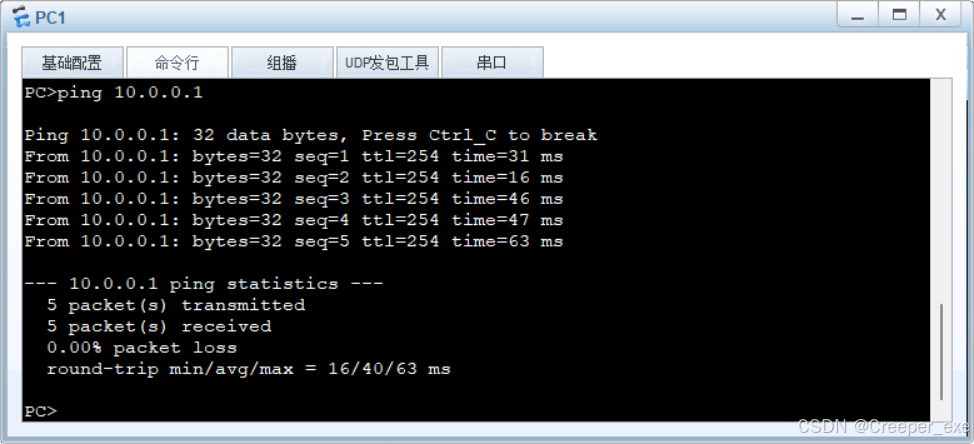

1.办公区PC访问OA Server
工作时间：成功
在这里插入图片描述
其他时间：失败

2.办公区PC访问Web Server
任意时间：成功

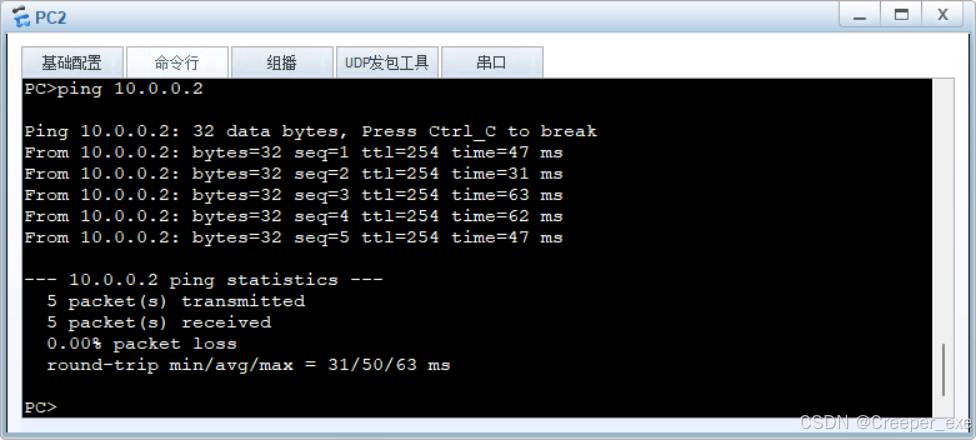

3.生产区PC访问OA Server
任意时间：成功

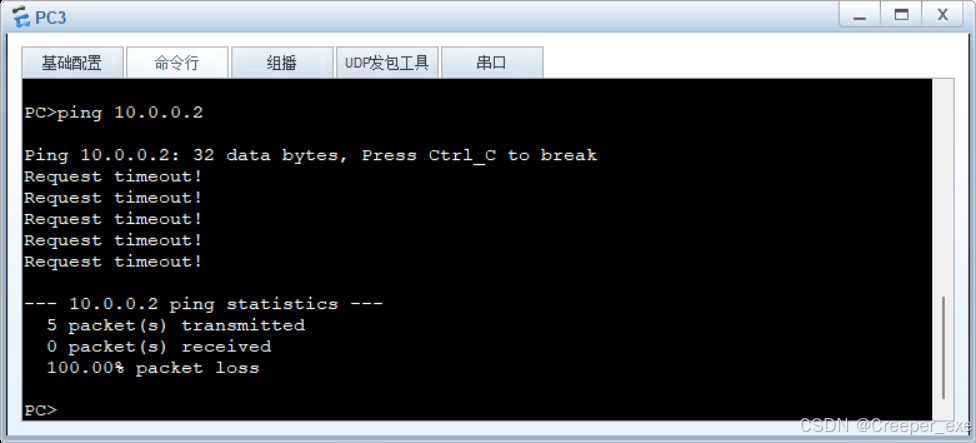

4.生产区PC访问Web Server
周一早10-11：成功

其他时间：失败

查看会话表和server-map表
在这里插入图片描述
