前言

在前面的文章中我们提到Entity Framework的“Code First”模式也同样可以基于现有数据库进行开发。今天就让我们一起看一下使用Entity Framework Power Tools如何基于现有数据库生成数据类和数据库上下等。

Entity Framework Power Tools

基于现有数据库生成POCO数据类和数据库上下文需要借助Visual Studio一个扩展插件-- Entity Framework Power Tools（一个Code First反向工程工具）。

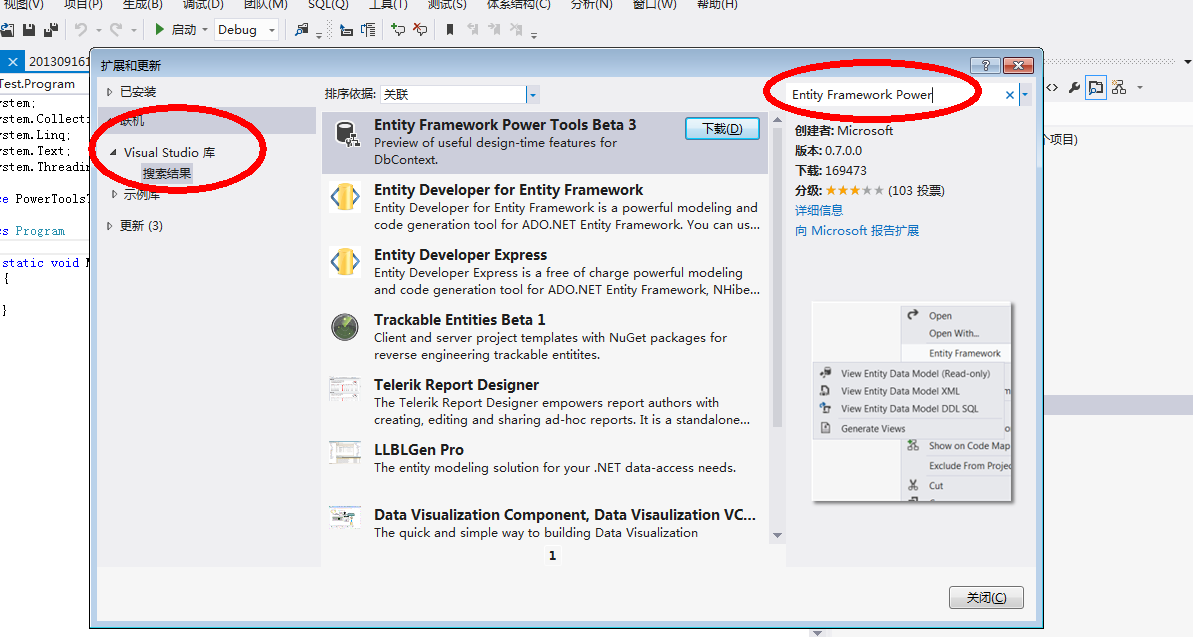

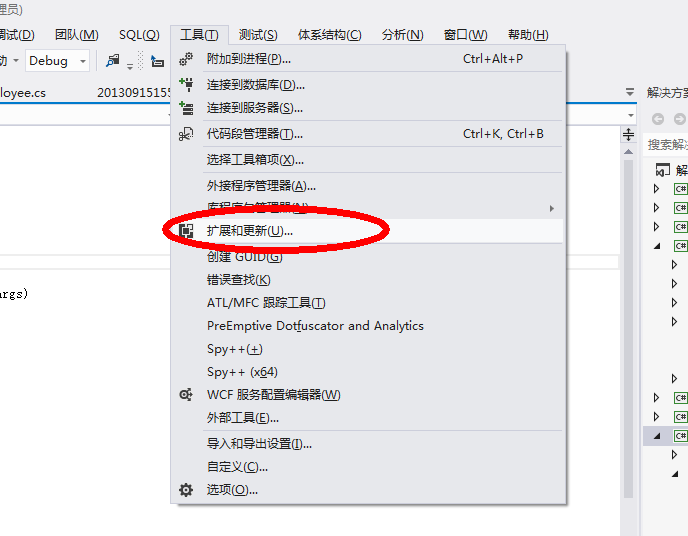

通过点击上图的扩展和更新，得到如下图所示的界面

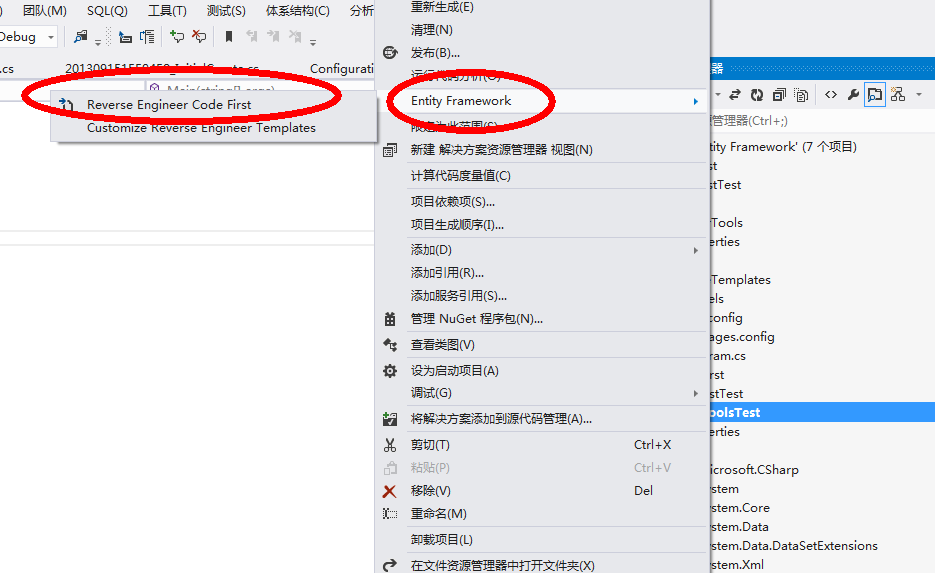

安装完之后只要在项目上右键选择Entity Framework->Reverse Engineer Code First（项目中首先需要安装Entity Framework 包，否则会有错误），然后在弹出的窗口中输入相关的数据库连接信息即可（我们这里使用“NorthWind”数据库）。

当然当你在操作的时候你首先还是要先引用Entity Framework。然后点击Reverse Engineer Code First

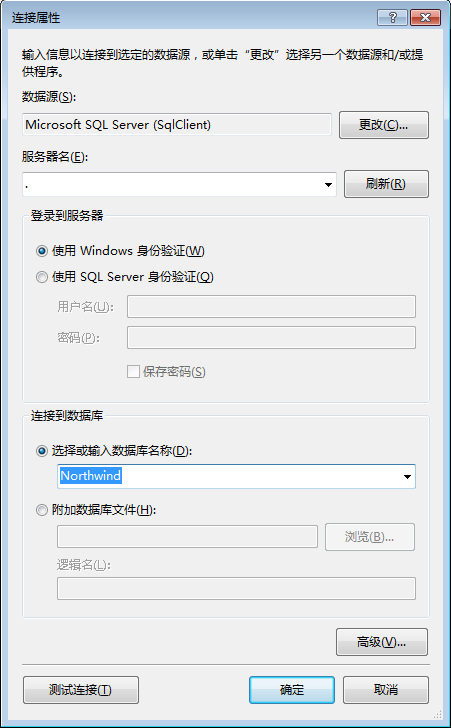

配置好数据库链接，

确认之后，我们首先来看一下配置文件的变化

<?xml version="1.0" encoding="utf-8"?>

<configuration>

<configSections>

<section name="entityFramework" type="System.Data.Entity.Internal.ConfigFile.EntityFrameworkSection, EntityFramework, Version=5.0.0.0, Culture=neutral, PublicKeyToken=b77a5c561934e089" requirePermission="false" />

</configSections>

<connectionStrings>

<add name="NorthwindContext" connectionString="Data Source=.;Initial Catalog=Northwind;Integrated Security=True;MultipleActiveResultSets=True"

providerName="System.Data.SqlClient" />

</connectionStrings>

<startup>

<supportedRuntime version="v4.0" sku=".NETFramework,Version=v4.5" />

</startup>

<entityFramework>

<defaultConnectionFactory type="System.Data.Entity.Infrastructure.LocalDbConnectionFactory, EntityFramework">

<parameters>

<parameter value="v11.0" />

</parameters>

</defaultConnectionFactory>

</entityFramework>

</configuration>

于此同时生成了NorthWindContext数据库操作上下文

using System.Data.Entity;

using System.Data.Entity.Infrastructure;

using CodeFirstPowerTools.Models.Mapping;

namespace CodeFirstPowerTools.Models

{

public partial class NorthwindContext : DbContext

{

static NorthwindContext()

{

Database.SetInitializer<NorthwindContext>(null);

}

public NorthwindContext()

: base("Name=NorthwindContext")

{

}

public DbSet<Category> Categories { get; set; }

public DbSet<CustomerDemographic> CustomerDemographics { get; set; }

public DbSet<Customer> Customers { get; set; }

public DbSet<Employee> Employees { get; set; }

public DbSet<Order_Detail> Order_Details { get; set; }

public DbSet<Order> Orders { get; set; }

public DbSet<Product> Products { get; set; }

public DbSet<Region> Regions { get; set; }

public DbSet<Shipper> Shippers { get; set; }

public DbSet<Supplier> Suppliers { get; set; }

public DbSet<Territory> Territories { get; set; }

public DbSet<Alphabetical_list_of_product> Alphabetical_list_of_products { get; set; }

public DbSet<Category_Sales_for_1997> Category_Sales_for_1997 { get; set; }

public DbSet<Current_Product_List> Current_Product_Lists { get; set; }

public DbSet<Customer_and_Suppliers_by_City> Customer_and_Suppliers_by_Cities { get; set; }

public DbSet<Invoice> Invoices { get; set; }

public DbSet<Order_Details_Extended> Order_Details_Extendeds { get; set; }

public DbSet<Order_Subtotal> Order_Subtotals { get; set; }

public DbSet<Orders_Qry> Orders_Qries { get; set; }

public DbSet<Product_Sales_for_1997> Product_Sales_for_1997 { get; set; }

public DbSet<Products_Above_Average_Price> Products_Above_Average_Prices { get; set; }

public DbSet<Products_by_Category> Products_by_Categories { get; set; }

public DbSet<Sales_by_Category> Sales_by_Categories { get; set; }

public DbSet<Sales_Totals_by_Amount> Sales_Totals_by_Amounts { get; set; }

public DbSet<Summary_of_Sales_by_Quarter> Summary_of_Sales_by_Quarters { get; set; }

public DbSet<Summary_of_Sales_by_Year> Summary_of_Sales_by_Years { get; set; }

protected override void OnModelCreating(DbModelBuilder modelBuilder)

{

modelBuilder.Configurations.Add(new CategoryMap());

modelBuilder.Configurations.Add(new CustomerDemographicMap());

modelBuilder.Configurations.Add(new CustomerMap());

modelBuilder.Configurations.Add(new EmployeeMap());

modelBuilder.Configurations.Add(new Order_DetailMap());

modelBuilder.Configurations.Add(new OrderMap());

modelBuilder.Configurations.Add(new ProductMap());

modelBuilder.Configurations.Add(new RegionMap());

modelBuilder.Configurations.Add(new ShipperMap());

modelBuilder.Configurations.Add(new SupplierMap());

modelBuilder.Configurations.Add(new TerritoryMap());

modelBuilder.Configurations.Add(new Alphabetical_list_of_productMap());

modelBuilder.Configurations.Add(new Category_Sales_for_1997Map());

modelBuilder.Configurations.Add(new Current_Product_ListMap());

modelBuilder.Configurations.Add(new Customer_and_Suppliers_by_CityMap());

modelBuilder.Configurations.Add(new InvoiceMap());

modelBuilder.Configurations.Add(new Order_Details_ExtendedMap());

modelBuilder.Configurations.Add(new Order_SubtotalMap());

modelBuilder.Configurations.Add(new Orders_QryMap());

modelBuilder.Configurations.Add(new Product_Sales_for_1997Map());

modelBuilder.Configurations.Add(new Products_Above_Average_PriceMap());

modelBuilder.Configurations.Add(new Products_by_CategoryMap());

modelBuilder.Configurations.Add(new Sales_by_CategoryMap());

modelBuilder.Configurations.Add(new Sales_Totals_by_AmountMap());

modelBuilder.Configurations.Add(new Summary_of_Sales_by_QuarterMap());

modelBuilder.Configurations.Add(new Summary_of_Sales_by_YearMap());

}

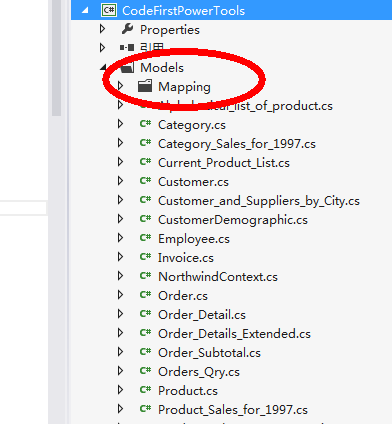

最终来查看一下生成的文件

代码调用实例

using System;

using System.Collections.Generic;

using System.Linq;

using System.Text;

using System.Threading.Tasks;

using CodeFirstPowerTools.Models;

namespace CodeFirstPowerTools

{

class Program

{

static void Main(string[] args)

{

using (var db = new NorthwindContext())

{

IQueryable<Order> orders = from order in db.Orders

where order.OrderID < 10256

select order;

foreach (Order order in orders)

{

Console.WriteLine(order.ShipCity);

}

Console.ReadLine();

}

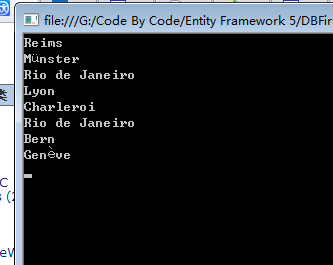

执行后结果如下

简单的使用到此为止。
