[Linux Camera Driver] utils_Log.h报错解决方案

最新推荐文章于 2023-05-12 11:23:39 发布
原创 最新推荐文章于 2023-05-12 11:23:39 发布 · 970 阅读 · 1 ·
CC 4.0 BY-SA版权
版权声明：本文为博主原创文章，遵循 CC 4.0 BY-SA 版权协议，转载请附上原文出处链接和本声明。
文章标签：

#android #qualcomm

本文分享了一次解决Android摄像头驱动报错的经历，在高通平台下通过在Android.mk文件中添加LOCAL_HEADER_LIBRARIES:=libutils_headers成功解决了utils_Log.h的报错问题。

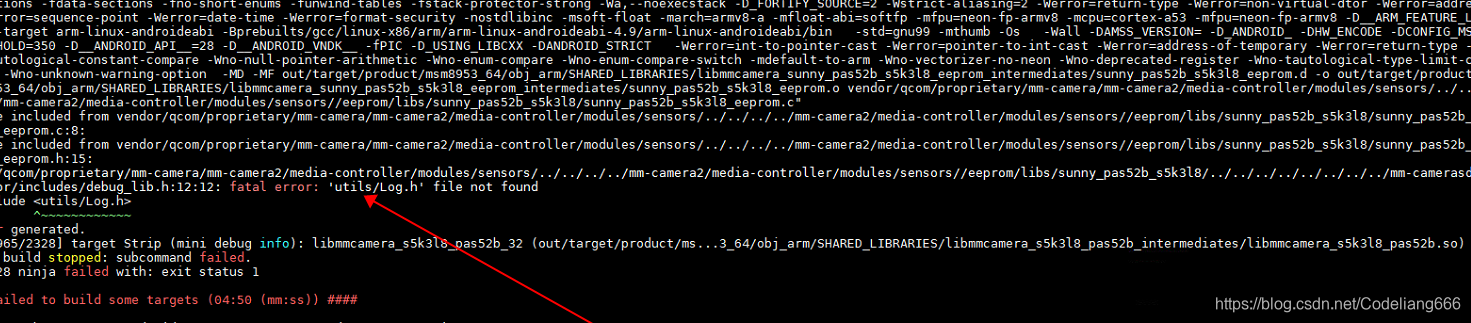

背景：最新刚调了款摄像头，最开始的时候，出现了 utils_Log.h报错，然后有个学长建议我把报错
的那一行删掉…然后删了报错就更多了。

在这里插入图片描述

1. 解决方法

这个我网上找了很多，都特么没有帮助，当然也可能是平台不一样。。这边是高通平台，android9。

在这里插入图片描述

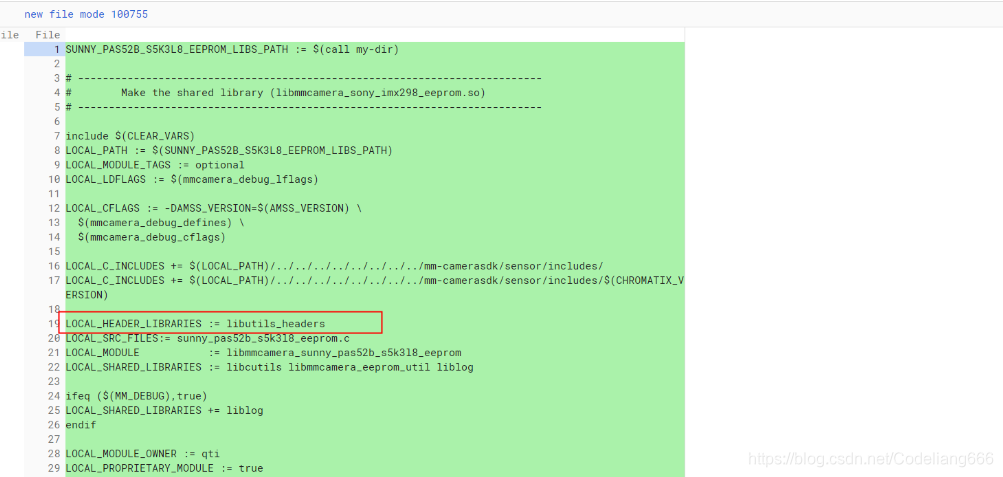

解决方法很简单，报错驱动对应的Android.mk文件里面，加一句话即可：

LOCAL_HEADER_LIBRARIES := libutils_headers

OVER!
