前言

针对项目需求编写测试用例，对项目进行测试用例的编写和通过Selenium和IUnit单元测试框架，来对项目功能进行自动化测试

一、项目概述

本项目是一个基于 SpringBoot、MyBatis 和 MySQL 构建的在线论坛平台，旨在为用户提供一个便捷、高效的交流平台。平台具备用户注册、登录，退出等基本功能，并支持文章的发布、删除、更新等高级功能。采用Selenium进行自动化测试

二、设计测试用例

总览

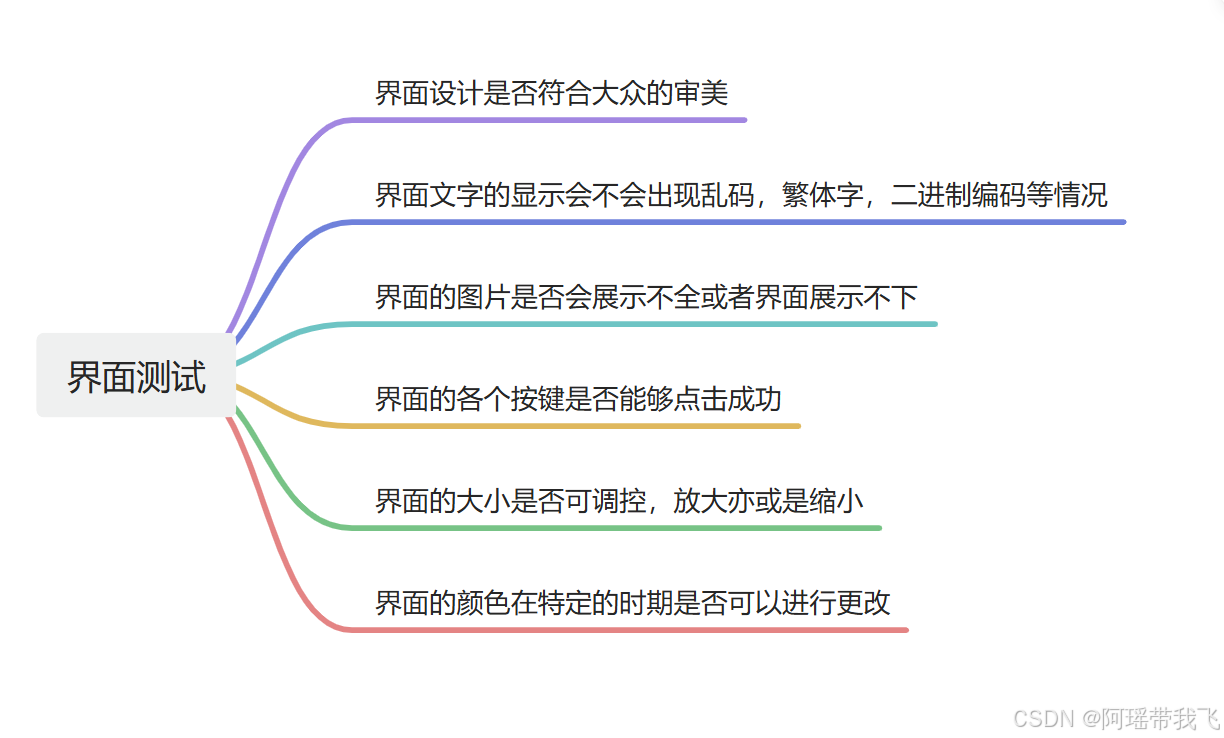

1、界面测试用例设计

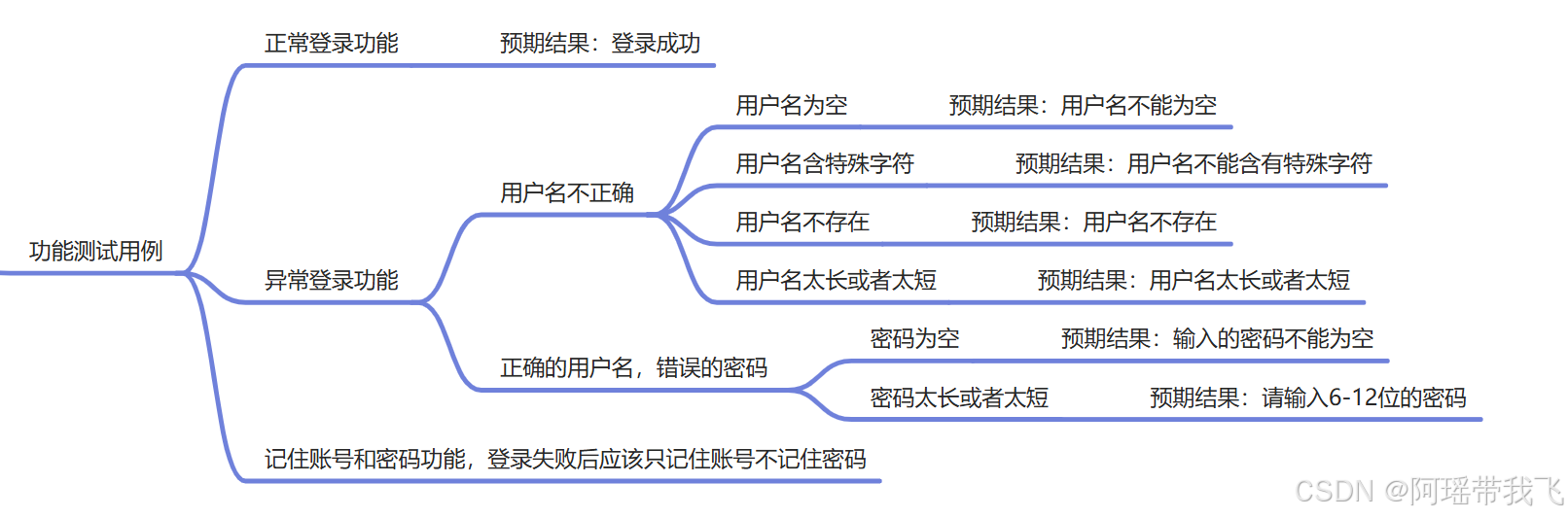

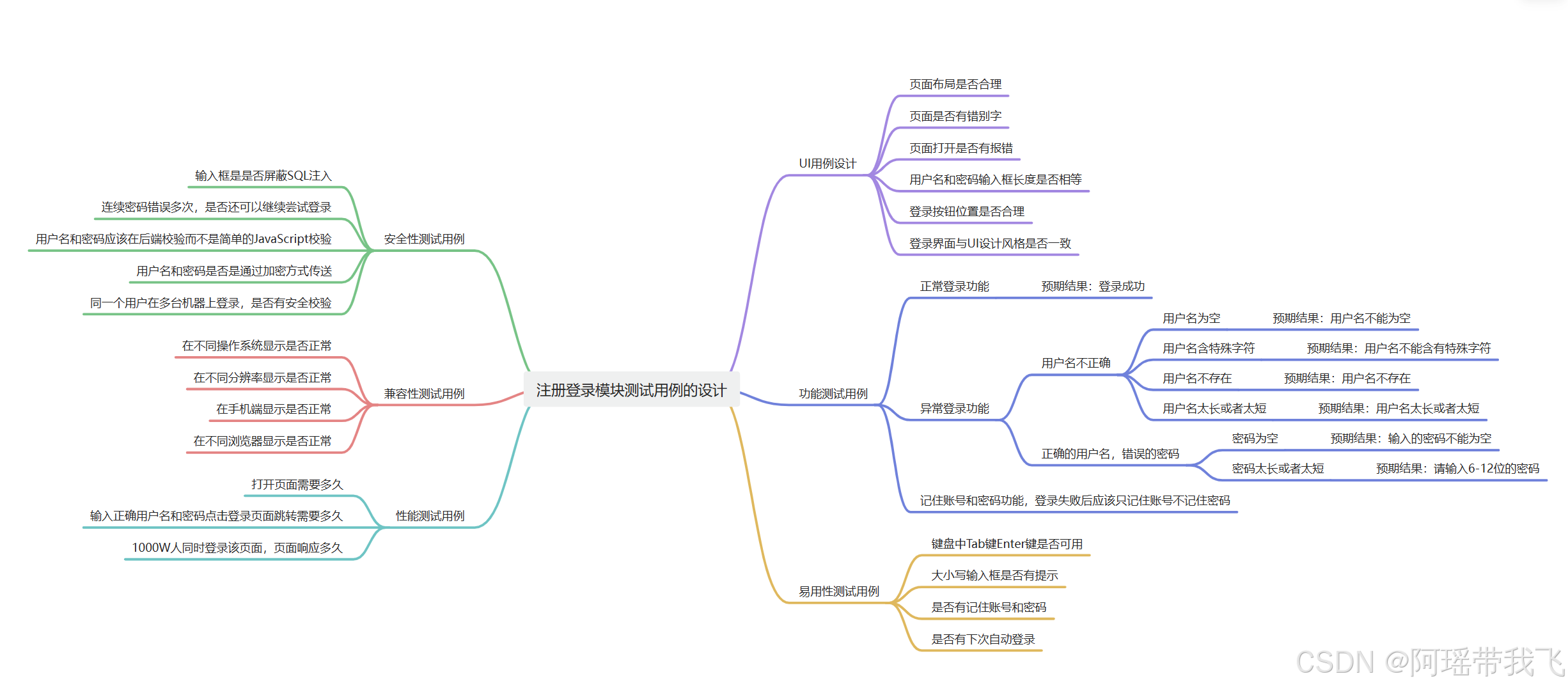

2、注册登录测试用例设计

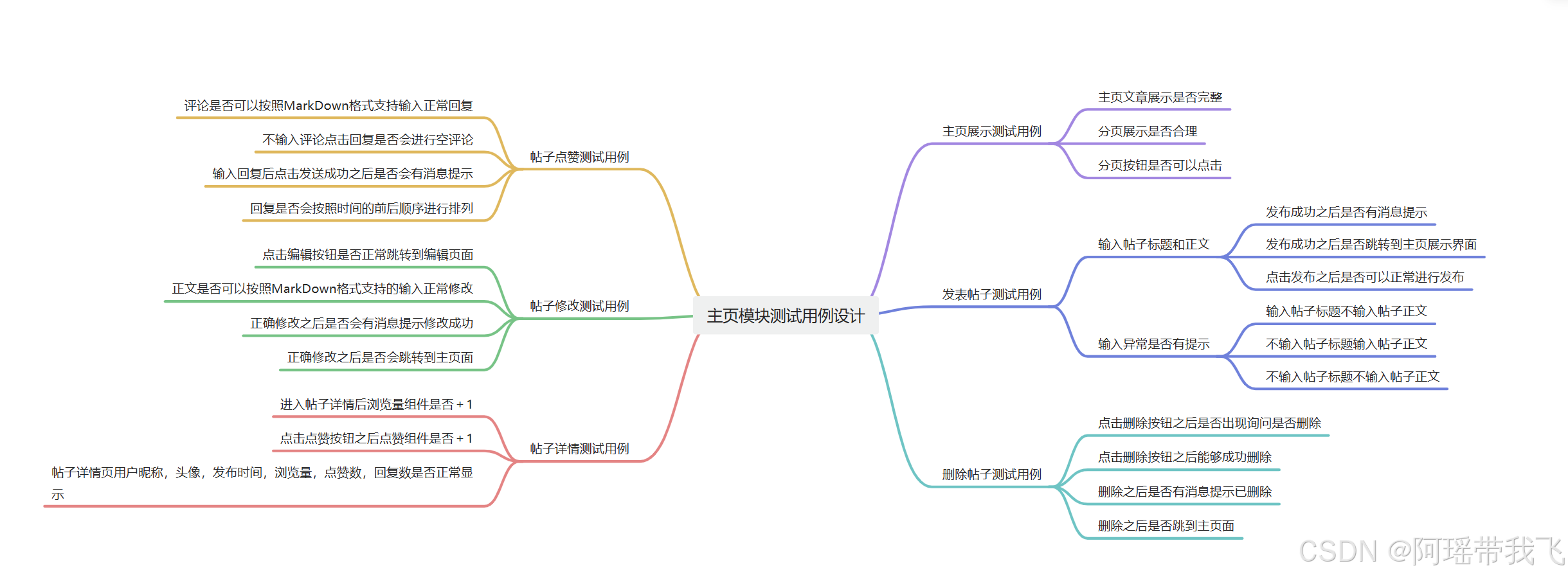

 3、主页模块设计测试用例

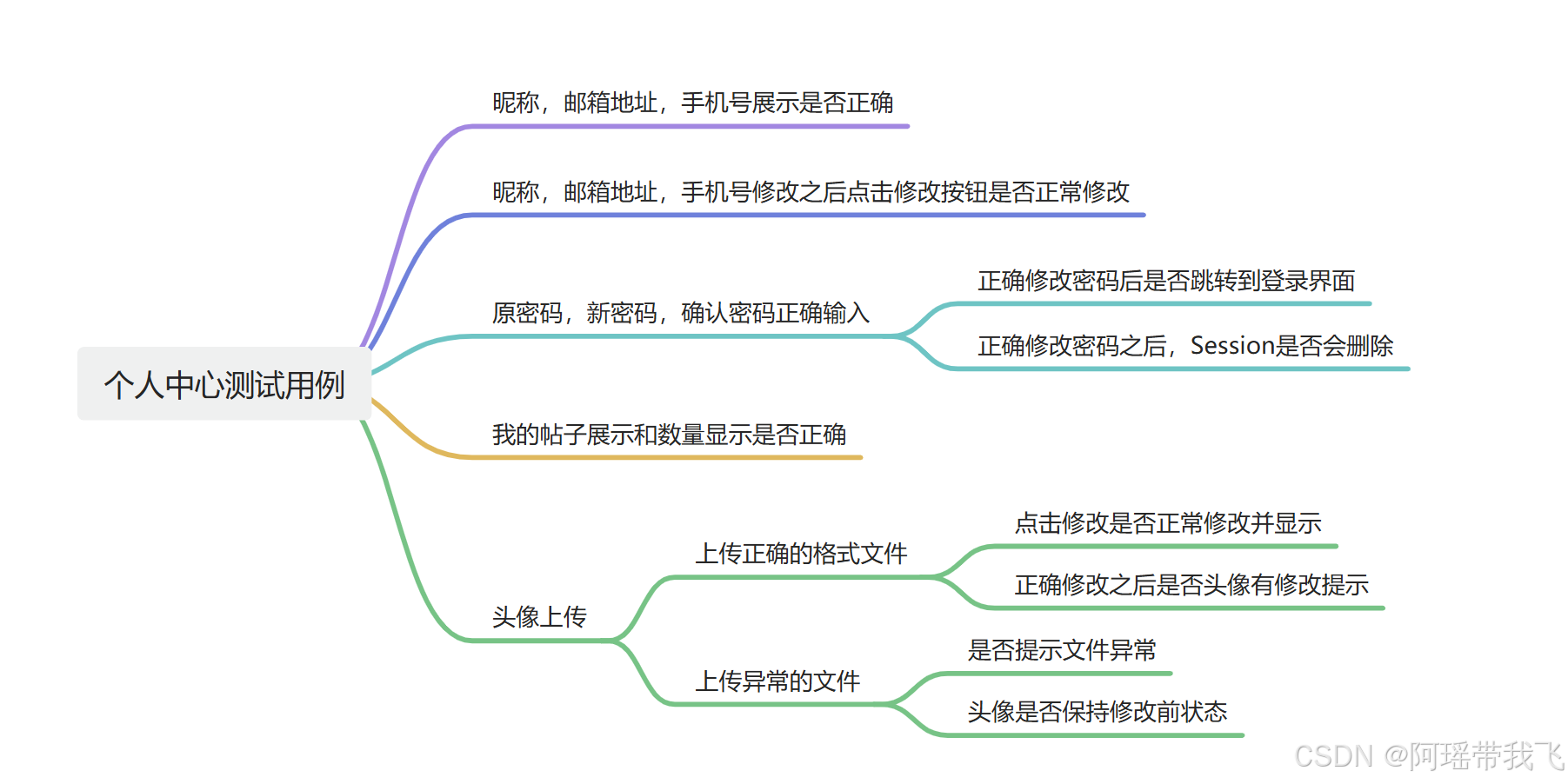

 4、个人中心模块测试用例

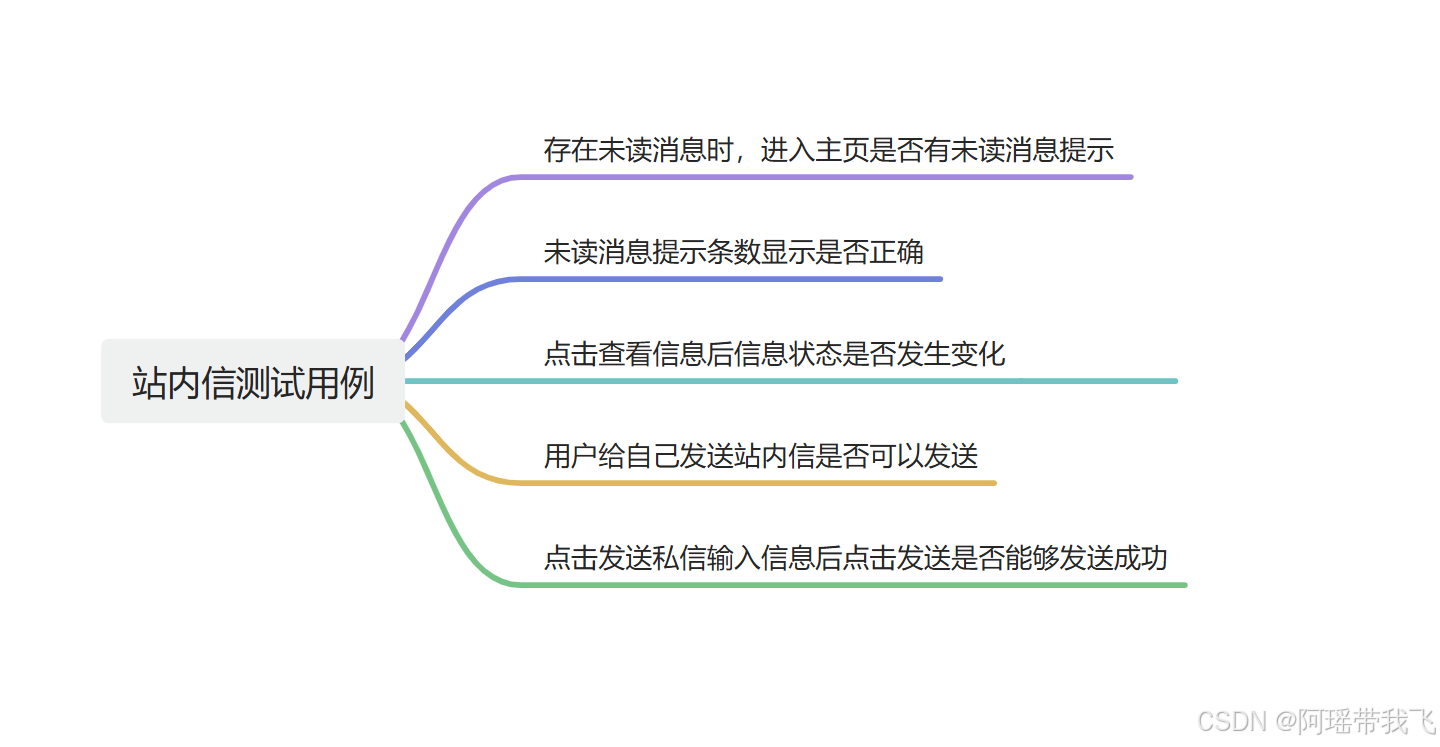

5、站内信模块测试用例

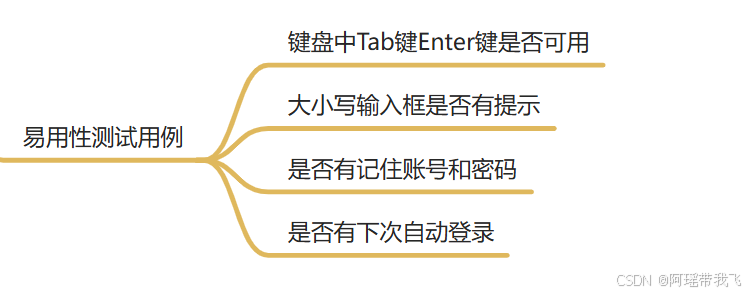

6、易用性测试用例

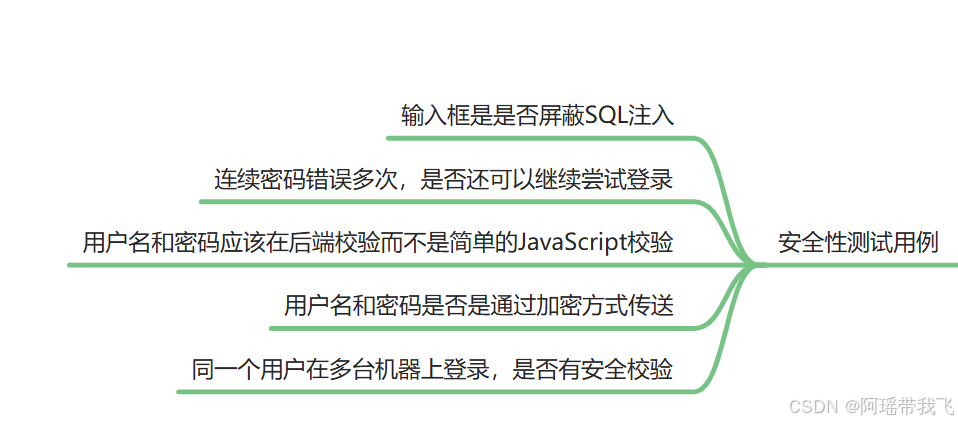

7、安全性测试用例

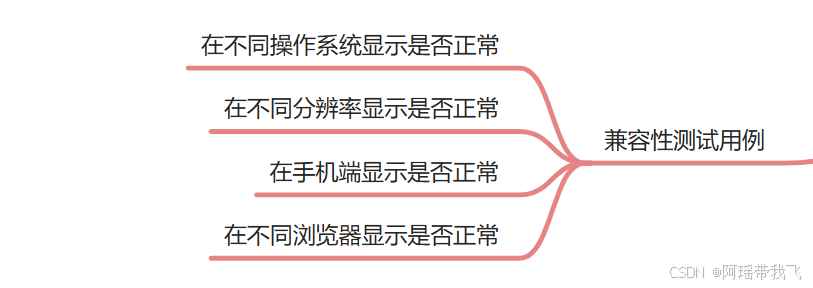

8、兼容性测试用例

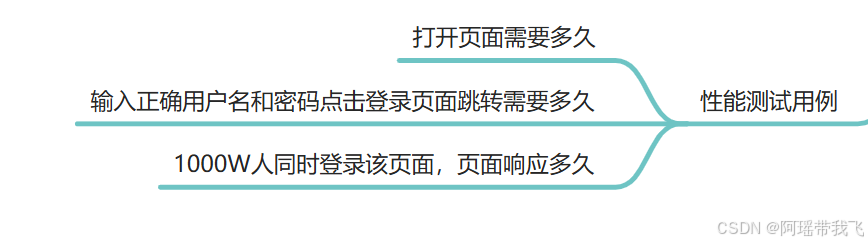

 9、性能测试用例

三、自动化测试代码

 1、登录注册

package forum;

import org.junit.jupiter.api.*;
import org.junit.jupiter.params.ParameterizedTest;
import org.junit.jupiter.params.provider.CsvSource;
import org.openqa.selenium.By;
import org.openqa.selenium.chrome.ChromeDriver;

import static java.lang.Thread.sleep;


@TestMethodOrder(MethodOrderer.OrderAnnotation.class)
public class LoginTest {
    private static ChromeDriver driver;

    private static ChromeDriver getDriver() {
        if (driver == null) {
            driver = new ChromeDriver();
            //隐式等待
//            driver.manage().timeouts().implicitlyWait(Duration.ofSeconds(3));
        }
        return driver;
    }
    @Test
    @BeforeAll
    static void start() throws InterruptedException {
        driver = getDriver();
        driver.get("http://39.104.54.203:58880/sign-in.html");
        driver.manage().window().maximize();
        sleep(2000);
    }
    //测试页面元素是否正常
    @Test
    @Order(1)
    public void appearance() throws InterruptedException {
        String login = driver.findElement(By.xpath("/html/body/div/div/div/div[1]/div/div[2]/div/h2")).getText();
        Assertions.assertEquals(login,"用户登录");
        String label5 = driver.findElement(By.xpath("//*[@id=\"signInForm\"]/div[1]/label")).getText();
        Assertions.assertEquals(label5,"用户名");
        String placeholder5 = driver.findElement(By.cssSelector("#username")).getAttribute("placeholder");
        Assertions.assertEquals(placeholder5,"请输入用户名");
        String label6 = driver.findElement(By.xpath("//*[@id=\"signInForm\"]/div[2]/label")).getText();
        Assertions.assertEquals(label6,"密码");
        String placeholder6 = driver.findElement(By.cssSelector("#password")).getAttribute("placeholder");
        Assertions.assertEquals(placeholder6,"请输入密码");
    }
    //错误登录
    @ParameterizedTest
    @CsvSource(value = {"y,123", "yu,123", "yue,123", "yuey,123",
            "yueyu,123", "yueyue,123"})
    @Order(2)
    void falseLogin(String username,String password){
        driver.findElement(By.cssSelector("#username")).clear();
        driver.findElement(By.cssSelector("#username")).sendKeys(username);
        driver.findElement(By.cssSelector("#password")).clear();
        driver.findElement(By.cssSelector("#password")).sendKeys(password);
        driver.findElement(By.id("submit")).click();
    }
    @ParameterizedTest
    @CsvSource(value = {"yueyue,yueyue3344", "weizi,123456", "huazi,123456"})
    @Order(3)
    void rightLogin(String username,String password) throws InterruptedException {
//        String windowHandle = driver.getWindowHandle();
        driver.findElement(By.cssSelector("#username")).clear();
        driver.findElement(By.cssSelector("#username")).sendKeys(username);
        driver.findElement(By.cssSelector("#password")).clear();
        driver.findElement(By.cssSelector("#password")).sendKeys(password);
        driver.findElement(By.id("submit")).click();
        sleep(2000);
//        String user = driver.findElement(By.xpath("//*[@id=\"article_list_board_title\"]")).getText();
        String user  = driver.findElement(By.id("article_list_board_title")).getText();
        Assertions.assertEquals(user,"首页");
        driver.navigate().back();
    }
    @Test
    @Order(4)
    void nullLogin() throws InterruptedException {
        driver.findElement(By.cssSelector("#username")).clear();
        driver.findElement(By.cssSelector("#password")).clear();
        driver.findElement(By.cssSelector("#submit")).click();
        sleep(2000);
    }
    @Test
    @Order(5)
    void notUnLogin() throws InterruptedException {
        driver.findElement(By.cssSelector("#username")).clear();
        driver.findElement(By.cssSelector("#password")).sendKeys("123");
        driver.findElement(By.cssSelector("#submit")).click();
        sleep(2000);
    }
    @Test
    @Order(6)
    void notPwLogin() throws InterruptedException {
        driver.findElement(By.cssSelector("#username")).sendKeys("yue");
        driver.findElement(By.cssSelector("#password")).clear();
        driver.findElement(By.cssSelector("#submit")).click();
        sleep(2000);
    }
    @Test
    @Order(7)
    void quit(){
        driver.quit();
    }
}

2、注册测试

package forum;

import org.junit.jupiter.api.*;
import org.junit.jupiter.params.ParameterizedTest;
import org.junit.jupiter.params.provider.CsvSource;
import org.openqa.selenium.By;
import org.openqa.selenium.chrome.ChromeDriver;

import static java.lang.Thread.sleep;


@TestMethodOrder(MethodOrderer.OrderAnnotation.class)
public class RegistTest {
    private static ChromeDriver driver;
    private static ChromeDriver getDriver() {
        if (driver == null) {
            driver = new ChromeDriver();
        }
        return driver;
    }
    @Test
    @BeforeAll
    static void start() throws InterruptedException {
        driver = getDriver();
        driver.get("http://39.104.54.203:58880/sign-in.html");
        driver.manage().window().maximize();
        sleep(2000);
    }
    @Test
    @Order(1)
    public void registUi(){
        String label = driver.findElement(By.xpath("/html/body/div/div/div/div[1]/div/div[3]/a")).getText();
        Assertions.assertEquals(label,"点击注册");
        driver.findElement(By.xpath("/html/body/div/div/div/div[1]/div/div[3]/a")).click();
        String url = driver.getCurrentUrl();
        Assertions.assertEquals(url,"http://39.104.54.203:58880/sign-up.html");
        String register = driver.findElement(By.xpath("//*[@id=\"signUpForm\"]/div/h2")).getText();
        Assertions.assertEquals(register,"用户注册");
        String label1 = driver.findElement(By.xpath("//*[@id=\"signUpForm\"]/div/div[1]/label")).getText();
        Assertions.assertEquals(label1,"用户名");
        String placeholder1 = driver.findElement(By.cssSelector("#username")).getAttribute("placeholder");
        Assertions.assertEquals(placeholder1,"请输入用户名");
        String label2 = driver.findElement(By.xpath("//*[@id=\"signUpForm\"]/div/div[2]/label")).getText();
        Assertions.assertEquals(label2,"昵称");
        String placeholder2 = driver.findElement(By.cssSelector("#nickname")).getAttribute("placeholder");
        Assertions.assertEquals(placeholder2,"请输入昵称");
        String label3 = driver.findElement(By.xpath("//*[@id=\"signUpForm\"]/div/div[3]/label")).getText();
        Assertions.assertEquals(label3,"密码");
        String placeholder3 = driver.findElement(By.cssSelector("#password")).getAttribute("placeholder");
        Assertions.assertEquals(placeholder3,"请输入密码");
        String label4 = driver.findElement(By.xpath("//*[@id=\"signUpForm\"]/div/div[4]/label")).getText();
        Assertions.assertEquals(label4,"确认密码");
        String placeholder4 = driver.findElement(By.cssSelector("#passwordRepeat")).getAttribute("placeholder");
        Assertions.assertEquals(placeholder4,"再次输入密码");
    }
    //注册功能测试
    //正确注册、输入两次密码不一致的用户、输入已存在用户
    @ParameterizedTest
    @CsvSource(value = {"test01,测试01,123,123", "test02,测试02,123,1234","weizi,威子,123456,123456"})
    @Order(2)
    void registInput(String username,String nickname,String password,String passwordRepeat) throws InterruptedException {
        //若当前在登录页面则点击注册跳转至注册页面
        if(driver.findElement(By.xpath("//*[@id=\"submit\"]")).getText().equals("登录")){
            driver.findElement(By.xpath("/html/body/div/div/div/div[1]/div/div[3]/a")).click();
        }
        driver.findElement(By.cssSelector("#username")).clear();
        driver.findElement(By.cssSelector("#username")).sendKeys(username);
        driver.findElement(By.cssSelector("#nickname")).clear();
        driver.findElement(By.cssSelector("#nickname")).sendKeys(nickname);
        driver.findElement(By.cssSelector("#password")).clear();
        driver.findElement(By.cssSelector("#password")).sendKeys(password);
        driver.findElement(By.cssSelector("#passwordRepeat")).clear();
        driver.findElement(By.cssSelector("#passwordRepeat")).sendKeys(passwordRepeat);
        driver.findElement(By.cssSelector("#policy")).click();
        driver.findElement(By.cssSelector("#submit")).click();
        sleep(3000);
    }
    @Test
    @Order(3)
    void quit(){
        driver.quit();
    }
}

3、主页测试

package forum;


import org.junit.jupiter.api.*;
import org.junit.jupiter.params.ParameterizedTest;
import org.junit.jupiter.params.provider.CsvSource;
import org.openqa.selenium.By;
import org.openqa.selenium.Keys;
import org.openqa.selenium.chrome.ChromeDriver;


import static java.lang.Thread.sleep;


@TestMethodOrder(MethodOrderer.OrderAnnotation.class)
public class HomePageTest {
    private static ChromeDriver driver;

    private static ChromeDriver getDriver() {
        if (driver == null) {
            driver = new ChromeDriver();
        }
        return driver;
    }
    @Test
    @BeforeAll
    static void start() throws InterruptedException {
        driver = getDriver();
        driver.get("http://39.104.54.203:58880/sign-in.html");
        driver.manage().window().maximize();
        sleep(2000);
    }
    @ParameterizedTest
    @CsvSource(value = {"yueyue,yueyue3344"})
    @Order(1)
    void login(String username,String password){
        driver.findElement(By.cssSelector("#username")).clear();
        driver.findElement(By.cssSelector("#username")).sendKeys(username);
        driver.findElement(By.cssSelector("#password")).clear();
        driver.findElement(By.cssSelector("#password")).sendKeys(password);
        driver.findElement(By.id("submit")).click();
    }
    //主页UI测试
    @Test
    @Order(2)
    void homePageUI() throws InterruptedException {
        sleep(2000);
        String board_title = driver.findElement(By.id("article_list_board_title")).getText();
        Assertions.assertEquals(board_title,"首页");
        driver.findElement(By.xpath("//*[@id=\"topBoardList\"]/li[2]/a")).click();
        sleep(1000);
        String board_title2 = driver.findElement(By.id("article_list_board_title")).getText();
        Assertions.assertEquals(board_title2,"Java");
        driver.findElement(By.xpath("//*[@id=\"topBoardList\"]/li[9]/a")).click();
        sleep(1000);
        String board_title3 = driver.findElement(By.id("article_list_board_title")).getText();
        Assertions.assertEquals(board_title3,"测试");
//        sleep(2000);
//        String nickname = driver.findElement(By.id("index_nav_nickname")).getText();
//        Assertions.assertEquals(nickname,"岳岳");
    }
    //发布帖子测试
    @Test
    @Order(3)
    void post() throws InterruptedException {
        driver.findElement(By.xpath("//*[@id=\"bit-forum-content\"]/div[1]/div/div/div[2]/div/a[1]")).click();
        sleep(3000);
        String title = driver.findElement(By.xpath("//*[@id=\"bit-forum-content\"]/div[1]/div/div/div/h2")).getText();
        Assertions.assertEquals(title,"发新贴");
        driver.switchTo().activeElement().sendKeys("UI自动化测试正文");
        driver.findElement(By.id("article_post_title")).sendKeys("UI自动化测试标题");
        driver.executeScript("window.scrollTo(0,1000)");
        sleep(2000);
        driver.findElement(By.id("article_post_submit")).click();
        //切换帖子版块至"测试"后再次测试
    }

    //帖子详情页展示测试
    @Test
    @Order(4)
    void details() throws InterruptedException {
//        login("yueyue","yueyue3344");
        sleep(2000);
        String title = driver.findElement(By.xpath("//*[@id=\"artical-items-body\"]/div[1]/div/div[2]/div[1]/a/strong")).getText();
        String visitCount = driver.findElement(By.xpath("//*[@id=\"artical-items-body\"]/div[1]/div/div[2]/div[2]/div/div[2]/ul/li[1]")).getText();
        int vct = Integer.parseInt(visitCount);
        driver.findElement(By.xpath("//*[@id=\"artical-items-body\"]/div[1]/div/div[2]/div[1]/a")).click();
        sleep(2000);
        //重新获取详情页面帖子标题和页面中间帖子标题 判断是否与主页展示标题一致
        String checktitle = driver.findElement(By.id("details_article_title")).getText();
        String checktitle2 = driver.findElement(By.id("details_article_content_title")).getText();
        Assertions.assertEquals(checktitle,title);
        Assertions.assertEquals(checktitle2,title);
        //浏览量判断
        String checkVisitCount = driver.findElement(By.id("details_article_visitCount")).getText();
        int cvct = Integer.parseInt(checkVisitCount);
        Assertions.assertEquals(vct + 1,cvct);
        //点击点赞按钮 判断是否增加
        String likeCount = driver.findElement(By.id("details_article_likeCount")).getText();
        int lc = Integer.parseInt(likeCount);
        driver.findElement(By.id("details_btn_like_count")).click();
        sleep(2000);
        likeCount = driver.findElement(By.id("details_article_likeCount")).getText();
        Assertions.assertEquals(lc + 1,Integer.parseInt(likeCount));
        driver.findElement(By.xpath("//*[@id=\"nav_board_index\"]/a")).click();
    }
    //帖子修改测试
    @Test
    @Order(5)
    void update() throws InterruptedException {
        //标题删除重写 正文追加
//        login("yueyue","yueyue3344");
        sleep(2000);
        driver.findElement(By.xpath("//*[@id=\"artical-items-body\"]/div[1]/div/div[2]/div[1]/a")).click();
        sleep(1000);
        driver.findElement(By.id("details_artile_edit")).click();
        sleep(1000);
        driver.findElement(By.id("edit_article_title")).clear();
        driver.findElement(By.id("edit_article_title")).sendKeys("UI自动化测试标题修改");
        driver.findElement(By.id("edit_article_title")).sendKeys(Keys.TAB,Keys.END);
        driver.switchTo().activeElement().sendKeys("修改");
        driver.executeScript("window.scrollTo(0,1000)");
        sleep(2000);
        driver.findElement(By.id("edit_article_submit")).click();
        sleep(1000);
        String title = driver.findElement(By.xpath("//*[@id=\"artical-items-body\"]/div[1]/div/div[2]/div[1]/a/strong")).getText();
        Assertions.assertEquals(title.substring(title.length() - 2),"修改");
    }
    //帖子删除测试
    @Test
    @Order(6)
    void delete() throws InterruptedException {
        //通过记录删除前第一条时间 删除后用时间判断当前帖子是否删除成功
//        login("yueyue","yueyue3344");
        sleep(2000);
        String articleCreatTime = driver.findElement(By.xpath("//*[@id=\"artical-items-body\"]/div[1]/div/div[2]/div[2]/div/div[1]/ul/li[2]")).getText();
        driver.findElement(By.xpath("//*[@id=\"artical-items-body\"]/div[1]/div/div[2]/div[1]/a")).click();
        sleep(1000);
        driver.findElement(By.xpath("//*[@id=\"bit-forum-content\"]/div[2]/div/div/div[1]/div[2]/div[2]/div/div[3]/div/a")).click();
        sleep(1000);
        driver.findElement(By.id("details_artile_delete")).click();
        sleep(1000);
        String cact = driver.findElement(By.xpath("//*[@id=\"artical-items-body\"]/div[1]/div/div[2]/div[2]/div/div[1]/ul/li[2]")).getText();
        Assertions.assertNotEquals(articleCreatTime,cact);
    }

    @Test
    @Order(7)
    void quit(){
        driver.quit();
    }
}

4、个人中心测试

package forum;

import org.junit.jupiter.api.*;
import org.junit.jupiter.params.ParameterizedTest;
import org.junit.jupiter.params.provider.CsvSource;
import org.openqa.selenium.By;
import org.openqa.selenium.chrome.ChromeDriver;

import static java.lang.Thread.sleep;


@TestMethodOrder(MethodOrderer.OrderAnnotation.class)
public class PersonalCenterTest {
    private static ChromeDriver driver;

    private static ChromeDriver getDriver() {
        if (driver == null) {
            driver = new ChromeDriver();
        }
        return driver;
    }
    @Test
    @BeforeAll
    static void start() throws InterruptedException {
        driver = getDriver();
        driver.get("http://39.104.54.203:58880/sign-in.html");
        driver.manage().window().maximize();
        sleep(2000);
    }
    @ParameterizedTest
    @CsvSource(value = {"yueyue,yueyue3344"})
    @Order(1)
    void login(String username,String password){
        driver.findElement(By.cssSelector("#username")).clear();
        driver.findElement(By.cssSelector("#username")).sendKeys(username);
        driver.findElement(By.cssSelector("#password")).clear();
        driver.findElement(By.cssSelector("#password")).sendKeys(password);
        driver.findElement(By.id("submit")).click();
    }
    @Test
    @Order(2)
    void CenterUITest() throws InterruptedException {
//        login("yueyue","yueyue3344");
        sleep(2000);
        driver.findElement(By.xpath("/html/body/div[1]/header[1]/div/div/div[3]")).click();
        sleep(6000);
        driver.findElement(By.id("index_user_settings")).click();
        sleep(1000);
        String nickname = driver.findElement(By.id("index_nav_nickname")).getText();
        String cnickname = driver.findElement(By.id("settings_nickname")).getText();
        Assertions.assertEquals(nickname,cnickname);
        String label1 = driver.findElement(By.xpath("//*[@id=\"bit-forum-content\"]/div[2]/div/div/div/div[2]/div/h3[1]")).getText();
        Assertions.assertEquals(label1,"昵称");
        String label2 = driver.findElement(By.xpath("//*[@id=\"bit-forum-content\"]/div[2]/div/div/div/div[2]/div/h3[2]")).getText();
        Assertions.assertEquals(label2,"邮箱地址");
        String label3 = driver.findElement(By.xpath("//*[@id=\"bit-forum-content\"]/div[2]/div/div/div/div[2]/div/h3[3]")).getText();
        Assertions.assertEquals(label3,"电话号码");
        String label4 = driver.findElement(By.xpath("//*[@id=\"bit-forum-content\"]/div[2]/div/div/div/div[2]/div/h3[4]")).getText();
        Assertions.assertEquals(label4,"修改密码");
        String mlabel1 = driver.findElement(By.xpath("//*[@id=\"bit-forum-content\"]/div[2]/div/div/div/div[2]/div/div[5]/div/div/form/div[1]/label")).getText();
        Assertions.assertEquals(mlabel1,"原密码");
        String placeholder1 = driver.findElement(By.id("settings_input_oldPassword")).getAttribute("placeholder");
        Assertions.assertEquals(placeholder1,"请输入密码");
        String placeholder2 = driver.findElement(By.id("settings_input_newPassword")).getAttribute("placeholder");
        Assertions.assertEquals(placeholder1,"请输入密码");
        String placeholder3 = driver.findElement(By.id("settings_input_passwordRepeat")).getAttribute("placeholder");
        Assertions.assertEquals(placeholder1,"请输入密码");
        String mlabel2 = driver.findElement(By.xpath("//*[@id=\"bit-forum-content\"]/div[2]/div/div/div/div[2]/div/div[5]/div/div/form/div[2]/label")).getText();
        Assertions.assertEquals(mlabel2,"新原密码");
        String mlabel3 = driver.findElement(By.xpath("//*[@id=\"bit-forum-content\"]/div[2]/div/div/div/div[2]/div/div[5]/div/div/form/div[3]/label")).getText();
        Assertions.assertEquals(mlabel3,"确认密码");
        driver.executeScript("window.scrollTo(0,1000)");
        sleep(1000);
        String label5 = driver.findElement(By.xpath("//*[@id=\"bit-forum-content\"]/div[2]/div/div/div/div[2]/div/h3[5]")).getText();
        Assertions.assertEquals(label5,"个人简介");
        String placeholder4 = driver.findElement(By.id("settings_textarea_remark")).getAttribute("placeholder");
        Assertions.assertEquals(placeholder4,"写点自我介绍，可以让朋友们了解你...");
    }
//    @Test
//    @Order(3)
//    void modifyAvatar(){
//      获取当前头像url
//      需要使用AutoIT工具编写脚本
//      使用AutoIT来识别Windows控件信息
//      然后在点击头像上传之后运行脚本执行windows窗口操作完成上传
//      之后点击修改头像
//      重新获取头像url
//      断言url判断头像是否已修改
//    }
    @Test
    @Order(3)
    void updateBasic() throws InterruptedException {
        sleep(1000);
        driver.executeScript("window.scrollTo(0,-1000)");
        sleep(1000);
        driver.findElement(By.id("setting_input_nickname")).clear();
        driver.findElement(By.id("setting_submit_nickname")).click();
        driver.findElement(By.id("setting_input_nickname")).sendKeys("UIAutoTest");
        driver.findElement(By.id("setting_submit_nickname")).click();
        sleep(1500);
        driver.executeScript("window.scrollTo(0,1000)");
        driver.findElement(By.id("setting_input_email")).clear();
        driver.findElement(By.id("setting_submit_email")).click();
        driver.findElement(By.id("setting_input_email")).sendKeys("UIAutoTest@yeah.net");
        driver.findElement(By.id("setting_submit_email")).click();
        sleep(1500);
        driver.executeScript("window.scrollTo(0,1000)");
        driver.findElement(By.id("setting_input_phoneNum")).clear();
        driver.findElement(By.id("setting_submit_phoneNum")).click();
        driver.findElement(By.id("setting_input_phoneNum")).sendKeys("18888888888");
        driver.findElement(By.id("setting_submit_phoneNum")).click();
        driver.executeScript("window.scrollTo(0,10000)");
        sleep(1500);
        driver.findElement(By.id("settings_textarea_remark")).clear();
        driver.findElement(By.id("settings_submit_remark")).click();
        driver.findElement(By.id("settings_textarea_remark")).sendKeys("UI自动化测试");
        driver.findElement(By.id("settings_submit_remark")).click();
    }
    @ParameterizedTest
    @CsvSource(value = {"yueyue3344,yueyue3355,yueyue3355"})
    @Order(4)
    void falseUpdatePassword(String oldPassword,String newPassword,String passwordRepeat) throws InterruptedException {
        sleep(1500);
        // 原密码、新原密码、确认密码都为空
        driver.findElement(By.id("settings_input_oldPassword")).clear();
        driver.findElement(By.id("settings_input_newPassword")).clear();
        driver.findElement(By.id("settings_input_passwordRepeat")).clear();
        driver.findElement(By.id("settings_submit_password")).click();
        sleep(1500);
        //原密码为空、新原密码、确认密码不为空
        driver.findElement(By.id("settings_input_oldPassword")).clear();
        driver.findElement(By.id("settings_input_newPassword")).clear();
        driver.findElement(By.id("settings_input_newPassword")).sendKeys(newPassword);
        driver.findElement(By.id("settings_input_passwordRepeat")).clear();
        driver.findElement(By.id("settings_input_passwordRepeat")).sendKeys(passwordRepeat);
        driver.findElement(By.id("settings_submit_password")).click();
        sleep(1500);
        //新原密码和确认密码不一致
        driver.findElement(By.id("settings_input_oldPassword")).clear();
        driver.findElement(By.id("settings_input_oldPassword")).sendKeys(oldPassword);
        driver.findElement(By.id("settings_input_newPassword")).clear();
        driver.findElement(By.id("settings_input_newPassword")).sendKeys(newPassword);
        driver.findElement(By.id("settings_input_passwordRepeat")).clear();
        driver.findElement(By.id("settings_input_passwordRepeat")).sendKeys(passwordRepeat + "123");
        driver.findElement(By.id("settings_submit_password")).click();
        sleep(1500);
        driver.findElement(By.id("settings_input_oldPassword")).clear();
        driver.findElement(By.id("settings_input_newPassword")).clear();
        driver.findElement(By.id("settings_input_passwordRepeat")).clear();
    }
    @ParameterizedTest
    @CsvSource(value = {"yueyue3344,yueyue3355,yueyue3355"})
    @Order(5)
    void rightUpdatePassword(String oldPassword,String newPassword,String passwordRepeat) throws InterruptedException {
        sleep(1000);
        driver.findElement(By.id("settings_input_oldPassword")).clear();
        driver.findElement(By.id("settings_input_oldPassword")).sendKeys(oldPassword);
        driver.findElement(By.id("settings_input_newPassword")).clear();
        driver.findElement(By.id("settings_input_newPassword")).sendKeys(newPassword);
        driver.findElement(By.id("settings_input_passwordRepeat")).clear();
        driver.findElement(By.id("settings_input_passwordRepeat")).sendKeys(passwordRepeat);
        sleep(1500);
        driver.findElement(By.id("settings_submit_password")).click();
    }
    @Test
    @Order(6)
    void checkUpdate() throws InterruptedException {
        sleep(1500);
        login("yueyue","yueyue3355");
        sleep(1500);
        driver.findElement(By.xpath("/html/body/div[1]/header[1]/div/div/div[3]")).click();
        sleep(5000);
        driver.findElement(By.id("index_user_settings")).click();
        sleep(1000);
        String nickname = driver.findElement(By.id("index_nav_nickname")).getText();
        String cnickname = driver.findElement(By.id("settings_nickname")).getText();
        Assertions.assertEquals(nickname,cnickname);
        driver.executeScript("window.scrollTo(0,1000)");
        rightUpdatePassword("yueyue3355","yueyue3344","yueyue3344");
        sleep(1000);
        driver.quit();
    }

}

5、站内信测试

package forum;

import javafx.scene.control.Alert;
import org.junit.jupiter.api.*;
import org.junit.jupiter.params.ParameterizedTest;
import org.junit.jupiter.params.provider.CsvSource;
import org.junit.jupiter.params.provider.ValueSource;
import org.openqa.selenium.By;
import org.openqa.selenium.Keys;
import org.openqa.selenium.chrome.ChromeDriver;

import static java.lang.Thread.sleep;


@TestMethodOrder(MethodOrderer.OrderAnnotation.class)
public class MailTest {
    private static ChromeDriver driver;

    private static ChromeDriver getDriver() {
        if (driver == null) {
            driver = new ChromeDriver();
            //隐式等待
//            driver.manage().timeouts().implicitlyWait(Duration.ofSeconds(3));
        }
        return driver;
    }
    @Test
    @BeforeAll
    static void start() throws InterruptedException {
        driver = getDriver();
        driver.get("http://39.104.54.203:58880/sign-in.html");
        driver.manage().window().maximize();
        sleep(2000);
    }
    @ParameterizedTest
    @CsvSource(value = {"weizi,123456"})
    @Order(1)
    void login(String username,String password){
        driver.findElement(By.cssSelector("#username")).clear();
        driver.findElement(By.cssSelector("#username")).sendKeys(username);
        driver.findElement(By.cssSelector("#password")).clear();
        driver.findElement(By.cssSelector("#password")).sendKeys(password);
        driver.findElement(By.id("submit")).click();
    }
    //点击给自己发送 发送失败
    @ParameterizedTest
    @ValueSource(strings = "UI自动化测试站内信")
    @Order(2)
    void sendForMe(String mail) throws InterruptedException {
        sleep(2000);
        driver.findElement(By.xpath("//*[@id=\"artical-items-body\"]/div[1]/div/div[2]/div[1]/a")).click();
        sleep(1000);
        driver.findElement(By.id("btn_details_send_message")).click();
        sleep(1000);
        driver.findElement(By.id("index_message_receive_cancel")).click();
        sleep(1000);
        driver.findElement(By.id("btn_details_send_message")).click();
        sleep(1000);
        driver.findElement(By.id("index_message_receive_content")).clear();
        driver.findElement(By.id("btn_index_send_message")).click();
        sleep(1000);
        driver.findElement(By.id("btn_details_send_message")).click();
        sleep(1000);
        driver.findElement(By.id("index_message_receive_content")).clear();
        driver.findElement(By.id("index_message_receive_content")).sendKeys(mail);
        driver.findElement(By.id("btn_index_send_message")).click();
        driver.findElement(By.xpath("//*[@id=\"nav_board_index\"]/a")).click();
        sleep(1000);
//        driver.navigate().back();
    }
    //点击给其他人发送 以未读消息出现为成功 切换用户登录
    @ParameterizedTest
    @ValueSource(strings = "UI自动化测试站内信")
    @Order(3)
    void sendForOther(String mail) throws InterruptedException {
//        login("weizi","123456");
//        sleep(2000);
        driver.findElement(By.xpath("//*[@id=\"artical-items-body\"]/div[2]/div/div[2]/div[1]/a")).click();
        sleep(1000);
        driver.findElement(By.id("btn_details_send_message")).click();
        sleep(1000);
        driver.findElement(By.id("index_message_receive_cancel")).click();
        sleep(1000);
        driver.findElement(By.id("btn_details_send_message")).click();
        sleep(1000);
        driver.findElement(By.id("index_message_receive_content")).clear();
        driver.findElement(By.id("btn_index_send_message")).click();
        sleep(1000);
        driver.findElement(By.id("btn_details_send_message")).click();
        sleep(1000);
        driver.findElement(By.id("index_message_receive_content")).clear();
        driver.findElement(By.id("index_message_receive_content")).sendKeys(mail);
        driver.findElement(By.id("btn_index_send_message")).click();
        driver.findElement(By.xpath("//*[@id=\"nav_board_index\"]/a")).click();
        sleep(1000);
        driver.navigate().back();
    }
    @ParameterizedTest
    @CsvSource(value = {"yueyue,yueyue3344"})
    @Order(4)
    void checkUnRead(String username,String password) throws InterruptedException {
        login(username,password);
        sleep(3000);
        driver.findElement(By.xpath("/html/body/div[1]/header[1]/div/div/div[2]/div/a")).click();
        sleep(1000);
        String state = driver.findElement(By.xpath("//*[@id=\"index_div_message_list\"]/div[1]/div/div[2]/a/span[1]")).getText();
        Assertions.assertEquals(state,"[未读]");
    }
    //点击未读消息 判断是否转变为已读
    @Test
    @Order(5)
    void checkRead() throws InterruptedException {
//        checkUnRead("yueyue","yueyue3344");
//        sleep(2000);
        driver.findElement(By.xpath("//*[@id=\"index_div_message_list\"]/div[1]/div/div[2]/a")).click();
        sleep(1000);
        driver.findElement(By.id("index_message_reply_cancel")).click();
        sleep(500);
        String state = driver.findElement(By.xpath("//*[@id=\"index_div_message_list\"]/div[1]/div/div[2]/a/span[1]")).getText();
        Assertions.assertEquals(state,"[已读]");
    }
    //回复消息后 判断是否变为已回复 同时接收方出现未读消息
    @ParameterizedTest
    @CsvSource(value = {"weizi,123456,UI自动化测试回复"})
    @Order(6)
    void checkReplied(String username,String password,String mail) throws InterruptedException {
        driver.findElement(By.xpath("//*[@id=\"index_div_message_list\"]/div[1]/div/div[2]/a")).click();
        sleep(1000);
        driver.findElement(By.id("btn_index_message_reply")).click();
        sleep(1000);
        driver.findElement(By.id("index_message_reply_receive_content")).clear();
        driver.findElement(By.id("index_message_reply_receive_content")).sendKeys(mail);
        sleep(1000);
        driver.findElement(By.id("btn_index_send_message_reply")).click();
        sleep(1000);
        driver.findElement(By.xpath("//*[@id=\"index_message_offcanvasEnd\"]/div[1]/button")).click();
        driver.navigate().back();
        checkUnRead(username,password);
        sleep(1000);
        driver.quit();
    }

}

6、注销测试

package forum;

import org.junit.jupiter.api.*;
import org.junit.jupiter.params.ParameterizedTest;
import org.junit.jupiter.params.provider.CsvSource;
import org.openqa.selenium.By;
import org.openqa.selenium.chrome.ChromeDriver;

import static java.lang.Thread.sleep;


@TestMethodOrder(MethodOrderer.OrderAnnotation.class)
public class LogoutTest {
    private static ChromeDriver driver;

    private static ChromeDriver getDriver() {
        if (driver == null) {
            driver = new ChromeDriver();
            //隐式等待
//            driver.manage().timeouts().implicitlyWait(Duration.ofSeconds(3));
        }
        return driver;
    }
    @Test
    @BeforeAll
    static void start() throws InterruptedException {
        driver = getDriver();
        driver.get("http://39.104.54.203:58880/sign-in.html");
        driver.manage().window().maximize();
        sleep(2000);
    }
    @ParameterizedTest
    @CsvSource(value = {"yueyue,yueyue3344"})
    @Order(1)
    void login(String username,String password){
        driver.findElement(By.cssSelector("#username")).clear();
        driver.findElement(By.cssSelector("#username")).sendKeys(username);
        driver.findElement(By.cssSelector("#password")).clear();
        driver.findElement(By.cssSelector("#password")).sendKeys(password);
        driver.findElement(By.id("submit")).click();

    }
    @Test
    @Order(2)
    void logout() throws InterruptedException {
        sleep(1000);
        driver.findElement(By.xpath("/html/body/div[1]/header[1]/div/div/div[3]")).click();
        sleep(1000);
        driver.findElement(By.id("index_user_logout")).click();
        sleep(1000);
    }
    @Test
    @Order(3)
    void quit(){
        driver.quit();
    }
}

基于springboot的扶贫助农系统
shangyizaoxing的博客
08-20 1689
【代码】springboot基于springboot的扶贫助农系统--论文pf
基于springboot学生网上选课系统设计与实现
weixin_44308935的博客
09-18 1207
基于springboot学生网上选课系统设计与实现
spring cloud 并发测试及参数调优(1)
2401_84563354的博客
05-17 761
tomcat设置 max-threads: 1000，同时并发请求1000次，zuul的线程数量接近1000，全部返回成功，没有出现异常。Spring cloud zuul 使用 Hystrix 默认执行方式 SEMAPHORE（信号量）3.1、Spring cloud zuul yml 参数调整（具体值参数值需要参考实际环境）2.1、Spring cloud 版本。2.5、docker 版本。2.3、maven 版本。2.4、mysql 版本。4.1、并发1000测试。2.2、Java 版本。
基于springboot的在线抽奖系统测试报告
gsdgdg00的博客
11-11 624
本报告为在线抽奖系统测试报告，本项目是为了解决抽奖发烧友准备的，包括了用户注册，用户登录，修改奖项等功能。
【高并发优化手段】基于Springboot项目
我是Java程序员廖志伟，感谢朋友们的支持！不定期贡献一篇高品质、过万文字、图文并茂且附有视频解说、满载代码示例注释的良心之作，坚决杜绝粗制乱造。
10-07 3380
Spring Boot是基于Spring Framework的快速开发框架，它提供了许多自动化的配置方法，使得开发者可以更加专注于业务逻辑的实现。在高并发场景下，Spring Boot的配置也是非常重要的，需要对服务器、Tomcat、线程池等进行优化配置，以达到最优的性能。本文将介绍如何对Spring Boot进行优化配置，在高并发场景下实现最佳的性能表现。场景如下：提供30秒内2万用户每秒5次请求的10万并发服务支持。
计算机毕业设计——基于SpringBoot的高并发选课系统
hxx56324的博客
07-22 1066
本项目主要解决在高校选课场景下，保证选课系统在大量读写压力下不宕机，以及选课时尽可能提高选课QPS，给学生一个良好的选课体验，完成上述功能同时保证选课安全。
基于SpringBoot大学生体质测试管理系统的设计与实现
四金同学的博客
02-28 781
Java编程语言Java作为计算机领域中极具影响力的编程语言，自诞生以来便以其独特的优势在众多技术方向上大放异彩。它基于类和对象的概念，通过封装、继承和多态等特性，为构建复杂的软件系统提供了坚实的基础，有力地支持了面向对象的软件开发方法，使代码的组织和复用更加高效。其丰富的API 涵盖了从基本数据结构到网络通信、图形用户界面、数据库连接等各个方面，极大地简化了开发过程，降低了开发成本。
基于SpringBoot篮球论坛系统的设计与实现
四金同学的博客
03-02 833
Java编程语言Java作为计算机领域中极具影响力的编程语言，自诞生以来便以其独特的优势在众多技术方向上大放异彩。它基于类和对象的概念，通过封装、继承和多态等特性，为构建复杂的软件系统提供了坚实的基础，有力地支持了面向对象的软件开发方法，使代码的组织和复用更加高效。其丰富的API 涵盖了从基本数据结构到网络通信、图形用户界面、数据库连接等各个方面，极大地简化了开发过程，降低了开发成本。
基于springboot的个人理财系统
KevenIT的博客
06-26 2045
个人理财系统；MYSQL数据库；Spring Boot
基于SpringBoot外卖点餐系统的设计与实现
四金同学的博客
02-28 637
Java编程语言Java作为计算机领域中极具影响力的编程语言，自诞生以来便以其独特的优势在众多技术方向上大放异彩。它基于类和对象的概念，通过封装、继承和多态等特性，为构建复杂的软件系统提供了坚实的基础，有力地支持了面向对象的软件开发方法，使代码的组织和复用更加高效。其丰富的API 涵盖了从基本数据结构到网络通信、图形用户界面、数据库连接等各个方面，极大地简化了开发过程，降低了开发成本。
基于SpringBoot高并发商城秒杀系统项目.zip
04-08
【SpringBoot高并发商城秒杀系统项目】是一个基于SpringBoot框架构建的电子商务系统，它特别设计用于处理高并发场景下的秒杀活动。SpringBoot以其快速开发、内置服务器和自动配置的特点，使得构建这样的系统变得更加...
学透Spring Boot — 018. 优雅支持多种响应格式
postnull的博客
04-06 1061
本文，我们自己通过内容协商，实现了返回多种格式响应的需求，而且不用改动任何业务代码，只需做少量配置即可。另外，我们也通过引入XML的依赖，实现了Spring Boot对Jackson XML的自动配置。
学透Spring Boot — 017. 魔术师—Http消息转换器
postnull的博客
04-06 1043
本文我们定义了一个新的content type, 构造新的请求体和响应体。希望通过本文，你对Http 消息转换器有更多的了解。
Java全栈面试宝典：线程安全机制与Spring Boot核心原理深度解析
2403_89107873的博客
04-04 1151
创建配置类编写自动配置类注册配置到打包发布为独立模块实战建议使用@Retryable实现方法级重试机制通过@Scheduled创建定时任务时配置线程池利用@Async实现异步处理时监控线程状态互动问答💬 你在项目中如何选择synchronized与Lock？遇到过哪些锁优化案例？🎁 关注+转发，持续更新《Java，Spring面试题》
Spring Boot 配置文件加载优先级全解析
qq479850581的博客
04-08 1063
Spring Boot 的配置加载机制通过灵活的优先级规则，为多环境配置管理提供了强大支持。理解其加载顺序和覆盖逻辑，能够帮助开发者避免配置冲突，提升应用的可维护性。在实际项目中，建议结合容器化部署和配置中心（如 Spring Cloud Config），实现更高效的配置管理。
Spring Boot 3.x 中 WebClient 全面详解及示例
最新发布
爱的叹息的专栏
04-09 549
Spring Boot 3.x 中 WebClient 全面详解及示例
Spring Boot 3.5新特性解析：自动配置再升级，微服务开发更高效
龚小帅的博客
04-09 631
Spring Boot 3.5作为Spring生态的最新版本，带来了多项令人振奋的改进。本文将深入解析其中最核心的自动配置增强特性，以及它们如何显著提升微服务开发效率。通过详细的代码示例和通俗易懂的讲解，您将全面了解这些新特性在实际项目中的应用价值。Spring Boot 3.5的自动配置升级为开发者带来了显著的生产力提升：✅更智能的条件配置减少了样板代码✅动态属性管理增强了运行时灵活性✅详细的配置报告加速了问题排查✅微服务集成简化降低了分布式系统复杂度基于AI的自动配置建议。
Spring MVC与Spring Boot文件上传配置项对比
爱的叹息的专栏
04-08 580
Spring MVC与Spring Boot文件上传配置项对比
评论
添加红包

请填写红包祝福语或标题

个

红包个数最小为10个

元

红包金额最低5元

当前余额3.43元 前往充值 >
需支付：10.00元
成就一亿技术人!
领取后你会自动成为博主和红包主的粉丝 规则
hope_wisdom
发出的红包
实付元
使用余额支付
点击重新获取
扫码支付
钱包余额 0

抵扣说明：

1.余额是钱包充值的虚拟货币，按照1:1的比例进行支付金额的抵扣。
2.余额无法直接购买下载，可以购买VIP、付费专栏及课程。

余额充值
