python程序代码：heart.py
from math import cos, pi
import numpy as np
import cv2
import os, glob
class HeartSignal:
def __init__(self, curve="heart", title="Love U", frame_num=20, seed_points_num=2000, seed_num=None, highlight_rate=0.3,
background_img_dir="", set_bg_imgs=False, bg_img_scale=0.2, bg_weight=0.3, curve_weight=0.7, frame_width=1080, frame_height=960, scale=10.1,
base_color=None, highlight_points_color_1=None, highlight_points_color_2=None, wait=100, n_star=5, m_star=2):
super().__init__()
self.curve = curve
self.title = title
self.highlight_points_color_2 = highlight_points_color_2
self.highlight_points_color_1 = highlight_points_color_1
self.highlight_rate = highlight_rate
self.base_color = base_color
self.n_star = n_star
self.m_star = m_star
self.curve_weight = curve_weight
img_paths = glob.glob(background_img_dir + "/*")
self.bg_imgs = []
self.set_bg_imgs = set_bg_imgs
self.bg_weight = bg_weight
if os.path.exists(background_img_dir) and len(img_paths) > 0 and set_bg_imgs:
for img_path in img_paths:
img = cv2.imread(img_path)
self.bg_imgs.append(img)
first_bg = self.bg_imgs[0]
width = int(first_bg.shape[1] * bg_img_scale)
height = int(first_bg.shape[0] * bg_img_scale)
first_bg = cv2.resize(first_bg, (width, height), interpolation=cv2.INTER_AREA)
# 对齐图片，自动裁切中间
new_bg_imgs = [first_bg, ]
for img in self.bg_imgs[1:]:
width_close = abs(first_bg.shape[1] - img.shape[1]) < abs(first_bg.shape[0] - img.shape[0])
if width_close:
# resize
height = int(first_bg.shape[1] / img.shape[1] * img.shape[0])
width = first_bg.shape[1]
img = cv2.resize(img, (width, height), interpolation=cv2.INTER_AREA)
# crop and fill
if img.shape[0] > first_bg.shape[0]:
crop_num = img.shape[0] - first_bg.shape[0]
crop_top = crop_num // 2
crop_bottom = crop_num - crop_top
img = np.delete(img, range(crop_top), axis=0)
img = np.delete(img, range(img.shape[0] - crop_bottom, img.shape[0]), axis=0)
elif img.shape[0] < first_bg.shape[0]:
fill_num = first_bg.shape[0] - img.shape[0]
fill_top = fill_num // 2
fill_bottom = fill_num - fill_top
img = np.concatenate([np.zeros([fill_top, width, 3]), img, np.zeros([fill_bottom, width, 3])], axis=0)
else:
width = int(first_bg.shape[0] / img.shape[0] * img.shape[1])
height = first_bg.shape[0]
img = cv2.resize(img, (width, height), interpolation=cv2.INTER_AREA)
# crop and fill
if img.shape[1] > first_bg.shape[1]:
crop_num = img.shape[1] - first_bg.shape[1]
crop_top = crop_num // 2
crop_bottom = crop_num - crop_top
img = np.delete(img, range(crop_top), axis=1)
img = np.delete(img, range(img.shape[1] - crop_bottom, img.shape[1]), axis=1)
elif img.shape[1] < first_bg.shape[1]:
fill_num = first_bg.shape[1] - img.shape[1]
fill_top = fill_num // 2
fill_bottom = fill_num - fill_top
img = np.concatenate([np.zeros([fill_top, width, 3]), img, np.zeros([fill_bottom, width, 3])], axis=1)
new_bg_imgs.append(img)
self.bg_imgs = new_bg_imgs
assert all(img.shape[0] == first_bg.shape[0] and img.shape[1] == first_bg.shape[1] for img in self.bg_imgs), "背景图片宽和高不一致"
self.frame_width = self.bg_imgs[0].shape[1]
self.frame_height = self.bg_imgs[0].shape[0]
else:
self.frame_width = frame_width # 窗口宽度
self.frame_height = frame_height # 窗口高度
self.center_x = self.frame_width / 2
self.center_y = self.frame_height / 2
self.main_curve_width = -1
self.main_curve_height = -1
self.frame_points = [] # 每帧动态点坐标
self.frame_num = frame_num # 帧数
self.seed_num = seed_num # 伪随机种子，设置以后除光晕外粒子相对位置不动（减少内部闪烁感）
self.seed_points_num = seed_points_num # 主图粒子数
self.scale = scale # 缩放比例
self.wait = wait
def curve_function(self, curve):
curve_dict = {
"heart": self.heart_function,
"butterfly": self.butterfly_function,
"star": self.star_function,
}
return curve_dict[curve]

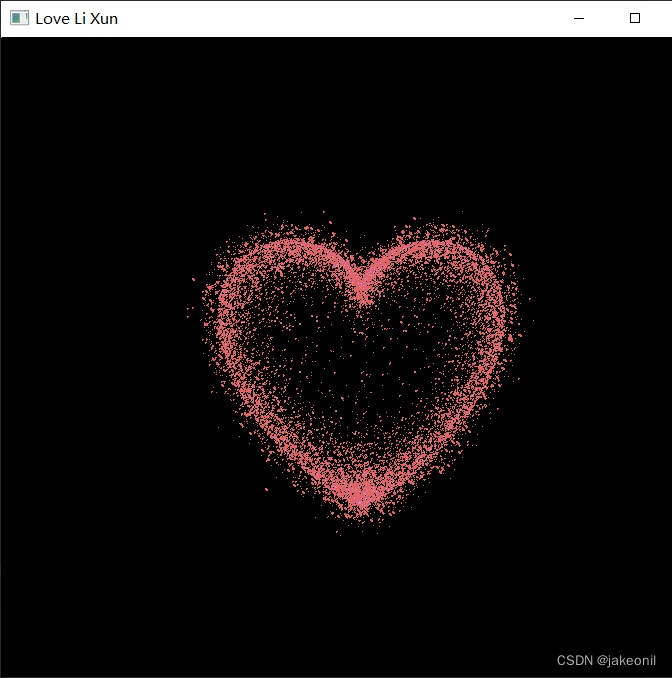

def heart_function(self, t, frame_idx=0, scale=5.20):
"""
图形方程
:param frame_idx: 帧的索引，根据帧数变换心形
:param scale: 放大比例
:param t: 参数
:return: 坐标
"""
trans = 3 - (1 + self.periodic_func(frame_idx, self.frame_num)) * 0.5 # 改变心形饱满度度的参数
x = 15 * (np.sin(t) ** 3)
t = np.where((pi < t) & (t < 2 * pi), 2 * pi - t, t) # 翻转x > 0部分的图形到3、4象限
y = -(14 * np.cos(t) - 4 * np.cos(2 * t) - 2 * np.cos(3 * t) - np.cos(trans * t))
ign_area = 0.15
center_ids = np.where((x > -ign_area) & (x < ign_area))
if np.random.random() > 0.32:
x, y = np.delete(x, center_ids), np.delete(y, center_ids) # 删除稠密部分的扩散，为了美观
# 放大
x *= scale
y *= scale
# 移到画布中央
x += self.center_x
y += self.center_y
# 原心形方程
# x = 15 * (sin(t) ** 3)
# y = -(14 * cos(t) - 4 * cos(2 * t) - 2 * cos(3 * t) - cos(3 * t))
return x.astype(int), y.astype(int)

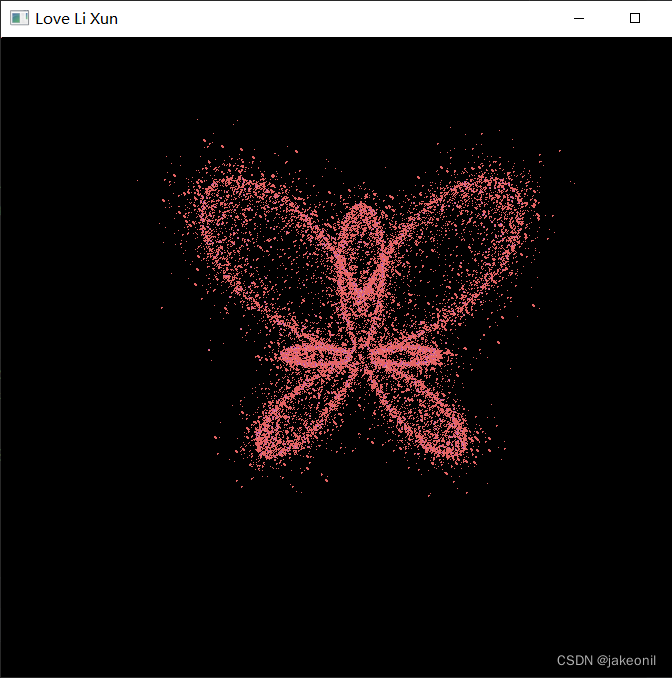

def butterfly_function(self, t, frame_idx=0, scale=5.2):
"""
图形函数
:param frame_idx:
:param scale: 放大比例
:param t: 参数
:return: 坐标
"""
# 基础函数
# t = t * pi
p = np.exp(np.sin(t)) - 2.5 * np.cos(4 * t) + np.sin(t) ** 5
x = 5 * p * np.cos(t)
y = - 5 * p * np.sin(t)
# 放大
x *= scale
y *= scale
# 移到画布中央
x += self.center_x
y += self.center_y
return x.astype(int), y.astype(int)
def star_function(self, t, frame_idx=0, scale=5.2):
n = self.n_star / self.m_star
p = np.cos(pi / n) / np.cos(pi / n - (t % (2 * pi / n)))
x = 15 * p * np.cos(t)
y = 15 * p * np.sin(t)
# 放大
x *= scale
y *= scale
# 移到画布中央
x += self.center_x
y += self.center_y
return x.astype(int), y.astype(int)
def shrink(self, x, y, ratio, offset=1, p=0.5, dist_func="uniform"):
"""
带随机位移的抖动
:param x: 原x
:param y: 原y
:param ratio: 缩放比例
:param p:
:param offset:
:return: 转换后的x,y坐标
"""
x_ = (x - self.center_x)
y_ = (y - self.center_y)
force = 1 / ((x_ ** 2 + y_ ** 2) ** p + 1e-30)
dx = ratio * force * x_
dy = ratio * force * y_
def d_offset(x):
if dist_func == "uniform":
return x + np.random.uniform(-offset, offset, size=x.shape)
elif dist_func == "norm":
return x + offset * np.random.normal(0, 1, size=x.shape)
dx, dy = d_offset(dx), d_offset(dy)
return x - dx, y - dy
def scatter(self, x, y, alpha=0.75, beta=0.15):
"""
随机内部扩散的坐标变换
:param alpha: 扩散因子 - 松散
:param x: 原x
:param y: 原y
:param beta: 扩散因子 - 距离
:return: x,y 新坐标
"""
ratio_x = - beta * np.log(np.random.random(x.shape) * alpha)
ratio_y = - beta * np.log(np.random.random(y.shape) * alpha)
dx = ratio_x * (x - self.center_x)
dy = ratio_y * (y - self.center_y)
return x - dx, y - dy
def periodic_func(self, x, x_num):
"""
跳动周期曲线
:param p: 参数
:return: y
"""
# 可以尝试换其他的动态函数，达到更有力量的效果（贝塞尔？）
def ori_func(t):
return cos(t)
func_period = 2 * pi
return ori_func(x / x_num * func_period)
def gen_points(self, points_num, frame_idx, shape_func):
# 用周期函数计算得到一个因子，用到所有组成部件上，使得各个部分的变化周期一致
cy = self.periodic_func(frame_idx, self.frame_num)
ratio = 10 * cy
# 图形
period = 2 * pi * self.m_star if self.curve == "star" else 2 * pi
seed_points = np.linspace(0, period, points_num)
seed_x, seed_y = shape_func(seed_points, frame_idx, scale=self.scale)
x, y = self.shrink(seed_x, seed_y, ratio, offset=2)
curve_width, curve_height = int(x.max() - x.min()), int(y.max() - y.min())
self.main_curve_width = max(self.main_curve_width, curve_width)
self.main_curve_height = max(self.main_curve_height, curve_height)
point_size = np.random.choice([1, 2], x.shape, replace=True, p=[0.5, 0.5])
tag = np.ones_like(x)
def delete_points(x_, y_, ign_area, ign_prop):
ign_area = ign_area
center_ids = np.where((x_ > self.center_x - ign_area) & (x_ < self.center_x + ign_area))
center_ids = center_ids[0]
np.random.shuffle(center_ids)
del_num = round(len(center_ids) * ign_prop)
del_ids = center_ids[:del_num]
x_, y_ = np.delete(x_, del_ids), np.delete(y_, del_ids) # 删除稠密部分的扩散，为了美观
return x_, y_
# 多层次扩散
for idx, beta in enumerate(np.linspace(0.05, 0.2, 6)):
alpha = 1 - beta
x_, y_ = self.scatter(seed_x, seed_y, alpha, beta)
x_, y_ = self.shrink(x_, y_, ratio, offset=round(beta * 15))
x = np.concatenate((x, x_), 0)
y = np.concatenate((y, y_), 0)
p_size = np.random.choice([1, 2], x_.shape, replace=True, p=[0.55 + beta, 0.45 - beta])
point_size = np.concatenate((point_size, p_size), 0)
tag_ = np.ones_like(x_) * 2
tag = np.concatenate((tag, tag_), 0)
# 光晕
halo_ratio = int(7 + 2 * abs(cy)) # 收缩比例随周期变化
# 基础光晕
x_, y_ = shape_func(seed_points, frame_idx, scale=self.scale + 0.9)
x_1, y_1 = self.shrink(x_, y_, halo_ratio, offset=18, dist_func="uniform")
x_1, y_1 = delete_points(x_1, y_1, 20, 0.5)
x = np.concatenate((x, x_1), 0)
y = np.concatenate((y, y_1), 0)
# 炸裂感光晕
halo_number = int(points_num * 0.6 + points_num * abs(cy)) # 光晕点数也周期变化
seed_points = np.random.uniform(0, 2 * pi, halo_number)
x_, y_ = shape_func(seed_points, frame_idx, scale=self.scale + 0.9)
x_2, y_2 = self.shrink(x_, y_, halo_ratio, offset=int(6 + 15 * abs(cy)), dist_func="norm")
x_2, y_2 = delete_points(x_2, y_2, 20, 0.5)
x = np.concatenate((x, x_2), 0)
y = np.concatenate((y, y_2), 0)
# 膨胀光晕
x_3, y_3 = shape_func(np.linspace(0, 2 * pi, int(points_num * .4)),
frame_idx, scale=self.scale + 0.2)
x_3, y_3 = self.shrink(x_3, y_3, ratio * 2, offset=6)
x = np.concatenate((x, x_3), 0)
y = np.concatenate((y, y_3), 0)
halo_len = x_1.shape[0] + x_2.shape[0] + x_3.shape[0]
p_size = np.random.choice([1, 2, 3], halo_len, replace=True, p=[0.7, 0.2, 0.1])
point_size = np.concatenate((point_size, p_size), 0)
tag_ = np.ones(halo_len) * 2 * 3
tag = np.concatenate((tag, tag_), 0)
x_y = np.around(np.stack([x, y], axis=1), 0)
x, y = x_y[:, 0], x_y[:, 1]
return x, y, point_size, tag
def get_frames(self, shape_func):
for frame_idx in range(self.frame_num):
np.random.seed(self.seed_num)
self.frame_points.append(self.gen_points(self.seed_points_num, frame_idx, shape_func))
frames = []
def add_points(frame, x, y, size, tag):
highlight1 = np.array(self.highlight_points_color_1, dtype='uint8')
highlight2 = np.array(self.highlight_points_color_2, dtype='uint8')
base_col = np.array(self.base_color, dtype='uint8')
x, y = x.astype(int), y.astype(int)
frame[y, x] = base_col
size_2 = np.int64(size == 2)
frame[y, x + size_2] = base_col
frame[y + size_2, x] = base_col
size_3 = np.int64(size == 3)
frame[y + size_3, x] = base_col
frame[y - size_3, x] = base_col
frame[y, x + size_3] = base_col
frame[y, x - size_3] = base_col
frame[y + size_3, x + size_3] = base_col
frame[y - size_3, x - size_3] = base_col
# frame[y - size_3, x + size_3] = color
# frame[y + size_3, x - size_3] = color
# 高光
random_sample = np.random.choice([1, 0], size=tag.shape, p=[self.highlight_rate, 1 - self.highlight_rate])
# tag2_size1 = np.int64((tag <= 2) & (size == 1) & (random_sample == 1))
# frame[y * tag2_size1, x * tag2_size1] = highlight2
tag2_size2 = np.int64((tag <= 2) & (size == 2) & (random_sample == 1))
frame[y * tag2_size2, x * tag2_size2] = highlight1
# frame[y * tag2_size2, (x + 1) * tag2_size2] = highlight2
# frame[(y + 1) * tag2_size2, x * tag2_size2] = highlight2
frame[(y + 1) * tag2_size2, (x + 1) * tag2_size2] = highlight2
for x, y, size, tag in self.frame_points:
frame = np.zeros([self.frame_height, self.frame_width, 3], dtype="uint8")
add_points(frame, x, y, size, tag)
frames.append(frame)
return frames
def draw(self, times=10):
frames = self.get_frames(self.curve_function(self.curve))
for i in range(times):
for frame in frames:
frame = cv2.cvtColor(frame, cv2.COLOR_RGB2BGR)
if len(self.bg_imgs) > 0 and self.set_bg_imgs:
frame = cv2.addWeighted(self.bg_imgs[i % len(self.bg_imgs)], self.bg_weight, frame, self.curve_weight, 0)
cv2.imshow(self.title, frame)
cv2.waitKey(self.wait)
if __name__ == '__main__':
import yaml
settings = yaml.load(open("./settings.yaml", "r", encoding="utf-8"), Loader=yaml.FullLoader)
if settings["wait"] == -1:
settings["wait"] = int(settings["period_time"] / settings["frame_num"])
del settings["period_time"]
times = settings["times"]
del settings["times"]
heart = HeartSignal(seed_num=5201314, **settings)
heart.draw(times)其中也要到这个py文件的相同的文件夹里引入settings.yaml文件：
# 颜色：RGB三原色数值 0~255
# 设置高光时，尽量选择接近主色的颜色，看起来会和谐一点
# 视频里的蓝色调
#base_color: # 主色 默认玫瑰粉
# - 30
# - 100
# - 100
#highlight_points_color_1: # 高光粒子色1 默认淡紫色
# - 150
# - 120
# - 220
#highlight_points_color_2: # 高光粒子色2 默认淡粉色
# - 128
# - 140
# - 140
base_color: # 主色 默认玫瑰粉
- 228
- 100
- 100
highlight_points_color_1: # 高光粒子色1 默认淡紫色
- 180
- 87
- 200
highlight_points_color_2: # 高光粒子色2 默认淡粉色
- 228
- 140
- 140
period_time: 1000 * 2 # 周期时间，默认1.5s一个周期
times: 5 # 播放周期数，一个周期跳动1次
frame_num: 24 # 一个周期的生成帧数
wait: 60 # 每一帧停留时间, 设置太短可能造成闪屏，设置 -1 自动设置为 period_time / frame_num
seed_points_num: 2000 # 构成主图的种子粒子数，总粒子数是这个的8倍左右（包括散点和光晕）
highlight_rate: 0.2 # 高光粒子的比例
frame_width: 720 # 窗口宽度，单位像素，设置背景图片后失效
frame_height: 640 # 窗口高度，单位像素，设置背景图片后失效
scale: 9.1 # 主图缩放比例
curve: "butterfly" # 图案类型：heart, butterfly, star
n_star: 7 # n-角型/星，如果curve设置成star才会生效，五角星：n-star:5, m-star:2
m_star: 3 # curve设置成star才会生效，n-角形 m-star都是1，n-角星 m-star大于1，比如 七角星：n-star:7, m-star:2 或 3
title: "Love Li Xun" # 仅支持字母，中文乱码
background_img_dir: "src/center_imgs" # 这个目录放置背景图片，建议像素在400 X 400以上，否则可能报错，如果图片实在小，可以调整上面scale把爱心缩小
set_bg_imgs: false # true或false，设置false用默认黑背景
bg_img_scale: 0.6 # 0 - 1，背景图片缩放比例
bg_weight: 0.4 # 0 - 1，背景图片权重，可看做透明度吧
curve_weight: 1 # 同上
# ======================== 推荐参数: 直接复制数值替换上面对应参数 ==================================
# 蝴蝶，报错很可能是蝴蝶缩放大小超出窗口宽和高
# curve: "butterfly"
# frame_width: 800
# frame_height: 720
# scale: 60
# base_color: [100, 100, 228]
# highlight_points_color_1: [180, 87, 200]
# highlight_points_color_2: [228, 140, 140]本代码是搬运github上的：
网址如下：
https://github.com/131250208/FunnyToys/blob/main/heart.py
演示：
2342
扫一扫
被折叠的 条评论
为什么被折叠?
到【灌水乐园】发言
