下载

定义：
Java平台自动化的构建工具·
Apache下载即可

配置路径（前提必须要有jdk和配置好java_home）

在环境变量中新建并添加MAVEN_HOME,并写入\bin这个路径
并在path中添加%MAVEN_HOME%\bin

注意：还需要打开dos查看是否配置正确

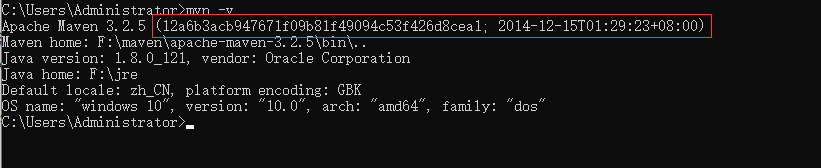

输入
mvn -v
在这里插入图片描述
显示出版本号说明正确

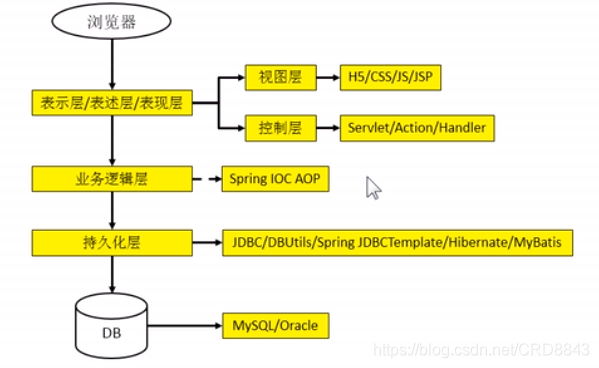

maven所带来的设计模式结构

在这里插入图片描述
业务逻辑层可以更换，看业务情况

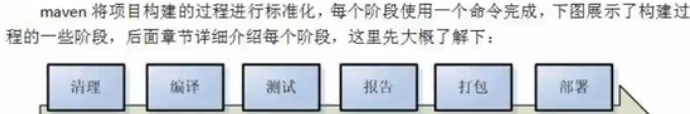

maven项目的一键构建

定义：从编译，测试，运行，打包，安装都给maven管理
在这里插入图片描述

mvn clean 删除target包,清理生命周期
mvn complie 编译成功过后生成target
mvn test 编译测试代码
mvn package 项目打包成war包

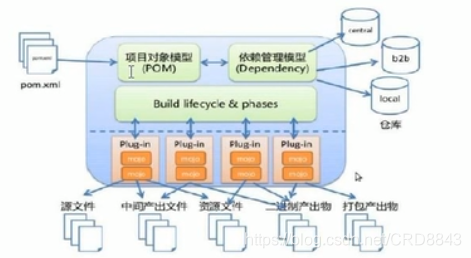

maven的管理模型

在这里插入图片描述
1.什么是pom。xml
pom包含的对象是使用maven来构建的，pom.xml文件包含了项目的各种配置信息。创建一个POM之前，应该要先决定项目组(groupId)，项目名(artifactId)和版本（version），因为这些属性在项目仓库是唯一标识的。需要特别注意，每个项目都只有一个pom.xml文件。
2.配置节点

<project xmlns="http://maven.apache.org/POM/4.0.0"
         xmlns:xsi="http://www.w3.org/2001/XMLSchema-instance"
         xsi:schemaLocation="http://maven.apache.org/POM/4.0.0
            http://maven.apache.org/xsd/maven-4.0.0.xsd">
    <modelVersion>4.0.0</modelVersion>

    <!-- 基本配置 -->
    <groupId>...</groupId>
    <artifactId>...</artifactId>
    <version>...</version>
    <packaging>...</packaging>


    <!-- 依赖配置 -->
    <dependencies>...</dependencies>
    <parent>...</parent>
    <dependencyManagement>...</dependencyManagement>
    <modules>...</modules>
    <properties>...</properties>

    <!-- 构建配置 -->
    <build>...</build>
    <reporting>...</reporting>

    <!-- 项目信息 -->
    <name>...</name>
    <description>...</description>
    <url>...</url>
    <inceptionYear>...</inceptionYear>
    <licenses>...</licenses>
    <organization>...</organization>
    <developers>...</developers>
    <contributors>...</contributors>

    <!-- 环境设置 -->
    <issueManagement>...</issueManagement>
    <ciManagement>...</ciManagement>
    <mailingLists>...</mailingLists>
    <scm>...</scm>
    <prerequisites>...</prerequisites>
    <repositories>...</repositories>
    <pluginRepositories>...</pluginRepositories>
    <distributionManagement>...</distributionManagement>
    <profiles>...</profiles>
</project>

（1）基本配置

<project xmlns="http://maven.apache.org/POM/4.0.0"
   xmlns:xsi="http://www.w3.org/2001/XMLSchema-instance"
   xsi:schemaLocation="http://maven.apache.org/POM/4.0.0
   http://maven.apache.org/xsd/maven-4.0.0.xsd">
   <!-- pom模型版本，maven2和3只能为4.0.0-->
   <modelVersion>4.0.0</modelVersion>
   <!-- 项目的组ID，用于maven定位-->
   <groupId>com.company.bank</groupId>
   <!-- 项目ID，通常是项目的名称,唯一标识符-->
   <artifactId>parent</artifactId>
   <!-- 项目的版本-->
   <version>1.0</version>
   <!-- 项目的打包方式-->
   <packaging>war</packaging>
<project>

打包方式有pom, jar, maven-plugin, ejb, war, ear, rar, par
（2）依赖配置
dependencies：
项目相关依赖配置，如果在父项目写的依赖，会被子项目引用。一般会在父项目中定义子项目中所有共用的依赖。
parent：
用于确定父项目的坐标位置。

<parent>
    <groupId>com.learnPro</groupId>
    <artifactId>SIP-parent</artifactId>
    <relativePath></relativePath>
    <version>0.0.1-SNAPSHOT</version>
</parent>

groupId: 父项目的组Id标识符
artifactId:父项目的唯一标识符
relativePath：Maven首先在当前项目中找父项目的pom，然后在文件系统的这个位置（relativePath），然后在本地仓库，再在远程仓库找。
version: 父项目的版本

下一步之前还要弄仓库

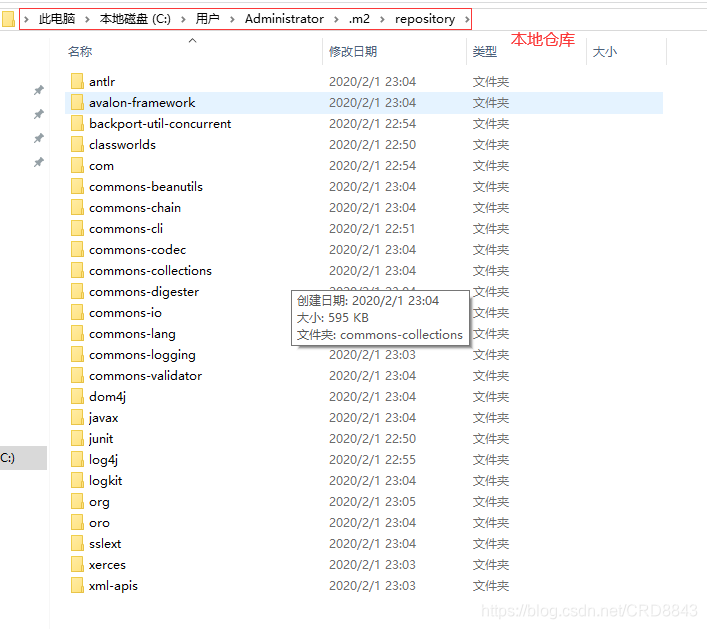

仓库本地呢根据它的设置在用户目录下是有一个本地仓库的，但是我们要修改改成自己建立的仓库
原来路径：
Default: ${user.home}/.m2/repository

在这里插入图片描述

根据上面我们还要修改自己的本地仓库路径

找到和bin用一个目录下的conf，打开后找到 setting.xml
然后修改配置，修改仓库（按照自己仓库的路径进行配置），镜像，prefiles，我直接附上我的配置代码

<?xml version="1.0" encoding="UTF-8"?>

<!--
Licensed to the Apache Software Foundation (ASF) under one
or more contributor license agreements.  See the NOTICE file
distributed with this work for additional information
regarding copyright ownership.  The ASF licenses this file
to you under the Apache License, Version 2.0 (the
"License"); you may not use this file except in compliance
with the License.  You may obtain a copy of the License at

    http://www.apache.org/licenses/LICENSE-2.0

Unless required by applicable law or agreed to in writing,
software distributed under the License is distributed on an
"AS IS" BASIS, WITHOUT WARRANTIES OR CONDITIONS OF ANY
KIND, either express or implied.  See the License for the
specific language governing permissions and limitations
under the License.
-->

<!--
 | This is the configuration file for Maven. It can be specified at two levels:
 |
 |  1. User Level. This settings.xml file provides configuration for a single user,
 |                 and is normally provided in ${user.home}/.m2/settings.xml.
 |
 |                 NOTE: This location can be overridden with the CLI option:
 |
 |                 -s /path/to/user/settings.xml
 |
 |  2. Global Level. This settings.xml file provides configuration for all Maven
 |                 users on a machine (assuming they're all using the same Maven
 |                 installation). It's normally provided in
 |                 ${maven.conf}/settings.xml.
 |
 |                 NOTE: This location can be overridden with the CLI option:
 |
 |                 -gs /path/to/global/settings.xml
 |
 | The sections in this sample file are intended to give you a running start at
 | getting the most out of your Maven installation. Where appropriate, the default
 | values (values used when the setting is not specified) are provided.
 |
 |-->
<settings xmlns="http://maven.apache.org/SETTINGS/1.0.0"
          xmlns:xsi="http://www.w3.org/2001/XMLSchema-instance"
          xsi:schemaLocation="http://maven.apache.org/SETTINGS/1.0.0 http://maven.apache.org/xsd/settings-1.0.0.xsd">
  <!-- localRepository
   | The path to the local repository maven will use to store artifacts.
   |
   | Default: ${user.home}/.m2/repository
  <localRepository>/path/to/local/repo</localRepository>
  -->
  <localRepository>D:\idea\repository</localRepository>


  <!-- interactiveMode
   | This will determine whether maven prompts you when it needs input. If set to false,
   | maven will use a sensible default value, perhaps based on some other setting, for
   | the parameter in question.
   |
   | Default: true
  <interactiveMode>true</interactiveMode>
  -->

  <!-- offline
   | Determines whether maven should attempt to connect to the network when executing a build.
   | This will have an effect on artifact downloads, artifact deployment, and others.
   |
   | Default: false
  <offline>false</offline>
  -->

  <!-- pluginGroups
   | This is a list of additional group identifiers that will be searched when resolving plugins by their prefix, i.e.
   | when invoking a command line like "mvn prefix:goal". Maven will automatically add the group identifiers
   | "org.apache.maven.plugins" and "org.codehaus.mojo" if these are not already contained in the list.
   |-->
  <pluginGroups>
    <!-- pluginGroup
     | Specifies a further group identifier to use for plugin lookup.
    <pluginGroup>com.your.plugins</pluginGroup>
    -->
  </pluginGroups>

  <!-- proxies
   | This is a list of proxies which can be used on this machine to connect to the network.
   | Unless otherwise specified (by system property or command-line switch), the first proxy
   | specification in this list marked as active will be used.
   |-->
  <proxies>
    <!-- proxy
     | Specification for one proxy, to be used in connecting to the network.
     |
    <proxy>
      <id>optional</id>
      <active>true</active>
      <protocol>http</protocol>
      <username>proxyuser</username>
      <password>proxypass</password>
      <host>proxy.host.net</host>
      <port>80</port>
      <nonProxyHosts>local.net|some.host.com</nonProxyHosts>
    </proxy>
    -->
  </proxies>

  <!-- servers
   | This is a list of authentication profiles, keyed by the server-id used within the system.
   | Authentication profiles can be used whenever maven must make a connection to a remote server.
   |-->
  <servers>
    <!-- server
     | Specifies the authentication information to use when connecting to a particular server, identified by
     | a unique name within the system (referred to by the 'id' attribute below).
     |
     | NOTE: You should either specify username/password OR privateKey/passphrase, since these pairings are
     |       used together.
     |
    <server>
      <id>deploymentRepo</id>
      <username>repouser</username>
      <password>repopwd</password>
    </server>
    -->

    <!-- Another sample, using keys to authenticate.
    <server>
      <id>siteServer</id>
      <privateKey>/path/to/private/key</privateKey>
      <passphrase>optional; leave empty if not used.</passphrase>
    </server>
    -->
  </servers>

  <!-- mirrors
   | This is a list of mirrors to be used in downloading artifacts from remote repositories.
   |
   | It works like this: a POM may declare a repository to use in resolving certain artifacts.
   | However, this repository may have problems with heavy traffic at times, so people have mirrored
   | it to several places.
   |
   | That repository definition will have a unique id, so we can create a mirror reference for that
   | repository, to be used as an alternate download site. The mirror site will be the preferred
   | server for that repository.
   |-->
  <mirrors>
    <!-- mirror
     | Specifies a repository mirror site to use instead of a given repository. The repository that
     | this mirror serves has an ID that matches the mirrorOf element of this mirror. IDs are used
     | for inheritance and direct lookup purposes, and must be unique across the set of mirrors.
     |
    <mirror>
      <id>mirrorId</id>
      <mirrorOf>repositoryId</mirrorOf>
      <name>Human Readable Name for this Mirror.</name>
      <url>http://my.repository.com/repo/path</url>
    </mirror>
     -->
	 <!-- 阿里云仓库 -->
	<mirror>
		<id>alimaven</id>
		<mirrorOf>central</mirrorOf>
		<name>aliyun maven</name>
		<url>http://maven.aliyun.com/nexus/content/repositories/central/</url>
	</mirror>

	<!-- 中央仓库1 -->
	<mirror>
		<id>repo1</id>
		<mirrorOf>central</mirrorOf>
		<name>Human Readable Name for this Mirror.</name>
		<url>http://repo1.maven.org/maven2/</url>
	</mirror>

	<!-- 中央仓库2 -->
	<mirror>
		<id>repo2</id>
		<mirrorOf>central</mirrorOf>
		<name>Human Readable Name for this Mirror.</name>
		<url>http://repo2.maven.org/maven2/</url>
	</mirror>

  </mirrors>

  <!-- profiles
   | This is a list of profiles which can be activated in a variety of ways, and which can modify
   | the build process. Profiles provided in the settings.xml are intended to provide local machine-
   | specific paths and repository locations which allow the build to work in the local environment.
   |
   | For example, if you have an integration testing plugin - like cactus - that needs to know where
   | your Tomcat instance is installed, you can provide a variable here such that the variable is
   | dereferenced during the build process to configure the cactus plugin.
   |
   | As noted above, profiles can be activated in a variety of ways. One way - the activeProfiles
   | section of this document (settings.xml) - will be discussed later. Another way essentially
   | relies on the detection of a system property, either matching a particular value for the property,
   | or merely testing its existence. Profiles can also be activated by JDK version prefix, where a
   | value of '1.4' might activate a profile when the build is executed on a JDK version of '1.4.2_07'.
   | Finally, the list of active profiles can be specified directly from the command line.
   |
   | NOTE: For profiles defined in the settings.xml, you are restricted to specifying only artifact
   |       repositories, plugin repositories, and free-form properties to be used as configuration
   |       variables for plugins in the POM.
   |
   |-->
  <profiles>
    <!-- profile
     | Specifies a set of introductions to the build process, to be activated using one or more of the
     | mechanisms described above. For inheritance purposes, and to activate profiles via <activatedProfiles/>
     | or the command line, profiles have to have an ID that is unique.
     |
     | An encouraged best practice for profile identification is to use a consistent naming convention
     | for profiles, such as 'env-dev', 'env-test', 'env-production', 'user-jdcasey', 'user-brett', etc.
     | This will make it more intuitive to understand what the set of introduced profiles is attempting
     | to accomplish, particularly when you only have a list of profile id's for debug.
     |
     | This profile example uses the JDK version to trigger activation, and provides a JDK-specific repo.
    <profile>
    <id>JDK-1.8</id>
    <activation>
        <activeByDefault>true</activeByDefault>
        <jdk>1.8</jdk>
    </activation>
    <properties>
        <maven.compiler.source>1.8</maven.compiler.source>
        <maven.compiler.target>1.8</maven.compiler.target>
        <maven.compiler.compilerVersion>1.8</maven.compiler.compilerVersion>
    </properties>
</profile>

    -->

    <!--
     | Here is another profile, activated by the system property 'target-env' with a value of 'dev',
     | which provides a specific path to the Tomcat instance. To use this, your plugin configuration
     | might hypothetically look like:
     |
     | ...
     | <plugin>
     |   <groupId>org.myco.myplugins</groupId>
     |   <artifactId>myplugin</artifactId>
     |
     |   <configuration>
     |     <tomcatLocation>${tomcatPath}</tomcatLocation>
     |   </configuration>
     | </plugin>
     | ...
     |
     | NOTE: If you just wanted to inject this configuration whenever someone set 'target-env' to
     |       anything, you could just leave off the <value/> inside the activation-property.
     |
    <profile>
      <id>env-dev</id>

      <activation>
        <property>
          <name>target-env</name>
          <value>dev</value>
        </property>
      </activation>

      <properties>
        <tomcatPath>/path/to/tomcat/instance</tomcatPath>
      </properties>
    </profile>
    -->
  </profiles>

  <!-- activeProfiles
   | List of profiles that are active for all builds.
   |
  <activeProfiles>
    <activeProfile>alwaysActiveProfile</activeProfile>
    <activeProfile>anotherAlwaysActiveProfile</activeProfile>
  </activeProfiles>
  -->
</settings>
