spring boot 外部Servlet容器启动原理

1.启动Tomcat

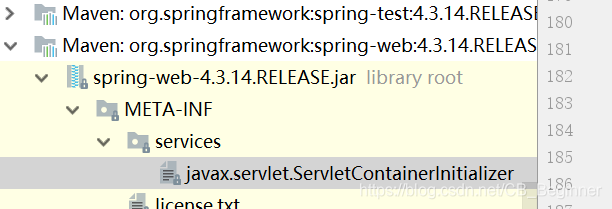

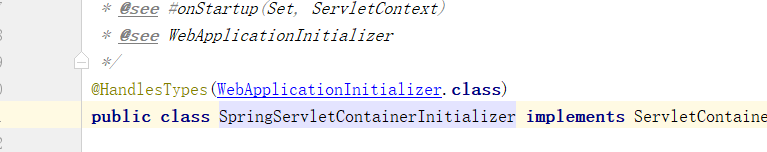

2.org\springframework\spring-web\4.3.14.RELEASE\spring-web-4.3.14.RELEASE.jar!\META-INF\services\javax.servlet.ServletContainerInitializer：

Spring的web模块里面有这个文件：**org.springframework.web.SpringServletContainerInitializer**

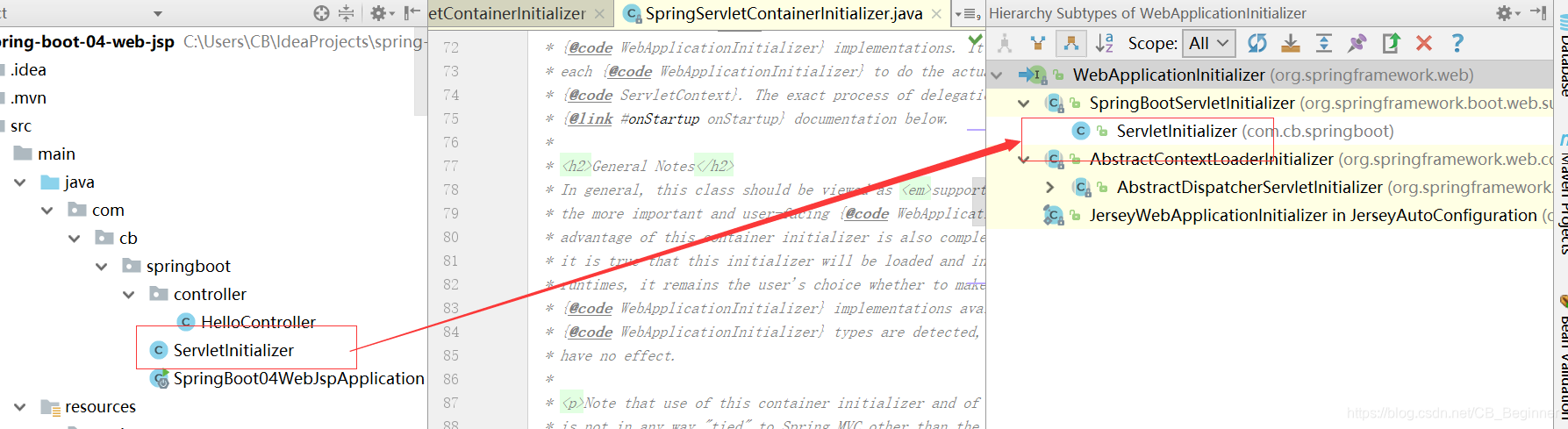

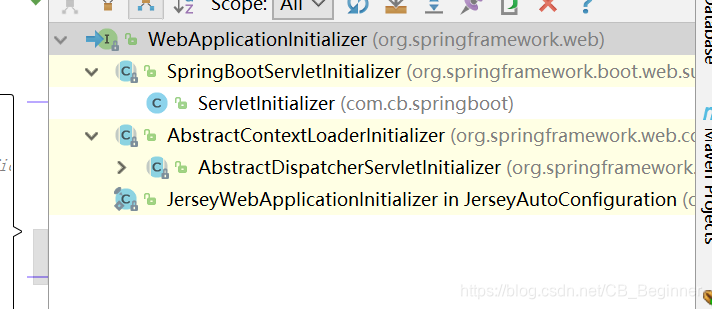

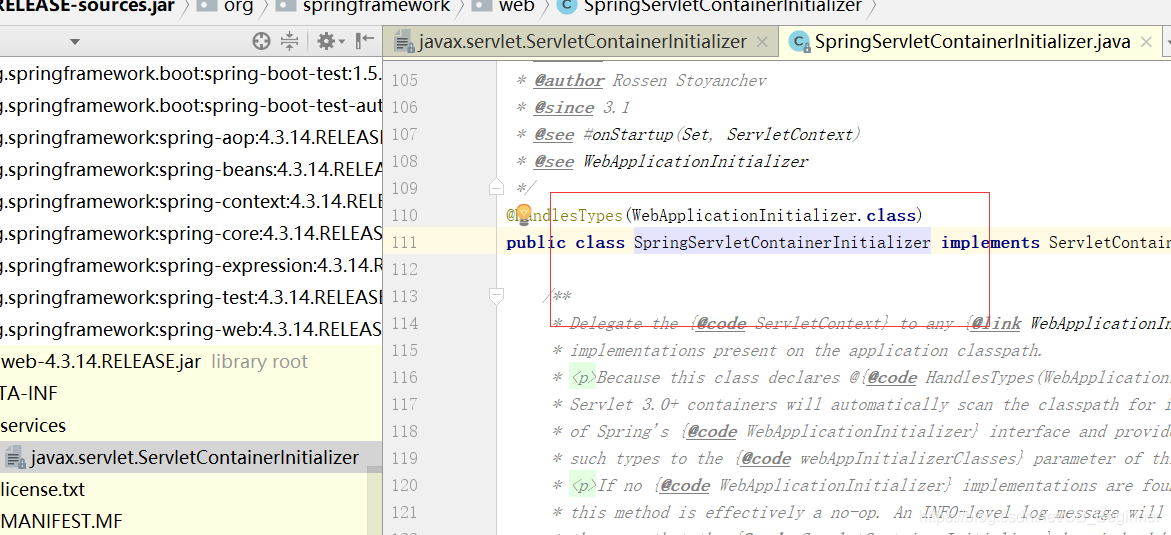

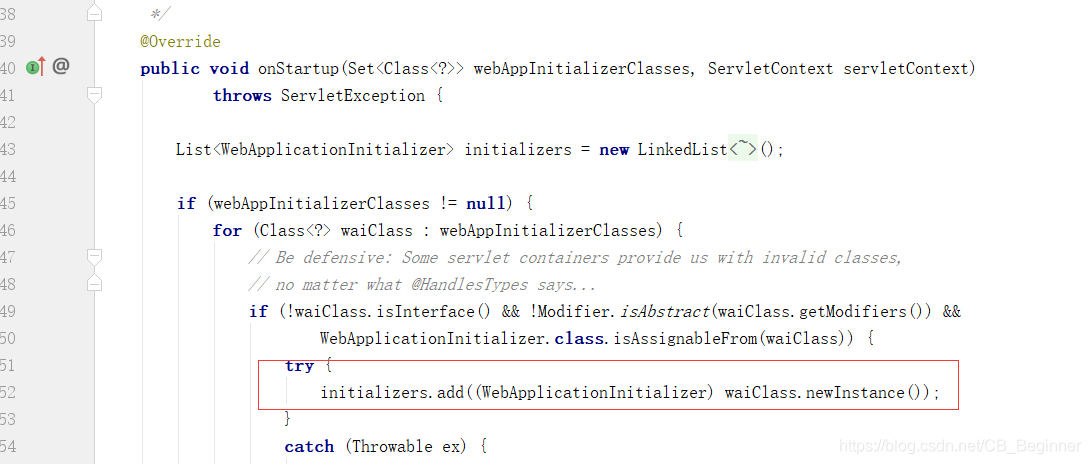

3.SpringServletContainerInitializer将@HandlesTypes(WebApplicationInitializer.class)标注的所有这个类型的类都传入到onStartup方法的Set<Class<?>>；为这些WebApplicationInitializer类型的类创建实例；

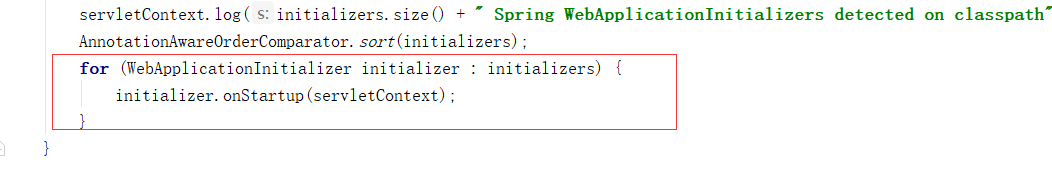

4）、每一个WebApplicationInitializer都调用自己的onStartup；

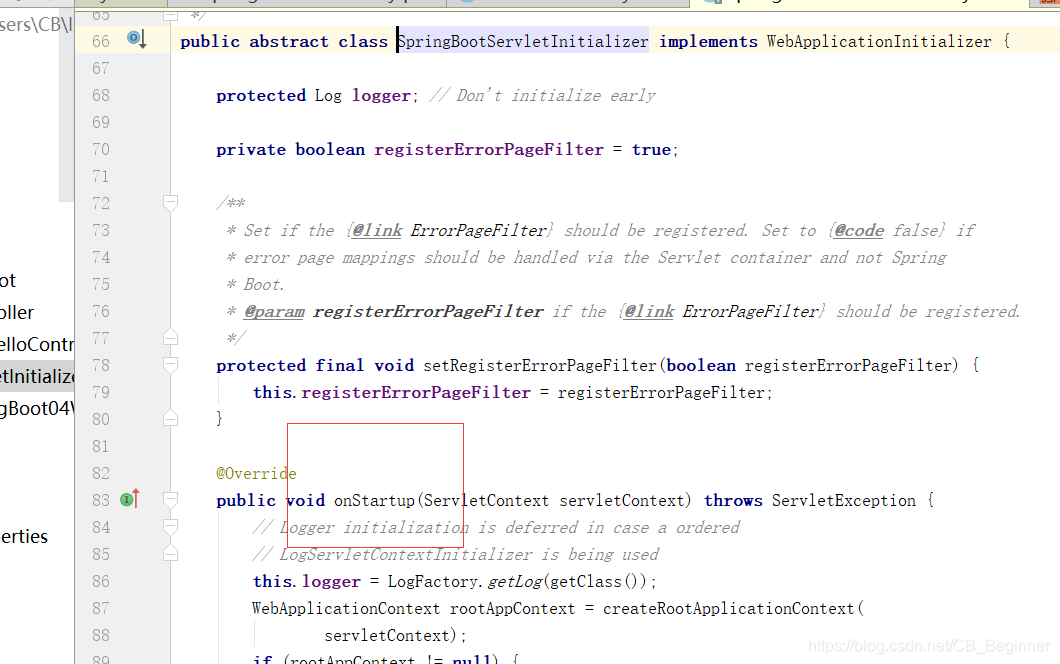

5.相当于我们的SpringBootServletInitializer的类会被创建对象，并执行onStartup方法



6）、SpringBootServletInitializer实例执行onStartup的时候会createRootApplicationContext；创建容器



protected WebApplicationContext createRootApplicationContext(
      ServletContext servletContext) {
    //1、创建SpringApplicationBuilder
   SpringApplicationBuilder builder = createSpringApplicationBuilder();
   StandardServletEnvironment environment = new StandardServletEnvironment();
   environment.initPropertySources(servletContext, null);
   builder.environment(environment);
   builder.main(getClass());
   ApplicationContext parent = getExistingRootWebApplicationContext(servletContext);
   if (parent != null) {
      this.logger.info("Root context already created (using as parent).");
      servletContext.setAttribute(
            WebApplicationContext.ROOT_WEB_APPLICATION_CONTEXT_ATTRIBUTE, null);
      builder.initializers(new ParentContextApplicationContextInitializer(parent));
   }
   builder.initializers(
         new ServletContextApplicationContextInitializer(servletContext));
   builder.contextClass(AnnotationConfigEmbeddedWebApplicationContext.class);

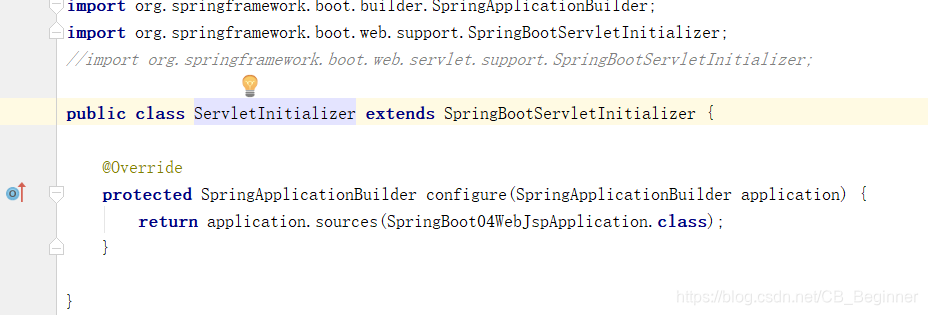

    //调用configure方法，子类重写了这个方法，将SpringBoot的主程序类传入了进来
   builder = configure(builder);

    //使用builder创建一个Spring应用
   SpringApplication application = builder.build();
   if (application.getSources().isEmpty() && AnnotationUtils
         .findAnnotation(getClass(), Configuration.class) != null) {
      application.getSources().add(getClass());
   }
   Assert.state(!application.getSources().isEmpty(),
         "No SpringApplication sources have been defined. Either override the "
               + "configure method or add an @Configuration annotation");
   // Ensure error pages are registered
   if (this.registerErrorPageFilter) {
      application.getSources().add(ErrorPageFilterConfiguration.class);
   }

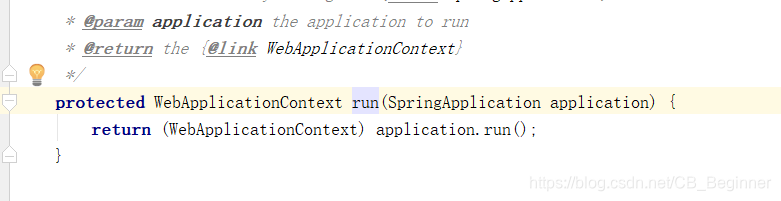

    //启动Spring应用
   return run(application);
}

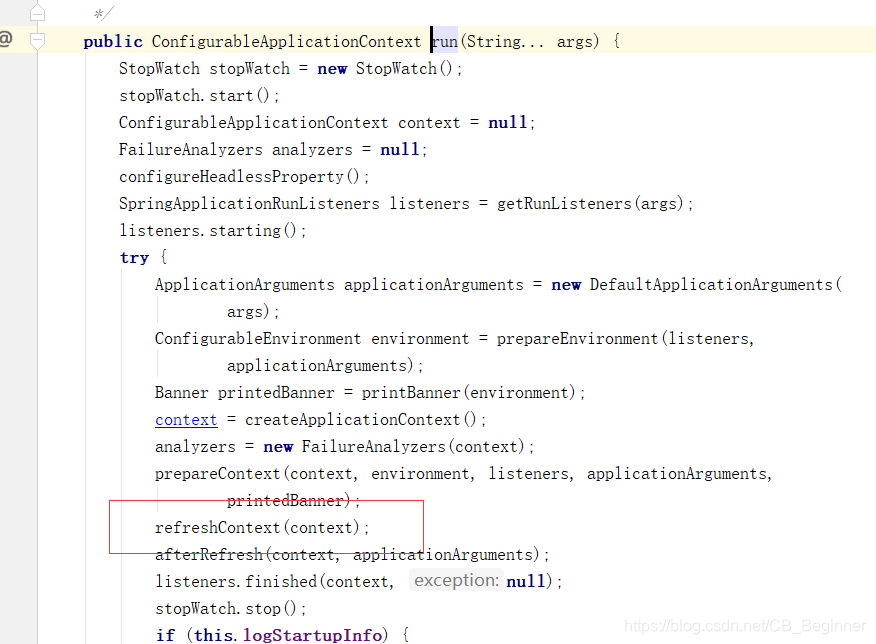

7）、Spring的应用就启动并且创建IOC容器





public ConfigurableApplicationContext run(String... args) {
   StopWatch stopWatch = new StopWatch();
   stopWatch.start();
   ConfigurableApplicationContext context = null;
   FailureAnalyzers analyzers = null;
   configureHeadlessProperty();
   SpringApplicationRunListeners listeners = getRunListeners(args);
   listeners.starting();
   try {
      ApplicationArguments applicationArguments = new DefaultApplicationArguments(
            args);
      ConfigurableEnvironment environment = prepareEnvironment(listeners,
            applicationArguments);
      Banner printedBanner = printBanner(environment);
      context = createApplicationContext();
      analyzers = new FailureAnalyzers(context);
      prepareContext(context, environment, listeners, applicationArguments,
            printedBanner);

       //刷新IOC容器
      refreshContext(context);
      afterRefresh(context, applicationArguments);
      listeners.finished(context, null);
      stopWatch.stop();
      if (this.logStartupInfo) {
         new StartupInfoLogger(this.mainApplicationClass)
               .logStarted(getApplicationLog(), stopWatch);
      }
      return context;
   }
   catch (Throwable ex) {
      handleRunFailure(context, listeners, analyzers, ex);
      throw new IllegalStateException(ex);
   }
}



**==启动Servlet容器，再启动SpringBoot应用==**
