LOOP GROUP用法

1、分组

根据维度分组，处理内表中不同维度值的数据

TYPES:BEGIN OF ty_alv,
        matnr    TYPE marc-matnr, "物料
        werks    TYPE marc-werks, "工厂
        bdmng    TYPE resb-bdmng, "数量
        zj       TYPE  resb-bdmng, "汇总

        checkbox TYPE char1, "选择框
      END OF ty_alv.

DATA: gt_alv TYPE TABLE OF ty_alv, "
      gs_alv TYPE ty_alv.

gt_alv = VALUE #( ( matnr = 'AAA' werks = '1000' bdmng = '10.1' checkbox = 'X')
                  ( matnr = 'BBB' werks = '2000' bdmng = '10.2' checkbox = 'X')
                  ( matnr = 'AAA' werks = '1000' bdmng = '10.3' )
                  ( matnr = 'BBB' werks = '2000' bdmng = '10.4' )
                  ( matnr = 'AAA' werks = '2000' bdmng = '10.5' )
                  ( matnr = 'BBB' werks = '2000' bdmng = '10.6' )
                 ).
"根据物料和工厂维度分组
LOOP AT gt_alv INTO gs_alv GROUP BY ( matnr = gs_alv-matnr
                                       werks = gs_alv-werks ).

  WRITE: / '组           ',gs_alv-matnr,gs_alv-werks.

  CLEAR:lv_item.
  LOOP AT GROUP gs_alv ASSIGNING FIELD-SYMBOL(<fs_alv>).
    lv_item = lv_item + 1.
    WRITE: / ' ',lv_item,<fs_alv>-matnr,<fs_alv>-werks,<fs_alv>-bdmng.
  ENDLOOP.
  CLEAR:gs_alv.
ENDLOOP.

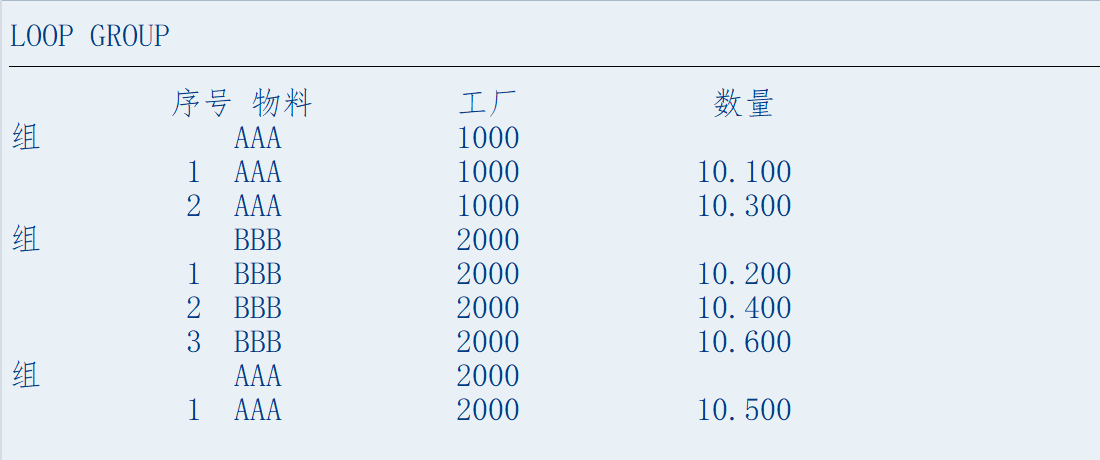

根据维度分组

2、同维度处理

比如在ALV中经常会将选中行的相同维度的行都选中，也可以通过该方法实现

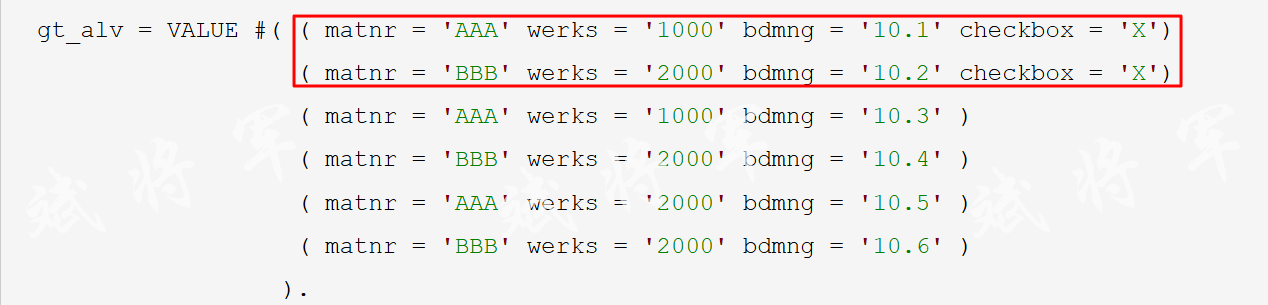

比如勾选了两行数据

 按照维度分组，直接更新选择框

"将选中行的相同维度的行都选中
LOOP AT gt_alv INTO gs_alv WHERE checkbox = 'X' GROUP BY ( matnr = gs_alv-matnr
                                                             werks = gs_alv-werks ).
  MODIFY gt_alv FROM gs_alv TRANSPORTING checkbox WHERE matnr = gs_alv-matnr
                                                     AND werks = gs_alv-werks.
  CLEAR:gs_alv.
ENDLOOP.

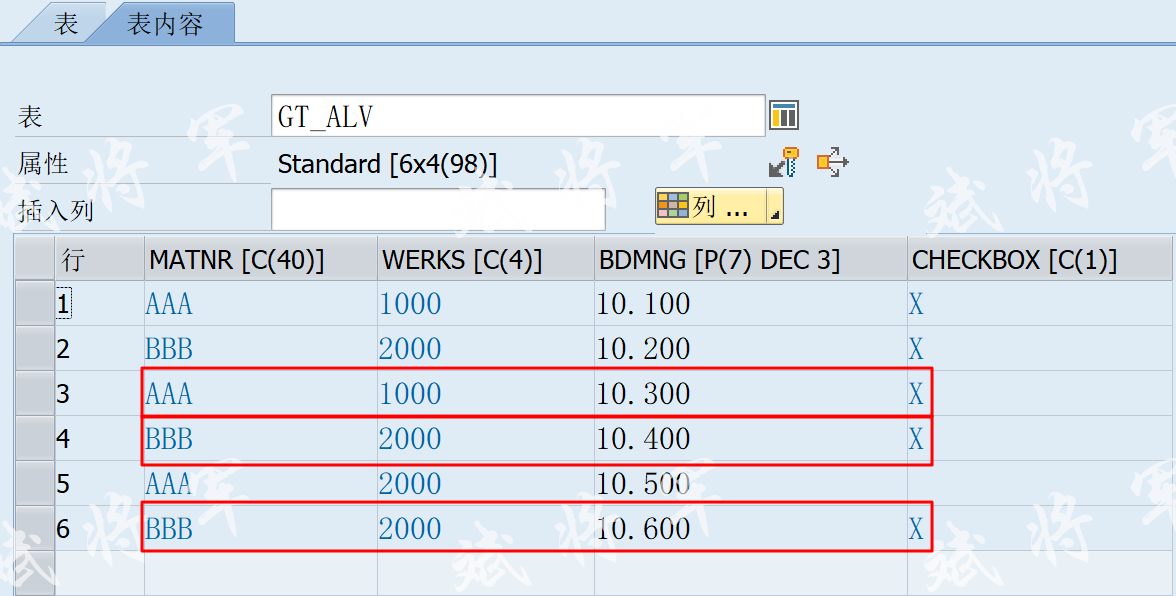

结果如下

3、分组行数

比如想知道每组的行数，用来在最后一行显示同维度数量总计，可以使用GROUP SIZE

DATA:lv_count TYPE i, "行计数器
     lv_bdmng TYPE resb-bdmng. "数量

LOOP AT gt_alv INTO gs_alv GROUP BY ( matnr = gs_alv-matnr
                                       werks = gs_alv-werks
                                      size = GROUP SIZE )
                                      INTO DATA(ls_key).

  CLEAR:lv_bdmng,lv_count.
  LOOP AT GROUP ls_key ASSIGNING FIELD-SYMBOL(<fs_alv>).

    lv_count = lv_count + 1."计数器

    lv_bdmng = lv_bdmng + <fs_alv>-bdmng."数量累加

    IF ls_key-size = lv_count."最后一行
      <fs_alv>-zj = lv_bdmng."总计
    ENDIF.
  ENDLOOP.
  CLEAR:gs_alv.
ENDLOOP.

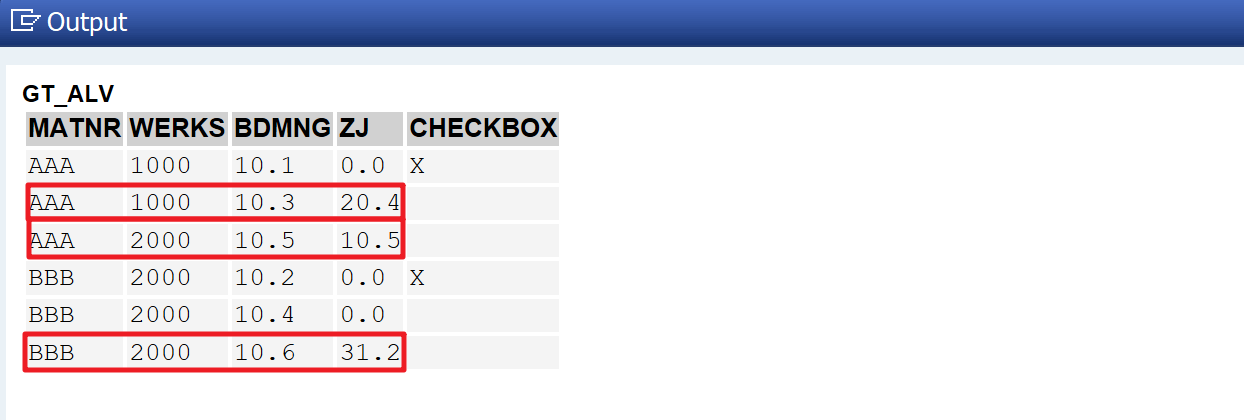

结果如下

再比如，进行数量分摊。将分摊数量，按照各行数量在本维度中的占比，根据比例进行分摊。分摊到最后一行，将最终剩余的分摊数量全部分摊到这一行中，避免因为比例计算而产生尾差

TYPES:BEGIN OF ty_alv,
        matnr TYPE marc-matnr, "物料
        werks TYPE marc-werks, "工厂
        bdmng TYPE resb-bdmng, "数量
        zftsl TYPE resb-bdmng, "分摊数量

      END OF ty_alv.

DATA: gt_alv TYPE TABLE OF ty_alv, "
      gs_alv TYPE ty_alv.

DATA:lv_count  TYPE i, "行计数器
     lv_ftzs   TYPE resb-bdmng, "分摊总数
     lv_syftsl TYPE resb-bdmng, "剩余分摊数量
     lv_bdmng  TYPE resb-bdmng. "数量

"只用同一维度的数据来简单举例
gt_alv = VALUE #( ( matnr = 'AAA' werks = '1000' bdmng = '1' )
                  ( matnr = 'AAA' werks = '1000' bdmng = '2' )
                  ( matnr = 'AAA' werks = '1000' bdmng = '3' )
                  ( matnr = 'AAA' werks = '1000' bdmng = '4' )
                 ).

"按照物料工厂分组
LOOP AT gt_alv INTO gs_alv GROUP BY ( matnr = gs_alv-matnr
                                       werks = gs_alv-werks
                                      size = GROUP SIZE )
                                      INTO DATA(ls_key).

  lv_syftsl = lv_ftzs = 100."需要分摊的总数

  "先计算同维度数量之和。这个也可以放在其他地方计算，写在此处是为了展示在LOOP中可以多次进行LOOP AT GROUP循环
  CLEAR:lv_bdmng.
  LOOP AT GROUP ls_key ASSIGNING FIELD-SYMBOL(<fs_alv>).
    lv_bdmng = lv_bdmng + <fs_alv>-bdmng."数量累加
  ENDLOOP.

  "再次循环进行分摊
  LOOP AT GROUP ls_key ASSIGNING <fs_alv>.

    lv_count = lv_count + 1."计数器

    IF ls_key-size = lv_count."最后一行
      <fs_alv>-zftsl = lv_syftsl."分摊数量
    ELSE."不是最后一行
      "分摊数量 = 分摊总数 * 分配比例（分配比例 = 本行数量 / 该维度总数量）
      <fs_alv>-zftsl = lv_ftzs * <fs_alv>-bdmng / lv_bdmng.
      lv_syftsl = lv_syftsl - <fs_alv>-zftsl."剩余分摊数量 = 剩余分摊数量 - 分摊数量
    ENDIF.
  ENDLOOP.
  CLEAR:gs_alv.
ENDLOOP.

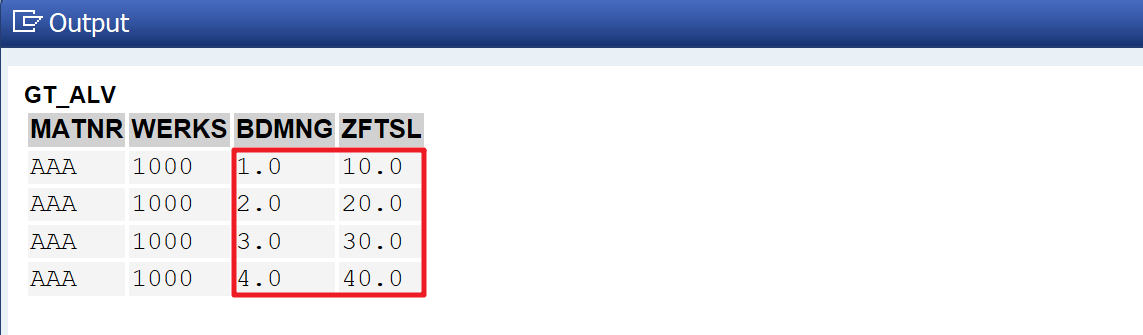

最终结果
