验证登录用户账密

1、文档说明

在开发中需要验证某SAP用户的账密来执行某些操作。具体就是指，当使用某个操作时，需要输入账号密码进行校验，此校验和登录时的校验是一致的，也具备多次校验错误后的账户锁定。

本文档将通过代码示例，实现账密校验功能

2、实现过程

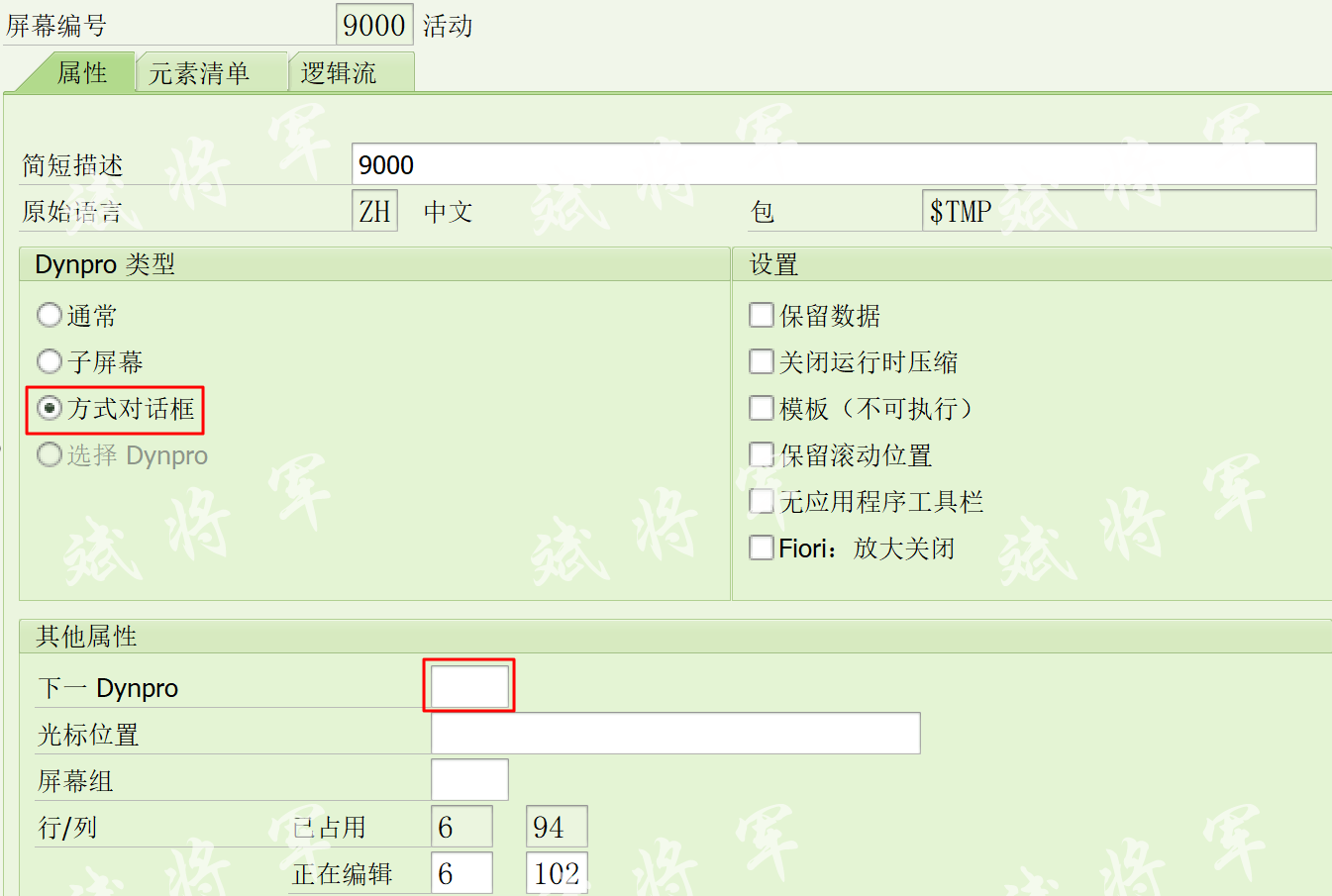

首先画出用于输入账密的屏幕，下一个Dynpro置空

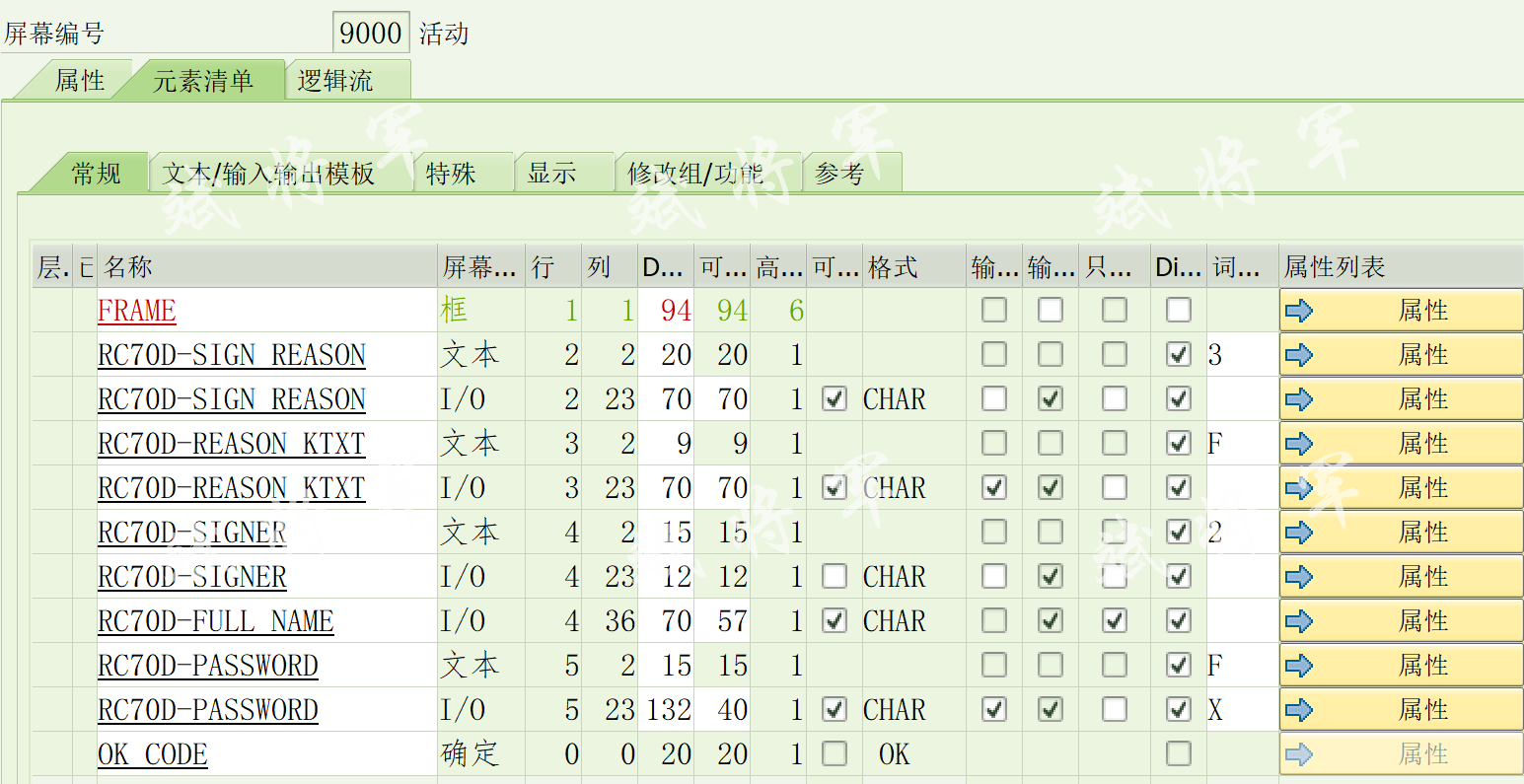

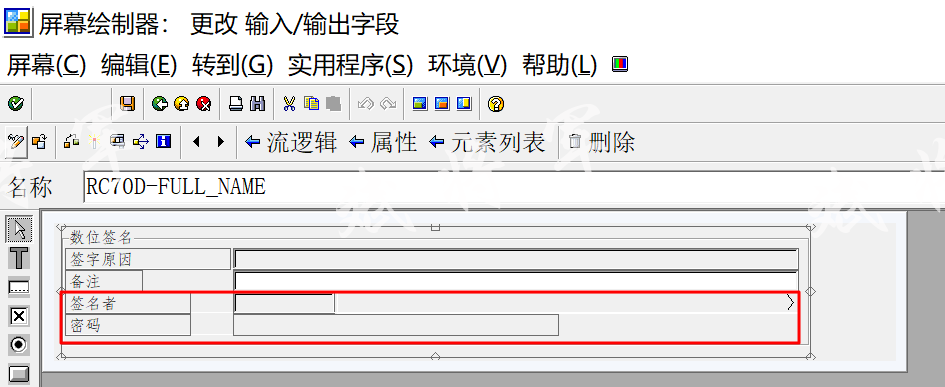

 布局中画上输入框

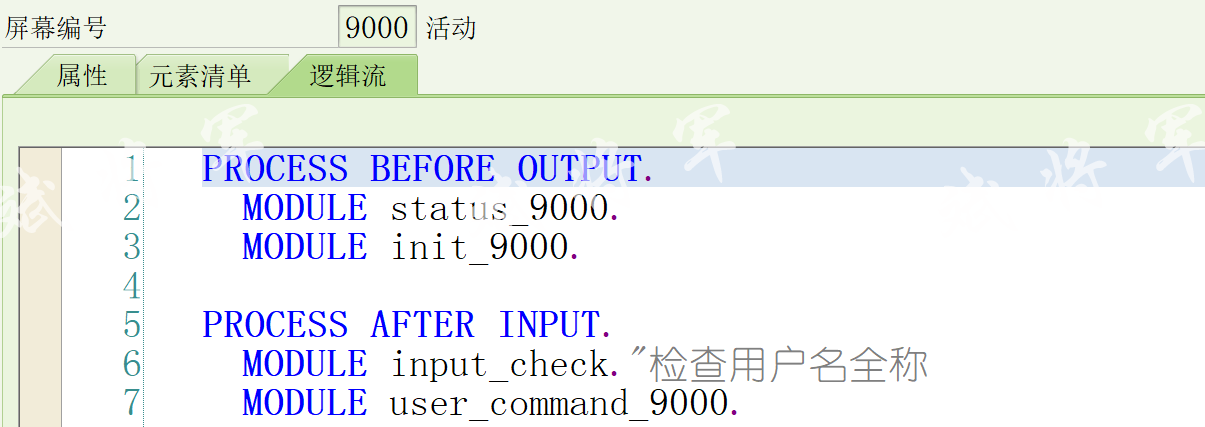

逻辑流

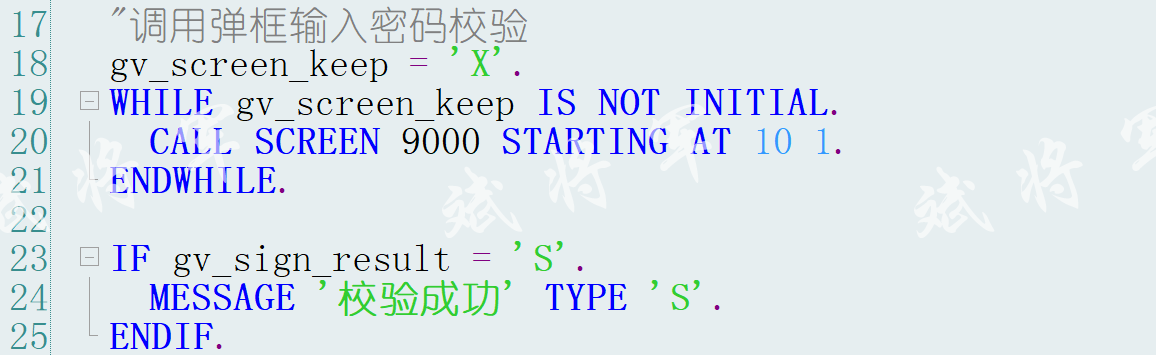

为了能在屏幕中输错账密后再次输入，可以通过循环输出屏幕，校验通过后退出循环

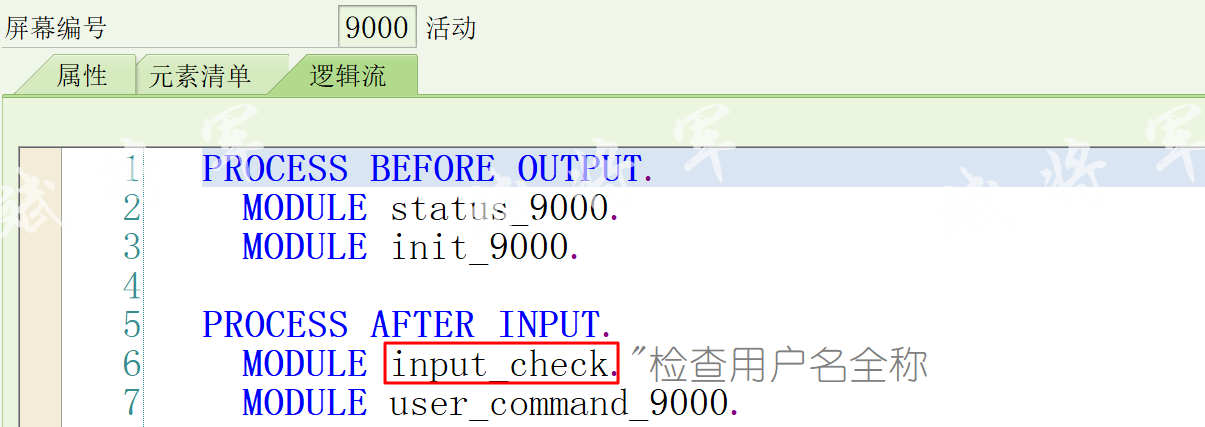

本实例中还校验了账号维护的全称是否完整

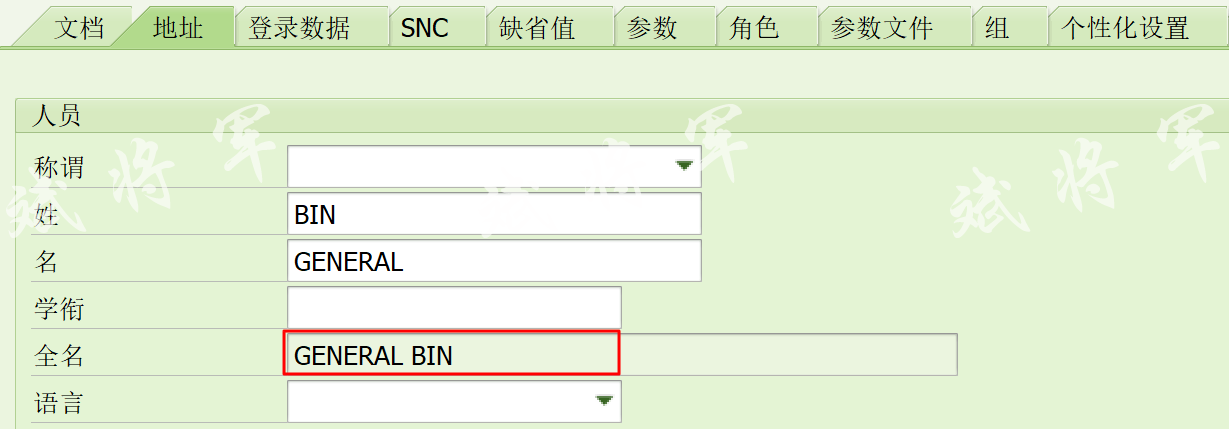

可以通过SU01进行维护

执行效果如下

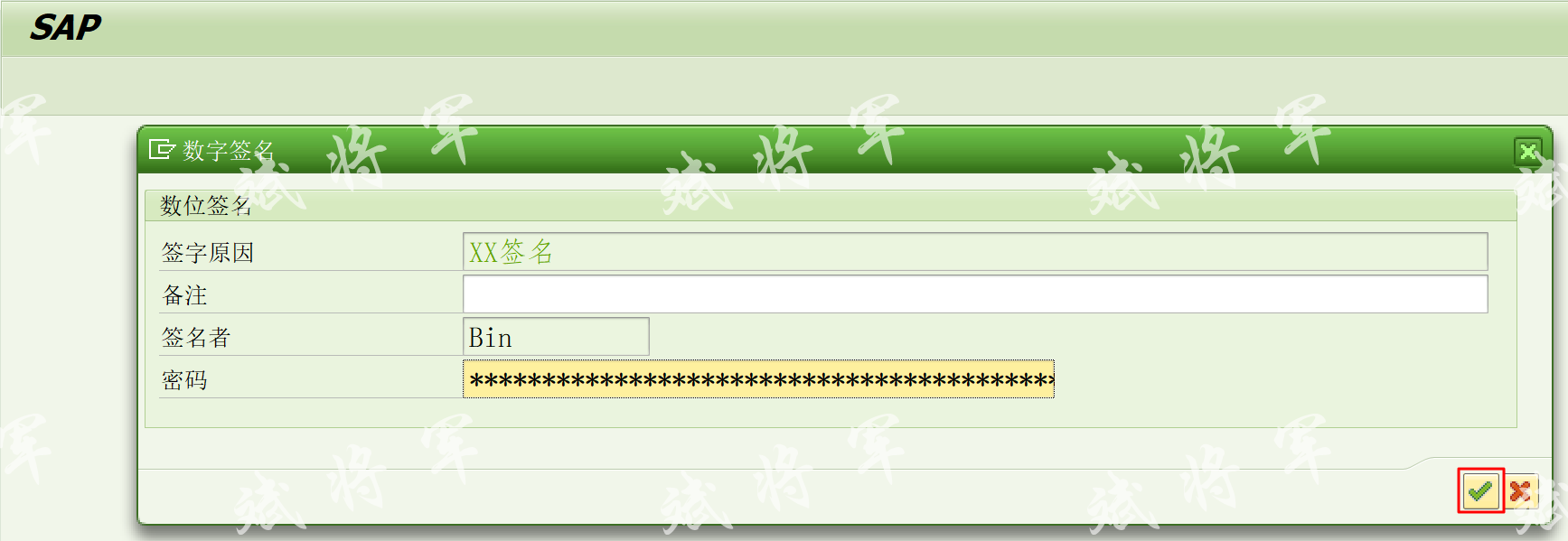

输入密码回车或点击按钮

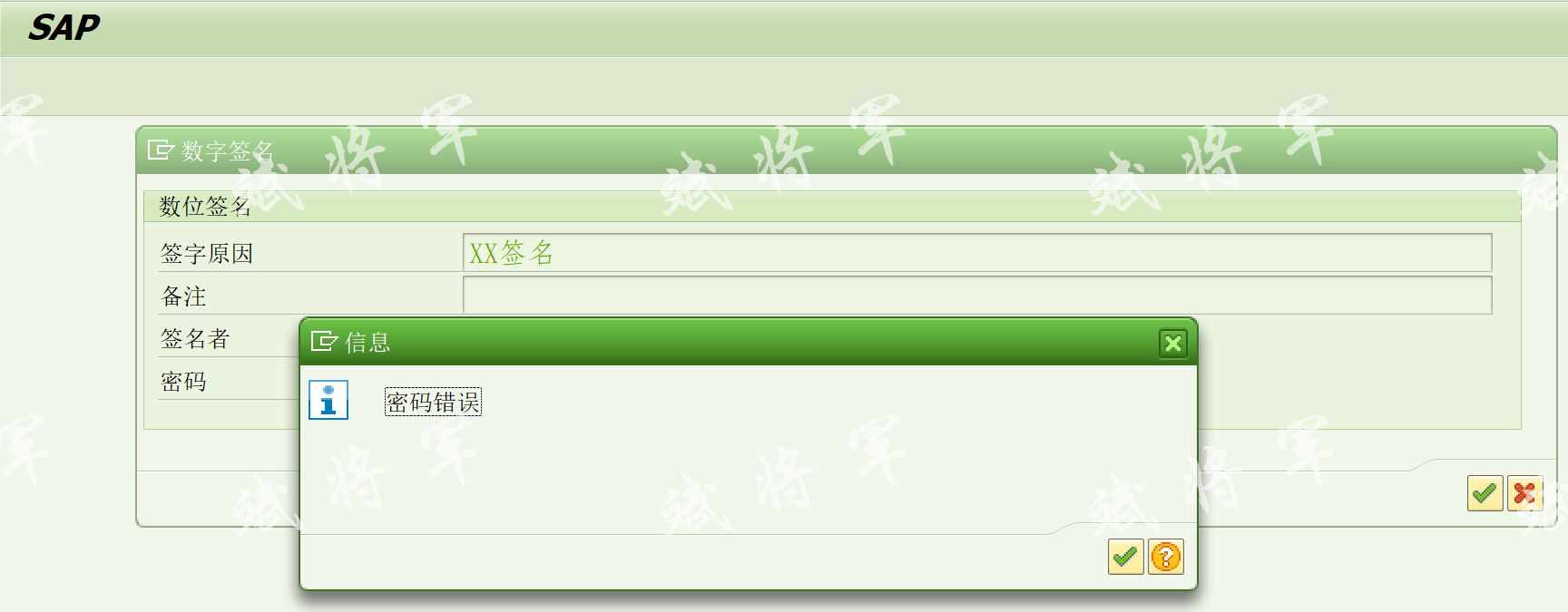

错误效果

成功则直接关闭当前屏幕，执行后续操作

3、参考代码

TABLES:rc70d.

DATA:gv_sign_result TYPE char1,
     gv_screen_keep TYPE char1. "保持弹框

DATA:r_ucomm   LIKE sy-ucomm,
     ok_code   TYPE sy-ucomm,
     save_code TYPE sy-ucomm.

"调用弹框输入密码校验
gv_screen_keep = 'X'.
WHILE gv_screen_keep IS NOT INITIAL.
  CALL SCREEN 9000 STARTING AT 10 1.
ENDWHILE.

IF gv_sign_result = 'S'.
  MESSAGE '校验成功' TYPE 'S'.
ENDIF.
*&---------------------------------------------------------------------*
*& Module STATUS_9000 OUTPUT
*&---------------------------------------------------------------------*
*&
*&---------------------------------------------------------------------*
MODULE status_9000 OUTPUT.
  SET PF-STATUS 'PW_ENTER'.
  SET TITLEBAR '001'.
ENDMODULE.
*&---------------------------------------------------------------------*
*& Module INIT_9000 OUTPUT
*&---------------------------------------------------------------------*
*&
*&---------------------------------------------------------------------*
MODULE init_9000 OUTPUT.
  CLEAR:gv_sign_result.
  CLEAR:rc70d-signer,rc70d-password,rc70d-reason_ktxt.
  rc70d-signer = sy-uname.
  rc70d-sign_reason = 'XX签名'.
  SET CURSOR FIELD 'RC70D-PASSWORD'.
ENDMODULE.
*&---------------------------------------------------------------------*
*&      Module  INPUT_CHECK  INPUT
*&---------------------------------------------------------------------*
*       text
*----------------------------------------------------------------------*
MODULE input_check INPUT.
  DATA: l_user_address TYPE addr3_val.

  IF ok_code <> 'EESC'.
    CALL FUNCTION 'SUSR_USER_ADDRESS_READ'
      EXPORTING
        user_name              = rc70d-signer
      IMPORTING
        user_address           = l_user_address
      EXCEPTIONS
        user_address_not_found = 1
        OTHERS                 = 2.
    IF sy-subrc <> 0.
*     User nicht gefunden oder nicht vollständig gepflegt.
      CLEAR rc70d-signer.
      CLEAR rc70d-password.
      CLEAR rc70d-full_name.
*      MESSAGE e259(sig) WITH rc70d-signer.
      MESSAGE i259(sig) WITH rc70d-signer.
*      g_error-user_address_not_found = c_no_user.
      SET SCREEN 0.
      LEAVE SCREEN.
*      EXIT.
    ELSE.
      IF ( NOT l_user_address-name_first IS INITIAL AND
           NOT l_user_address-name_last  IS INITIAL ).
        CONCATENATE l_user_address-name_last l_user_address-name_first
         INTO rc70d-full_name SEPARATED BY space.
      ELSE.
*    User nicht gefunden oder nicht vollständig gepflegt.
        CLEAR rc70d-signer.
        CLEAR rc70d-password.
        CLEAR rc70d-full_name.
*        MESSAGE e257(sig) WITH rc70d-signer.
        MESSAGE i257(sig) WITH rc70d-signer.
*        g_error-user_address_not_found = c_no_fullname.
        SET SCREEN 0.
        LEAVE SCREEN.
*        EXIT.
      ENDIF.
    ENDIF.
  ENDIF.
ENDMODULE.

*&---------------------------------------------------------------------*
*&      Module  USER_COMMAND_9000  INPUT
*&---------------------------------------------------------------------*
*       text
*----------------------------------------------------------------------*
MODULE user_command_9000 INPUT.

  DATA: lt_row  TYPE lvc_t_row,
        lt_roid TYPE lvc_t_roid,
        ls_row  TYPE lvc_s_row.

  save_code = ok_code.
  CLEAR ok_code.
  CASE save_code.
    WHEN 'EESC'."设置功能键返回按钮单击事件
      CLEAR:gv_screen_keep.
      MESSAGE '用户取消操作' TYPE 'S' DISPLAY LIKE 'E'."用户取消操作
      LEAVE TO SCREEN 0.

    WHEN 'ENT'.
      PERFORM frm_check_password.
  ENDCASE.
ENDMODULE.

*&---------------------------------------------------------------------*
*&      Form  FRM_CHECK_PASSWORD
*&---------------------------------------------------------------------*
*       text 校验密码
*----------------------------------------------------------------------*
FORM frm_check_password." USING pv_signer TYPE sig_signer
*                              pv_password TYPE ssfpw
*                        CHANGING pv_type TYPE char1
*                                 pv_message TYPE char255.

  DATA:go_system_signature TYPE REF TO cl_ssft_system_signature.
  DATA:lv_signer   TYPE sig_signer,
       lv_password TYPE ssfpw,
       lv_message  TYPE char255.

  CLEAR:gv_sign_result.

  lv_signer = rc70d-signer.
  lv_password = rc70d-password.

  CREATE OBJECT go_system_signature.

  CALL METHOD go_system_signature->if_ssft_system_signature~check_password
    EXPORTING
      if_signer        = lv_signer
      if_ask_pwd       = '' "不弹出弹框
      if_password      = lv_password
    EXCEPTIONS
      canceled_by_user = 1
      password_invalid = 2
      password_expired = 3
      profile_locked   = 4
      system_error     = 5
      rfc_error        = 6
      profile_error    = 7
      signature_error  = 8
      OTHERS           = 9.
  IF sy-subrc NE 0.
*    pv_type = 'E'.
    CALL FUNCTION 'MESSAGE_TEXT_BUILD'
      EXPORTING
        msgid               = sy-msgid
        msgnr               = sy-msgno
        msgv1               = sy-msgv1
        msgv2               = sy-msgv2
        msgv3               = sy-msgv3
        msgv4               = sy-msgv4
      IMPORTING
        message_text_output = lv_password.
    MESSAGE lv_password TYPE 'I'."
  ELSE.
    gv_sign_result = 'S'.
    CLEAR:gv_screen_keep."去掉屏幕保持
  ENDIF.
ENDFORM.
