目标

1、Springmvc简介及配置
2、Springmvc之helloword实现
3、Springmvc常用注解及返回值处理
4、Springmvc静态资源处理

Springmvc简介及配置

什么是springMVC?
Spring Web MVC是一种基于Java的实现了MVC设计模式的、请求驱动类型的、轻量级Web框架。
SpringMVC处理请求的流程
2.1 首先用户发送请求–>DispatherServlet
2.2 DispatcherServlet–>HandlerMapping
2.3 DispatcherServlet–>HandlerAdapter
2.4 HandlerAdapter–>处理器功能处理方法的调用
2.5 ModelAndView的逻辑视图名–>ViewRecolver
2.6 View–>渲染
2.7 返回控制权给DispatcherServlet，由DispatcherServlet返回呼应给用户，流程结束
SpringMVC核心开发步骤
3.1 DispatcherServlet在web.xml中的部署描述，从而拦截请求到springMVC
3.2 HandlerMapping的配置，从而将请求映射到处理器
3.3 HandlerAdapter的配置，从而支持多种类型的处理器
3.4 处理器(页面控制器)的配置，从而刊行功能处理
3.5 ViewResolver的配置，从而将逻辑视图名解析为具体的视图技术
SpringMVC的组件
4.1 前端控制器(DispatcherServlet)
4.2 请求到处理器映射(HandlerMapping)
4.3 处理器适配器(HandlerAdapter)
4.4 视图解析器(ViewResolver)
4.5 处理器或页面控制器(Controller)
4.6 验证器(Validator)
4.6 命令对象(Command 请求参数绑定到的对象就叫命令对象)
4.7 表单对象(Form Object提供给表单展示和提交到的对象就叫表单对象)
如何在项目中添加springmvc
5.1 添加相关依赖

<?xml version="1.0" encoding="UTF-8"?>

<project xmlns="http://maven.apache.org/POM/4.0.0" xmlns:xsi="http://www.w3.org/2001/XMLSchema-instance"
  xsi:schemaLocation="http://maven.apache.org/POM/4.0.0 http://maven.apache.org/xsd/maven-4.0.0.xsd">
  <modelVersion>4.0.0</modelVersion>

  <groupId>com.zhouzhuolin</groupId>
  <artifactId>SSM</artifactId>
  <version>1.0-SNAPSHOT</version>
  <packaging>war</packaging>

  <name>SSM Maven Webapp</name>
  <!-- FIXME change it to the project's website -->
  <url>http://www.example.com</url>

  <properties>
    <project.build.sourceEncoding>UTF-8</project.build.sourceEncoding>
    <maven.compiler.source>1.8</maven.compiler.source>
    <maven.compiler.target>1.8</maven.compiler.target>
    <maven.compiler.plugin.version>3.7.0</maven.compiler.plugin.version>

    <!--添加jar包依赖-->
    <!--1.spring 5.0.2.RELEASE相关-->
    <spring.version>5.0.2.RELEASE</spring.version>
    <!--2.mybatis相关-->
    <mybatis.version>3.4.5</mybatis.version>
    <!--mysql-->
    <mysql.version>5.1.44</mysql.version>
    <!--pagehelper分页jar依赖-->
    <pagehelper.version>5.1.2</pagehelper.version>
    <!--mybatis与spring集成jar依赖-->
    <mybatis.spring.version>1.3.1</mybatis.spring.version>
    <!--3.dbcp2连接池相关 druid-->
    <commons.dbcp2.version>2.1.1</commons.dbcp2.version>
    <commons.pool2.version>2.4.3</commons.pool2.version>
    <!--4.log日志相关-->
    <!-- log4j2日志配置相关依赖 -->
    <log4j2.version>2.9.1</log4j2.version>
    <log4j2.disruptor.version>3.2.0</log4j2.disruptor.version>
    <slf4j.version>1.7.13</slf4j.version>
    <!--5.其他-->
    <junit.version>4.12</junit.version>
    <servlet.version>4.0.0</servlet.version>
    <lombok.version>1.18.2</lombok.version>
    <!-- redis与spring的整合依赖 -->
    <redis.version>2.9.0</redis.version>
    <redis.spring.version>1.7.1.RELEASE</redis.spring.version>
    <!-- jackson -->
    <jackson.version>2.9.3</jackson.version>

    <jstl.version>1.2</jstl.version>
    <standard.version>1.1.2</standard.version>
    <tomcat-jsp-api.version>8.0.47</tomcat-jsp-api.version>

  </properties>
  <dependencies>
    <!--1.spring相关-->
    <dependency>
      <groupId>org.springframework</groupId>
      <artifactId>spring-webmvc</artifactId>
      <version>${spring.version}</version>
      </dependency>
    <dependency>
      <groupId>org.springframework</groupId>
      <artifactId>spring-orm</artifactId>
      <version>${spring.version}</version>
    </dependency>
    <dependency>
      <groupId>org.springframework</groupId>
      <artifactId>spring-tx</artifactId>
      <version>${spring.version}</version>
    </dependency>
    <dependency>
      <groupId>org.springframework</groupId>
      <artifactId>spring-aspects</artifactId>
      <version>${spring.version}</version>
    </dependency>
    <dependency>
      <groupId>org.springframework</groupId>
      <artifactId>spring-web</artifactId>
      <version>${spring.version}</version>
    </dependency>
    <dependency>
      <groupId>org.springframework</groupId>
      <artifactId>spring-test</artifactId>
      <version>${spring.version}</version>
    </dependency>



    <!--2.mybatis相关-->
    <dependency>
      <groupId>org.mybatis</groupId>
      <artifactId>mybatis</artifactId>
      <version>${mybatis.version}</version>
    </dependency>
    <!--mysql-->
    <dependency>
      <groupId>mysql</groupId>
      <artifactId>mysql-connector-java</artifactId>
      <version>${mysql.version}</version>
    </dependency>
    <!--pagehelper分页插件jar包依赖-->
    <dependency>
      <groupId>com.github.pagehelper</groupId>
      <artifactId>pagehelper</artifactId>
      <version>${pagehelper.version}</version>
    </dependency>
    <!--mybatis与spring集成jar包依赖-->
    <dependency>
      <groupId>org.mybatis</groupId>
      <artifactId>mybatis-spring</artifactId>
      <version>${mybatis.spring.version}</version>
    </dependency>
    <!--3.dbcp2连接池相关-->
    <dependency>
      <groupId>org.apache.commons</groupId>
      <artifactId>commons-dbcp2</artifactId>
      <version>${commons.dbcp2.version}</version>
    </dependency>
    <dependency>
      <groupId>org.apache.commons</groupId>
      <artifactId>commons-pool2</artifactId>
      <version>${commons.pool2.version}</version>
    </dependency>
    <!--4.log日志相关依赖-->
    <!--核心log4j2jar包-->
    <!-- log4j2日志相关依赖 -->
    <!-- log配置：Log4j2 + Slf4j -->
    <!-- slf4j核心包-->
    <dependency>
      <groupId>org.slf4j</groupId>
      <artifactId>slf4j-api</artifactId>
      <version>${slf4j.version}</version>
    </dependency>
    <dependency>
      <groupId>org.slf4j</groupId>
      <artifactId>jcl-over-slf4j</artifactId>
      <version>${slf4j.version}</version>
      <scope>runtime</scope>
    </dependency>

    <!--核心log4j2jar包-->
    <dependency>
      <groupId>org.apache.logging.log4j</groupId>
      <artifactId>log4j-api</artifactId>
      <version>${log4j2.version}</version>
    </dependency>
    <dependency>
      <groupId>org.apache.logging.log4j</groupId>
      <artifactId>log4j-core</artifactId>
      <version>${log4j2.version}</version>
    </dependency>
    <!--用于与slf4j保持桥接-->
    <dependency>
      <groupId>org.apache.logging.log4j</groupId>
      <artifactId>log4j-slf4j-impl</artifactId>
      <version>${log4j2.version}</version>
    </dependency>
    <!--web工程需要包含log4j-web，非web工程不需要-->
    <dependency>
      <groupId>org.apache.logging.log4j</groupId>
      <artifactId>log4j-web</artifactId>
      <version>${log4j2.version}</version>
      <scope>runtime</scope>
    </dependency>

    <!--需要使用log4j2的AsyncLogger需要包含disruptor-->
    <dependency>
      <groupId>com.lmax</groupId>
      <artifactId>disruptor</artifactId>
      <version>${log4j2.disruptor.version}</version>
    </dependency>

    <!--web工程需要包含log4j-web，非web工程不需要-->
    <dependency>
      <groupId>org.apache.logging.log4j</groupId>
      <artifactId>log4j-web</artifactId>
      <version>${log4j2.version}</version>
    </dependency>

    <!--5.其他-->
    <dependency>
      <groupId>junit</groupId>
      <artifactId>junit</artifactId>
      <version>${junit.version}</version>
      <scope>test</scope>
    </dependency>
    <dependency>
      <groupId>javax.servlet</groupId>
      <artifactId>javax.servlet-api</artifactId>
      <version>${servlet.version}</version>
      <scope>provided</scope>
    </dependency>
    <dependency>
      <groupId>org.projectlombok</groupId>
      <artifactId>lombok</artifactId>
      <version>${lombok.version}</version>
      <scope>provided</scope>
    </dependency>
    <dependency>
      <groupId>org.springframework</groupId>
      <artifactId>spring-context-support</artifactId>
      <version>${spring.version}</version>
    </dependency>

    <!--mybatis与ehcache整合-->
    <dependency>
      <groupId>org.mybatis.caches</groupId>
      <artifactId>mybatis-ehcache</artifactId>
      <version>1.1.0</version>
    </dependency>

    <!--ehcache依赖-->
    <dependency>
      <groupId>net.sf.ehcache</groupId>
      <artifactId>ehcache</artifactId>
      <version>2.10.0</version>
    </dependency>


    <!-- redis与spring的整合依赖 -->
    <dependency>
      <groupId>redis.clients</groupId>
      <artifactId>jedis</artifactId>
      <version>${redis.version}</version>
</dependency>
    <dependency>
      <groupId>org.springframework.data</groupId>
      <artifactId>spring-data-redis</artifactId>
      <version>${redis.spring.version}</version>
    </dependency>

    <!-- jackson -->
    <dependency>
      <groupId>com.fasterxml.jackson.core</groupId>
      <artifactId>jackson-databind</artifactId>
      <version>${jackson.version}</version>
    </dependency>
    <dependency>
      <groupId>com.fasterxml.jackson.core</groupId>
      <artifactId>jackson-core</artifactId>
      <version>${jackson.version}</version>
    </dependency>
    <dependency>
      <groupId>com.fasterxml.jackson.core</groupId>
      <artifactId>jackson-annotations</artifactId>
      <version>${jackson.version}</version>
    </dependency>


    <!-- 5.3、jstl、standard -->
    <dependency>
      <groupId>jstl</groupId>
      <artifactId>jstl</artifactId>
      <version>${jstl.version}</version>
    </dependency>
    <dependency>
      <groupId>taglibs</groupId>
      <artifactId>standard</artifactId>
      <version>${standard.version}</version>
    </dependency>

    <!-- 5.4、tomcat-jsp-api -->
    <dependency>
      <groupId>org.apache.tomcat</groupId>
      <artifactId>tomcat-jsp-api</artifactId>
      <version>${tomcat-jsp-api.version}</version>
    </dependency>


  </dependencies>

  <build>
    <finalName>SSM</finalName>
    <resources>
      <!--解决mybatis-generator-maven-plugin运行时没有将XxxMapper.xml文件放入target文件夹的问题-->
      <resource>
        <directory>src/main/java</directory>
        <includes>
          <include>**/*.xml</include>
        </includes>
      </resource>
      <!--解决mybatis-generator-maven-plugin运行时没有将jdbc.properites文件放入target文件夹的问题-->
      <resource>
        <directory>src/main/resources</directory>
        <includes>
          <include>*.properties</include>
          <include>*.xml</include>
        </includes>
      </resource>
    </resources>
    <pluginManagement><!-- lock down plugins versions to avoid using Maven defaults (may be moved to parent pom) -->
      <plugins>
        <plugin>
          <groupId>org.apache.maven.plugins</groupId>
          <artifactId>maven-compiler-plugin</artifactId>
          <version>${maven.compiler.plugin.version}</version>
          <configuration>
            <source>${maven.compiler.source}</source>
            <target>${maven.compiler.target}</target>
            <encoding>${project.build.sourceEncoding}</encoding>
          </configuration>
        </plugin>
        <plugin>
          <groupId>org.mybatis.generator</groupId>
          <artifactId>mybatis-generator-maven-plugin</artifactId>
          <version>1.3.2</version>
          <dependencies>
            <!--使用Mybatis-generator插件不能使用太高版本的mysql驱动 -->
            <dependency>
              <groupId>mysql</groupId>
              <artifactId>mysql-connector-java</artifactId>
              <version>${mysql.version}</version>
            </dependency>
          </dependencies>
          <configuration>
            <overwrite>true</overwrite>
          </configuration>
        </plugin>
        <plugin>
          <artifactId>maven-clean-plugin</artifactId>
          <version>3.1.0</version>
        </plugin>
        <!-- see http://maven.apache.org/ref/current/maven-core/default-bindings.html#Plugin_bindings_for_war_packaging -->
        <plugin>
          <artifactId>maven-resources-plugin</artifactId>
          <version>3.0.2</version>
        </plugin>
        <plugin>
          <artifactId>maven-compiler-plugin</artifactId>
          <version>3.8.0</version>
        </plugin>
        <plugin>
          <artifactId>maven-surefire-plugin</artifactId>
          <version>2.22.1</version>
        </plugin>
        <plugin>
          <artifactId>maven-war-plugin</artifactId>
          <version>3.2.2</version>
        </plugin>
        <plugin>
          <artifactId>maven-install-plugin</artifactId>
          <version>2.5.2</version>
        </plugin>
        <plugin>
          <artifactId>maven-deploy-plugin</artifactId>
          <version>2.8.2</version>
        </plugin>
      </plugins>
    </pluginManagement>
  </build>
</project>

5.2 在WEB-INF下添加springmvc-servlet.xml(spring-mvc.xml)

<?xml version="1.0" encoding="UTF-8"?>
<beans xmlns="http://www.springframework.org/schema/beans"
       xmlns:xsi="http://www.w3.org/2001/XMLSchema-instance"
       xmlns:context="http://www.springframework.org/schema/context"
       xmlns:mvc="http://www.springframework.org/schema/mvc" xmlns:aop="http://www.springframework.org/schema/aop"
       xsi:schemaLocation="http://www.springframework.org/schema/beans http://www.springframework.org/schema/beans/spring-beans.xsd
      http://www.springframework.org/schema/context http://www.springframework.org/schema/context/spring-context-4.3.xsd http://www.springframework.org/schema/mvc http://www.springframework.org/schema/mvc/spring-mvc.xsd http://www.springframework.org/schema/aop http://www.springframework.org/schema/aop/spring-aop.xsd">
    <!-- 通过context:component-scan元素扫描指定包下的控制器-->
    <!--1) 扫描com.javaxl.zf及子子孙孙包下的控制器(扫描范围过大，耗时)-->
    <aop:aspectj-autoproxy/>
    <context:component-scan base-package="com.zhouzhuolin"/>

    <!--2) 此标签默认注册DefaultAnnotationHandlerMapping和AnnotationMethodHandlerAdapter -->
    <!--两个bean，这两个bean是spring MVC为@Controllers分发请求所必须的。并提供了数据绑定支持，-->
    <!--@NumberFormatannotation支持，@DateTimeFormat支持，@Valid支持，读写XML的支持（JAXB），读写JSON的支持（Jackson）-->
    <mvc:annotation-driven></mvc:annotation-driven>

    <!--3) ViewResolver -->
    <bean class="org.springframework.web.servlet.view.InternalResourceViewResolver">
        <!-- viewClass需要在pom中引入两个包：standard.jar and jstl.jar -->
        <property name="viewClass"
                  value="org.springframework.web.servlet.view.JstlView"></property>
        <property name="prefix" value="/"/>
        <property name="suffix" value=".jsp"/>
    </bean>

    <!--4) 单独处理图片、样式、js等资源 -->
    <!--<mvc:resources location="/css/" mapping="/css/**"/>-->
    <!--<mvc:resources location="/images/" mapping="/images/**"/>-->
    <!--<mvc:resources location="/js/" mapping="/js/**"/>-->
    <mvc:resources location="/static/" mapping="/static/**"/>


</beans>

5.3 修改web.xml

<web-app xmlns="http://xmlns.jcp.org/xml/ns/javaee"
         xmlns:xsi="http://www.w3.org/2001/XMLSchema-instance"
         xsi:schemaLocation="http://xmlns.jcp.org/xml/ns/javaee http://xmlns.jcp.org/xml/ns/javaee/web-app_3_1.xsd"
         version="3.1">
  <display-name>Archetype Created Web Application</display-name>

  <welcome-file-list>
    <welcome-file>login.jsp</welcome-file>
  </welcome-file-list>

  <context-param>
    <param-name>contextConfigLocation</param-name>
    <param-value>classpath:applicationContext.xml</param-value>
  </context-param>
  <!-- 读取Spring上下文的监听器 -->
  <listener>
    <listener-class>org.springframework.web.context.ContextLoaderListener</listener-class>
  </listener>
  <!-- Spring和web项目集成end -->

  <!-- 防止Spring内存溢出监听器 -->
  <listener>
    <listener-class>org.springframework.web.util.IntrospectorCleanupListener</listener-class>
  </listener>


  <!-- 中文乱码处理 -->
  <filter>
    <filter-name>encodingFilter</filter-name>
    <filter-class>org.springframework.web.filter.CharacterEncodingFilter</filter-class>
    <!--web.xml 3.0的新特性，是否支持异步-->
    <async-supported>true</async-supported>
    <init-param>
      <param-name>encoding</param-name>
      <param-value>UTF-8</param-value>
    </init-param>
  </filter>
  <filter-mapping>
    <filter-name>encodingFilter</filter-name>
    <url-pattern>/*</url-pattern>
  </filter-mapping>

  <!-- Spring MVC servlet -->
  <servlet>
    <servlet-name>SpringMVC</servlet-name>
    <servlet-class>org.springframework.web.servlet.DispatcherServlet</servlet-class>
    <!--此参数可以不配置，默认值为：/WEB-INF/springmvc-servlet.xml-->
    <init-param>
      <param-name>contextConfigLocation</param-name>
      <param-value>/WEB-INF/springmvc-servlet.xml</param-value>
    </init-param>
    <load-on-startup>1</load-on-startup>
    <!--web.xml 3.0的新特性，是否支持异步-->
    <async-supported>true</async-supported>
  </servlet>
  <servlet-mapping>
    <servlet-name>SpringMVC</servlet-name>
    <url-pattern>/</url-pattern>
  </servlet-mapping>

</web-app>

Springmvc之helloword实现

第一个springMVC程序：HelloWorld

package com.zhouzhuolin.controller;

import org.springframework.stereotype.Controller;
import org.springframework.web.bind.annotation.RequestMapping;
import org.springframework.web.bind.annotation.ResponseBody;

import java.util.HashMap;
import java.util.Map;

@Controller
public class HelloController {

    @ResponseBody
    @RequestMapping("hello1")
    public String hello1(){
        System.out.println("hello");
        return  "hello 2019年10月25日23:23:10";
    }

    @RequestMapping("hello2")
    public String hello2(){
        return  "hello";
    }

    @ResponseBody
    @RequestMapping("hello3")
    public Map hello3(){
        Map map=new HashMap();
        map.put("total",12);
        map.put("rows","一串数据");
        return  map;
    }

    /*1.转发到页面*/
    @RequestMapping("/forwardl")
    public String forwardl() {
        System.out.println("进来forwardl");
        return "aaa";
    }
    /*2.转发到根路径下的页面*/
    @RequestMapping("/forward2")
    public String forward2() {

        return "forward:/bbb.jsp";
    }
    /*3.转发到requestMapping下*/
    @RequestMapping("/forward3")
    public String forward3() {

        return "forward:/forwardl";
    }
    /*4.重定向到根路径下*/
    @RequestMapping("/redirect1")
    public String redirect1() {

        return "redirect:/bbb.jsp";
    }
    /*5.重定向到requestMapping下*/
    @RequestMapping("/redirect2")
    public String redirect2() {

        return "redirect:/forwardl";
    }

}

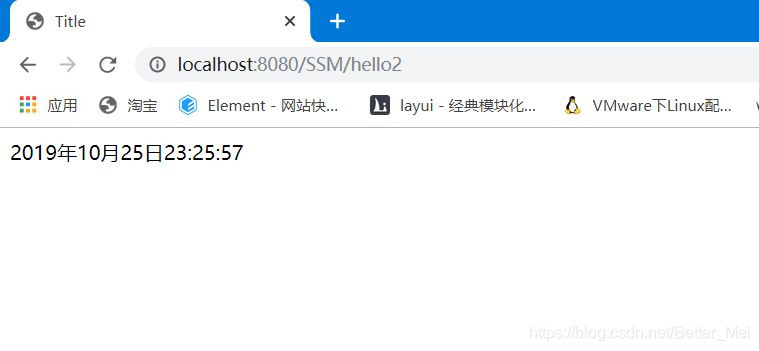

在这里插入图片描述

Springmvc常用注解及返回值处理

通过crud进行讲解
Controller
Requestmapping
Requestparam
传参

package com.zhouzhuolin.controller;

import com.zhouzhuolin.model.Book;
import com.zhouzhuolin.service.BookService;
import com.zhouzhuolin.util.PageBean;
import org.springframework.beans.factory.annotation.Autowired;
import org.springframework.stereotype.Controller;
import org.springframework.web.bind.annotation.PathVariable;
import org.springframework.web.bind.annotation.RequestMapping;

import javax.servlet.http.HttpServletRequest;
import java.util.List;

@Controller
@RequestMapping("/book")
public class BookController {
    @Autowired
    private BookService bookService;

    /*查询*/
    @RequestMapping("/list")
    public String list(Book book, HttpServletRequest req){
        PageBean pageBean=new PageBean();
        pageBean.setRequest(req);
        List<Book> books = this.bookService.listPager(book, pageBean);
        req.setAttribute("bookList",books);
        req.setAttribute("pageBean",pageBean);
        return  "bookList";
    }

    /*跳转增加和修改页面*/
    @RequestMapping("/preSave")
    public String preSave(Book book,HttpServletRequest req){
        if (book!=null && book.getBid() !=null && book.getBid() !=0){
            Book book1 = this.bookService.selectByPrimaryKey(book.getBid());
            req.setAttribute("book2",book1);
        }
        return "bookEdit";
    }
    /*增加*/
    @RequestMapping("/add")
    public String add(Book book,HttpServletRequest req){
        this.bookService.insertSelective(book);
        return  "redirect:/book/list";
    }

    /*修改*/
    @RequestMapping("/edit")
    public String edit(Book book,HttpServletRequest req){
        this.bookService.updateByPrimaryKeySelective(book);
        return  "redirect:/book/list";
    }

    /*删除*/
    @RequestMapping("/del/{bid}")
    public String del(@PathVariable("bid") Integer bid,HttpServletRequest req){
        this.bookService.deleteByPrimaryKey(bid);
        return  "redirect:/book/list";
    }

   /*删除*/
    @RequestMapping("/del/{typeid}/{bid}")
    public String xxx(@PathVariable("typeid") Integer typeid,@PathVariable("bid") Integer bid,HttpServletRequest req){
        this.bookService.deleteByPrimaryKey(bid);
        return  "redirect:/book/list";
    }

}

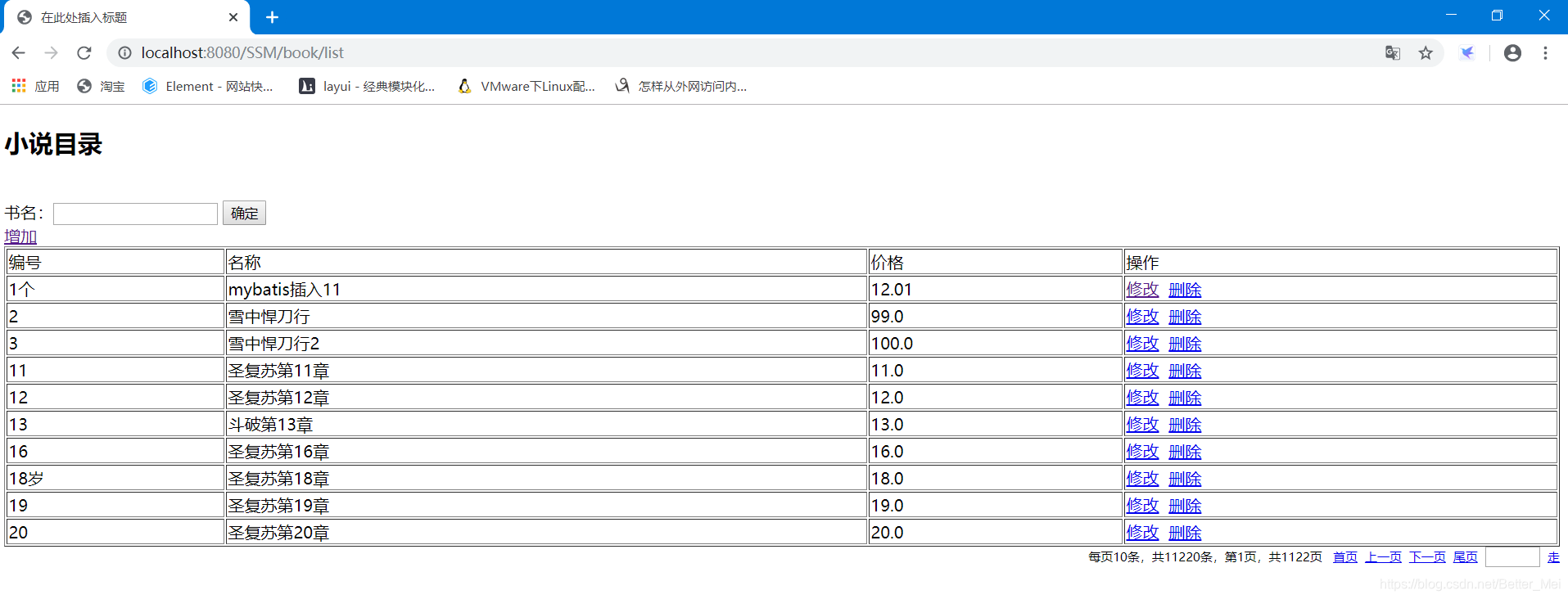

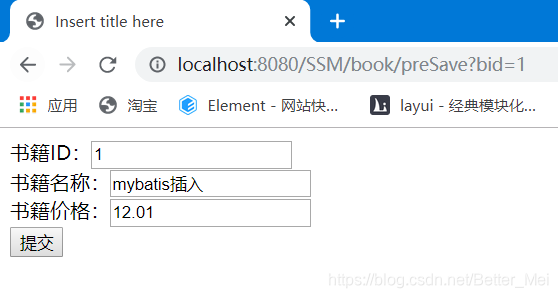

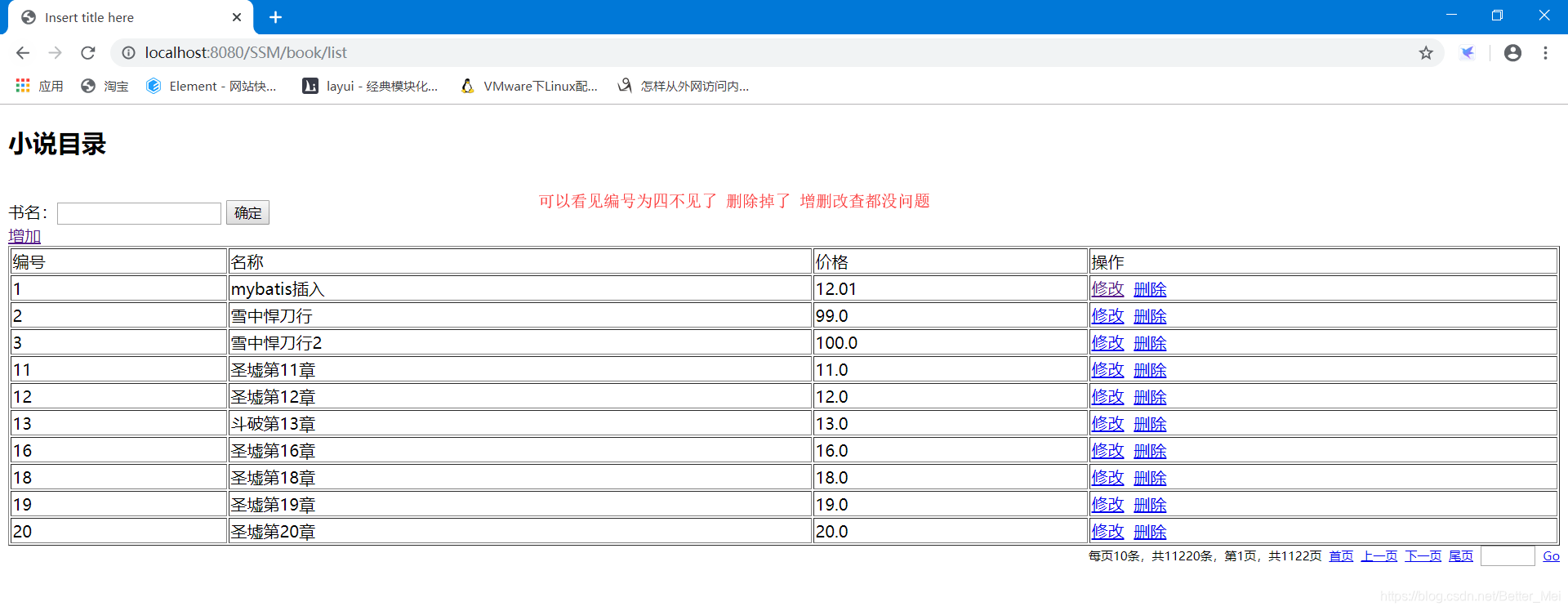

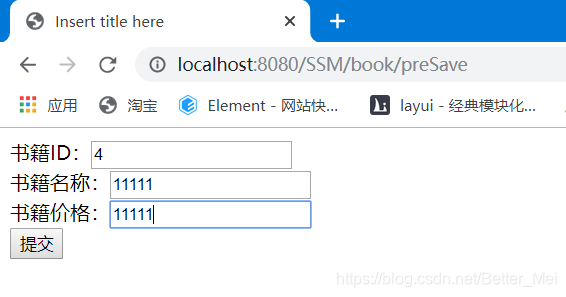

在这里插入图片描述

Springmvc静态资源处理

在这里插入图片描述

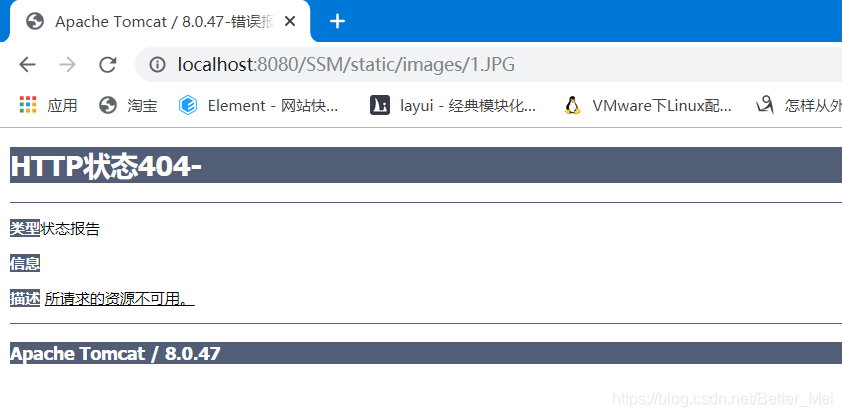

以前我们能直接访问项目下的静态资源
但是现在不能了为什么呢？
因为spring把http://localhost:8080/SSM/static/images/1.JPG这段当做请求了所以访问不到

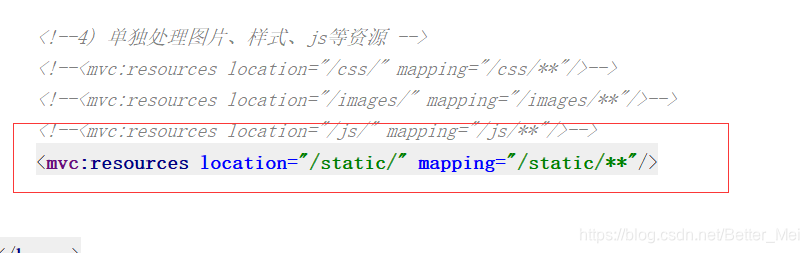

下面是解决方法在springmvc-servlet.xml里面配置就行了

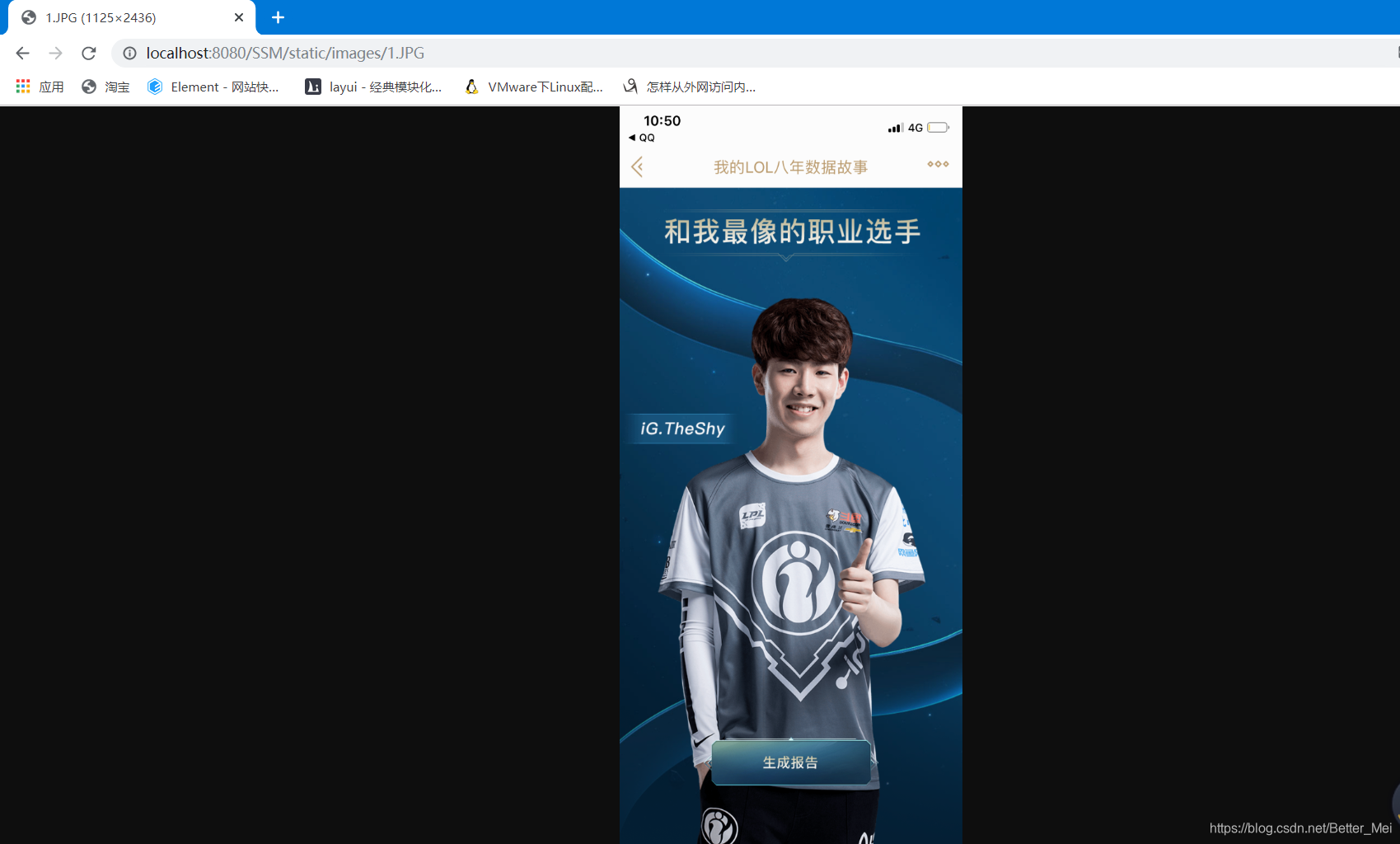

这样子就可以出来了
！！！
