19 inch Fully Redundant ADS-B Ground Station ADSB-GS1090-2

最新推荐文章于 2025-11-23 10:47:39 发布

原创最新推荐文章于 2025-11-23 10:47:39 发布 · 1k 阅读

17 ·

CC 4.0 BY-SA版权

文章标签：

#智能硬件

ads-b 专栏收录该内容

18 篇文章

订阅专栏

Introduction

Functions

Data Formats

Functions for your convenience

Specifications

Optional

Antenna

Introduction

ADS-B (Automatic Dependent Surveillance - Broadcast) is a system or a technique. ADS-B uses airborne GPS and several other equipment to obtain the aircraft own position and other information, then uses communication equipment onboard to transmit the aircraft own position and other information. ADS-B ground stations and other aircrafts around can use communication equipment to get this information, so to monitor the aircraft, or to say, “see” the aircraft.

The main ground surveillance technique used to be radar. Radar is expensive, a lot of work to install and maintain. While ADS-B ground stations are cheap, easy to install and maintain. A cheaper and easier way for ground surveillance solution, even possible to replace radar in the future.

ADSB-GS1090-2 is a fully redundant ADS-B ground station with dual independent channel ADS-B receiver, two ADS-B antennas/clamps, two GPS antennas/clamps and four antenna line surge protectors. ADSB-GS1090-2 is a high performance and easy to use ADS-B ground station, with standard 19 inch 2U inserts for existing or new racks. Two independent team developed the two receivers, which makes ADSB-GS1090-2 really redundant, more stable, bug resistant and more stable.

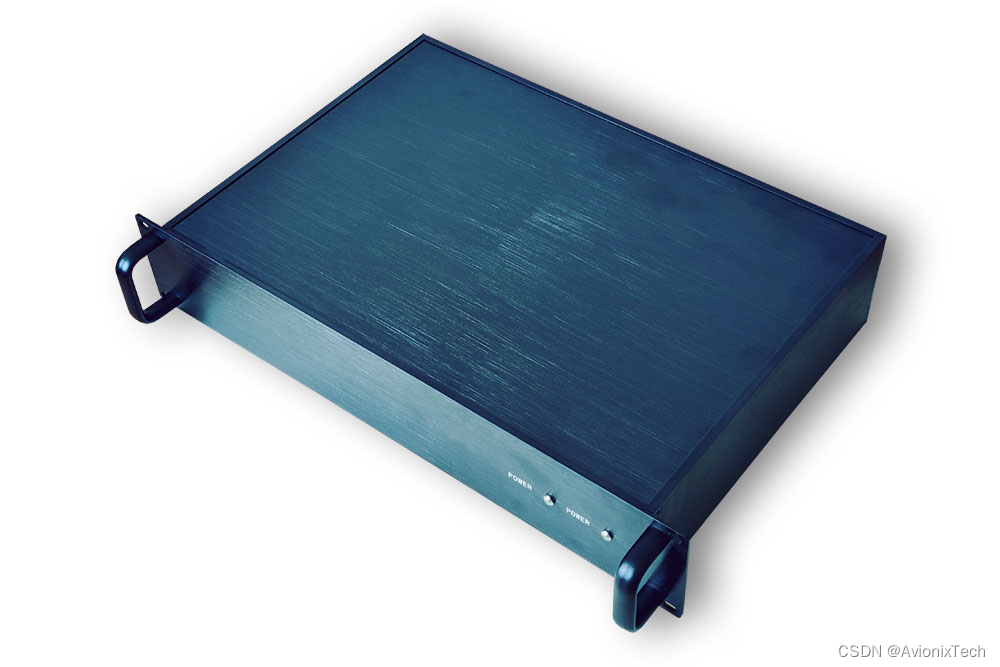

19 inch Fully Redundant ADS-B Ground Station ADSB-GS1090-2

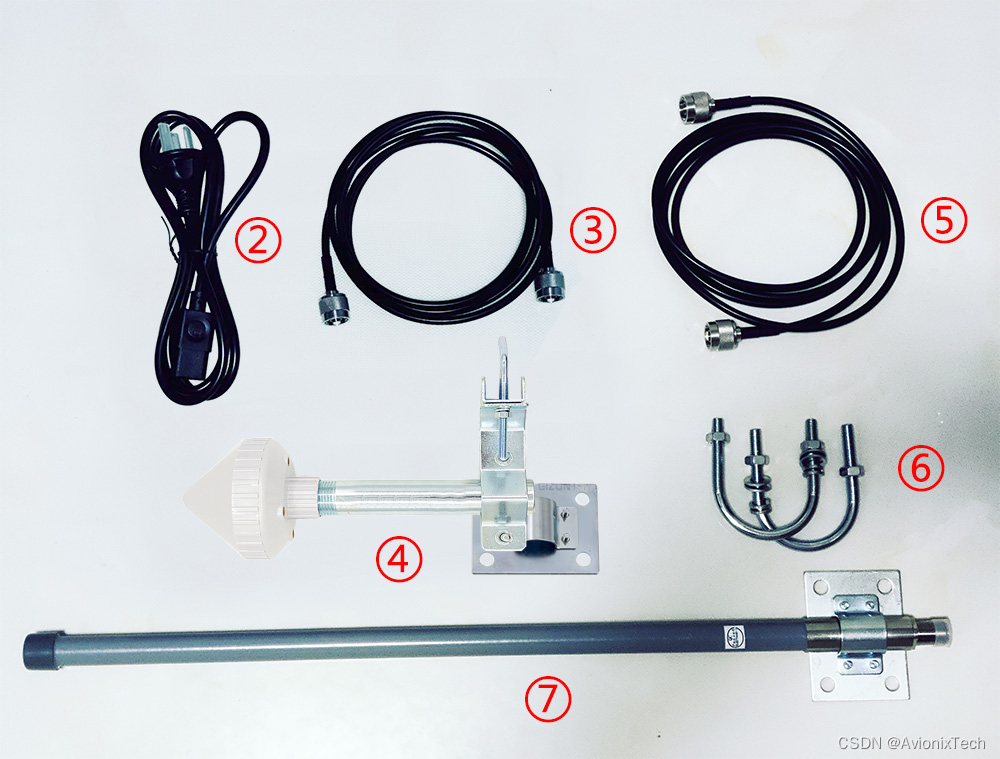

ADSB-GS1090-2 includes：
①、ADSB-GS1090-2 unit *1
②、Power *1
③、GPS antenna cable 10 meters *2 (please indicate if you need longer cable)
④、GPS antenna with clamp *2
⑤、ADS-B antenna cable 10 meters *2 (please indicate if you need longer cable)
⑥、ADS-B antenna clamp *2
⑦、ADS-B antenna *2
Note: In pictures, ③-⑦ are just one set, this is just for easy show. Equipment is actually delivered with two sets.

Functions

Data Formats

1. ADSB-GS1090-2 can output ADS-B messages via network cables in different data format. Including CSV plaintext (decoded data, you can easily get longitude, latitude, altitude, speed, flight ID… without complicated decoding by yourself), Asterix Cat021, json (also decoded data), DF17/18 raw messages and AVR.
2. ADSB-GS1090-2 can also receive and output Mode-S messages and Mode A/C messages.
3. ADSB-GS1090-2 can output data with GPS timestamp.

Functions for your convenience

1. ADSB-GS1090-2 can be connected via network cables.
2. ADSB-GS1090-2 supports static IP address and DHCP.
3. ADSB-GS1090-2 IP address can be configured to connect with computer without routers. Of course ADSB-GS1090-2 can also be configured to connect with computer with routers, all up to you.
4. One ADSB-GS1090-2 can send data to multi clients.
5. ADSB-GS1090-2 is standard 19″ 2U inserts for existing or new racks.
6. Work with adsbscope.

Specifications

Frequency	1090MHz
Sensitivity	better than -93dbm
Coverage	>350 km
Power Supply	220V
Physical Size	43308.9 cm (not include antenna connectors and handle)
Antenna Connector	N/F

Optional

1. Dual redundant power supply.
2. Surge Protector.
3. V4A stainless special steel ADS-B antenna to prevent salt erosion for off-shore use.
4. ATC display software.
5. OEM/Customization. All our products can be supplied fully customized with your brand and logo. We can even do customized form factors, enclosures and packages on your requirement. This OEM/Customization service enables you to have your own unique product in minimal time with no risk.
6. IQ data output and storage. We can output and storage IQ data for your analysis. Please don’t hesitate to contact us providing your specific requirement.
7. ADS-B, ACARS and AIS, three A receiver integration, is usually called 3A receiver. We can do this.
8. You’re welcome to provide any of your requirements, we’d be glad to work with you!

Special use case

1. Off-shore use, with optional V4A stainless special steel ADS-B antenna.
2. On ship, with optional V4A stainless special steel ADS-B antenna.
3. Areas that have a lot of thunders, with surge protectors.
