ConcurrentHashMap

本文详细解析了JDK1.7和JDK1.8中ConcurrentHashMap的内部实现,包括数据结构、初始化、get、put、size操作及扩容机制。重点介绍了JDK1.8中引入的红黑树优化策略,以及锁粒度和数据结构的改进。

摘要生成于 C知道 ,由 DeepSeek-R1 满血版支持, 前往体验 >

JDK1.7的实现

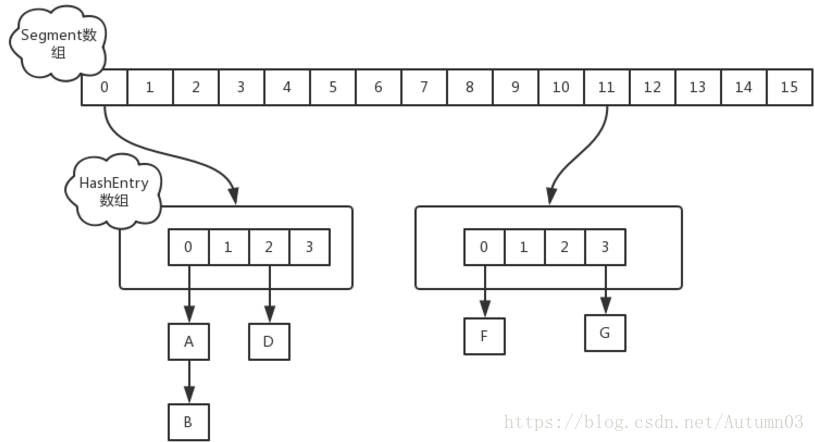

ConcurrentHashMap的数据结构是由一个Segment数组和多个HashEntry组成,如图:

Segment数组的意义就是将一个大的table分割成多个小的table来进行加锁,segment的结构和HashMap类似,是一种数组和链表的结构,一个segment里包含一个HashEntry数组,每个HashEntry是一个链表结构的元素,每个segment守护者一个HashEntry数组里的元素,当对HashEntry数组的数据进行修改,必须首先获得与它对应的segment锁

1.初始化

        int sshift = 0;
        int ssize = 1;
        while (ssize < concurrencyLevel) {
            ++sshift;
            ssize <<= 1;
        }
        int segmentShift = 32 - sshift;
        int segmentMask = ssize - 1;

segments数组的长度ssize是通过concurrencyLevel计算得出的,ssize用位与运算来计算,so,segments数组的长度是2的n次方,concurrencyLevel的最大值为65536,这意味着segments数组的长度最大值为65536,对应的二进制为16位

sshift等于ssize从1向左移位的次数,默认concurrencyLevel等于16,1需要向左移位4次,so,是shift等于4;segmentShift用于定位参与散列运算的位数,这里等于28,因为ConcurrentHashMap里的hash方法输出的最大数是32位的,so,32-4=28;segmentMask是散列运算的掩码,掩码的二进制各个位都是1

2.get

ConcurrentHashMap的get操作和HashMap类似,只是第一次需要经过hash定位到segment的位置,然后再hash定位到HashEntry,遍历该HashEntry下的链表进行对比,成功就返回,不成功就返回null

可以看出,定位segment和定位HashEntry所使用的算法不一

    public V get(Object key) {
        Segment<K,V> s; // manually integrate access methods to reduce overhead
        HashEntry<K,V>[] tab;
        int h = hash(key);
        long u = (((h >>> segmentShift) & segmentMask) << SSHIFT) + SBASE;
        if ((s = (Segment<K,V>)UNSAFE.getObjectVolatile(segments, u)) != null &&
            (tab = s.table) != null) {
            for (HashEntry<K,V> e = (HashEntry<K,V>) UNSAFE.getObjectVolatile
                     (tab, ((long)(((tab.length - 1) & h)) << TSHIFT) + TBASE);
                 e != null; e = e.next) {
                K k;
                if ((k = e.key) == key || (e.hash == h && key.equals(k)))
                    return e.value;
            }
        }
        return null;
    }

3.put

put需要对共享变量进行写入操作,so,需要加锁。该方法首先定位到segment,在segment里进行插入操作。插入操作需要两步,第一判断是否需要对segment里的HashEntry数据进行扩容,第二定位添加元素的位置,然后将其放在HashEntry数组里

(1)是否需要扩容

在插入元素前会先判断segment里的HashEntry数组是否超过容量threshold,如果超过阈值则进行扩容,注意,segment扩容比HashMap更恰当,因为HashMap是在插入元素后判断元素是否已经达到容量的,如果达到了就进行扩容,但是很有可能扩容之后没有新元素插入,这时HashMap即进行了一次无效扩容

(2)如何扩容

首先创建一个容量是原来两倍的数组,然后将原数组里的元素进行再散列插入到新数组里,为了高效,ConcurrentHashMap不会对整个容器进行扩容,而只对某个segment进行扩容

static final class Segment<K,V> extends ReentrantLock implements Serializable {
    public V put(K key, V value) {
        Segment<K,V> s;
        if (value == null)
            throw new NullPointerException();
        int hash = hash(key);
        int j = (hash >>> segmentShift) & segmentMask;
        if ((s = (Segment<K,V>)UNSAFE.getObject          // nonvolatile; recheck
             (segments, (j << SSHIFT) + SBASE)) == null) //  in ensureSegment
            s = ensureSegment(j);
        return s.put(key, hash, value, false);
    }

在将数据插入指定的HashEntry位置时,会通过继承的ReentrantLock的tryLock方法尝试去获取锁,如果获取成功就直接插入相应的位置,如果已经有线程获取该segment的锁,那么当前线程会以自旋的方式继续调用tryLock方法区获取锁,超过指定次数就挂起,等待唤醒

        final V put(K key, int hash, V value, boolean onlyIfAbsent) {
            HashEntry<K,V> node = tryLock() ? null :
                scanAndLockForPut(key, hash, value);
            V oldValue;
            try {
                HashEntry<K,V>[] tab = table;
                int index = (tab.length - 1) & hash;
                HashEntry<K,V> first = entryAt(tab, index);
                for (HashEntry<K,V> e = first;;) {
                    if (e != null) {
                        K k;
                        if ((k = e.key) == key ||
                            (e.hash == hash && key.equals(k))) {
                            oldValue = e.value;
                            if (!onlyIfAbsent) {
                                e.value = value;
                                ++modCount;
                            }
                            break;
                        }
                        e = e.next;
                    }
                    else {
                        if (node != null)
                            node.setNext(first);
                        else
                            node = new HashEntry<K,V>(hash, key, value, first);
                        int c = count + 1;
                        if (c > threshold && tab.length < MAXIMUM_CAPACITY)
                            rehash(node);
                        else
                            setEntryAt(tab, index, node);
                        ++modCount;
                        count = c;
                        oldValue = null;
                        break;
                    }
                }
            } finally {
                unlock();
            }
            return oldValue;
        }

通过tryLock获得锁

        private HashEntry<K,V> scanAndLockForPut(K key, int hash, V value) {
            HashEntry<K,V> first = entryForHash(this, hash);
            HashEntry<K,V> e = first;
            HashEntry<K,V> node = null;
            int retries = -1; // negative while locating node
            while (!tryLock()) {
                HashEntry<K,V> f; // to recheck first below
                if (retries < 0) {
                    if (e == null) {
                        if (node == null) // speculatively create node
                            node = new HashEntry<K,V>(hash, key, value, null);
                        retries = 0;
                    }
                    else if (key.equals(e.key))
                        retries = 0;
                    else
                        e = e.next;
                }
                else if (++retries > MAX_SCAN_RETRIES) {
                    lock();
                    break;
                }
                else if ((retries & 1) == 0 &&
                         (f = entryForHash(this, hash)) != first) {
                    e = first = f; // re-traverse if entry changed
                    retries = -1;
                }
            }
            return node;
        }

4.size

ConcurrentHashMap先尝试2次通过不锁住segment的方式来统计各个segment大小,如果统计的过程中容器的count发生了变化,则再采用加锁的方式来统计所有segment的大小

如何判断在统计的时候容器发生变化?使用modCount变量,在put、remove和clean方法里操作元素前都会将该变量加1,在统计size前后比较modCount是否发生变化,从而得知容器的大小是否发生变化

public int size() {
        // Try a few times to get accurate count. On failure due to
        // continuous async changes in table, resort to locking.
        final Segment<K,V>[] segments = this.segments;
        int size;
        boolean overflow; // true if size overflows 32 bits
        long sum;         // sum of modCounts
        long last = 0L;   // previous sum
        int retries = -1; // first iteration isn't retry
        try {
            for (;;) {
                if (retries++ == RETRIES_BEFORE_LOCK) {
                    for (int j = 0; j < segments.length; ++j)
                        ensureSegment(j).lock(); // force creation
                }
                sum = 0L;
                size = 0;
                overflow = false;
                for (int j = 0; j < segments.length; ++j) {
                    Segment<K,V> seg = segmentAt(segments, j);
                    if (seg != null) {
                        sum += seg.modCount;
                        int c = seg.count;
                        if (c < 0 || (size += c) < 0)
                            overflow = true;
                    }
                }
                if (sum == last)
                    break;
                last = sum;
            }
        } finally {
            if (retries > RETRIES_BEFORE_LOCK) {
                for (int j = 0; j < segments.length; ++j)
                    segmentAt(segments, j).unlock();
            }
        }
        return overflow ? Integer.MAX_VALUE : size;
    }

5.扩容rehash

和HashMap的resize原理类似,避免让所有的结点都进行复制:扩容是基于2的幂指来操作,假设扩容前某HashEntry对应的segment中数组的index为i,数组容量为 capacity,那么扩容后该HashEntry对应到新数组中的index只可能为i或者i+capacity,因此大多数HashEntry结点在扩容前后index可以保持不变,基于此,rehash方法中会定位第一个后续所有结点在扩容后index都保持不变的结点,然后将这个结点之前的所有节点重排即可

JDK1.8的实现

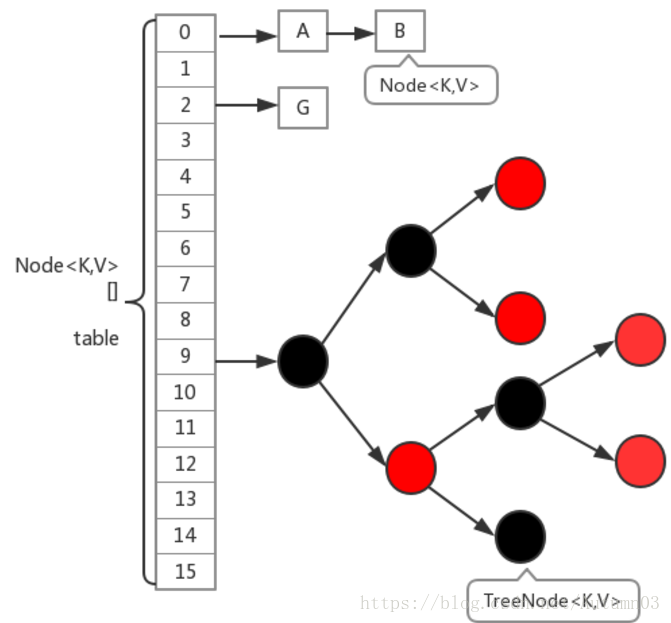

首先取消了segment分段锁的数据结构,取而代之的是数组+链表(红黑树)的结构,而对于锁的粒度,调整为对每个数组元素加锁;然后是定位结点的hash算法被简化,这样带来的弊端是hash冲突会加剧,因此在链表节点数量大于8时,会将链表转为红黑树进行存储,这样一来,查询的时间复杂度就会从原来的O(n)变为O(logN)

1.相关属性

//负载因子
private static final float LOAD_FACTOR = 0.75f;
//链表转为红黑树的阈值,大于8则转为红黑树结构
static final int TREEIFY_THRESHOLD = 8;
//红黑树转链表的阈值
static final int UNTREEIFY_THRESHOLD = 6;
//sizeCtl用于table的初始化和扩容操作,不同值代表状态如下:
//-1表示正在初始化;-N表示有N-1个线程正在进行扩容操作
//非负情况:如果table未初始化,则表示table需要初始化的大小;如果初始化完成,则表示table扩容的阈值,默认为table容量的0.75倍
private transient volatile int sizeCtl;

构造函数,在创建ConcurrentHashMap时,并没有初始化table数组,只对Map容量、并发级别等做了赋值操作

    public ConcurrentHashMap(int initialCapacity,
                             float loadFactor, int concurrencyLevel) {
        if (!(loadFactor > 0.0f) || initialCapacity < 0 || concurrencyLevel <= 0)
            throw new IllegalArgumentException();
        if (initialCapacity < concurrencyLevel)   // Use at least as many bins
            initialCapacity = concurrencyLevel;   // as estimated threads
        long size = (long)(1.0 + (long)initialCapacity / loadFactor);
        int cap = (size >= (long)MAXIMUM_CAPACITY) ?
            MAXIMUM_CAPACITY : tableSizeFor((int)size);
        this.sizeCtl = cap;
    }

2.Node

Node是ConcurrentHashMap存储结构的基本单元,只允许对数据进行查找,不允许修改

static class Node<K,V> implements Map.Entry<K,V> {
        //链表的数据结构
        final int hash;
        final K key;
        //val和next都会在扩容时发生变化,so加上volatile来保持可见性和禁止重排序
        volatile V val;
        volatile Node<K,V> next;

        Node(int hash, K key, V val, Node<K,V> next) {
            this.hash = hash;
            this.key = key;
            this.val = val;
            this.next = next;
        }

        public final K getKey()       { return key; }
        public final V getValue()     { return val; }
        public final int hashCode()   { return key.hashCode() ^ val.hashCode(); }
        public final String toString(){ return key + "=" + val; }
        //不允许更新value
        public final V setValue(V value) {
            throw new UnsupportedOperationException();
        }

        public final boolean equals(Object o) {
            Object k, v, u; Map.Entry<?,?> e;
            return ((o instanceof Map.Entry) &&
                    (k = (e = (Map.Entry<?,?>)o).getKey()) != null &&
                    (v = e.getValue()) != null &&
                    (k == key || k.equals(key)) &&
                    (v == (u = val) || v.equals(u)));
        }

        /**
         * Virtualized support for map.get(); overridden in subclasses.
         */
        Node<K,V> find(int h, Object k) {
            Node<K,V> e = this;
            if (k != null) {
                do {
                    K ek;
                    if (e.hash == h &&
                        ((ek = e.key) == k || (ek != null && k.equals(ek))))
                        return e;
                } while ((e = e.next) != null);
            }
            return null;
        }
    }

3.TreeNode

继承Node,但是数据结构换成了二叉树结构,是红黑树的存储结构。ConcurrentHashMap链表转树时,并不会直接转,只是把这些节点包装成TreeNode放到TreeBin中,再由TreeBin转化红黑树

static final class TreeNode<K,V> extends Node<K,V> {
        //树形结构的属性定义
        TreeNode<K,V> parent;  // red-black tree links
        TreeNode<K,V> left;
        TreeNode<K,V> right;
        TreeNode<K,V> prev;    // needed to unlink next upon deletion
        boolean red;//标志红黑树的红结点

        TreeNode(int hash, K key, V val, Node<K,V> next,
                 TreeNode<K,V> parent) {
            super(hash, key, val, next);
            this.parent = parent;
        }

        Node<K,V> find(int h, Object k) {
            return findTreeNode(h, k, null);
        }

        /**
         * 根据key查找,从根节点开始找出相应的TreeNode
         */
        final TreeNode<K,V> findTreeNode(int h, Object k, Class<?> kc) {
            if (k != null) {
                TreeNode<K,V> p = this;
                do  {
                    int ph, dir; K pk; TreeNode<K,V> q;
                    TreeNode<K,V> pl = p.left, pr = p.right;
                    if ((ph = p.hash) > h)
                        p = pl;
                    else if (ph < h)
                        p = pr;
                    else if ((pk = p.key) == k || (pk != null && k.equals(pk)))
                        return p;
                    else if (pl == null)
                        p = pr;
                    else if (pr == null)
                        p = pl;
                    else if ((kc != null ||
                              (kc = comparableClassFor(k)) != null) &&
                             (dir = compareComparables(kc, k, pk)) != 0)
                        p = (dir < 0) ? pl : pr;
                    else if ((q = pr.findTreeNode(h, k, kc)) != null)
                        return q;
                    else
                        p = pl;
                } while (p != null);
            }
            return null;
        }
    }

4.TreeBin

封装TreeNode的容器,提供转换红黑树的一些条件和锁的控制,ConcurrentHashMap底层存放的就是TreeBin对象,而不是TreeNode对象

static final class TreeBin<K,V> extends Node<K,V> {
        //指向TreeNode列表和根节点
        TreeNode<K,V> root;
        volatile TreeNode<K,V> first;
        volatile Thread waiter;
        volatile int lockState;
        // 读写锁的状态
        static final int WRITER = 1; // 获取写锁时
        static final int WAITER = 2; // 等待写锁时
        static final int READER = 4; // 增加数据时读锁的状态

        /**
         * Tie-breaking utility for ordering insertions when equal
         * hashCodes and non-comparable. We don't require a total
         * order, just a consistent insertion rule to maintain
         * equivalence across rebalancings. Tie-breaking further than
         * necessary simplifies testing a bit.
         */
        static int tieBreakOrder(Object a, Object b) {
            int d;
            if (a == null || b == null ||
                (d = a.getClass().getName().
                 compareTo(b.getClass().getName())) == 0)
                d = (System.identityHashCode(a) <= System.identityHashCode(b) ?
                     -1 : 1);
            return d;
        }

        /**
         * 初始化红黑树
         */
        TreeBin(TreeNode<K,V> b) {
            super(TREEBIN, null, null, null);
            this.first = b;
            TreeNode<K,V> r = null;
            for (TreeNode<K,V> x = b, next; x != null; x = next) {
                next = (TreeNode<K,V>)x.next;
                x.left = x.right = null;
                if (r == null) {
                    x.parent = null;
                    x.red = false;
                    r = x;
                }
                else {
                    K k = x.key;
                    int h = x.hash;
                    Class<?> kc = null;
                    for (TreeNode<K,V> p = r;;) {
                        int dir, ph;
                        K pk = p.key;
                        if ((ph = p.hash) > h)
                            dir = -1;
                        else if (ph < h)
                            dir = 1;
                        else if ((kc == null &&
                                  (kc = comparableClassFor(k)) == null) ||
                                 (dir = compareComparables(kc, k, pk)) == 0)
                            dir = tieBreakOrder(k, pk);
                            TreeNode<K,V> xp = p;
                        if ((p = (dir <= 0) ? p.left : p.right) == null) {
                            x.parent = xp;
                            if (dir <= 0)
                                xp.left = x;
                            else
                                xp.right = x;
                            r = balanceInsertion(r, x);
                            break;
                        }
                    }
                }
            }
            this.root = r;
            assert checkInvariants(root);
        }

5.put操作

发现,代码中加锁片段用的是synchronized关键字,而不是像1.7中的ReentrantLock,说明synchronized在新版本的JDK中优化的程度和ReentrantLock差不多了

ConcurrentHashMap在对key求Hash值的时候,为了实现segment均匀分布,进行了两次hash

    static final int spread(int h) {
        return (h ^ (h >>> 16)) & HASH_BITS;
    }
 public V put(K key, V value) {
        return putVal(key, value, false);
    }

    /** Implementation for put and putIfAbsent */
    final V putVal(K key, V value, boolean onlyIfAbsent) {
        if (key == null || value == null) throw new NullPointerException();
        //两次hash,减少hash冲突,可以均匀分布
        int hash = spread(key.hashCode());
        int binCount = 0;
        //对table进行迭代
        for (Node<K,V>[] tab = table;;) {//类似于while(true),这道插入成功
            Node<K,V> f; int n, i, fh;
            //上面构造方法是否进行初始化在这里判断,为null就调用initTable进行初始化,属于懒汉模式初始化
            if (tab == null || (n = tab.length) == 0)
                tab = initTable();
            else if ((f = tabAt(tab, i = (n - 1) & hash)) == null) {//如果i位置没有数据,就直接无锁插入
                if (casTabAt(tab, i, null,
                             new Node<K,V>(hash, key, value, null)))
                    break;                   // no lock when adding to empty bin
            }
            else if ((fh = f.hash) == MOVED)//如果在进行扩容,则先进行扩容操作
                tab = helpTransfer(tab, f);
            else {
                V oldVal = null;
                //如果以上都不满足,则进行加锁操作,也就是存在hash冲突,锁住链表或者红黑树的头结点
                synchronized (f) {//锁定,hash值相同的链表的头结点
                    if (tabAt(tab, i) == f) {//避免多线程,需要重新检查
                        if (fh >= 0) {//表示该结点是链表结构
                            binCount = 1;
                    //该for循环先查找链表中是否出现了此key如果出现则更新value并跳出循环,否则将结点插入到链表末尾并跳出循环
                            for (Node<K,V> e = f;; ++binCount) {
                                K ek;
                                //相同的key进行put就会覆盖原先的value
                                if (e.hash == hash &&
                                    ((ek = e.key) == key ||
                                     (ek != null && key.equals(ek)))) {
                                    oldVal = e.val;
                                    if (!onlyIfAbsent)
                                        e.val = value;
                                    break;
                                }
                                Node<K,V> pred = e;
                                if ((e = e.next) == null) {//插入链表尾部
                                    pred.next = new Node<K,V>(hash, key,
                                                              value, null);
                                    break;
                                }
                            }
                        }
                        else if (f instanceof TreeBin) {//红黑树结构
                            Node<K,V> p;
                            binCount = 2;
                            //红黑树结构旋转插入
                            if ((p = ((TreeBin<K,V>)f).putTreeVal(hash, key,
                                                           value)) != null) {
                                oldVal = p.val;
                                if (!onlyIfAbsent)
                                    p.val = value;
                            }
                        }
                    }
                }
                //插入成功后,如果插入的是链表结点,需要判断下该桶位是否要转化为树
                //如果链表的长度大于8就进行红黑树的转换
                if (binCount != 0) {
                    if (binCount >= TREEIFY_THRESHOLD)
                        treeifyBin(tab, i);
                    if (oldVal != null)
                        return oldVal;
                    break;
                }
            }
        }
        addCount(1L, binCount);
        return null;
    }

从代码可以看出,put的大致步骤如下:

  • 如果没有初始化,就先调用initTable方法进行初始化过程
  • 如果没有hash冲突则直接CAS插入
  • 如果还在进行扩容操作就先进行扩容
  • 如果存在hash冲突,就加锁来保证线程安全,有两种情况,一是链表形式就直接遍历到尾端插入,二是按照红黑树结构插入
  • 如果该链表的数量大于阈值8,就先转换成红黑树结构,break再一次进入循环
  • 如果添加成功就调用addCount方法统计size,并检查是否需要扩容

treeifyBin方法,检查下table长度是否大于64,如果不大于,则调用tryPresize方法将table两倍扩容即可,就不将其转为树了,如果大于,则就将table[i]的链表转为红黑树

    private final void treeifyBin(Node<K,V>[] tab, int index) {
        Node<K,V> b; int n, sc;
        if (tab != null) {
            if ((n = tab.length) < MIN_TREEIFY_CAPACITY)//容量<64,则两倍扩容
                tryPresize(n << 1);
            else if ((b = tabAt(tab, index)) != null && b.hash >= 0) {
                synchronized (b) {//读写锁
                    if (tabAt(tab, index) == b) {
                        TreeNode<K,V> hd = null, tl = null;
                        for (Node<K,V> e = b; e != null; e = e.next) {
                            TreeNode<K,V> p =
                                new TreeNode<K,V>(e.hash, e.key, e.val,
                                                  null, null);
                            if ((p.prev = tl) == null)
                                hd = p;
                            else
                                tl.next = p;
                            tl = p;
                        }
                        setTabAt(tab, index, new TreeBin<K,V>(hd));
                    }
                }
            }
        }
    }

不过在结构转换之前,会对数组长度进行判断

private final void tryPresize(int size) {
//若给定的容量>= (MAXIMUM_CAPACITY的一半,直接扩容到最大值,否则调用tableSizeFor扩容
        int c = (size >= (MAXIMUM_CAPACITY >>> 1)) ? MAXIMUM_CAPACITY :
        //tableSizeFor(count)作用是找到大于等于count的最小值
            tableSizeFor(size + (size >>> 1) + 1);
        int sc;
        while ((sc = sizeCtl) >= 0) {//只有大于等于0才表示该线程可以扩容
            Node<K,V>[] tab = table; int n;
            if (tab == null || (n = tab.length) == 0) {//表示没有被初始化
                n = (sc > c) ? sc : c;
            //期间没有其他线程对表操作,则CAS将SIZECTL设为-1,表示正在初始化
                if (U.compareAndSwapInt(this, SIZECTL, sc, -1)) {
                    try {
                        if (table == tab) {//再一次检查
                            @SuppressWarnings("unchecked")
                            Node<K,V>[] nt = (Node<K,V>[])new Node<?,?>[n];
                            table = nt;
                            sc = n - (n >>> 2);
                        }
                    } finally {
                        sizeCtl = sc;//更新扩容阈值
                    }
                }
            }
            else if (c <= sc || n >= MAXIMUM_CAPACITY)
                break;
            else if (tab == table) {
                int rs = resizeStamp(n);
                if (sc < 0) {
                    Node<K,V>[] nt;
                    if ((sc >>> RESIZE_STAMP_SHIFT) != rs || sc == rs + 1 ||
                        sc == rs + MAX_RESIZERS || (nt = nextTable) == null ||
                        transferIndex <= 0)
                        break;
                    if (U.compareAndSwapInt(this, SIZECTL, sc, sc + 1))
                        transfer(tab, nt);
                }
                else if (U.compareAndSwapInt(this, SIZECTL, sc,
                                             (rs << RESIZE_STAMP_SHIFT) + 2))
                    transfer(tab, null);
            }
        }
    }

新增结点之后,会调用addCount方法记录元素个数,并检查是否需要进行扩容,当数组元素个数达到阈值时,会触发transfer方法,重新调整结点的位置,详细,参考:https://blog.youkuaiyun.com/elricboa/article/details/70199409

6.get操作

ForwardingNode表示临时结点,在扩容时使用

      static final class ForwardingNode<K,V> extends Node<K,V> {
        final Node<K,V>[] nextTable;
        ForwardingNode(Node<K,V>[] tab) {
            super(MOVED, null, null, null);
            this.nextTable = tab;
        }

        Node<K,V> find(int h, Object k) {
            // loop to avoid arbitrarily deep recursion on forwarding nodes
            outer: for (Node<K,V>[] tab = nextTable;;) {
                Node<K,V> e; int n;
public V get(Object key) {
        Node<K,V>[] tab; Node<K,V> e, p; int n, eh; K ek;
        int h = spread(key.hashCode());//定位到table中的i
        if ((tab = table) != null && (n = tab.length) > 0 &&
            (e = tabAt(tab, (n - 1) & h)) != null) {//读取首节点的node
            if ((eh = e.hash) == h) {//如果该结点是首节点就返回
                if ((ek = e.key) == key || (ek != null && key.equals(ek)))
                    return e.val;
            }
            //hash值为负值表示正在扩容,这个时候查的是ForwardingNode方法来定位到nextTable来查找,找得到就返回
            else if (eh < 0)
                return (p = e.find(h, key)) != null ? p.val : null;
            while ((e = e.next) != null) {
                if (e.hash == h &&
                    ((ek = e.key) == key || (ek != null && key.equals(ek))))
                    return e.val;
            }
        }
        return null;
    }
  • 计算hash,定位到该table索引值,如果是首节点符合就返回
  • 如果遇到扩容,会调用标志正在扩容结点ForwardingNode的find方法,查找该结点,匹配就返回
  • 以上都不符合的话,就往下遍历,匹配就返回,否则最后返回null

7.size

   //1.2时就加入的
   public int size() {
        long n = sumCount();
        return ((n < 0L) ? 0 :
                (n > (long)Integer.MAX_VALUE) ? Integer.MAX_VALUE :
                (int)n);
    }
    //1.8加入的API
    public long mappingCount() {
        long n = sumCount();
        return (n < 0L) ? 0L : n; // ignore transient negative values
    }

    final long sumCount() {
        CounterCell[] as = counterCells; CounterCell a;
        long sum = baseCount;
        if (as != null) {
            for (int i = 0; i < as.length; ++i) {
                if ((a = as[i]) != null)
                    sum += a.value;
            }
        }
        return sum;
    }

JDK1.8中新增了mappingCount的API,这个API的不同之处就是返回值是long类型,这样就不受Integer.MAX_VALUE大小的限制了,两个方法都调用sumCount,且返回的都是一个估计值(JDK1.7使用加锁方式实现,而1.8牺牲了精度来换取更高的效率)

总结

从JDK1.7的ReentrantLock+Segment+HashEntry到JDK1.8的synchronized+CAS+HashEntry+红黑树:

1.JDK1.8的实现降低了锁的粒度,JDK1.7版本的锁的粒度是基于segment的,包含多个HashEntry,而JDK1.8锁的粒度就是HashEntry

2.JDK1.8的数据结构变得更简单,使得操作也更加清晰流畅,因为已经使用synchronized来进行同步,所以不需要分段锁的概念,但是由于粒度的降低,实现的复杂度也相对应提高

3.JDK1.8使用红黑树来优化链表,基于长度很长的链表的遍历是一个漫长的过程,而红黑树的遍历效率时很快的,代替一定阈值的链表,形成最佳拍档

参考

https://www.cnblogs.com/study-everyday/p/6430462.html#autoid-0-0-0

https://blog.youkuaiyun.com/fouy_yun/article/details/77816587

https://blog.youkuaiyun.com/bolang789/article/details/79855053

https://blog.youkuaiyun.com/elricboa/article/details/70199409

《java并发编程的艺术》

评论
添加红包

请填写红包祝福语或标题

红包个数最小为10个

红包金额最低5元

当前余额3.43前往充值 >
需支付:10.00
成就一亿技术人!
领取后你会自动成为博主和红包主的粉丝 规则
hope_wisdom
发出的红包
实付
使用余额支付
点击重新获取
扫码支付
钱包余额 0

抵扣说明:

1.余额是钱包充值的虚拟货币,按照1:1的比例进行支付金额的抵扣。
2.余额无法直接购买下载,可以购买VIP、付费专栏及课程。

余额充值
