fdsan使用
1. 功能介绍
fdsan针对的操作对象是文件描述符,主要用于检测不同使用者对相同文件描述符的错误操作,包括多次关闭(double-close)和关闭后使用(use-after-close)。这些文件描述符可以是操作系统中的文件、目录、网络套接字和其他I/O设备等,在程序中,打开文件或套接字会生成一个文件描述符,如果此文件描述符在使用后出现反复关闭、或者关闭后使用等场景,就会造成内存泄露、文件句柄泄露等安全隐患问题。该类问题非常隐蔽,且难以排查,为了更好地检测此类问题,因此引入了此种针对文件描述符错误操作的检测工具fdsan。
2. 实现原理
设计思路:当打开已有文件或创建一个新文件的时候,在得到返回fd后,设置一个关联的tag,来标记fd的属主信息;关闭文件前,检测fd关联的tag,判断是否符合预期(属主信息一致),符合就继续走正常文件关闭流程;如果不符合就是检测到异常,根据设置,调用对应的异常处理。
tag由两部分组成,最高位的8-bit构成type,后面的56-bit构成value。
type,标识fd通过何种封装形式进行管理,例如 FDSAN_OWNER_TYPE_FILE就表示fd通过普通文件进行管理,type类型在 fdsan_owner_type进行定义。
value,则用于标识实际的owner tag。

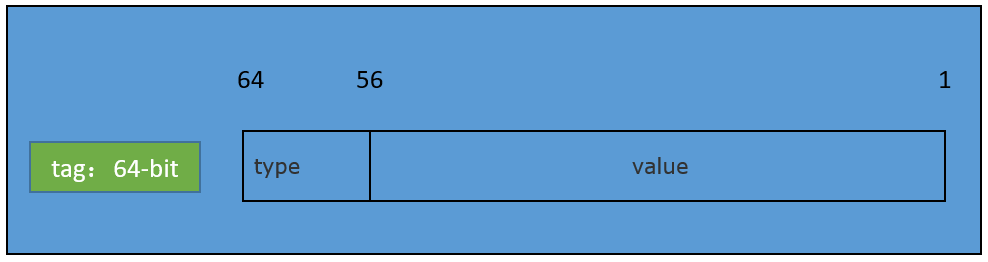

tag构成图示
3. 接口说明
fdsan_set_error_level
enum fdsan_error_level fdsan_set_error_level(enum fdsan_error_level new_level);
描述: 可以通过fdsan_set_error_level设定error_level,error_level用于控制检测到异常后的处理行为。默认error_level为FDSAN_ERROR_LEVEL_WARN_ALWAYS。
参数: fdsan_error_level
名称 | 说明 |
---|---|
FDSAN_ERROR_LEVEL_DISABLED | disabled,此level代表什么都不处理。 |
FDSAN_ERROR_LEVEL_WARN_ONCE | warn-once,第一次出现错误时在hilog中发出警告,然后将级别降低为disabled(FDSAN_ERROR_LEVEL_DISABLED)。 |
FDSAN_ERROR_LEVEL_WARN_ALWAYS | warn-always,每次出现错误时都在hilog中发出警告。 |
FDSAN_ERROR_LEVEL_FATAL | fatal,出现错误时调用abort异常退出。 |
返回值: 返回旧的error_level。
fdsan_get_error_level
enum fdsan_error_level fdsan_get_error_level();
描述: 可以通过fdsan_get_error_level获取error level。
返回值: 当前的error_level。
fdsan_create_owner_tag
uint64_t fdsan_create_owner_tag(enum fdsan_owner_type type, uint64_t tag);
描述: 通过传入的type和tag字段,拼接成一个有效的文件描述符的关闭tag。
参数: fdsan_owner_type
名称 | 说明 |
---|---|
FDSAN_OWNER_TYPE_GENERIC_00 | 默认未使用fd对应的type值 |
FDSAN_OWNER_TYPE_GENERIC_FF | 默认非法fd对应的type值 |
FDSAN_OWNER_TYPE_FILE | 默认普通文件对应的type值,使用fopen或fdopen打开的文件具有该类型 |
FDSAN_OWNER_TYPE_DIRECTORY | 默认文件夹对应的type值,使用opendir或fdopendir打开的文件具有该类型 |
FDSAN_OWNER_TYPE_UNIQUE_FD | 默认unique_fd对应的type值,保留暂未使用 |
FDSAN_OWNER_TYPE_ZIPARCHIVE | 默认zip压缩文件对应的type值,保留暂未使用 |
返回值: 返回创建的tag,可以用于fdsan_exchange_owner_tag函数的输入。
fdsan_exchange_owner_tag
void fdsan_exchange_owner_tag(int fd, uint64_t expected_tag, uint64_t new_tag);
描述: 修改文件描述符的关闭tag。
通过fd所以找到对应的FdEntry,判断close_tag值与expected_tag是否一致,一致说明符合预期,可以用new_tag值重新设定对应的FdEntry。
如果不符合,则说明检测到了异常,后续则进行对应的异常处理。
参数:
名称 | 类型 | 说明 |
---|---|---|
fd | int | fd句柄,作为FdEntry的索引 |
expected_tag | uint64_t | 期望的ownership tag值 |
new_tag | uint64_t | 设置新的ownership tag值 |
fdsan_close_with_tag
int fdsan_close_with_tag(int fd, uint64_t tag);
描述: 根据tag描述符关闭文件描述符。
通过fd找到匹配的FdEntry。如果close_tag与tag相同,则符合预期,可以继续执行文件描述符关闭流程,否则意味着检测到异常。
参数:
名称 | 类型 | 说明 |
---|---|---|
fd | int | 待关闭的fd句柄 |
tag | uint64_t | 期望的ownership tag |
返回值: 0或者-1,0表示close成功,-1表示close失败。
fdsan_get_owner_tag
uint64_t fdsan_get_owner_tag(int fd);
描述: 根据文件描述符获取tag信息。
通过fd找到匹配的FdEntry,并获取其对应的close_tag。
参数:
名称 | 类型 | 说明 |
---|---|---|
tag | uint64_t | ownership tag |
返回值: 返回对应fd的tag。
fdsan_get_tag_type
const char* fdsan_get_tag_type(uint64_t tag);
描述: 根据tag计算出对应的type类型。
通过获取到的tag信息,通过计算获取对应tag中的type信息。
参数:
名称 | 类型 | 说明 |
---|---|---|
tag | uint64_t | ownership tag |
返回值: 返回对应tag的type。
fdsan_get_tag_value
uint64_t fdsan_get_tag_value(uint64_t tag);
描述: 根据tag计算出对应的owner value。
通过获取到的tag信息,通过偏移计算获取对应tag中的value信息。
参数:
名称 | 类型 | 说明 |
---|---|---|
tag | uint64_t | ownership tag |
返回值: 返回对应tag的value。
4. 使用示例
如何使用fdsan?这是一个简单的double-close问题:
void good_write()
{
sleep(1);
int fd = open(DEV_NULL_FILE, O_RDONLY);
sleep(3);
ssize_t ret = write(fd, "fdsan test\n", 11);
if (ret == -1) {
OH_LOG_ERROR(LOG_APP, "good write but failed?!");
}
close(fd);
}
void bad_close()
{
int fd = open(DEV_NULL_FILE, O_RDONLY);
close(fd);
sleep(2);
// This close expected to be detect by fdsan
close(fd);
}
void functional_test()
{
std::vector<std::thread> threads;
for (auto function : { good_write, bad_close }) {
threads.emplace_back(function);
}
for (auto& thread : threads) {
thread.join();
}
}
int main()
{
functional_test();
return 0;
}

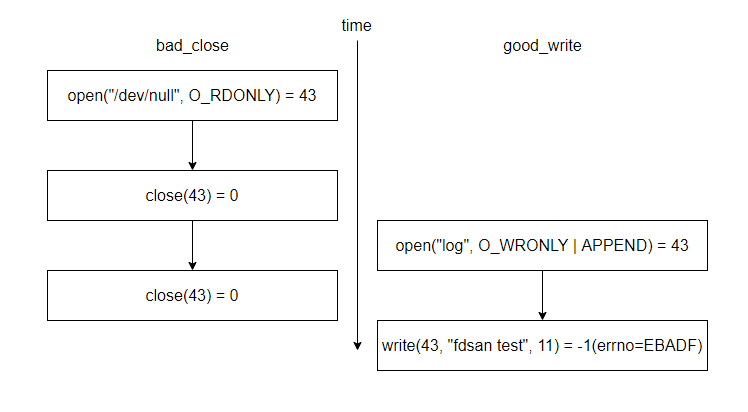

上述代码中的good_write函数会打开一个文件并写入一些字符串而bad_close函数中也会打开一个文件同时包含double-close问题,这两个线程同时运行那么程序的执行情况会是这样的。
由于每次open返回的fd是顺序分配的,在进入主函数后第一个可用的fd是43,bad_close函数中第一次open返回的fd是43,在关闭之后,43就变成了可用的fd,在good_write函数中open返回了第一个可用的fd,即43,但是由于bad_close函数中存在double-close问题,因此错误的关闭了另一个线程中打开的文件,导致写入失败。
在fdsan引入之后,有两种方法可以检测这类问题:使用标准库接口或实现具有fdsan的函数接口。
使用标准库接口
标准库接口中fopen,fdopen,opendir,fdopendir都已经集成了fdsan,使用前述接口而非直接使用open可以帮助检测问题。在前述案例中可以使用fopen替代open:
#include <stdio.h>
#include <errno.h>
#define TEMP_FILE "/data/local/tmp/test.txt"
void good_write()
{
// fopen is protected by fdsan, replace open with fopen
// int fd = open(TEMP_FILE, O_RDONLY);
FILE *f = fopen(TEMP_FILE, "w+");
if (f == NULL) {
printf("fopen failed errno=%d\n", errno);
return;
}
// ssize_t ret = write(fd, "fdsan test\n", 11);
int ret = fprintf(f, "fdsan test %d\n", 11);
if (ret < 0) {
printf("fprintf failed errno=%d\n", errno);
}
// close(fd);
fclose(f);
}
日志信息
使用fopen打开的每个文件描述符都需要有一个与之对应的 tag 。fdsan 在 close 时会检查关闭的 fd 是否与 tag 匹配,不匹配就会默认提示相关日志信息。下面是上述代码的日志信息:
# hilog | grep MUSL-FDSAN
04-30 15:03:41.760 10933 1624 E C03f00/MUSL-FDSAN: attempted to close file descriptor 43, expected to be unowned, actually owned by FILE* 0x00000000f7b90aa2
从这里的错误信息中可以看出FILE接口体的文件被其他人错误的关闭了,FILE接口体的地址可以协助进一步定位。
此外,可以在代码中使用fdsan_set_error_level设置错误等级error_level,设置为Fatal之后如果fdsan检测到错误会提示日志信息同时crash生成堆栈信息用于定位。下面是error_level设置为Fatal之后生成的crash堆栈信息:
Reason:Signal:SIGABRT(SI_TKILL)@0x0000076e from:1902:20010043
Fault thread info:
Tid:15312, Name:e.myapplication
#00 pc 000e65bc /system/lib/ld-musl-arm.so.1(raise+176)(3de40c79448a2bbced06997e583ef614)
#01 pc 0009c3bc /system/lib/ld-musl-arm.so.1(abort+16)(3de40c79448a2bbced06997e583ef614)
#02 pc 0009de4c /system/lib/ld-musl-arm.so.1(fdsan_error+116)(3de40c79448a2bbced06997e583ef614)
#03 pc 0009e2e8 /system/lib/ld-musl-arm.so.1(fdsan_close_with_tag+836)(3de40c79448a2bbced06997e583ef614)
#04 pc 0009e56c /system/lib/ld-musl-arm.so.1(close+20)(3de40c79448a2bbced06997e583ef614)
#05 pc 000055d8 /data/storage/el1/bundle/libs/arm/libentry.so(bad_close()+96)(f3339aac824c099f449153e92718e1b56f80b2ba)
#06 pc 00006cf4 /data/storage/el1/bundle/libs/arm/libentry.so(decltype(std::declval<void (*)()>()()) std::__n1::__invoke[abi:v15004]<void (*)()>(void (*&&)())+24)(f3339aac824c099f449153e92718e1b56f80b2ba)
#07 pc 00006c94 /data/storage/el1/bundle/libs/arm/libentry.so(f3339aac824c099f449153e92718e1b56f80b2ba)
#08 pc 000067b8 /data/storage/el1/bundle/libs/arm/libentry.so(void* std::__n1::__thread_proxy[abi:v15004]<std::__n1::tuple<std::__n1::unique_ptr<std::__n1::__thread_struct, std::__n1::default_delete<std::__n1::__thread_struct>>, void (*)()>>(void*)+100)(f3339aac824c099f449153e92718e1b56f80b2ba)
#09 pc 00105a6c /system/lib/ld-musl-arm.so.1(start+248)(3de40c79448a2bbced06997e583ef614)
#10 pc 000700b0 /system/lib/ld-musl-arm.so.1(3de40c79448a2bbced06997e583ef614)
此时,从crash信息中可以看到是bad_close中存在问题,同时crash中也包含了所有打开的文件,协助进行定位,提升效率。
OpenFiles:
0->/dev/null native object of unknown type 0
1->/dev/null native object of unknown type 0
2->/dev/null native object of unknown type 0
3->socket:[28102] native object of unknown type 0
4->socket:[28103] native object of unknown type 0
5->anon_inode:[eventpoll] native object of unknown type 0
6->/sys/kernel/debug/tracing/trace_marker native object of unknown type 0
7->anon_inode:[eventpoll] native object of unknown type 0
8->anon_inode:[eventpoll] native object of unknown type 0
9->/dev/console native object of unknown type 0
10->pipe:[95598] native object of unknown type 0
11->pipe:[95598] native object of unknown type 0
12->socket:[18542] native object of unknown type 0
13->pipe:[96594] native object of unknown type 0
14->socket:[18545] native object of unknown type 0
15->pipe:[96594] native object of unknown type 0
16->anon_inode:[eventfd] native object of unknown type 0
17->/dev/binder native object of unknown type 0
18->/data/storage/el1/bundle/entry.hap native object of unknown type 0
19->anon_inode:[eventpoll] native object of unknown type 0
20->anon_inode:[signalfd] native object of unknown type 0
21->socket:[29603] native object of unknown type 0
22->anon_inode:[eventfd] native object of unknown type 0
23->anon_inode:[eventpoll] native object of unknown type 0
24->anon_inode:[eventfd] native object of unknown type 0
25->anon_inode:[eventpoll] native object of unknown type 0
26->anon_inode:[eventfd] native object of unknown type 0
27->anon_inode:[eventpoll] native object of unknown type 0
28->anon_inode:[eventfd] native object of unknown type 0
29->anon_inode:[eventpoll] native object of unknown type 0
30->anon_inode:[eventfd] native object of unknown type 0
31->anon_inode:[eventpoll] native object of unknown type 0
32->anon_inode:[eventfd] native object of unknown type 0
33->anon_inode:[eventpoll] native object of unknown type 0
34->anon_inode:[eventfd] native object of unknown type 0
35->socket:[97409] native object of unknown type 0
36->socket:[94716] native object of unknown type 0
38->socket:[94720] native object of unknown type 0
40->/data/storage/el1/bundle/entry_test.hap native object of unknown type 0
41->socket:[95617] native object of unknown type 0
42->/sys/kernel/debug/tracing/trace_marker native object of unknown type 0
43->/dev/null FILE* 4155724704
44->socket:[94737] native object of unknown type 0
45->pipe:[95634] native object of unknown type 0
46->pipe:[95634] native object of unknown type 0
47->pipe:[95635] native object of unknown type 0
49->pipe:[95636] native object of unknown type 0
50->pipe:[95636] native object of unknown type 0
实现具有fdsan的函数接口
除了直接使用具有fdsan功能的标准库函数之外,还可以实现具有fdsan的函数接口。fdsan机制主要通过两个接口实现:fdsan_exchange_owner_tag和fdsan_close_with_tag,fdsan_exchange_owner_tag可以设置对应fd的tag,而fdsan_close_with_tag可以在关闭文件时检查对应的tag是否正确。
下面是一个具有fdsan的函数接口实现实例:
#include <errno.h>
#include <stdio.h>
#include <fcntl.h>
#include <unistd.h>
#include <utility>
struct fdsan_fd {
fdsan_fd() = default;
explicit fdsan_fd(int fd)
{
reset(fd);
}
fdsan_fd(const fdsan_fd& copy) = delete;
fdsan_fd(fdsan_fd&& move)
{
*this = std::move(move);
}
~fdsan_fd()
{
reset();
}
fdsan_fd& operator=(const fdsan_fd& copy) = delete;
fdsan_fd& operator=(fdsan_fd&& move)
{
if (this == &move) {
return *this;
}
reset();
if (move.fd_ != -1) {
fd_ = move.fd_;
move.fd_ = -1;
// Acquire ownership from the moved-from object.
exchange_tag(fd_, move.tag(), tag());
}
return *this;
}
int get()
{
return fd_;
}
void reset(int new_fd = -1)
{
if (fd_ != -1) {
close(fd_, tag());
fd_ = -1;
}
if (new_fd != -1) {
fd_ = new_fd;
// Acquire ownership of the presumably unowned fd.
exchange_tag(fd_, 0, tag());
}
}
private:
int fd_ = -1;
// Use the address of object as the file tag
uint64_t tag()
{
return reinterpret_cast<uint64_t>(this);
}
static void exchange_tag(int fd, uint64_t old_tag, uint64_t new_tag)
{
if (&fdsan_exchange_owner_tag) {
fdsan_exchange_owner_tag(fd, old_tag, new_tag);
}
}
static int close(int fd, uint64_t tag)
{
if (&fdsan_close_with_tag) {
return fdsan_close_with_tag(fd, tag);
}
}
};
这里的实现中使用fdsan_exchange_owner_tag在开始时将fd与结构体对象地址绑定,然后在关闭文件时使用fdsan_close_with_tag进行检测,预期tag是结构体对象地址。
在实现了具有fdsan的函数接口之后,可以使用该接口包装fd:
#define TEMP_FILE "/data/local/tmp/test.txt"
void good_write()
{
// int fd = open(DEV_NULL_FILE, O_RDONLY);
fdsan_fd fd(open(TEMP_FILE, O_CREAT | O_RDWR));
if (fd.get() == -1) {
printf("fopen failed errno=%d\n", errno);
return;
}
ssize_t ret = write(fd.get(), "fdsan test\n", 11);
if (ret == -1) {
printf("write failed errno=%d\n", errno);
}
fd.reset();
}
此时运行该程序可以检测到另一个线程的double-close问题。同样也可以设置error_level为fatal,这样可以使fdsan在检测到crash之后主动crash以获取更多信息。
