​​​​​​​属性字符串（StyledString/MutableStyledString）

 属性字符串StyledString/MutableStyledString（MutableStyledString继承于StyledString，以下统一简称StyledString）是功能强大的标记对象，可用于字符或段落级别设置文本样式。通过将StyledString附加到文本组件， 可以通过多种方式更改文本，包括修改字号、添加字体颜色、使文本可点击以及自定义方式绘制文本等。

属性字符串提供多种类型样式对象，涵盖各种常见的文本样式格式。也可以自行创建CustomSpan, 以应用自定义样式。

创建并应用StyledString和MutableStyledString

可以通过TextController提供的setStyledString(StyledString)方法将属性字符串附加到文本组件，并推荐在onPageShow中触发绑定，在aboutToAppear中调用setStyledString无法实现页面初始即可见属性字符串文本内容，因为aboutToAppear运行时组件还没有完成创建并成功挂载节点树。

@Entry
@Component
struct styled_string_demo1 {
  styledString1: StyledString = new StyledString("运动45分钟");
  mutableStyledString1: MutableStyledString = new MutableStyledString("运动35分钟");
  controller1: TextController = new TextController();
  controller2: TextController = new TextController();

  async onPageShow() {
    this.controller1.setStyledString(this.styledString1)
    this.controller2.setStyledString(this.mutableStyledString1)
  }

  build() {
    Column() {
      // 显示属性字符串
      Text(undefined, { controller: this.controller1 })
      Text(undefined, { controller: this.controller2 })
    }
    .width('100%')
  }
}

设置文本样式

属性字符串目前提供了TextStyle、TextShadowStyle、DecorationStyle、BaselineOffsetStyle、LineHeightStyle、LetterSpacingStyle各种Style对象来实现设置文本的各类样式。

  • 创建及应用文本字体样式对象（TextStyle）

    import { LengthMetrics } from '@kit.ArkUI'
@Entry
@Component
struct styled_string_demo2 {
textStyleAttrs: TextStyle = new TextStyle({ fontWeight: FontWeight.Bolder, fontSize: LengthMetrics.vp(24), fontStyle: FontStyle.Italic })
mutableStyledString: MutableStyledString = new MutableStyledString("运动35分钟 目标达成", [
{
start: 2,
length: 2,
styledKey: StyledStringKey.FONT,
styledValue: this.textStyleAttrs
},
{
start: 7,
length: 4,
styledKey: StyledStringKey.FONT,
styledValue: new TextStyle({ fontColor: Color.Orange, fontSize: LengthMetrics.vp(12)})
}
]);
controller: TextController = new TextController();

async onPageShow() {
this.controller.setStyledString(this.mutableStyledString)
}

build() {
Column() {
// 显示属性字符串
Text(undefined, { controller: this.controller })
.margin({ top: 10 })
}
.width('100%')
}
}

  • 创建及应用文本阴影对象（TextShadowStyle）

    // xxx.ets
@Entry
@Component
struct styled_string_demo3 {
  mutableStyledString: MutableStyledString = new MutableStyledString("运动35分钟", [
  {
    start: 0,
    length: 3,
    styledKey: StyledStringKey.TEXT_SHADOW,
    styledValue: new TextShadowStyle({
      radius: 5,
      type: ShadowType.COLOR,
      color: Color.Red,
      offsetX: 10,
      offsetY: 10
    })
  }
  ]);
  controller: TextController = new TextController();

  async onPageShow() {
    this.controller.setStyledString(this.mutableStyledString)
  }

  build() {
    Column() {
      // 显示属性字符串
      Text(undefined, { controller: this.controller })
    }
    .width('100%')
  }
}

  • 创建及应用文本装饰线对象（DecorationStyle）

    // xxx.ets
@Entry
@Component
struct styled_string_demo4 {
mutableStyledString: MutableStyledString = new MutableStyledString("运动35分钟", [
{
start: 0,
length: 3,
styledKey: StyledStringKey.DECORATION,
styledValue: new DecorationStyle({type: TextDecorationType.LineThrough, color: Color.Red})
}
]);
controller: TextController = new TextController();

async onPageShow() {
this.controller.setStyledString(this.mutableStyledString)
}

build() {
Column() {
// 显示属性字符串
Text(undefined, { controller: this.controller })
}
.width('100%')
}
}

  • 创建及应用文本基线偏移量对象（BaselineOffsetStyle）

    import { LengthMetrics, LengthUnit } from '@kit.ArkUI'
// xxx.ets
@Entry
@Component
struct styled_string_demo5 {
mutableStyledString: MutableStyledString = new MutableStyledString("运动35分钟", [
{
start: 0,
length: 3,
styledKey: StyledStringKey.BASELINE_OFFSET,
styledValue: new BaselineOffsetStyle(LengthMetrics.px(20))
}
]);
controller: TextController = new TextController();

async onPageShow() {
this.controller.setStyledString(this.mutableStyledString)
}

build() {
Column() {
// 显示属性字符串
Text(undefined, { controller: this.controller })
}
.width('100%')
}
}

  • 创建及应用文本行高对象（LineHeightStyle）

    import { LengthMetrics, LengthUnit } from '@kit.ArkUI'
// xxx.ets
@Entry
@Component
struct styled_string_demo6 {
mutableStyledString: MutableStyledString = new MutableStyledString("运动35分钟\n顶顶顶\n得到", [
{
start: 8,
length: 3,
styledKey: StyledStringKey.LINE_HEIGHT,
styledValue: new LineHeightStyle(LengthMetrics.vp(50))
}
]);
controller: TextController = new TextController();

async onPageShow() {
this.controller.setStyledString(this.mutableStyledString)
}

build() {
Column() {
// 显示属性字符串
Text(undefined, { controller: this.controller })
}
.width('100%')
.margin({ top: 10 })
}
}

  • 创建及应用文本字符间距对象（LetterSpacingStyle）

    import { LengthMetrics, LengthUnit } from '@kit.ArkUI'
// xxx.ets
@Entry
@Component
struct styled_string_demo7 {
mutableStyledString: MutableStyledString = new MutableStyledString("运动35分钟", [
{
start: 0,
length: 2,
styledKey: StyledStringKey.LETTER_SPACING,
styledValue: new LetterSpacingStyle(new LengthMetrics(20, LengthUnit.VP))
}
]);
controller: TextController = new TextController();

async onPageShow() {
this.controller.setStyledString(this.mutableStyledString)
}

build() {
Column() {
// 显示属性字符串
Text(undefined, { controller: this.controller })
}
.width('100%')
}
}

设置段落样式

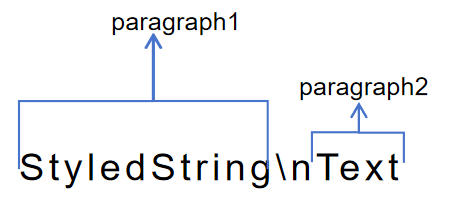

可通过ParagraphStyle设置段落样式布局。下图显示了如何分割文本中的段落，段落以换行符 \n 结尾。

以下代码示例展示了如何创建 ParagraphStyle 并应用。如果将 ParagraphStyle 附加到段落开头末尾或之间的任何位置均会应用样式，非段落区间内则不会应用样式。

import { LengthMetrics } from '@kit.ArkUI'
titleParagraphStyleAttr: ParagraphStyle = new ParagraphStyle({ textAlign: TextAlign.Center });
//段落首行缩进15vp
paragraphStyleAttr1: ParagraphStyle = new ParagraphStyle({ textIndent: LengthMetrics.vp(15) });
//创建含段落样式的对象paragraphStyledString1
paragraphStyledString1: MutableStyledString = new MutableStyledString("段落标题\n正文第一段落开始0123456789正文第一段落结束。", [
  {
    start: 0,
    length: 4,
    styledKey: StyledStringKey.PARAGRAPH_STYLE,
    styledValue: this.titleParagraphStyleAttr
  },
  {
    start: 0,
    length: 4,
    styledKey: StyledStringKey.LINE_HEIGHT,
    styledValue: new LineHeightStyle(new LengthMetrics(50))
  },{
  start: 0,
  length: 4,
  styledKey: StyledStringKey.FONT,
  styledValue: new TextStyle({ fontSize: LengthMetrics.vp(24), fontWeight: FontWeight.Bolder })
},
  {
    start: 5,
    length: 3,
    styledKey: StyledStringKey.PARAGRAPH_STYLE,
    styledValue: this.paragraphStyleAttr1
  },
  {
    start: 5,
    length: 20,
    styledKey: StyledStringKey.LINE_HEIGHT,
    styledValue: this.lineHeightStyle1
  }
]);

除了可以在创建属性字符串时就预设样式，也可以后续通过replaceStyle清空原样式替换新样式, 同时需要在附加的文本组件controller上主动触发更新绑定的属性字符串。

import { LengthMetrics } from '@kit.ArkUI'
//段落不设置缩进配置最大行数及超长显示方式
paragraphStyleAttr3: ParagraphStyle = new ParagraphStyle({ textAlign: TextAlign.End, maxLines: 1, wordBreak: WordBreak.BREAK_ALL, overflow: TextOverflow.Ellipsis});
// 后续某个节点触发更新段落样式
controller: TextController = new TextController();
this.paragraphStyledString1.replaceStyle({
start: 5,
length: 3,
styledKey: StyledStringKey.PARAGRAPH_STYLE,
styledValue: this.paragraphStyleAttr3
})
this.controller.setStyledString(this.mutableStyledString3)

使用图片

可通过ImageAttachment来添加图片。

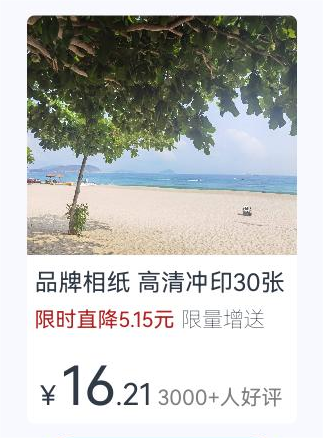

以下示例展示了如何将图片和文本附加到同一个MutableStyledString对象上，并实现图文混排。

// xxx.ets
import { image } from '@kit.ImageKit'
import { LengthMetrics } from '@kit.ArkUI'

@Entry
@Component
struct styled_string_demo4 {
  @State message: string = 'Hello World'
  imagePixelMap: image.PixelMap | undefined = undefined
  @State imagePixelMap3: image.PixelMap | undefined = undefined
  mutableStr: MutableStyledString = new MutableStyledString('123');
  controller: TextController = new TextController();
  mutableStr2: MutableStyledString = new MutableStyledString('This is set decoration line style to the mutableStr2', [{
    start: 0,
    length: 15,
    styledKey: StyledStringKey.DECORATION,
    styledValue: new DecorationStyle({
      type: TextDecorationType.Overline,
      color: Color.Orange,
      style: TextDecorationStyle.DOUBLE
    })
  }])

  async aboutToAppear() {
    console.info("aboutToAppear initial imagePixelMap")
    this.imagePixelMap = await this.getPixmapFromMedia($r('app.media.sea'))
  }

  private async getPixmapFromMedia(resource: Resource) {
    let unit8Array = await this.getUIContext().getHostContext()?.resourceManager?.getMediaContent({
      bundleName: resource.bundleName,
      moduleName: resource.moduleName,
      id: resource.id
    })
    let imageSource = image.createImageSource(unit8Array?.buffer?.slice(0, unit8Array?.buffer?.byteLength))
    let createPixelMap: image.PixelMap = await imageSource.createPixelMap({
      desiredPixelFormat: image.PixelMapFormat.RGBA_8888
    })
    await imageSource.release()
    return createPixelMap
  }

  leadingMarginValue: ParagraphStyle = new ParagraphStyle({ leadingMargin: LengthMetrics.vp(5)})
  //行高样式对象
  lineHeightStyle1: LineHeightStyle= new LineHeightStyle(new LengthMetrics(24));
  //Bold样式
  boldTextStyle: TextStyle = new TextStyle({ fontWeight: FontWeight.Bold });
  //创建含段落样式的对象paragraphStyledString1
  paragraphStyledString1: MutableStyledString = new MutableStyledString("\n品牌相纸 高清冲印30张\n限时直降5.15元 限量增送", [
    {
      start: 0,
      length: 28,
      styledKey: StyledStringKey.PARAGRAPH_STYLE,
      styledValue: this.leadingMarginValue
    },
    {
      start: 14,
      length: 9,
      styledKey: StyledStringKey.FONT,
      styledValue: new TextStyle({ fontSize: LengthMetrics.vp(14), fontColor: '#B22222' })
    },
    {
      start: 24,
      length: 4,
      styledKey: StyledStringKey.FONT,
      styledValue: new TextStyle({ fontSize: LengthMetrics.vp(14), fontWeight: FontWeight.Lighter })
    },
    {
      start: 11,
      length: 4,
      styledKey: StyledStringKey.LINE_HEIGHT,
      styledValue: this.lineHeightStyle1
    }
  ]);
  paragraphStyledString2: MutableStyledString = new MutableStyledString("\n￥16.21 3000+人好评", [
    {
      start: 0,
      length: 5,
      styledKey: StyledStringKey.PARAGRAPH_STYLE,
      styledValue: this.leadingMarginValue
    },
    {
      start: 0,
      length: 4,
      styledKey: StyledStringKey.LINE_HEIGHT,
      styledValue: new LineHeightStyle(new LengthMetrics(60))
    },
    {
      start: 0,
      length: 7,
      styledKey: StyledStringKey.FONT,
      styledValue: this.boldTextStyle
    },
    {
      start: 1,
      length: 1,
      styledKey: StyledStringKey.FONT,
      styledValue: new TextStyle({ fontSize: LengthMetrics.vp(18) })
    },
    {
      start: 2,
      length: 2,
      styledKey: StyledStringKey.FONT,
      styledValue: new TextStyle({ fontSize: LengthMetrics.vp(36) })
    },
    {
      start: 4,
      length: 3,
      styledKey: StyledStringKey.FONT,
      styledValue: new TextStyle({ fontSize: LengthMetrics.vp(20) })
    },
    {
      start: 7,
      length: 9,
      styledKey: StyledStringKey.FONT,
      styledValue: new TextStyle({ fontColor: Color.Grey, fontSize: LengthMetrics.vp(14)})
    }
  ])

  build() {
    Row() {
      Column({ space: 10 }) {
        Text(undefined, { controller: this.controller })
          .copyOption(CopyOptions.InApp)
          .draggable(true)
          .backgroundColor('#FFFFFF')
          .borderRadius(5)

        Button('点击查看商品卡片')
          .onClick(() => {
            if (this.imagePixelMap !== undefined) {
              this.mutableStr = new MutableStyledString(new ImageAttachment({
                value: this.imagePixelMap,
                size: { width: 180, height: 160 },
                verticalAlign: ImageSpanAlignment.BASELINE,
                objectFit: ImageFit.Fill
              }))
              this.paragraphStyledString1.appendStyledString(this.paragraphStyledString2)
              this.mutableStr.appendStyledString(this.paragraphStyledString1)
              this.controller.setStyledString(this.mutableStr)
            }
          })
      }
      .width('100%')
    }
    .height('100%')
    .backgroundColor('#F8F8FF')
  }
}

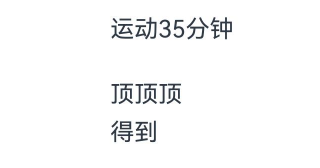

设置事件

可通过GestureStyle设置onClick、onLongPress事件来使文本响应点击长按事件。

除了初始化属性字符串对象即初始样式对象，亦可通过setStyle接口再叠加新样式或更新已有样式，同时需要在附加的文本组件controller上主动触发更新绑定的属性字符串。

import { drawing } from '@kit.ArkGraphics2D';

class MyCustomSpan extends CustomSpan {
constructor(word: string, width: number, height: number, fontSize: number) {
super();
this.word = word;
this.width = width;
this.height = height;
this.fontSize = fontSize;
}

onMeasure(measureInfo: CustomSpanMeasureInfo): CustomSpanMetrics {
return { width: this.width, height: this.height }
}

onDraw(context: DrawContext, options: CustomSpanDrawInfo) {
let canvas = context.canvas;

const brush = new drawing.Brush();
brush.setColor({ alpha: 255, red: 0, green: 0, blue: 0 })
const font = new drawing.Font()
font.setSize(vp2px(this.fontSize))
const textBlob = drawing.TextBlob.makeFromString(this.word.substring(0, 5), font, drawing.TextEncoding.TEXT_ENCODING_UTF8)
canvas.attachBrush(brush)

this.onDrawRectByRadius(context, options.x, options.x + vp2px(this.width), options.lineTop, options.lineBottom, 20)
brush.setColor({ alpha: 255, red: 255, green: 255, blue: 255 })
canvas.attachBrush(brush)
canvas.drawTextBlob(textBlob, options.x, options.lineBottom - 30)
brush.setColor({ alpha: 255, red: 255, green: 228 , blue: 196 })
canvas.attachBrush(brush)
const textBlob1 = drawing.TextBlob.makeFromString(this.word.substring(5), font, drawing.TextEncoding.TEXT_ENCODING_UTF8)
canvas.drawTextBlob(textBlob1, options.x + vp2px(100), options.lineBottom - 30)

canvas.detachBrush()
}
onDrawRectByRadius(context: DrawContext, left: number, right: number, top: number, bottom: number, radius: number) {
let canvas = context.canvas
let path = new drawing.Path()

// 画带radius的rect
path.moveTo(left + radius, top)
path.lineTo(right - radius, top)
path.arcTo(right - 2 * radius, top, right, top + 2 * radius, 270, 90)
path.lineTo(right, bottom - radius)
path.arcTo(right - 2 * radius, bottom - 2 * radius, right, bottom, 0, 90)

path.lineTo(left + 2 * radius, bottom)
path.arcTo(left, bottom - 2 * radius, left + 2 * radius, bottom, 90, 90)
path.lineTo(left, top + 2 * radius)
path.arcTo(left, top, left + 2 * radius, top + 2 * radius, 180, 90)

canvas.drawPath(path)
}
setWord(word: string) {
this.word = word;
}

width: number = 160
word: string = "drawing"
height: number = 10
fontSize: number = 16
}

@Entry
@Component
struct styled_string_demo6 {
customSpan3: MyCustomSpan = new MyCustomSpan("99VIP88%off", 200, 40, 30)
textStyle: MutableStyledString = new MutableStyledString("123");
textController: TextController = new TextController()
isPageShow: boolean = true

async onPageShow() {
if (!this.isPageShow) {
return
}
this.isPageShow = false
this.textController.setStyledString(new StyledString(this.customSpan3))
}

build() {
Row() {
Column() {
Text(undefined, { controller: this.textController })
.copyOption(CopyOptions.InApp)
.fontSize(30)
}
.width('100%')
}
.height('100%')
}
}

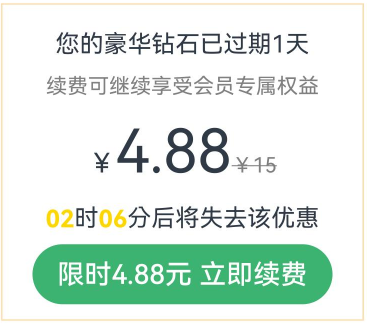

场景示例

import { LengthMetrics } from '@kit.ArkUI';

@Entry
@Component
struct Index {
alignCenterParagraphStyleAttr: ParagraphStyle = new ParagraphStyle({ textAlign: TextAlign.Center });
//行高样式对象
lineHeightStyle1: LineHeightStyle= new LineHeightStyle(LengthMetrics.vp(24));
//Bold样式
boldTextStyle: TextStyle = new TextStyle({ fontWeight: FontWeight.Bold });
//创建含段落样式的对象paragraphStyledString1
paragraphStyledString1: MutableStyledString = new MutableStyledString("您的豪华钻石已过期1天\n续费可继续享受会员专属权益", [
{
start: 0,
length: 4,
styledKey: StyledStringKey.PARAGRAPH_STYLE,
styledValue: this.alignCenterParagraphStyleAttr
},
{
start: 0,
length: 4,
styledKey: StyledStringKey.LINE_HEIGHT,
styledValue: new LineHeightStyle(LengthMetrics.vp(40))
},
{
start: 11,
length: 14,
styledKey: StyledStringKey.FONT,
styledValue: new TextStyle({ fontSize: LengthMetrics.vp(14), fontColor: Color.Grey })
},
{
start: 11,
length: 4,
styledKey: StyledStringKey.PARAGRAPH_STYLE,
styledValue: this.alignCenterParagraphStyleAttr
},
{
start: 11,
length: 4,
styledKey: StyledStringKey.LINE_HEIGHT,
styledValue: this.lineHeightStyle1
}
]);
paragraphStyledString2: MutableStyledString = new MutableStyledString("\n￥4.88￥15", [
{
start: 0,
length: 4,
styledKey: StyledStringKey.PARAGRAPH_STYLE,
styledValue: this.alignCenterParagraphStyleAttr
},
{
start: 0,
length: 4,
styledKey: StyledStringKey.LINE_HEIGHT,
styledValue: new LineHeightStyle(LengthMetrics.vp(60))
},
{
start: 0,
length: 6,
styledKey: StyledStringKey.FONT,
styledValue: this.boldTextStyle
},
{
start: 1,
length: 1,
styledKey: StyledStringKey.FONT,
styledValue: new TextStyle({ fontSize: LengthMetrics.vp(18)})
},
{
start: 2,
length: 4,
styledKey: StyledStringKey.FONT,
styledValue: new TextStyle({ fontSize: LengthMetrics.vp(40)})
},
{
start: 6,
length: 3,
styledKey: StyledStringKey.FONT,
styledValue: new TextStyle({ fontColor: Color.Grey, fontSize: LengthMetrics.vp(14)})
},
{
start: 6,
length: 3,
styledKey: StyledStringKey.DECORATION,
styledValue: new DecorationStyle({ type: TextDecorationType.LineThrough, color: Color.Grey })
}
])
paragraphStyledString3: MutableStyledString = new MutableStyledString("\n02时06分后将失去该优惠", [
{
start: 0,
length: 4,
styledKey: StyledStringKey.PARAGRAPH_STYLE,
styledValue: this.alignCenterParagraphStyleAttr
},
{
start: 0,
length: 4,
styledKey: StyledStringKey.LINE_HEIGHT,
styledValue: new LineHeightStyle(LengthMetrics.vp(30))
},
{
start: 1,
length: 2,
styledKey: StyledStringKey.FONT,
styledValue: new TextStyle({ fontColor: '#FFD700', fontWeight: FontWeight.Bold })
},
{
start: 4,
length: 2,
styledKey: StyledStringKey.FONT,
styledValue: new TextStyle({ fontColor: '#FFD700', fontWeight: FontWeight.Bold })
}
])
controller: TextController = new TextController();

build() {
Row() {
Column( { space : 5 }) {
Text(undefined, { controller: this.controller })
.width(240)
.copyOption(CopyOptions.InApp)
.draggable(true)
.onAppear(()=>{
this.paragraphStyledString2.appendStyledString(this.paragraphStyledString3)
this.paragraphStyledString1.appendStyledString(this.paragraphStyledString2)
this.controller.setStyledString(this.paragraphStyledString1)
})

Button("限时4.88元 立即续费")
.width(200)
.fontColor(Color.White)
.fontSize(18)
.backgroundColor('#3CB371')
.margin({ bottom: 10 })
}
.borderWidth(1).borderColor('#FFDEAD')
.margin({ left: 10 })
}
.height('60%')
}
}

​​​​​​​

评论
添加红包

请填写红包祝福语或标题

个

红包个数最小为10个

元

红包金额最低5元

当前余额3.43元 前往充值 >
需支付：10.00元
成就一亿技术人!
领取后你会自动成为博主和红包主的粉丝 规则
hope_wisdom
发出的红包
实付元
使用余额支付
点击重新获取
扫码支付
钱包余额 0

抵扣说明：

1.余额是钱包充值的虚拟货币，按照1:1的比例进行支付金额的抵扣。
2.余额无法直接购买下载，可以购买VIP、付费专栏及课程。

余额充值
