Hystrix dashbord 服务降级熔断限流监控介绍

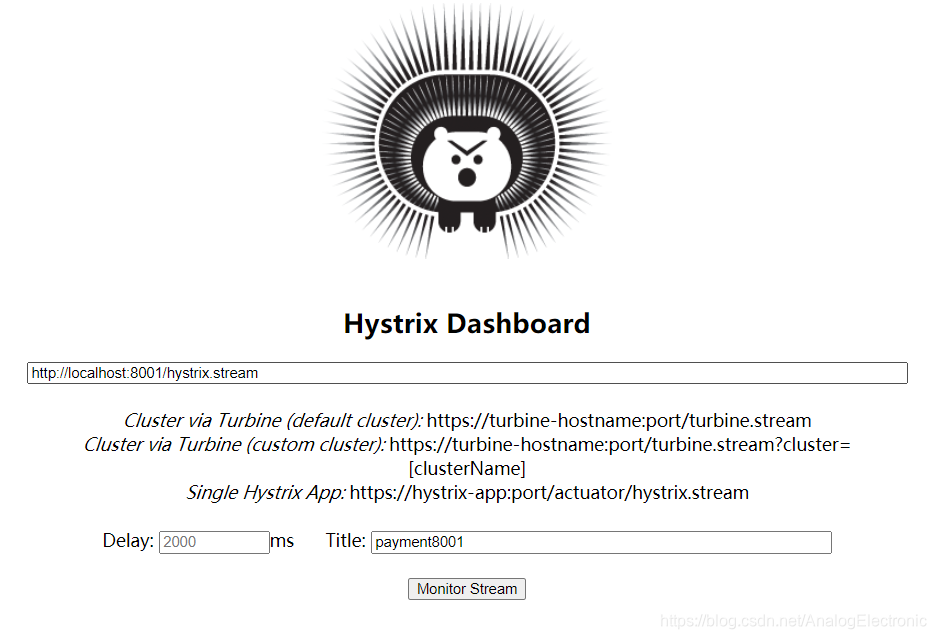

本文介绍了如何在Spring Cloud项目中集成Hystrix Dashboard，展示如何配置监控服务，并通过9001端口访问监控界面。重点讲解了如何确保正确暴露监控指标并实现自定义URL映射。

摘要生成于 C知道，由 DeepSeek-R1 满血版支持，前往体验 >

cloud-consumer-hystrix-dashboard9001

<?xml version="1.0" encoding="UTF-8"?>
<project xmlns:xsi="http://www.w3.org/2001/XMLSchema-instance"
         xmlns="http://maven.apache.org/POM/4.0.0"
         xsi:schemaLocation="http://maven.apache.org/POM/4.0.0 http://maven.apache.org/xsd/maven-4.0.0.xsd">
    <parent>
        <artifactId>springCloud</artifactId>
        <groupId>com.george.springcloud</groupId>
        <version>1.0-SNAPSHOT</version>
    </parent>
    <modelVersion>4.0.0</modelVersion>

    <artifactId>cloud-consumer-hystrix-dashboard9001</artifactId>

    <dependencies>
        <dependency>
            <groupId>org.springframework.cloud</groupId>
            <artifactId>spring-cloud-starter-netflix-hystrix-dashboard</artifactId>
        </dependency>
        <!--    引入自定义的api通用包，可以使用Payment支付Entity    -->
        <dependency>
            <groupId>com.george.springcloud</groupId>
            <artifactId>cloud-api-commons</artifactId>
            <version>1.0-SNAPSHOT</version>
        </dependency>
        <dependency>
            <groupId>org.springframework.boot</groupId>
            <artifactId>spring-boot-starter-actuator</artifactId>
        </dependency>
    </dependencies>

</project>

server:
  port: 9001

package com.george.springcloud;

import org.springframework.boot.SpringApplication;
import org.springframework.boot.autoconfigure.SpringBootApplication;
import org.springframework.cloud.netflix.hystrix.dashboard.EnableHystrixDashboard;

/**
 * @author Yang Hao
 * @description
 * @date 2020-09-18 14:16
 */
@SpringBootApplication
@EnableHystrixDashboard
public class HystrixDashboardMain9001 {
    public static void main(String[] args) {
        SpringApplication.run(HystrixDashboardMain9001.class);
    }
}

被监控的服务Bootstrap类需要做如下配置

package com.george.springcloud;

import com.netflix.hystrix.contrib.metrics.eventstream.HystrixMetricsStreamServlet;
import org.springframework.boot.SpringApplication;
import org.springframework.boot.autoconfigure.SpringBootApplication;
import org.springframework.boot.web.servlet.ServletRegistrationBean;
import org.springframework.cloud.client.circuitbreaker.EnableCircuitBreaker;
import org.springframework.cloud.netflix.eureka.EnableEurekaClient;
import org.springframework.context.annotation.Bean;

/**
 * @author Yang Hao
 * @description
 * @date 2020-09-16 18:17
 */
@SpringBootApplication
@EnableEurekaClient
@EnableCircuitBreaker
public class PaymentHystrixMain8001 {
    public static void main(String[] args) {
        SpringApplication.run(PaymentHystrixMain8001.class);
    }


    /**
     * 此配置是为了服务监控而配置，与服务器容错本身无关，springcloud升级后的坑
     * ServletRegistrationBean因为springboot的默认路径不是/hystrix.stream
     * 只要在自己的项目里配置上下文的servlet就可以了
     */
    @Bean
    public ServletRegistrationBean getservlet() {
        HystrixMetricsStreamServlet streamServlet = new HystrixMetricsStreamServlet();
        ServletRegistrationBean<HystrixMetricsStreamServlet> registrationBean = new ServletRegistrationBean<>(streamServlet);
        registrationBean.setLoadOnStartup(1);
        registrationBean.addUrlMappings("/hystrix.stream");
        registrationBean.setName("HystrixMetricsStreamServlet");
        return registrationBean;
    }
}
