Visitor访问者模式

Visitor pattern

In object-oriented programming and software engineering, the visitor design pattern is a way of separating an algorithm from an object structure on which it operates. A practical result of this separation is the ability to add new operations to existing object structures without modifying the structures. It is one way to follow the open/closed principle.
In essence, the visitor allows adding new virtual functions to a family of classes, without modifying the classes. Instead, a visitor class is created that implements all of the appropriate specializations of the virtual function. The visitor takes the instance reference as input, and implements the goal through double dispatch. —Wikipedia

Structure

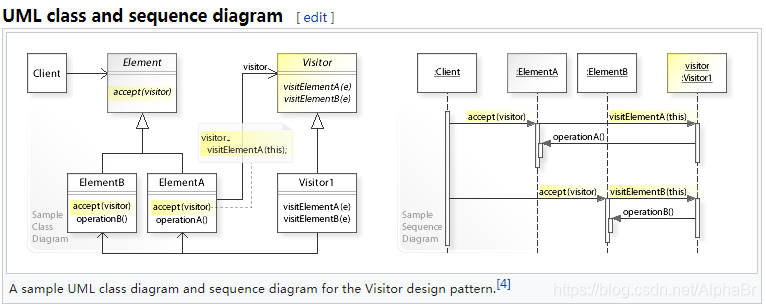

In the above UML class diagram, the ElementA class doesn’t implement a new operation directly. Instead, ElementA implements a dispatching operation accept(visitor) that “dispatches” (delegates) a request to the “accepted visitor object” (visitor.visitElementA(this)). The Visitor1 class implements the operation (visitElementA(e:ElementA)).
ElementB then implements accept(visitor) by dispatching to visitor.visitElementB(this). The Visitor1 class implements the operation (visitElementB(e:ElementB)).

The UML sequence diagram shows the run-time interactions: The Client object traverses the elements of an object structure (ElementA,ElementB) and calls accept(visitor) on each element.
First, the Client calls accept(visitor) on ElementA, which calls visitElementA(this) on the accepted visitor object. The element itself (this) is passed to the visitor so that it can “visit” ElementA (call operationA()).
Thereafter, the Client calls accept(visitor) on ElementB, which calls visitElementB(this) on the visitor that “visits” ElementB (calls operationB()).

Example

模拟一个电脑城卖家，对不同的客户visitor给予不同的折扣

public class Computer {
    ComputerPart cpu = new CPU();
    ComputerPart memory = new Memory();
    ComputerPart board = new Board();

    public void acccept(Visitor v) {
        this.cpu.accept(v);
        this.memory.accept(v);
        this.board.accept(v);
    }

    public static void main(String[] args) {
        PersonelVisitor p = new PersonelVisitor();
        new Computer().acccept(p);
        System.out.println(p.totalPrice);
    }
}

abstract class ComputerPart {
    abstract void accept(Visitor v);
    //some other operations eg:getName getBrand
    abstract double getPrice();
}

class CPU extends ComputerPart {

    @Override
    void accept(Visitor v) {
        v.visitCpu(this);
    }

    @Override
    double getPrice() {
        return 500;
    }
}

class Memory extends ComputerPart {

    @Override
    void accept(Visitor v) {
        v.visitMemory(this);
    }

    @Override
    double getPrice() {
        return 300;
    }
}

class Board extends ComputerPart {

    @Override
    void accept(Visitor v) {
        v.visitBoard(this);
    }

    @Override
    double getPrice() {
        return 200;
    }
}

interface Visitor {
    void visitCpu(CPU cpu);
    void visitMemory(Memory memory);
    void visitBoard(Board board);
}

//个人买家
class PersonelVisitor implements Visitor {
    double totalPrice = 0.0;

		//cpu 九折
    @Override
    public void visitCpu(CPU cpu) {
        totalPrice += cpu.getPrice()*0.9;
    }

		//内存 85折
    @Override
    public void visitMemory(Memory memory) {
        totalPrice += memory.getPrice()*0.85;
    }

		//键盘 95折
    @Override
    public void visitBoard(Board board) {
        totalPrice += board.getPrice()*0.95;
    }
}

//Corporation 企业买家
class CorpVisitor implements Visitor {
    double totalPrice = 0.0;

    @Override
    public void visitCpu(CPU cpu) {
        totalPrice += cpu.getPrice()*0.6;
    }

    @Override
    public void visitMemory(Memory memory) {
        totalPrice += memory.getPrice()*0.75;
    }

    @Override
    public void visitBoard(Board board) {
        totalPrice += board.getPrice()*0.75;
    }
}

Summary

• 在结构不变的情况下动态改变对于内部元素的动作
  • 结构：cpu、内存、键盘
• 应用在AST抽象语法树
