Verilog刷题-8-Norgate

题目描述

文字描述
Create a module that implements a NOR gate. A NOR gate is an OR gate with its output inverted. A NOR function needs two operators when written in Verilog.

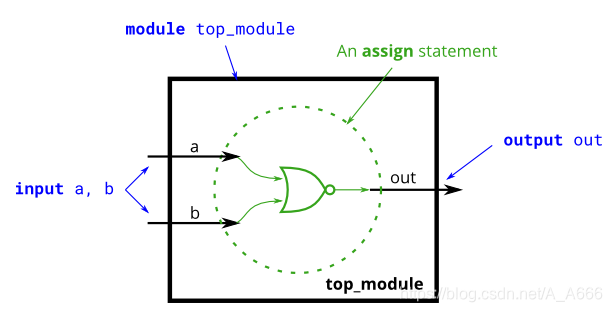

图示

代码

module top_module(
    input a,
    input b,
    output out );
    assign out = ~(a|b);
endmodule

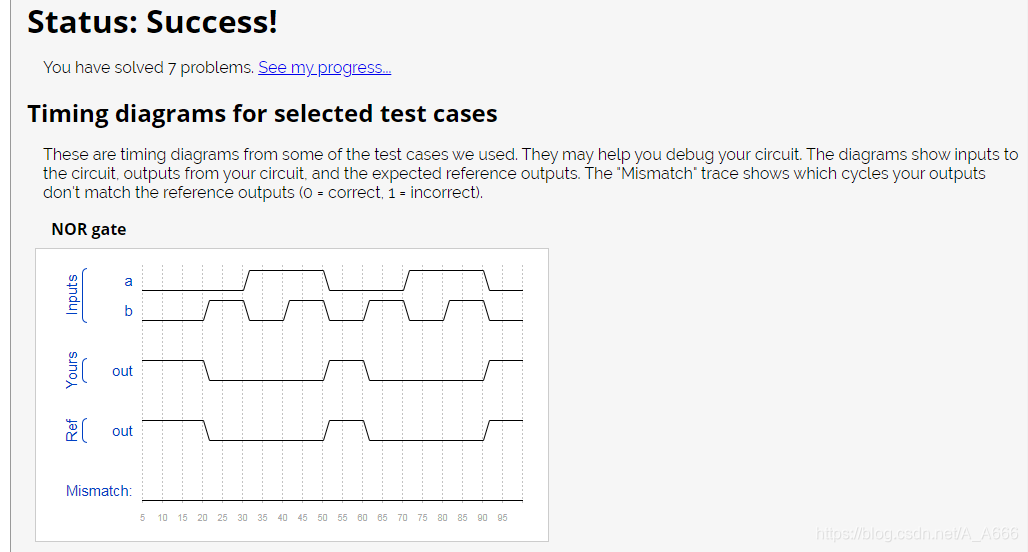

结果
