本文详细介绍了如何在IntelliJ IDEA中使用Maven整合SSM框架，包括新建Maven项目、构建项目结构、配置pom.xml、设置Spring、SpringMVC和MyBatis的配置文件以及web.xml的配置步骤。

摘要生成于 C知道，由 DeepSeek-R1 满血版支持，前往体验 >

开发工具采用IntelliJ IDEA，采用Maven整合，步骤如下：

1.新建一个Maven项目
2.构建SSM项目结构
3.配置pom.xml文件
4.配置Spring,SpringMvc以及MyBatis的配置文件
5.配置web.xml

详细操作如下：

1.新建一个Maven项目

在这里插入图片描述
点击Next，填写项目名称

点击Next，可添加一个Properties来解决Maven项目启动过慢（可自行选择）

archetypeCatalog
internal

在这里插入图片描述

2.构建SSM的项目结构

首先在main下创建两个文件夹，
java：存放java代码
resources：存放配置文件以及其他一些资源
在这里插入图片描述
右键点击java包

右键点击resources包

可在java包下创建项目结构包以后用

3.配置pom.xml文件

打开pom.xml文件，导入所需要的jar包，如果有其他需要的，可以从Maven官网查找https://mvnrepository.com/。尽量保持版本一致。下面我提供了SSM项目基本所使用到的jar包引用

<?xml version="1.0" encoding="UTF-8"?>

<project xmlns="http://maven.apache.org/POM/4.0.0" xmlns:xsi="http://www.w3.org/2001/XMLSchema-instance"
  xsi:schemaLocation="http://maven.apache.org/POM/4.0.0 http://maven.apache.org/xsd/maven-4.0.0.xsd">
  <modelVersion>4.0.0</modelVersion>

  <groupId>it.617</groupId>
  <artifactId>SSM</artifactId>
  <version>1.0-SNAPSHOT</version>
  <packaging>war</packaging>

  <name>SSM Maven Webapp</name>
  <!-- FIXME change it to the project's website -->
  <url>http://www.example.com</url>

  <properties>
    <project.build.sourceEncoding>UTF-8</project.build.sourceEncoding>
    <maven.compiler.source>1.8</maven.compiler.source>
    <maven.compiler.target>1.8</maven.compiler.target>
    <spring.version>5.0.2.RELEASE</spring.version>
    <slf4j.version>1.6.6</slf4j.version>
    <log4j.version>1.2.12</log4j.version>
    <mysql.version>5.1.6</mysql.version>
    <mybatis.version>3.4.5</mybatis.version>
  </properties>

  <dependencies>
    <!-- spring 相关的-->
    <dependency>
      <groupId>org.aspectj</groupId>
      <artifactId>aspectjweaver</artifactId>
      <version>1.6.8</version>
    </dependency>

    <dependency>
      <groupId>org.springframework</groupId>
      <artifactId>spring-aop</artifactId>
      <version>${spring.version}</version>
    </dependency>

    <dependency>
      <groupId>org.springframework</groupId>
      <artifactId>spring-context</artifactId>
      <version>${spring.version}</version>
    </dependency>

    <dependency>
      <groupId>org.springframework</groupId>
      <artifactId>spring-web</artifactId>
      <version>${spring.version}</version>
    </dependency>

    <dependency>
      <groupId>org.springframework</groupId>
      <artifactId>spring-webmvc</artifactId>
      <version>${spring.version}</version>
    </dependency>

    <dependency>
      <groupId>org.springframework</groupId>
      <artifactId>spring-test</artifactId>
      <version>${spring.version}</version>
    </dependency>

    <dependency>
      <groupId>org.springframework</groupId>
      <artifactId>spring-tx</artifactId>
      <version>${spring.version}</version>
    </dependency>

    <dependency>
      <groupId>org.springframework</groupId>
      <artifactId>spring-jdbc</artifactId>
      <version>${spring.version}</version>
    </dependency>

	<!-- 单元测试相关的-->
    <dependency>
      <groupId>junit</groupId>
      <artifactId>junit</artifactId>
      <version>4.12</version>
      <scope>compile</scope>
    </dependency>

	<!-- 与数据库相关的-->
    <dependency>
      <groupId>mysql</groupId>
      <artifactId>mysql-connector-java</artifactId>
      <version>${mysql.version}</version>
    </dependency>

	<!-- Servlet相关的-->
    <dependency>
      <groupId>javax.servlet</groupId>
      <artifactId>servlet-api</artifactId>
      <version>2.5</version>
      <scope>provided</scope>
    </dependency>

    <dependency>
      <groupId>javax.servlet.jsp</groupId>
      <artifactId>jsp-api</artifactId>
      <version>2.0</version>
      <scope>provided</scope>
    </dependency>

    <dependency>
      <groupId>jstl</groupId>
      <artifactId>jstl</artifactId>
      <version>1.2</version>
    </dependency>

    <!-- log start -->
    <dependency>
      <groupId>log4j</groupId>
      <artifactId>log4j</artifactId>
      <version>${log4j.version}</version>
    </dependency>

    <dependency>
      <groupId>org.slf4j</groupId>
      <artifactId>slf4j-api</artifactId>
      <version>${slf4j.version}</version>
    </dependency>

    <dependency>
      <groupId>org.slf4j</groupId>
      <artifactId>slf4j-log4j12</artifactId>
      <version>${slf4j.version}</version>
    </dependency>

    <!-- Mybatis -->
    <dependency>
      <groupId>org.mybatis</groupId>
      <artifactId>mybatis</artifactId>
      <version>${mybatis.version}</version>
    </dependency>

    <dependency>
      <groupId>org.mybatis</groupId>
      <artifactId>mybatis-spring</artifactId>
      <version>1.3.0</version>
    </dependency>

    <dependency>
      <groupId>c3p0</groupId>
      <artifactId>c3p0</artifactId>
      <version>0.9.1.2</version>
      <type>jar</type>
      <scope>compile</scope>
    </dependency>
  </dependencies>

  <build>
    <finalName>SSM</finalName>
    <pluginManagement><!-- lock down plugins versions to avoid using Maven defaults (may be moved to parent pom) -->
      <plugins>
        <plugin>
          <artifactId>maven-clean-plugin</artifactId>
          <version>3.1.0</version>
        </plugin>
        <!-- see http://maven.apache.org/ref/current/maven-core/default-bindings.html#Plugin_bindings_for_war_packaging -->
        <plugin>
          <artifactId>maven-resources-plugin</artifactId>
          <version>3.0.2</version>
        </plugin>
        <plugin>
          <artifactId>maven-compiler-plugin</artifactId>
          <version>3.8.0</version>
        </plugin>
        <plugin>
          <artifactId>maven-surefire-plugin</artifactId>
          <version>2.22.1</version>
        </plugin>
        <plugin>
          <artifactId>maven-war-plugin</artifactId>
          <version>3.2.2</version>
        </plugin>
        <plugin>
          <artifactId>maven-install-plugin</artifactId>
          <version>2.5.2</version>
        </plugin>
        <plugin>
          <artifactId>maven-deploy-plugin</artifactId>
          <version>2.8.2</version>
        </plugin>
      </plugins>
    </pluginManagement>

  </build>
</project>

4.配置Spring,SpringMvc以及MyBatis的配置文件

在resources文件下新建SpringMvc的配置文件，我取名dispatcherServlet-servlet.xml（可自行）

<?xml version="1.0" encoding="UTF-8"?>
<beans xmlns="http://www.springframework.org/schema/beans"
       xmlns:mvc="http://www.springframework.org/schema/mvc" xmlns:context="http://www.springframework.org/schema/context"
       xmlns:xsi="http://www.w3.org/2001/XMLSchema-instance"
       xsi:schemaLocation="
        http://www.springframework.org/schema/beans
        http://www.springframework.org/schema/beans/spring-beans.xsd
        http://www.springframework.org/schema/mvc
        http://www.springframework.org/schema/mvc/spring-mvc.xsd
        http://www.springframework.org/schema/context
        http://www.springframework.org/schema/context/spring-context.xsd">

    <!--配置要扫描的包，只扫描Controller -->
    <context:component-scan base-package="com.chn" use-default-filters="false">
        <context:include-filter type="annotation" expression="org.springframework.stereotype.Controller"></context:include-filter>
    </context:component-scan>

    <!-- 配置视图解析器-->
    <bean class="org.springframework.web.servlet.view.InternalResourceViewResolver">
        <property name="prefix" value="/WEB-INF/views/"/>
        <property name="suffix" value=".jsp"/>
    </bean>

	<!-- 让js.css等静态资源不用被扫描 -->
    <mvc:resources mapping="/js/**" location="/js/" />
    <mvc:resources mapping="/static/**" location="/static/" />

    <!--将SpringMVC不能处理的请求交给tomcat -->
    <mvc:default-servlet-handler/>
    <!-- 能支持SpringMVC一些更高级的功能，比如JSR303校验，快捷的ajax...映射动态请求-->
    <mvc:annotation-driven/>

</beans>

配置Mybatis相关配置，在resources下新建mapper文件，存放Mybatis的映射
在resources下新建Mybatis.xml

<?xml version="1.0" encoding="UTF-8" ?>
<!DOCTYPE configuration
        PUBLIC "-//mybatis.org//DTD Config 3.0//EN"
        "http://mybatis.org/dtd/mybatis-3-config.dtd">

<configuration>
    <settings>
        <setting name="mapUnderscoreToCamelCase" value="true"/>
    </settings>

	<!-- 配置别名 -->
    <typeAliases>
        <package name="com.chn.bean"></package>
    </typeAliases>


</configuration>

在resources下新建dbConfig.properties，存放数据库配置信息


jdbc.driver=com.mysql.jdbc.Driver

jdbc.url=jdbc:mysql://localhost:3306/ssm_crud

jdbc.username=root

jdbc.password=admin

在resources下新建applicationContext.xml，配置Spring相关信息

<?xml version="1.0" encoding="UTF-8"?>
<beans xmlns="http://www.springframework.org/schema/beans"
       xmlns:xsi="http://www.w3.org/2001/XMLSchema-instance"
       xmlns:context="http://www.springframework.org/schema/context"
       xmlns:aop="http://www.springframework.org/schema/aop"
       xmlns:tx="http://www.springframework.org/schema/tx"
       xsi:schemaLocation="http://www.springframework.org/schema/beans
	http://www.springframework.org/schema/beans/spring-beans.xsd
	http://www.springframework.org/schema/context
	http://www.springframework.org/schema/context/spring-context.xsd
	http://www.springframework.org/schema/aop
	http://www.springframework.org/schema/aop/spring-aop.xsd
	http://www.springframework.org/schema/tx
	http://www.springframework.org/schema/tx/spring-tx.xsd">

    <!-- 这里是Spring的配置文件，主要配置业务逻辑有关的操作 -->

    <!-- 扫描包，只扫描dao,service,不要扫描controller-->
    <context:component-scan base-package="com.chn">
        <context:exclude-filter type="annotation" expression="org.springframework.stereotype.Controller"/>
    </context:component-scan>

    <!-- 配置数据源-->
    <context:property-placeholder location="classpath:dbConfig.properties"></context:property-placeholder>
    <bean id="datasource" class="com.mchange.v2.c3p0.ComboPooledDataSource">
        <property name="jdbcUrl" value="${jdbc.url}"/>
        <property name="driverClass" value="${jdbc.driver}"/>
        <property name="user" value="${jdbc.username}"/>
        <property name="password" value="${jdbc.password}"/>
    </bean>

    <!-- 配置和Mybatis的整合-->
    <bean class="org.mybatis.spring.SqlSessionFactoryBean" id="sqlSessionFactory">
        <!-- 制定Mybatis的全局配置位置-->
        <property name="configLocation" value="classpath:mybatisConfig.xml"/>
        <!--制定mybatis的mapper的位置 -->
        <property name="mapperLocations" value="classpath:mapper/*.xml"/>
        <property name="dataSource" ref="datasource"></property>
    </bean>

    <!-- 配置扫描器，将mybatis的接口的实现加入到ioc容器中-->
    <bean class="org.mybatis.spring.mapper.MapperScannerConfigurer" name="mapperScannerConfigurer">
        <property name="basePackage" value="com.chn.dao"/>
    </bean>

    <!-- 配置事务控制-->
    <bean class="org.springframework.jdbc.datasource.DataSourceTransactionManager" id="TransactionManager">
        <!-- 将数据源加入事务控制 -->
        <property name="dataSource" ref="datasource"/>
    </bean>

    <!-- 配置事务通知 -->
    <tx:advice id="txAdvice" transaction-manager="TransactionManager">
        <tx:attributes>
            <tx:method name="*" />
            <tx:method name="get*" read-only="true"/>
        </tx:attributes>
    </tx:advice>

    <!--aop增强-->
    <aop:config>
        <aop:advisor advice-ref="txAdvice" pointcut="execution(* com.chn.service..*(..))"/>
    </aop:config>
</beans>

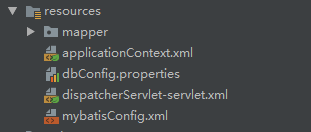

最后resources文件目录如图所示：
在这里插入图片描述

5.配置web.xml

<?xml version="1.0" encoding="UTF-8"?>
<web-app xmlns:xsi="http://www.w3.org/2001/XMLSchema-instance" xmlns="http://java.sun.com/xml/ns/javaee" xsi:schemaLocation="http://java.sun.com/xml/ns/javaee http://java.sun.com/xml/ns/javaee/web-app_3_0.xsd" id="WebApp_ID" version="3.0">

    <display-name>Archetype Created Web Application</display-name>

	<!--  加载Spring的配置文件 -->
    <context-param>
        <param-name>contextConfigLocation</param-name>
        <param-value>classpath:applicationContext.xml</param-value>
    </context-param>

	<!--  配置中文乱码的过滤器 -->
    <filter>
        <filter-name>characterEncodingFilter</filter-name>
        <filter-class>org.springframework.web.filter.CharacterEncodingFilter</filter-class>
        <init-param>
            <param-name>encoding</param-name>
            <param-value>utf-8</param-value>
        </init-param>
        <init-param>
            <param-name>forceRequestEncoding</param-name>
            <param-value>true</param-value>
        </init-param>
        <init-param>
            <param-name>forceResponseEncoding</param-name>
            <param-value>true</param-value>
        </init-param>
    </filter>


    <filter-mapping>
        <filter-name>characterEncodingFilter</filter-name>
        <url-pattern>/*</url-pattern>
    </filter-mapping>

	<!--  配置Spring的监听器 -->
    <listener>
        <listener-class>org.springframework.web.context.ContextLoaderListener</listener-class>
    </listener>

	<!--  配置前端控制器 -->
    <servlet>
        <servlet-name>springDispatcherServlet</servlet-name>
        <servlet-class>org.springframework.web.servlet.DispatcherServlet</servlet-class>
        <init-param>
            <param-name>contextConfigLocation</param-name>
            <param-value>classpath:dispatcherServlet-servlet.xml</param-value>
        </init-param>
        <load-on-startup>1</load-on-startup>
    </servlet>
    <servlet-mapping>
        <servlet-name>springDispatcherServlet</servlet-name>
        <url-pattern>/</url-pattern>
    </servlet-mapping>

</web-app>
