MGRE基础实验

目录

一，实验题目

三，实验思路

三，实验步骤

3.1 搭建拓扑

3.2基本配置与缺省路由

3.3 R1-R2用HDLC封装

3.4 R2-R3用PPP封装，PAP认证，R2主认证

3.5 R2-R4用PPP封装，CHAP认证，R2主认证

3.6 R1 R3 R4建立MGRE环境，R1固定IP地址

3.7 RIP协议通内网

四，检测

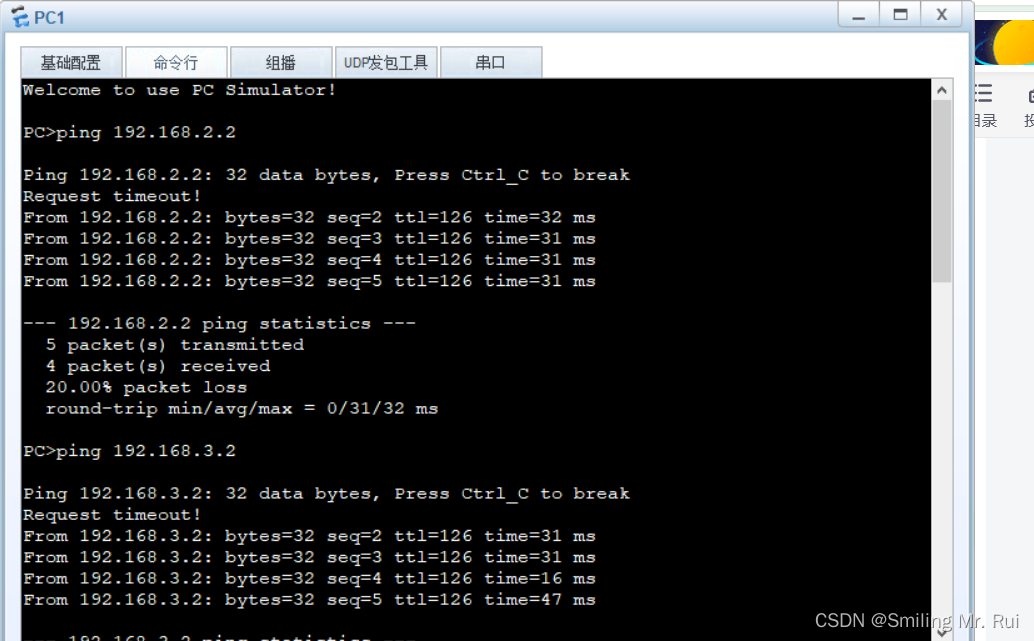

ping通内网：

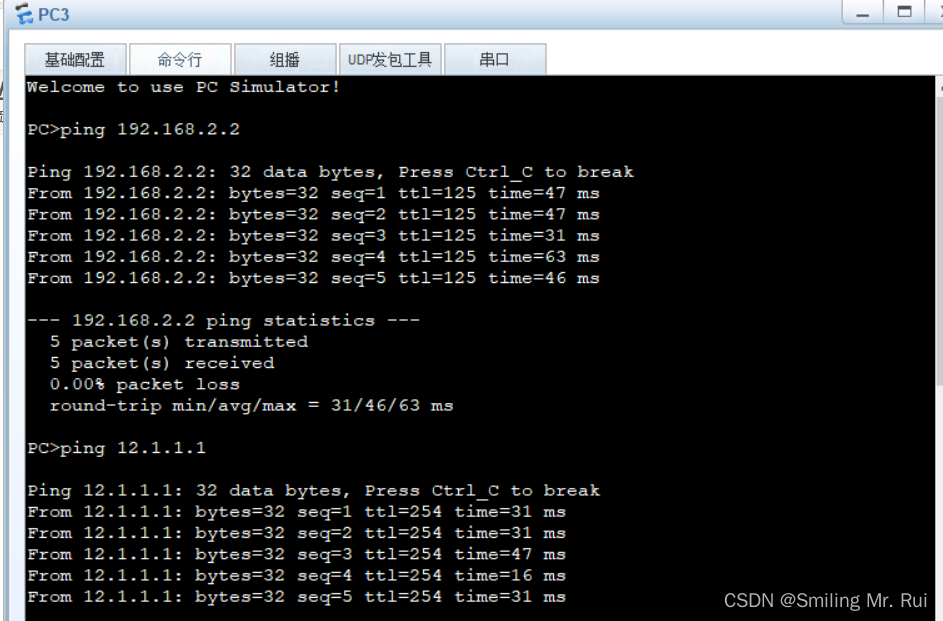

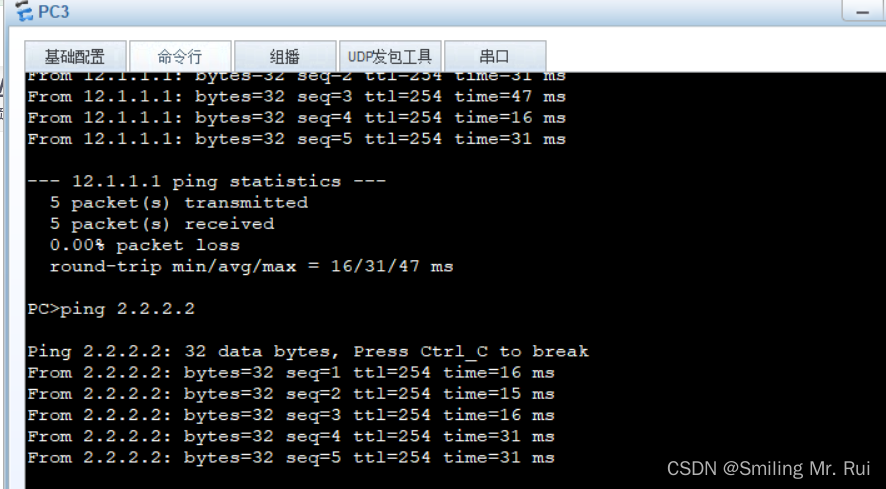

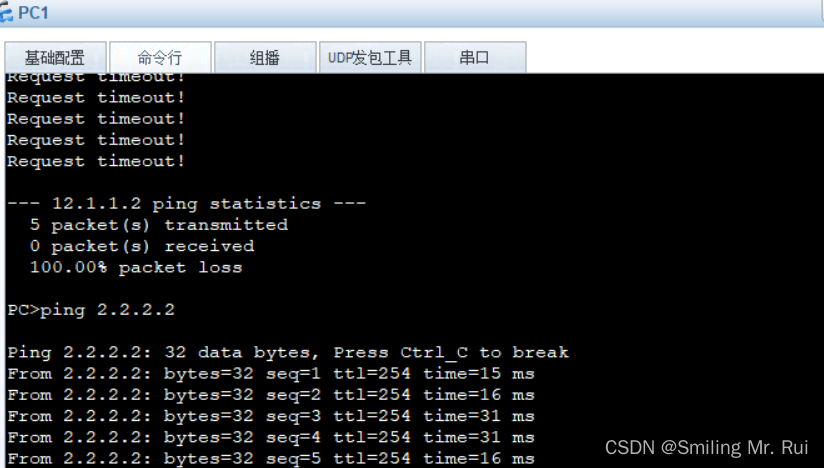

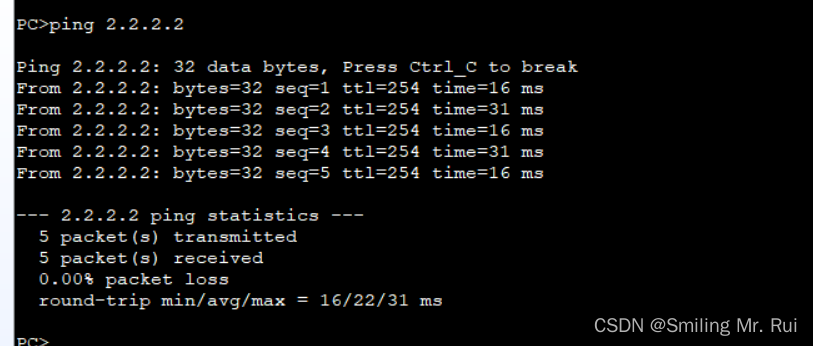

终端互相访问：

---

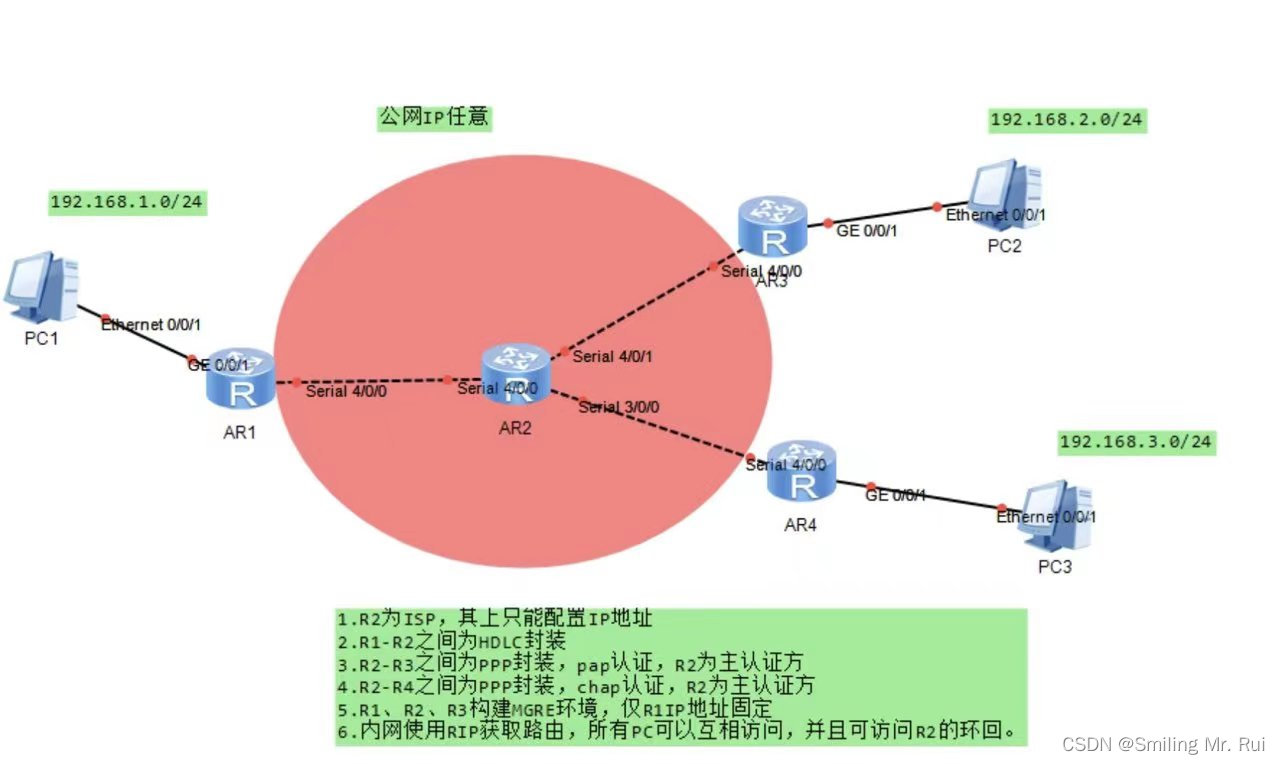

一，实验题目

三，实验思路

1、进行合理的ip地址规划

2、配置路由接口IP

3，由内到外进行配置，做公网的缺省路由，将R1-R4之间实现全网通

4，R2与其他路由之间配置类型封装与认证（PPP/HDLC PAP/CHAP）

5，R1 R3 R4间搭建MGRE环境

6，用RIP协议获取路由，使pc端可互相访问

三，实验步骤

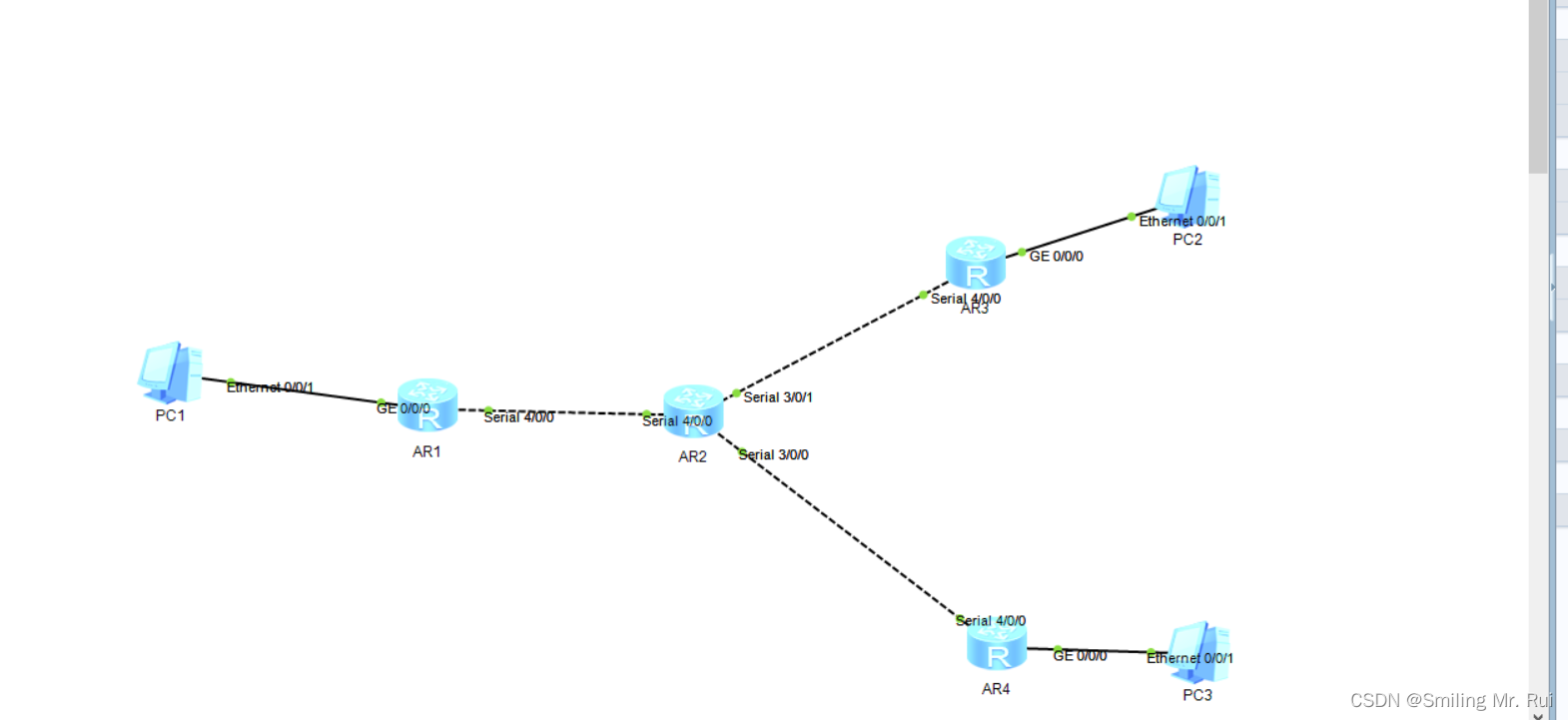

3.1 搭建拓扑

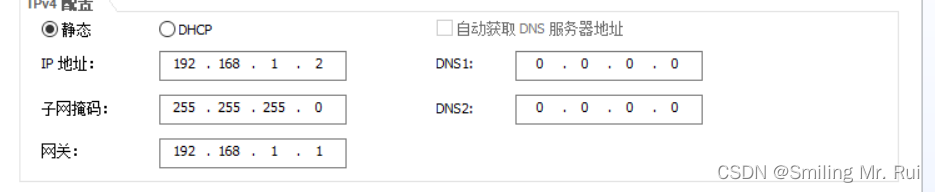

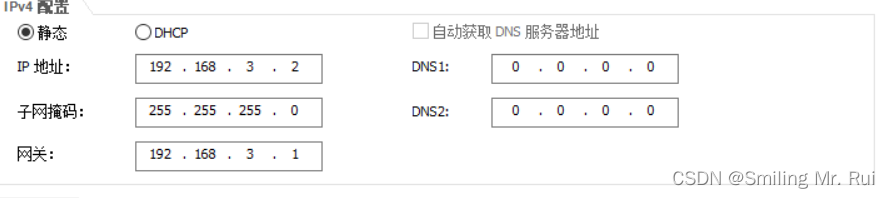

3.2基本配置与缺省路由

通过缺省路由和ACL规则允许PC端访问R2环回

[r1]acl 2000
[r1-acl-basic-2000]rule permit source 192.168.1.0 0.0.0.255
[r1-acl-basic-2000]q
[r1]int s4/0/0
[r1-Serial4/0/0]nat outbound 2000
[r1-Serial4/0/0]q
[r1]ip route-static 0.0.0.0 0 12.1.1.2
[r3]acl 2000
[r3-acl-basic-2000]rule permit source 192.168.2.0 0.0.0.255
[r3-acl-basic-2000]q
[r3]int s4/0/0
[r3-Serial4/0/0]nat outbound 2000
[r3-Serial4/0/0]q
[r3]ip route-static 0.0.0.0 0 23.1.1.2
[r4]acl 2000
[r4-acl-basic-2000]rule permit source 192.168.3.0 0.0.0.255
[r4-acl-basic-2000]q
[r4]int s4/0/0
[r4-Serial4/0/0]nat outbound 2000
[r4-Serial4/0/0]q
[r4]ip route-static 0.0.0.0 0 24.1.1.2

3.3 R1-R2用HDLC封装

[r1]int s4/0/0
[r1-Serial4/0/0]ip add 12.1.1.1 24
[r1-Serial4/0/0]link-p
[r1-Serial4/0/0]link-protocol h
[r1-Serial4/0/0]link-protocol hdlc
Warning: The encapsulation protocol of the link will be changed. Continue? [Y/N]:y
[r2]int s4/0/0
[r2-Serial4/0/0]ip add 12.1.1.2 24
[r2-Serial4/0/0]link-p
[r2-Serial4/0/0]link-protocol h
[r2-Serial4/0/0]link-protocol hdlc
Warning: The encapsulation protocol of the link will be changed. Continue? [Y/N]:y

3.4 R2-R3用PPP封装，PAP认证，R2主认证

[r2]aaa
[r2-aaa]local-user wl password cipher 123456
Info: Add a new user.
[r2-aaa]local-user wl service-type ppp
[r2-aaa]q
[r2]int s3/0/1
[r2-Serial3/0/1]ppp authentication-mode pap
[r2-Serial3/0/1]q
[r3]int s4/0/0
[r3-Serial4/0/0]ppp pap local-user wl password cipher 123456
[r3-Serial4/0/0]q

3.5 R2-R4用PPP封装，CHAP认证，R2主认证

[r2]aaa
[r2-aaa]local-user zr password cipher 123456
[r2-aaa]local-user zr service-type ppp
[r2-aaa]int s3/0/0
[r2-Serial3/0/0]ppp authentication-mode chap
[r4]int s4/0/0
[r4-Serial4/0/0]ppp chap user zr
[r4-Serial4/0/0]ppp chap password cipher 123456
[r4-Serial4/0/0]q

3.6 R1 R3 R4建立MGRE环境，R1固定IP地址

[r1-Tunnel0/0/0]tunnel-protocol gre p2mp
[r1-Tunnel0/0/0]so
[r1-Tunnel0/0/0]source 12.1.1.1
Aug  4 2023 00:12:43-08:00 r1 %%01IFNET/4/LINK_STATE(l)[6]:The line protocol IP on the interface Tunnel0/0/0 has entered the UP state.
[r1-Tunnel0/0/0]nhrp entry multicast dynamic
[r1-Tunnel0/0/0]nhrp network-id 100
[r1-Tunnel0/0/0]q
[r3]int t0/0/0
[r3-Tunnel0/0/0]ip add 192.168.4.2 24
[r3-Tunnel0/0/0]tunnel-protocol gre p2mp
[r3-Tunnel0/0/0]source s4/0/0
[r3-Tunnel0/0/0]nhrp entry 192.168.4.1 12.1.1.1 register
[r3-Tunnel0/0/0]nhrp network-id 100
[r4]int s4/0/0
[r4-Serial4/0/0]ppp chap user zr
[r4-Serial4/0/0]ppp chap password cipher 123456
[r4-Serial4/0/0]q
[r4]int t0/0/0
[r4-Tunnel0/0/0]ip add 192.168.4.3 24
[r4-Tunnel0/0/0]tunnel-protocol gre p2mp
[r4-Tunnel0/0/0]source s4/0/0
[r4-Tunnel0/0/0]nhrp en
[r4-Tunnel0/0/0]nhrp entry 192.168.4.1 12.1.1.1 register
[r4-Tunnel0/0/0]nhrp network-id 100
[r4-Tunnel0/0/0]q
​

3.7 RIP协议通内网

[r1]rip
[r1-rip-1]vers
[r1-rip-1]version 2
[r1-rip-1]netw
[r1-rip-1]network 192.168.4.0
[r1-rip-1]network 192.168.1.0
[r1-rip-1]q
[r3-Tunnel0/0/0]rip
[r3-rip-1]vers
[r3-rip-1]version 2
[r3-rip-1]net
[r3-rip-1]network 192.168.4.0
[r3-rip-1]network 192.168.2.0
[r3-rip-1]q
[r4]rip
[r4-rip-1]vers
[r4-rip-1]version 2
[r4-rip-1]netw
[r4-rip-1]network 192.168.4.0
[r4-rip-1]network 192.168.3.0
[r4-rip-1]q

四，检测

ping通内网：

终端互相访问：

---
