这篇笔记详细介绍了SSM框架（Spring、SpringMVC、Mybatis）的注解配置整合过程，包括配置类的创建、依赖的添加、重要类及属性的解析，如WebMvcConfig、ServiceConfig、DaoConfig等。同时，讲解了如何在Dao层使用MybatisMapper，以及MybatisMapper通用代码生成器的配置和使用方法。

SSM框架整合注解配置方式笔记

文章目录

SSM框架整合注解配置方式笔记

一、整合所需依赖

<?xml version="1.0" encoding="UTF-8"?>
<project xmlns="http://maven.apache.org/POM/4.0.0" xmlns:xsi="http://www.w3.org/2001/XMLSchema-instance"
  xsi:schemaLocation="http://maven.apache.org/POM/4.0.0 http://maven.apache.org/xsd/maven-4.0.0.xsd">
	<modelVersion>4.0.0</modelVersion>

    <groupId>cn.zzcfirst</groupId>
    <artifactId>oasystem</artifactId>
    <version>1.0</version>
    <packaging>war</packaging>

    <name>oasystem Maven Webapp</name>
    <!-- FIXME change it to the project's website -->
    <url>http://www.example.com</url>

    <properties>
        <project.build.sourceEncoding>UTF-8</project.build.sourceEncoding>
        <maven.compiler.source>1.7</maven.compiler.source>
        <maven.compiler.target>1.7</maven.compiler.target>
        <spring.version>5.2.10.RELEASE</spring.version>
    </properties>

    <dependencies>
        <dependency>
            <groupId>org.springframework</groupId>
            <artifactId>spring-jdbc</artifactId>
            <version>${spring.version}</version>
        </dependency>

        <dependency>
            <groupId>org.springframework</groupId>
            <artifactId>spring-webmvc</artifactId>
            <version>${spring.version}</version>
        </dependency>

        <dependency>
            <groupId>org.springframework</groupId>
            <artifactId>spring-web</artifactId>
            <version>${spring.version}</version>
        </dependency>

        <dependency>
            <groupId>com.alibaba</groupId>
            <artifactId>druid</artifactId>
            <version>1.1.20</version>
        </dependency>

        <dependency>
            <groupId>org.springframework</groupId>
            <artifactId>spring-tx</artifactId>
            <version>${spring.version}</version>
        </dependency>

        <dependency>
            <groupId>org.mybatis</groupId>
            <artifactId>mybatis-spring</artifactId>
            <version>2.0.5</version>
        </dependency>

        <dependency>
            <groupId>org.mybatis</groupId>
            <artifactId>mybatis</artifactId>
            <version>3.5.3</version>
        </dependency>

        <dependency>
            <groupId>org.springframework</groupId>
            <artifactId>spring-context</artifactId>
            <version>${spring.version}</version>
        </dependency>

        <dependency>
            <groupId>mysql</groupId>
            <artifactId>mysql-connector-java</artifactId>
            <version>8.0.22</version>
        </dependency>

        <dependency>
            <groupId>tk.mybatis</groupId>
            <artifactId>mapper</artifactId>
            <version>4.1.5</version>
        </dependency>

        <dependency>
            <groupId>com.fasterxml.jackson.core</groupId>
            <artifactId>jackson-databind</artifactId>
            <version>2.10.0</version>
        </dependency>

        <dependency>
            <groupId>junit</groupId>
            <artifactId>junit</artifactId>
            <version>4.11</version>
            <scope>test</scope>
        </dependency>
    </dependencies>
    <build>
        <finalName>oasystem</finalName>
        <pluginManagement>
            <plugins>
                <plugin>
                    <artifactId>maven-clean-plugin</artifactId>
                    <version>3.1.0</version>
                </plugin>
                <plugin>
                    <artifactId>maven-resources-plugin</artifactId>
                    <version>3.0.2</version>
                </plugin>
                <plugin>
                    <artifactId>maven-surefire-plugin</artifactId>
                    <version>2.22.1</version>
                </plugin>
                <plugin>
                    <artifactId>maven-war-plugin</artifactId>
                    <version>3.2.2</version>
                </plugin>
                <plugin>
                    <artifactId>maven-install-plugin</artifactId>
                    <version>2.5.2</version>
                </plugin>
                <plugin>
                    <artifactId>maven-deploy-plugin</artifactId>
                    <version>2.8.2</version>
                </plugin>
                <plugin>
                    <artifactId>maven-compiler-plugin</artifactId>
                    <version>3.8.0</version>
                </plugin>
            </plugins>
        </pluginManagement>

        <plugins>
            <plugin>
                <artifactId>maven-compiler-plugin</artifactId>
                <version>3.8.0</version>
            </plugin>
            <plugin>
                <groupId>org.mybatis.generator</groupId>
                <artifactId>mybatis-generator-maven-plugin</artifactId>
                <version>1.3.6</version>
                <configuration>
                    <configurationFile>
                        ${basedir}/src/main/resources/generator/generatorConfig.xml
                    </configurationFile>
                    <overwrite>true</overwrite>
                    <verbose>true</verbose>
                </configuration>
                <dependencies>
                    <dependency>
                        <groupId>mysql</groupId>
                        <artifactId>mysql-connector-java</artifactId>
                        <version>8.0.22</version>
                    </dependency>
                    <dependency>
                        <groupId>tk.mybatis</groupId>
                        <artifactId>mapper</artifactId>
                        <version>4.1.5</version>
                    </dependency>
                </dependencies>
            </plugin>
        </plugins>

    </build>
</project>

二、SSM的整合(配置类方式)

1、创建配置类分别对应Controller层 Service层 Dao层

2、添加相应的注解

3、在配置类中配置相关类以及其属性

4、创建DispatcherServletInitializer初始化类

WebMvcConfig类

@Configuration
@ComponentScan(basePackages = {"cn.zzcfirst.controller"})
@EnableWebMvc
public class WebMvcConfig implements WebMvcConfigurer {

    //视图解析器类
    @Bean
    public InternalResourceViewResolver viewResolver() {
        InternalResourceViewResolver viewResolver
            = new InternalResourceViewResolver();
        viewResolver.setPrefix("/WEB-INF/view/");
        viewResolver.setSuffix(".html");
        return viewResolver;
    }

    /*也可以配置thymeleaf视图解析器需要以下依赖
	<dependency>
        <groupId>org.thymeleaf</groupId>
        <artifactId>thymeleaf-spring4</artifactId>
        <version>3.0.2.RELEASE</version>
    </dependency>
	*/
    @Bean
    public SpringResourceTemplateResolver templateResolver() {
        SpringResourceTemplateResolver templateResolver
            = new SpringResourceTemplateResolver();
        templateResolver.setPrefix("/WEB-INF/templates/");
        templateResolver.setSuffix(".html");
        templateResolver.setTemplateMode("HTML5");
        return templateResolver;
    }

    /**
     * 配置模板引擎
     */
    @Bean
    public TemplateEngine templateEngine(SpringResourceTemplateResolver templateResolver{
        SpringTemplateEngine templateEngine =
                new SpringTemplateEngine();
        templateEngine.setTemplateResolver(templateResolver);
        return templateEngine;
    }

    /**
     * 配置Thymeleaf模板视图解析器
     */
    @Bean
    public ViewResolver viewResolver(SpringTemplateEngine templateEngine){
        ThymeleafViewResolver viewResolver =
                new ThymeleafViewResolver();
        viewResolver.setTemplateEngine(templateEngine);
        return viewResolver;
    }

    /**
     * 配置静态资源处理
     */
    @Override
    public void configureDefaultServletHandling(DefaultServletHandlerConfigurer configurer) {
        configurer.enable();
    }


}

ServiceConfig类

@Configuration
@ComponentScan(basePackages={"cn.zzcfirst.service"})
@EnableTransactionManagement
//@EnableAspectJAutoProxy
@Import(DaoConfig.class)
public class ServiceConfig {
    @Bean
    public TransactionManager dataSourceTransactionManager(){
        DataSourceTransactionManager manager = new DataSourceTransactionManager();
        manager.setDataSource(DaoConfig.druidDataSource());
        return manager;
    }
}

DaoConfig类

@Configuration
@ComponentScan(basePackages={"cn.zzcfirst.mapper"})
@MapperScan(basePackages = {"cn.zzcfirst.mapper"})
public class DaoConfig {
    //配置DataSource
    @Bean
    public static DataSource druidDataSource(){
        DruidDataSource dataSource = new DruidDataSource();
        dataSource.setUsername("root");
        dataSource.setDriverClassName("com.mysql.cj.jdbc.Driver");
        dataSource.setUrl("jdbc:mysql://localhost:3306/db_oasys?serverTimezone=UTC&useUnicode=true&characterEncoding=utf8");
        dataSource.setPassword("552310");
        return dataSource;
    }
    //SqlSessionFactoryBean类
    @Bean
    public SqlSessionFactoryBean sqlSessionFactoryBean(){
        Resource[] resources = new Resource[]{
                new ClassPathResource("mapper/ApplyMapper.xml"),
                new ClassPathResource("mapper/DeptMapper.xml"),
                new ClassPathResource("mapper/EmpMapper.xml"),
                new ClassPathResource("mapper/AttendanceMapper.xml"),
        };
        SqlSessionFactoryBean sqlSessionFactoryBean = new SqlSessionFactoryBean();
        sqlSessionFactoryBean.setMapperLocations(resources);
        sqlSessionFactoryBean.setDataSource(druidDataSource());
        sqlSessionFactoryBean.setTypeAliasesPackage("cn.zzcfirst.domain.entity");
        return sqlSessionFactoryBean;
    }
    //配置接口包映射类
    @Bean
    public MapperScannerConfigurer mapperScannerConfigurer(){
        MapperScannerConfigurer mapperScannerConfigurer = new MapperScannerConfigurer();
        mapperScannerConfigurer.setSqlSessionFactoryBeanName("sqlSessionFactoryBean");
        mapperScannerConfigurer.setBasePackage("cn.zzcfirst.mapper");
        return mapperScannerConfigurer;
    }
}

DispatcherServletInitializer类

public class DispatcherServletInitializer extends AbstractAnnotationConfigDispatcherServletInitializer {
    @Override
    protected Class<?>[] getRootConfigClasses() {
        return new Class[]{ServiceConfig.class，DaoConfig.class};
}

    @Override
    protected Class<?>[] getServletConfigClasses() {
        return new Class[]{WebMvcConfig.class};
}

    @Override
    protected String[] getServletMappings() {
        return new String[]{"/"};
}

    @Override
    protected Filter[] getServletFilters() {
        return new Filter[]{new CharacterEncodingFilter("utf-8")};
    }
}

三、重要的类以及属性

Dao层

MapperScannerConfigurer(tk.mybatis.spring.mapper.MapperScannerConfigurer)

属性名	作用	配置格式
SqlSessionFactoryBeanName	SqlSessionFactory的引用bean id	SqlSessionFactoryBean类的引用id
basePackage	Mapper接口所在的包	传入接口所在包的包名即可

SqlSessionFactoryBean

属性名	作用	配置格式
configLocation	配置mybatis主配置文件的路径	classpath:配置文件所在路径
mapperLocations	配置mapper映射文件的路径	classpath:配置文件所在路径支持ant风格*.xml
typeAliasesPackage	设置包中类启用别名	传入包名即可
dataSource	设置数据源	传入数据源的引用

DataSource

属性名	作用	配置格式
username	数据库用户名
password	数据库密码
url	数据库url
driverClassName	数据库驱动类名

Service层

DataSourceTransactionManager

属性名	作用	配置格式
dataSource	数据源	使用ref引用数据源即可

Controller层

DispatcherServlet

属性名	作用	配置格式
contextConfigLocation	指定SpringMVC配置文件路径	classpath:*.xml ant风格路径配置
contextClass	指定加载SpringMVC配置文件的类	全类名

ContextLoaderListenner

属性名	作用	配置格式
contextConfigLocation	指定Spring配置文件路径	classpath:*.xml ant风格路径配置
contextClass	指定加载Spring配置文件的类	全类名

CharacterEncodingFilter

属性名	作用	配置格式
encoding	指定编码方式	utf-8

四、MybatisMapper的使用

1、添加依赖

<dependency>
    <groupId>tk.mybatis</groupId>
    <artifactId>mapper</artifactId>
    <version>4.1.5</version>
</dependency>

2、使用tk包下的MapperScannerConfigurer代替org包下的对应类

@Bean
public MapperScannerConfigurer mapperScannerConfigurer(){
        MapperScannerConfigurer mapperScannerConfigurer = new MapperScannerConfigurer();
        mapperScannerConfigurer.setSqlSessionFactoryBeanName("sqlSessionFactoryBean");
        mapperScannerConfigurer.setBasePackage("cn.zzcfirst.mapper");
        return mapperScannerConfigurer;
}

配置属性不变

五、MybatisMapper通用代码生成器的使用

通用Mapper文档网址

1、加依赖(Maven插件依赖)

在plugins标签下面添加

org.mybatis.generator和maven-compiler-plugin

<plugins>

      <plugin>
        <artifactId>maven-compiler-plugin</artifactId>
        <version>3.8.0</version>
      </plugin>

      <plugin>
        <groupId>org.mybatis.generator</groupId>
        <artifactId>mybatis-generator-maven-plugin</artifactId>
        <version>1.3.6</version>

        <configuration>
          <configurationFile>
            ${basedir}/src/main/resources/generator/generatorConfig.xml
          </configurationFile>
          <overwrite>true</overwrite>
          <verbose>true</verbose>
        </configuration>

        <dependencies>

          <dependency>
            <groupId>mysql</groupId>
            <artifactId>mysql-connector-java</artifactId>
            <version>8.0.22</version>
          </dependency>

          <dependency>
            <groupId>tk.mybatis</groupId>
            <artifactId>mapper</artifactId>
            <version>4.1.5</version>
          </dependency>

        </dependencies>

      </plugin>

</plugins>

2、在指定文件目录下创建插件配置文件

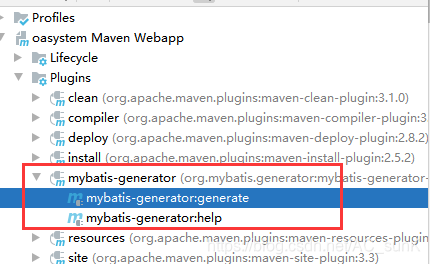

在这里插入图片描述
配置文件内容如下

<!DOCTYPE generatorConfiguration
        PUBLIC "-//mybatis.org//DTD MyBatis Generator Configuration 1.0//EN"
        "http://mybatis.org/dtd/mybatis-generator-config_1_0.dtd">

<generatorConfiguration>
<properties resource="generator/config.properties"/>

    <context id="Mysql" targetRuntime="MyBatis3Simple" defaultModelType="flat">
        <property name="beginningDelimiter" value="`"/>
        <property name="endingDelimiter" value="`"/>

        <plugin type="tk.mybatis.mapper.generator.MapperPlugin">
            <property name="mappers" value="tk.mybatis.mapper.common.Mapper"/>
            <property name="caseSensitive" value="true"/>
        </plugin>

        <jdbcConnection driverClass="${jdbc.driverClass}"
                        connectionURL="${jdbc.url}"
                        userId="${jdbc.user}"
                        password="${jdbc.password}">
        </jdbcConnection>

        <javaModelGenerator targetPackage="cn.zzcfirst.domain.entity"
                            targetProject="src/main/java"/>

        <sqlMapGenerator targetPackage="mapper"
                         targetProject="src/main/resources"/>

        <javaClientGenerator targetPackage="cn.zzcfirst.dao"
                             targetProject="src/main/java"
                             type="XMLMAPPER"/>

        <table tableName="${tableName}">
            <generatedKey column="id" sqlStatement="JDBC"/>
        </table>
    </context>
</generatorConfiguration>

相关属性说明

<properties resource="generator/config.properties"/>
指定了属性文件位置
<jdbcConnection driverClass="${jdbc.driverClass}"
                connectionURL="${jdbc.url}"
                userId="${jdbc.user}"
                password="${jdbc.password}">
</jdbcConnection>
配置JDBC连接属性
<javaModelGenerator targetPackage="cn.zzcfirst.domain.entity"
                    targetProject="src/main/java"/>
指定实体类的位置(所在包)
<sqlMapGenerator targetPackage="mapper"
                 targetProject="src/main/resources"/>
指定sql映射文件生成位置
<javaClientGenerator targetPackage="cn.zzcfirst.dao"
                     targetProject="src/main/java"
                     type="XMLMAPPER"/>
指定mapper接口生成的位置
<table tableName="${tableName}">
    <generatedKey column="id" sqlStatement="JDBC"/>
</table>
指定对应的表名

对应属性文件

jdbc.driverClass=com.mysql.cj.jdbc.Driver
jdbc.url=jdbc:mysql://localhost:3306/db_oasys?serverTimezone=UTC&useUnicode=true&characterEncoding=utf8
jdbc.user=root
jdbc.password=1111111

tableName=Emp

3、启动Maven插件即可
在这里插入图片描述
