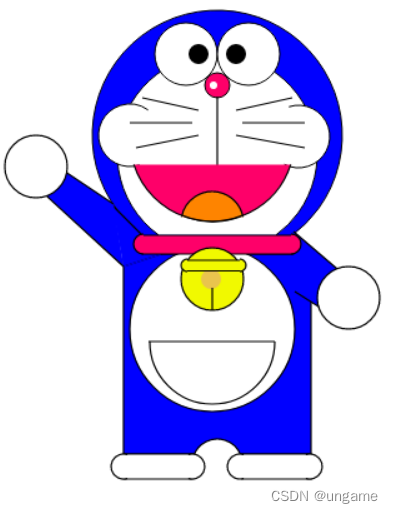

学了点canvas就画了个多啦A梦，分享一下，一起进步

希望我们都能像小叮当一样天天开心，想要写的东西像小叮当在口袋里拿出宝贝一样轻轻松松

封装了圆形，线形，折线形，矩形函数，直接套然后就是调数据用的时间长，画出来了就感觉很好

watermark,type_d3F5LXplbmhlaQ,shadow_50,text_Q1NETiBAdW5nYW1l,size_15,color_FFFFFF,t_70,g_se,x_16

<!DOCTYPE html>
<html lang="en">
<head>
    <meta charset="UTF-8">
    <meta http-equiv="X-UA-Compatible" content="IE=edge">
    <meta name="viewport" content="width=device-width, initial-scale=1.0">
    <title>canvas</title>
</head>
<body>
    <canvas id="imocd">你的浏览器不支持canvas，请升级你的浏览器</canvas>

    <script>
        let canvas=document.getElementById('imocd');
        canvas.width=800
        canvas.height=800
        let ctx=canvas.getContext('2d');

        face(225,225,100,"blue")//脸外层
        face(225,240,80,"#fff")//脸内层
        eye(200,160,25,210,8,'#000','#fff')//左眼
        eye(250,160,25,240,8,'#000','#fff')//右眼
        eye(225,185,10,222,3,'#fff','#fe0069')//鼻子
        pi(155,225,25,0.4,1.7,'#fff')
        pi(290,226,25,1.4,0.65,'#fff')

        lines(225,194,225,249)

        lines(240,205,285,195)//右三横
        lines(245,215,295,215)
        lines(240,225,295,235)

        lines(205,215,155,215)//左三横
        lines(210,205,165,195)
        lines(210,225,160,235)

        pi(221,228,66,0.1,0.9,'#fe0069')//嘴
        pi(221,295,25,1.06,1.94,'#fe8400')//嘴
        pi(221,227.65,66,0.38,0.62,'#fe8400')//嘴

        rects(150,320,150,160,"blue")//身体
        pi(225,488,20,1.1,1.9,'#fff')

       rects(150,480,55,20,'#fff')//左脚
       pi(150,490,10,0.4,1.6,"#fff")
       pi(205,490,10,1.4,0.6,"#fff")
       rects(245,480,55,20,'#fff')//右脚
       pi(243,490,10,0.4,1.6,"#fff")
       pi(299,490,10,1.4,0.6,"#fff")

       linez(141,281,180,320,150,330)//为了隐藏不必要的颜色
       lines(150,330,180,320,'blue')

        pi(221,380,66,0,2,'#fff')//口袋
        pi(221,390,50,0,1,'#fff')//口袋
        lines(170,390,271,390)

        linez(286,302,500,485,287,350)
        linez(340,300,500,485,310,400,'#fff','#fff')
        pi(330,355,25,0,2,'#fff')//右手

        rects(165,305,120,15,'#fe0069')//钉铛绳
        pi(166,312,8,0.5,1.5,'#fe0069')//钉铛绳
        pi(284,312,8,1.5,0.5,'#fe0069')//钉铛绳
        eye(221,340,25,220,8,'#e9c44e','#f1f900')//钉铛
        rects(200,325,44,8.5,'#f1f900')//钉铛
        pi(201,329,5,0.5,1.5,'#f1f900')//钉铛
        pi(243,329,5,1.5,0.5,'#f1f900')//钉铛
        lines(221,347,221,365)

        linez(142,280,-30,165,150,330)
        linez(100,200,-30,165,88,275,'#fff','#fff')
        pi(80,250,25,0,2,'#fff')//左手


        //眼，鼻子函数
        function eye(w,h,r,e,r1,clo1,clo2){
            ctx.beginPath()
            ctx.arc(w,h,r,0,2*Math.PI)
            ctx.strokeStyle='#000'
            ctx.fillStyle=clo2
            ctx.fill()
            ctx.stroke()
            //眼球
            ctx.beginPath()
            ctx.arc(e,h,r1,0,2*Math.PI)
            ctx.fillStyle=clo1
            ctx.fill();
        }
        //脸函数
        function face(w,h,r,clo){
         ctx.beginPath()
         ctx.arc(w,h,r,0.7*Math.PI,0.3*Math.PI)
         ctx.strokeStyle='#000'
         ctx.fillStyle=clo
         ctx.fill()
         ctx.stroke()
        }
        //半圆函数
        function pi(w,h,r,s,e,clo){
            ctx.beginPath()
            ctx.arc(w,h,r,s*Math.PI,e*Math.PI)
            ctx.strokeStyle='#000'
            ctx.fillStyle=clo
            ctx.fill()
            ctx.stroke()
        }
        //线性函数
        function lines(w,h,ew,eh,col='#000'){
            ctx.beginPath()
            ctx.moveTo(w,h)
            ctx.lineTo(ew,eh)
            ctx.lineWidth=1.2
            ctx.strokeStyle=col
            ctx.stroke()
        }

        //折线函数
        function linez(w,h,ew,eh,zw,zh,col='blue',col1='#000'){
            ctx.beginPath()
            ctx.moveTo(w,h)
            ctx.lineTo(ew,eh)
            ctx.lineTo(zw,zh)
            // ctx.closePath()
            ctx.strokeStyle=col1
            ctx.fillStyle=col
            ctx.fill()
            ctx.stroke()
        }

        //矩形函数
        function rects(w,h,ew,eh,col){
            ctx.beginPath()
            ctx.rect(w,h,ew,eh)
            ctx.strokeStyle='#000'
            ctx.fillStyle=col
            ctx.fill()
            ctx.stroke()
        }



    </script>
</body>
</html>
