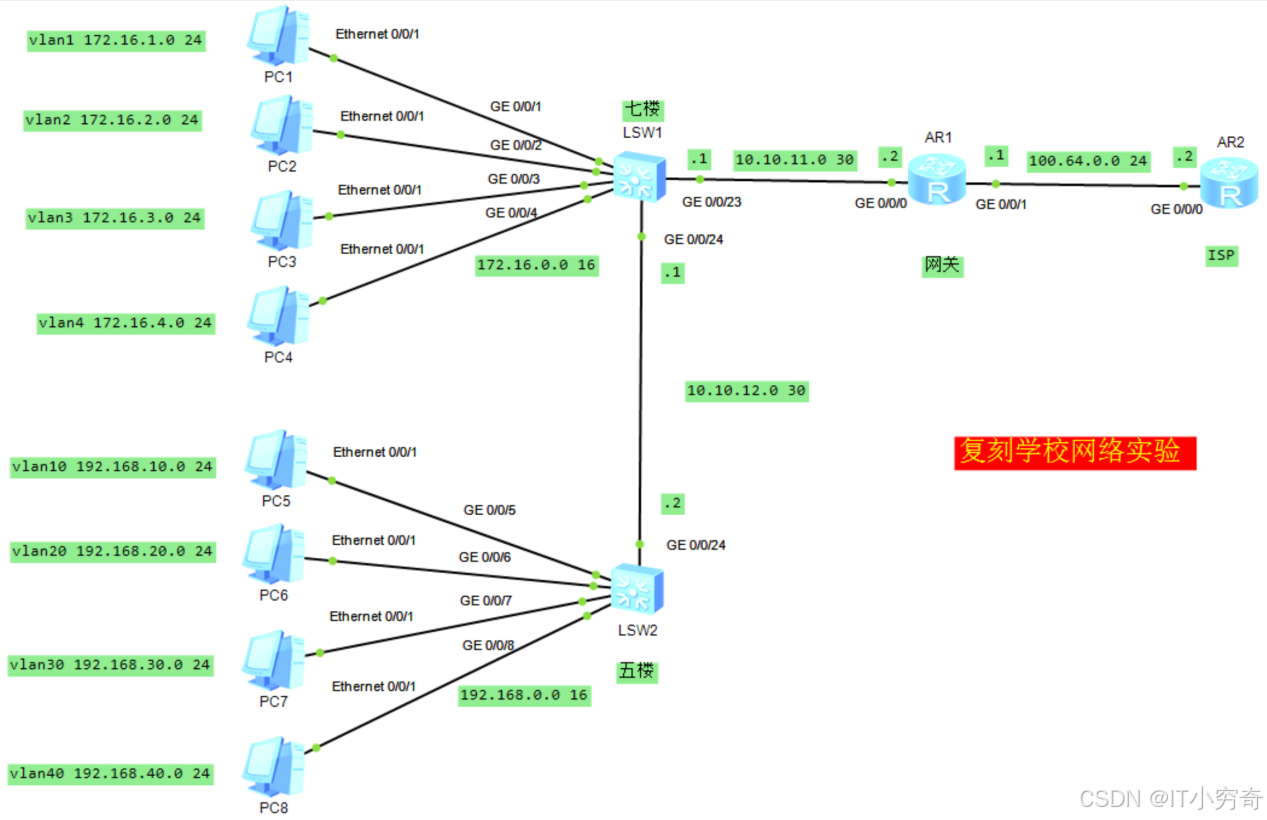

复刻学校网络实验

SW1

<Huawei>sys

[Huawei]sysname SW1

[SW1]vlan batch 1 to 4

[SW1]int g 0/0/1

[SW1-GigabitEthernet0/0/1]port link-type access

[SW1-GigabitEthernet0/0/1]port default vlan 1

[SW1-GigabitEthernet0/0/1]int g 0/0/2

[SW1-GigabitEthernet0/0/2]port link-type access

[SW1-GigabitEthernet0/0/2]port  default vlan 2

[SW1-GigabitEthernet0/0/2]int g 0/0/3

[SW1-GigabitEthernet0/0/3]port link-type access

[SW1-GigabitEthernet0/0/3]port default  vlan 3

[SW1-GigabitEthernet0/0/3]int g 0/0/4

[SW1-GigabitEthernet0/0/4]port link-type access

[SW1-GigabitEthernet0/0/4]port default vlan 4

[SW1-GigabitEthernet0/0/4]q

[SW1]int vlanif 1

[SW1-Vlanif1]ip address 172.16.1.254 24

[SW1-Vlanif1]int vlanif 2

[SW1-Vlanif2]ip address 172.16.2.254 24

[SW1-Vlanif2]int vlanif 3

[SW1-Vlanif3]ip address 172.16.3.254 24

[SW1-Vlanif3]int vlanif 4

[SW1-Vlanif4]ip address 172.16.4.254 24

[SW1]vlan 99

[SW1-vlan99]int g 0/0/23

[SW1-GigabitEthernet0/0/23]port link-type access

[SW1-GigabitEthernet0/0/23]port default vlan 99

[SW1-GigabitEthernet0/0/23]q

[SW1]vlan 100

[SW1-vlan100]int g 0/0/24

[SW1-GigabitEthernet0/0/24]port link-type access

[SW1-GigabitEthernet0/0/24]port default vlan 100

[SW1-GigabitEthernet0/0/24]q

[SW1]int vlanif 99

[SW1-Vlanif99]ip address 10.10.11.1 30

[SW1-Vlanif99]q

[SW1]int vlanif 100

[SW1-Vlanif100]ip address 10.10.12.1 30

[SW1]ip route-static 100.64.0.0 24 10.10.11.2

[SW1]ip route-static 192.168.0.0 16 10.10.12.2

SW2

<Huawei>sys

[Huawei]sysname SW2

[SW2]vlan batch 10 20 30 40

[SW2]int g 0/0/5

[SW2-GigabitEthernet0/0/5]port link-type access

[SW2-GigabitEthernet0/0/5]port default vlan 10

[SW2-GigabitEthernet0/0/5]int g 0/0/6

[SW2-GigabitEthernet0/0/6]port link-type access

[SW2-GigabitEthernet0/0/6]port default vlam

[SW2-GigabitEthernet0/0/6]port default vlan 20

[SW2-GigabitEthernet0/0/6]int g 0/0/7

[SW2-GigabitEthernet0/0/7]port link-type access

[SW2-GigabitEthernet0/0/7]port default vlan 30

[SW2-GigabitEthernet0/0/7]int g 0/0/8

[SW2-GigabitEthernet0/0/8]port link-type access

[SW2-GigabitEthernet0/0/8]port default vlan 40

[SW2-GigabitEthernet0/0/8]q

[SW2]int vlanif 10

[SW2-Vlanif10]ip address 192.168.10.254 24

[SW2-Vlanif10]int vlanif 20

[SW2-Vlanif20]ip address 192.168.20.254 24

[SW2-Vlanif20]int vlanif 30

[SW2-Vlanif30]ip address 192.168.30.254 24

[SW2-Vlanif30]int vlanif 40

[SW2-Vlanif40]ip address 192.168.40.254 24

[SW2-Vlanif40]q

[SW2]vlan 100

[SW2-vlan100]int g 0/0/24

[SW2-GigabitEthernet0/0/24]port link-type access

[SW2-GigabitEthernet0/0/24]port default vlan 100

[SW2-GigabitEthernet0/0/24]q

[SW2]interface vlanif 100

[SW2-Vlanif100]ip address 10.10.12.2 30

[SW2-Vlanif100]q

[SW2]ip route-static 172.16.0.0 16 10.10.12.1

[SW2]ip route-static 10.10.11.0 30 10.10.12.1

[SW2]ip route-static 100.64.0.0 24 10.10.12.1

RT1

<Huawei>sys

[Huawei]sysname RT1

[RT1]int g 0/0/0

[RT1-GigabitEthernet0/0/0]ip address 10.10.11.2 30

[RT1-GigabitEthernet0/0/0]int g 0/0/1

[RT1-GigabitEthernet0/0/1]ip address 100.64.0.1 24

[RT1-GigabitEthernet0/0/1]q

[RT1]ip route-static 172.16.0.0 16 10.10.11.1

[RT1]ip route-static 10.10.12.0 30 10.10.11.1

[RT1]ip route-static 192.168.0.0 16 10.10.11.1

RT2

<Huawei>sys

[Huawei]sysname RT2

[RT2]int g 0/0/0

[RT2-GigabitEthernet0/0/0]ip address 100.64.0.2 24

[RT2-GigabitEthernet0/0/0]q

[RT2]ip route-static 10.10.11.0 30 100.64.0.1

[RT2]ip route-static 172.16.0.0 16 100.64.0.1

[RT2]ip route-static 10.10.12.0 30 100.64.0.1

[RT2]ip route-static 192.168.0.0 16 100.64.0.1

【起终点指定跳数可以用ip rout-static 0.0.0.0 0 接入口】
