接下来看EventBus的构造函数，源码如下：

EventBus(EventBusBuilder builder) {

logger = builder.getLogger();

subscriptionsByEventType = new HashMap<>();

typesBySubscriber = new HashMap<>();

stickyEvents = new ConcurrentHashMap<>();

mainThreadSupport = builder.getMainThreadSupport();

mainThreadPoster = mainThreadSupport != null ? mainThreadSupport.createPoster(this) : null;

backgroundPoster = new BackgroundPoster(this);

asyncPoster = new AsyncPoster(this);

indexCount = builder.subscriberInfoIndexes != null ? builder.subscriberInfoIndexes.size() : 0;

subscriberMethodFinder = new SubscriberMethodFinder(builder.subscriberInfoIndexes,

builder.strictMethodVerification, builder.ignoreGeneratedIndex);

logSubscriberExceptions = builder.logSubscriberExceptions;

logNoSubscriberMessages = builder.logNoSubscriberMessages;

sendSubscriberExceptionEvent = builder.sendSubscriberExceptionEvent;

sendNoSubscriberEvent = builder.sendNoSubscriberEvent;

throwSubscriberException = builder.throwSubscriberException;

eventInheritance = builder.eventInheritance;

executorService = builder.executorService;

}

可以看到，在EventBus的构造函数中，初始化了一大堆变量，这边主要关注前面两个。

subscriptionsByEventType = new HashMap<>();：key:事件类型（如：MyEvent ），value:新的订阅对象的集合，包括订阅者和订阅者包含的方法。具体赋值逻辑在后面会讲，这边先了解即可。

typesBySubscriber = new HashMap<>();：key:事件的订阅者（MainActivity ），value：事件类型的集合。订阅者跟事件类型是一对多的关系，所以一个界面可以支持多个事件类型。

2）注册

/**

Registers the given subscriber to receive events. Subscribers must call {@link #unregister(Object)} once they
are no longer interested in receiving events.
Subscribers have event handling methods that must be annotated by {@link Subscribe}.
The {@link Subscribe} annotation also allows configuration like {@link
ThreadMode} and priority.

public void register(Object subscriber) {

//1.拿到订阅对象的类型；

Class<?> subscriberClass = subscriber.getClass();

//2.通过findSubscriberMethods方法获取该订阅者中的所有订阅方法，因为可能包含多个订阅方法，所以返回集合。

List subscriberMethods = subscriberMethodFinder.findSubscriberMethods(subscriberClass);

synchronized (this) {

for (SubscriberMethod subscriberMethod : subscriberMethods) {

//3.通过subscribe方法为每个订阅方法进行订阅。

subscribe(subscriber, subscriberMethod);

}

如何获取该订阅者中的所有订阅方法，这边主要看第二件事情的处理过程，及findSubscriberMethods方法的源码

List findSubscriberMethods(Class<?> subscriberClass) {

//先拿订阅对象在本地缓存中查找，提高性能。

List subscriberMethods = METHOD_CACHE.get(subscriberClass);

if (subscriberMethods != null) {

return subscriberMethods;

}

//默认情况下ignoreGeneratedIndex值是false的

if (ignoreGeneratedIndex) {

//使用反射方法拿到订阅者中的订阅方法

subscriberMethods = findUsingReflection(subscriberClass);

} else {

//使用编译期间生成的SubscriberInfo

subscriberMethods = findUsingInfo(subscriberClass);

}

//如果没有订阅方法，则抛出异常

if (subscriberMethods.isEmpty()) {

throw new EventBusException("Subscriber " + subscriberClass

" and its super classes have no public methods with the @Subscribe annotation");

} else {

//本地存储订阅方法，方便下次获取，提高了性能

METHOD_CACHE.put(subscriberClass, subscriberMethods);

return subscriberMethods;

}

可以看到上面方法做了三件事：

1.先拿订阅对象在本地缓存中查找订阅方法

2.如果本地获取不到，则根据ignoreGeneratedIndex的值决定获取订阅方法的方式

3.本地保存订阅方法。

可以看到获取订阅的关键方法为：findUsingInfo()，那么赶紧看下他的源码，如下：

private List findUsingInfo(Class<?> subscriberClass) {

FindState findState = prepareFindState();

findState.initForSubscriber(subscriberClass);

while (findState.clazz != null) {

// 获取订阅者信息，没有配置MyEventBusIndex返回null

findState.subscriberInfo = getSubscriberInfo(findState);

if (findState.subscriberInfo != null) {

SubscriberMethod[] array = findState.subscriberInfo.getSubscriberMethods();

for (SubscriberMethod subscriberMethod : array) {

if (findState.checkAdd(subscriberMethod.method, subscriberMethod.eventType)) {

findState.subscriberMethods.add(subscriberMethod);

}

} else {

// 通过反射来查找订阅方法，所以为了提高性能，我们还是要用索引的形式使用EventBus

findUsingReflectionInSingleClass(findState);

}

findState.moveToSuperclass();

}

return getMethodsAndRelease(findState);

}

获取到订阅方法后，我们看真正的注册方法subscribe(subscriber, subscriberMethod);

// Must be called in synchronized block

private void subscribe(Object subscriber, SubscriberMethod subscriberMethod) {

//获取到事件类型（如：MyEvent ）

Class<?> eventType = subscriberMethod.eventType;

//把订阅者和订阅者方法重新封装成新的对象

Subscription newSubscription = new Subscription(subscriber, subscriberMethod);

//事件类型为key，新的订阅者对象列表为value，存储进subscriptionsByEventType

//该集合很重要，当post消息的时候，就是从该集合中查找订阅者对象列表

CopyOnWriteArrayList subscriptions = subscriptionsByEventType.get(eventType);

if (subscriptions == null) {

//如果订阅者对象列表为空，则初始化出来，并加到subscriptionsByEventType中

subscriptions = new CopyOnWriteArrayList<>();

subscriptionsByEventType.put(eventType, subscriptions);

} else {

if (subscriptions.contains(newSubscription)) {

throw new EventBusException("Subscriber " + subscriber.getClass() + " already registered to event "

eventType);

}

int size = subscriptions.size();

for (int i = 0; i <= size; i++) {

// 根据订阅方法的优先级，添加到订阅列表

if (i == size || subscriberMethod.priority > subscriptions.get(i).subscriberMethod.priority) {

subscriptions.add(i, newSubscription);

break;

}

//订阅者为key，事件类型列表为value，存储进typesBySubscriber

List<Class<?>> subscribedEvents = typesBySubscriber.get(subscriber);

if (subscribedEvents == null) {

subscribedEvents = new ArrayList<>();

typesBySubscriber.put(subscriber, subscribedEvents);

}

subscribedEvents.add(eventType);

if (subscriberMethod.sticky) {

if (eventInheritance) {

// Existing sticky events of all subclasses of eventType have to be considered.

// Note: Iterating over all events may be inefficient with lots of sticky events,

// thus data structure should be changed to allow a more efficient lookup

// (e.g. an additional map storing sub classes of super classes: Class -> List).

Set<Map.Entry<Class<?>, Object>> entries = stickyEvents.entrySet();

for (Map.Entry<Class<?>, Object> entry : entries) {

Class<?> candidateEventType = entry.getKey();

if (eventType.isAssignableFrom(candidateEventType)) {

Object stickyEvent = entry.getValue();

checkPostStickyEventToSubscription(newSubscription, stickyEvent);

}

} else {

Object stickyEvent = stickyEvents.get(eventType);

checkPostStickyEventToSubscription(newSubscription, stickyEvent);

}

可以看到上面方法做了两件事：

1.根据订阅方法的优先级，添加到订阅列表，事件类型为key，订阅列表为value，存储进subscriptionsByEventType

2.订阅者为key，事件类型列表为value，存储进typesBySubscriber

3）发送消息

/** Posts the given event to the event bus. */

public void post(Object event) {

PostingThreadState postingState = currentPostingThreadState.get();

List eventQueue = postingState.eventQueue;

//将当前要发送的事件加入到队列中

eventQueue.add(event);

if (!postingState.isPosting) {

postingState.isMainThread = isMainThread();

postingState.isPosting = true;

if (postingState.canceled) {

throw new EventBusException(“Internal error. Abort state was not reset”);

}

try {

//循环从列表中拿event

while (!eventQueue.isEmpty()) {

postSingleEvent(eventQueue.remove(0), postingState);

}

} finally {

postingState.isPosting = false;

postingState.isMainThread = false;

}

循环从eventQueue取event，调用postSingleEvent方法：

private void postSingleEvent(Object event, PostingThreadState postingState) throws Error {

Class<?> eventClass = event.getClass();

boolean subscriptionFound = false;

if (eventInheritance) {

//查找event事件和event子类事件

List<Class<?>> eventTypes = lookupAllEventTypes(eventClass);

int countTypes = eventTypes.size();

for (int h = 0; h < countTypes; h++) {

Class<?> clazz = eventTypes.get(h);

subscriptionFound |= postSingleEventForEventType(event, postingState, clazz);

}

} else {

subscriptionFound = postSingleEventForEventType(event, postingState, eventClass);

}

if (!subscriptionFound) {

if (logNoSubscriberMessages) {

logger.log(Level.FINE, "No subscribers registered for event " + eventClass);

}

if (sendNoSubscriberEvent && eventClass != NoSubscriberEvent.class &&

eventClass != SubscriberExceptionEvent.class) {

post(new NoSubscriberEvent(this, event));

}

遍历每个event事件或者子类，会再调用postSingleEventForEventType：

private boolean postSingleEventForEventType(Object event, PostingThreadState postingState, Class<?> eventClass) {

CopyOnWriteArrayList subscriptions;

synchronized (this) {

//subscriptionsByEventType有没有很眼熟，在subscribe方法中，事件类型为key，新的订阅者对象列表为value，存储进subscriptionsByEventType

//获取到新的订阅对象列表

subscriptions = subscriptionsByEventType.get(eventClass);

}

if (subscriptions != null && !subscriptions.isEmpty()) {

//循环订阅对象列表

for (Subscription subscription : subscriptions) {

postingState.event = event;

postingState.subscription = subscription;

boolean aborted = false;

try {

postToSubscription(subscription, event, postingState.isMainThread);

aborted = postingState.canceled;

} finally {

postingState.event = null;

postingState.subscription = null;

postingState.canceled = false;

}

if (aborted) {

break;

}

return true;

}

return false;

}

可以看到，该方法其实就是从subscriptionsByEventType集合中，查找该event对应的订阅者对象列表，然后遍历订阅者对象，调用postToSubscription方法。

private void postToSubscription(Subscription subscription, Object event, boolean isMainThread) {

switch (subscription.subscriberMethod.threadMode) {

case POSTING:

invokeSubscriber(subscription, event);

break;

case MAIN:

if (isMainThread) {

//通过反射，调用订阅者的方法

invokeSubscriber(subscription, event);

} else {

mainThreadPoster.enqueue(subscription, event);

}

break;

case MAIN_ORDERED:

if (mainThreadPoster != null) {

mainThreadPoster.enqueue(subscription, event);

} else {

// temporary: technically not correct as poster not decoupled from subscriber

invokeSubscriber(subscription, event);

}

break;

case BACKGROUND:

if (isMainThread) {

backgroundPoster.enqueue(subscription, event);

} else {

invokeSubscriber(subscription, event);

}

break;

case ASYNC:

asyncPoster.enqueue(subscription, event);

break;

default:

throw new IllegalStateException("Unknown thread mode: " + subscription.subscriberMethod.threadMode);

}

最后通过反射调用订阅者的方法。

通过上面的分析可以看到发送消息其实是三重循环：

1.循环从eventQueue取event，调用postSingleEvent方法

2.遍历每个event事件或者子类，调用postSingleEventForEventType方法

3.遍历订阅者对象，调用postToSubscription方法。

这种方式的算法复杂度还是很高的，event事件不做继承可以提高发送流程的性能。

4）解绑

/** Unregisters the given subscriber from all event classes. */

public synchronized void unregister(Object subscriber) {

List<Class<?>> subscribedTypes = typesBySubscriber.get(subscriber);

if (subscribedTypes != null) {

for (Class<?> eventType : subscribedTypes) {

unsubscribeByEventType(subscriber, eventType);

}

typesBySubscriber.remove(subscriber);

} else {

学习宝典

对我们开发者来说，一定要打好基础，随时准备战斗。不论寒冬是否到来，都要把自己的技术做精做深。虽然目前移动端的招聘量确实变少了，但中高端的职位还是很多的，这说明行业只是变得成熟规范起来了。竞争越激烈，产品质量与留存就变得更加重要，我们进入了技术赋能业务的时代。

不论遇到什么困难，都不应该成为我们放弃的理由！

很多人在刚接触这个行业的时候或者是在遇到瓶颈期的时候，总会遇到一些问题，比如学了一段时间感觉没有方向感，不知道该从那里入手去学习，对此我针对Android程序员，我这边给大家整理了一套学习宝典！包括不限于高级UI、性能优化、移动架构师、NDK、混合式开发（ReactNative+Weex）微信小程序、Flutter等全方面的Android进阶实践技术；希望能帮助到大家，也节省大家在网上搜索资料的时间来学习，也可以分享动态给身边好友一起学习！

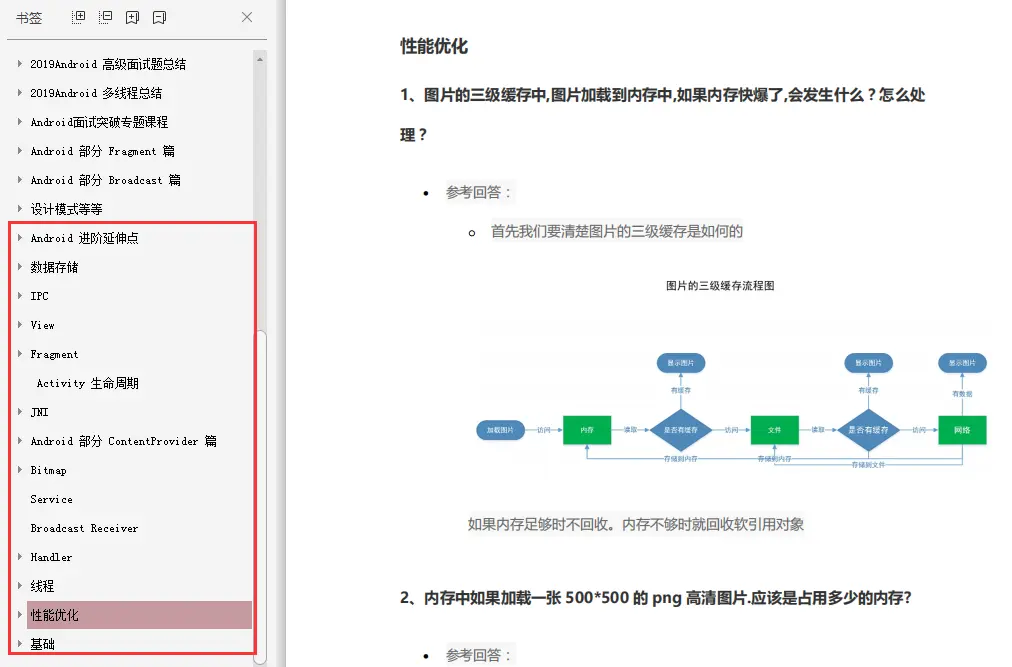

【Android核心高级技术PDF文档，BAT大厂面试真题解析】
