环境监控系统软件框架

一、项目要求

检测农场环境指标：

1.温度

2.湿度

3.氧气浓度

4.本地实时显示

5.根据环境指标动态调控

6.远程调控--网络发送

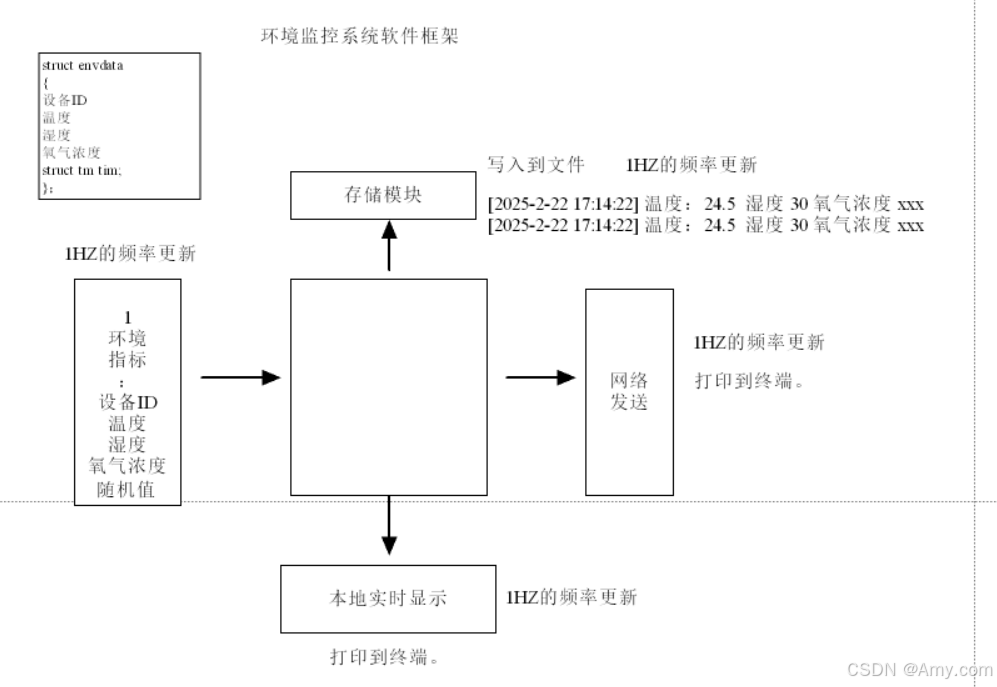

二、图例

三、代码

.h

#ifndef __TYPE_H__
#define __TYPE_H__

#include <time.h>
#include <pthread.h>

typedef struct env
{
	int devid;
	float tmp;
	float hum;
	float oxy;
	struct tm tim;
	pthread_mutex_t mutex;
}Env_data_t;


#endif

#ifndef __TASK_H__
#define __TASK_H__

#include <pthread.h>

typedef void* (*Thread_fun_t)(void *);

typedef struct task
{
	pthread_t tid;
	Thread_fun_t pfun;
}Task_t;

extern int create_pthread_tasks(Task_t tasks[], int len);
extern void destroy_pthread_tasks(Task_t tasks[], int len);
#endif

.c

#include "tasks.h"
#include <stdio.h>


int create_pthread_tasks(Task_t tasks[], int len)
{
	for (int i = 0; i < len; i++)
	{
		int ret = pthread_create(&(tasks[i].tid), NULL, tasks[i].pfun, NULL);
		if (ret != 0)
		{
			printf("fail pthread_create\n");
			return -1;
		}
	}

	return 0;
}


void destroy_pthread_tasks(Task_t tasks[], int len)
{
	for (int i = 0; i < len; i++)
	{
		pthread_join(tasks[i].tid, NULL);
	}
}

main.c

#include <stdio.h>
#include <pthread.h>
#include <unistd.h>
#include <sys/stat.h>
#include <sys/types.h>
#include "tasks.h"
#include "type.h"

Env_data_t data_g;

void *get_data(void *arg)
{
	time_t sec;
	int cnt = 0;

	while (1)
	{
		pthread_mutex_lock(&data_g.mutex);
		sec = time(NULL);
		struct tm *ptm = localtime(&sec);
		data_g.tim = *ptm;
		data_g.devid = cnt++;
		data_g.tmp = 26.5;
		data_g.hum = 20;
		data_g.oxy = 25;
		pthread_mutex_unlock(&data_g.mutex);

		sleep(1);
	}

	return NULL;
}

void *show_data(void *arg)
{
	while (1)
	{
		sleep(1);
		pthread_mutex_lock(&data_g.mutex);
		printf("[%4d-%2d-%2d %2d:%2d:%2d][%d][show] 温度: %f, 湿度: %f, 氧气浓度: %f\n",
				data_g.tim.tm_year+1900, data_g.tim.tm_mon+1, data_g.tim.tm_mday,
				data_g.tim.tm_hour, data_g.tim.tm_min, data_g.tim.tm_sec,
				data_g.devid, data_g.tmp, data_g.hum, data_g.oxy);
		pthread_mutex_unlock(&data_g.mutex);

	}

	return NULL;
}

void *storage_data(void *arg)
{
	mkdir("../data", 0777);
	FILE *fp = fopen("../data/data.txt", "a");
	if (NULL == fp)
	{
		perror("fail fopen data.txt\n");
		return NULL;
	}

	while (1)
	{
		sleep(1);
		pthread_mutex_lock(&data_g.mutex);
		fprintf(fp, "[%4d-%2d-%2d %2d:%2d:%2d][%d] 温度: %f, 湿度: %f, 氧气浓度: %f\n",
				data_g.tim.tm_year+1900, data_g.tim.tm_mon+1, data_g.tim.tm_mday,
				data_g.tim.tm_hour, data_g.tim.tm_min, data_g.tim.tm_sec,
				data_g.devid, data_g.tmp, data_g.hum, data_g.oxy);
		fflush(fp);
		pthread_mutex_unlock(&data_g.mutex);


	}

	fclose(fp);

	return NULL;
}
void *send_data(void *arg)
{
	while (1)
	{
		sleep(1);

		pthread_mutex_lock(&data_g.mutex);
		printf("[%4d-%2d-%2d %2d:%2d:%2d][%d][send] 温度: %f, 湿度: %f, 氧气浓度: %f\n",
				data_g.tim.tm_year+1900, data_g.tim.tm_mon+1, data_g.tim.tm_mday,
				data_g.tim.tm_hour, data_g.tim.tm_min, data_g.tim.tm_sec,
				data_g.devid, data_g.tmp, data_g.hum, data_g.oxy);
		pthread_mutex_unlock(&data_g.mutex);


	}
}



int main(int argc, const char *argv[])
{

	Task_t 	tasks[] = {
		{
			.pfun = get_data,  //对结构体中的部分成员进行初始化
		},
		{
			.pfun = show_data,
		},
		{
			.pfun = storage_data,
		},
		{
			.pfun = send_data,
		},

	};

	pthread_mutex_init(&(data_g.mutex), NULL);

	create_pthread_tasks(tasks, sizeof(tasks) / sizeof(tasks[0]));

	destroy_pthread_tasks(tasks, sizeof(tasks) / sizeof(tasks[0]));

	pthread_mutex_destroy(&(data_g.mutex));

	return 0;
}

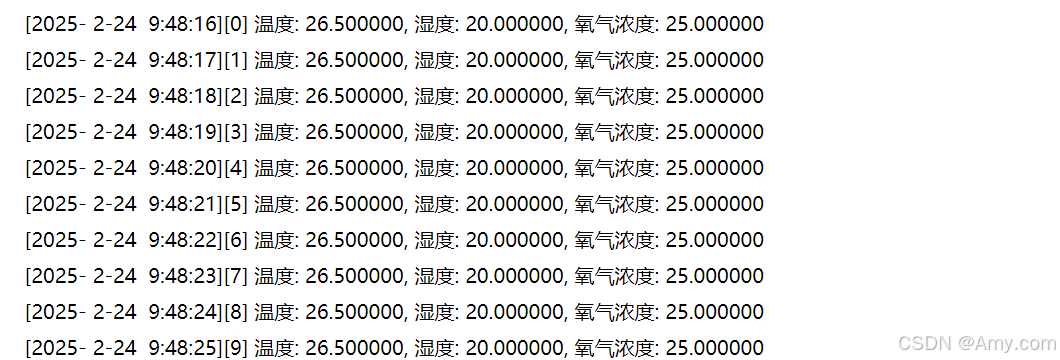

四、测试效果
