OSPF综合实验-HCIP

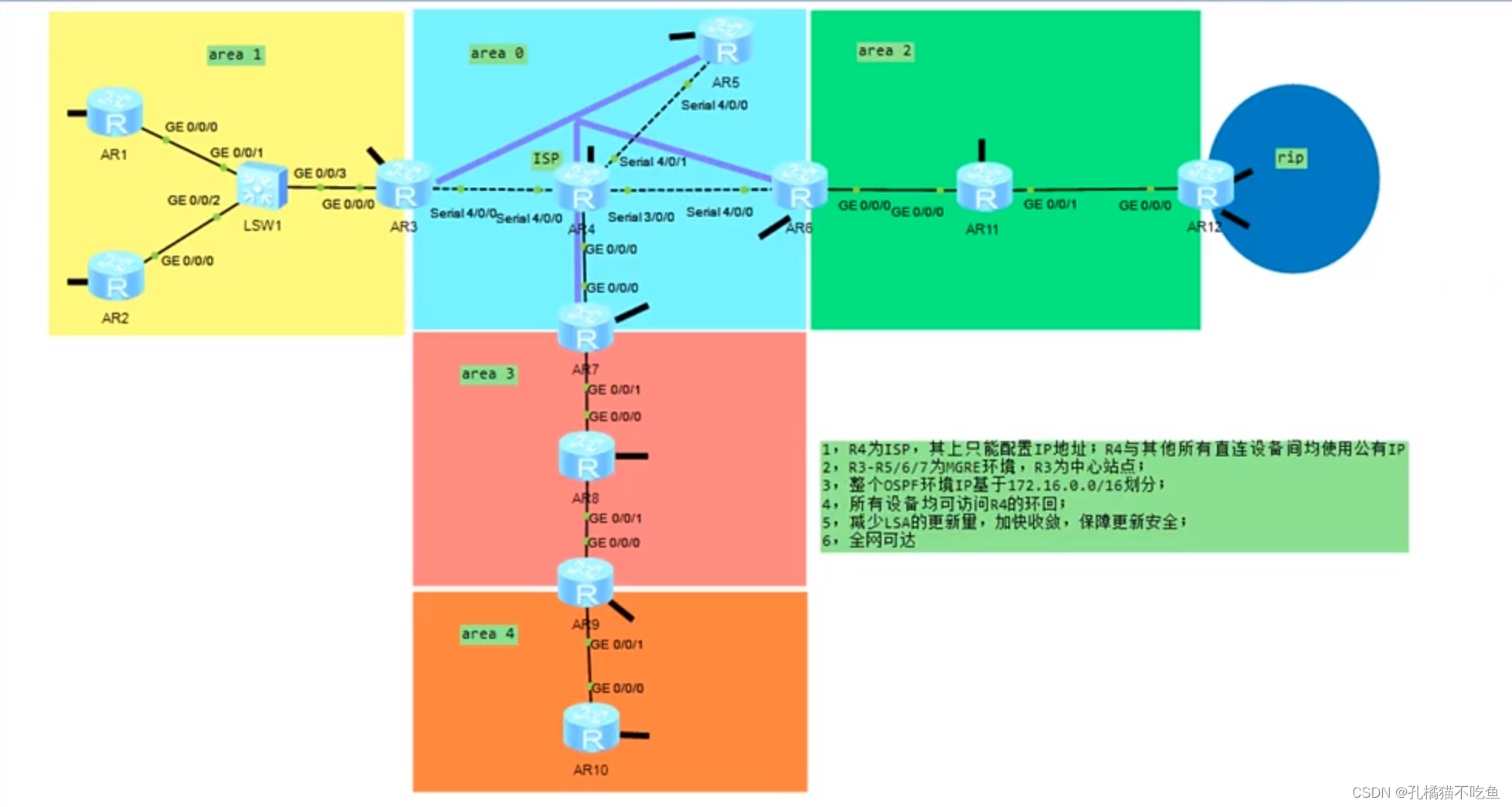

实验要求

一、配置IP地址

[r1]int GigabitEthernet 0/0/0
[r1-GigabitEthernet0/0/0]ip address 172.16.33.1 29
[r1]int LoopBack 0
[r1-LoopBack0]ip address 172.16.34.1 24
[r2]int g0/0/0
[r2-GigabitEthernet0/0/0]ip address 172.16.33.2 29
[r2]int LoopBack 0
[r2-LoopBack0]ip address 172.16.35.1 24
[r3]int g0/0/0
[r3-GigabitEthernet0/0/0]ip address 172.16.33.3 29
[r3]int LoopBack 0
[r3-LoopBack0]ip address 172.16.36.1 24
[r3]int Serial 4/0/0
[r3-Serial4/0/0]ip address 34.0.0.1 24
[r4]int s4/0/0
[r4-Serial4/0/0]ip address 34.0.0.2 24
[r4]int s4/0/1
[r4-Serial4/0/1]ip address 45.0.0.2 24
[r4]int s3/0/0
[r4-Serial3/0/0]ip address 46.0.0.2 24
[r4-Serial3/0/0]int g0/0/0
[r4-GigabitEthernet0/0/0]ip address 47.0.0.2 24
[r4]int LoopBack 0
[r4-LoopBack0]ip address 4.4.4.4 24
[r5]int s4/0/0
[r5-Serial4/0/0]ip address 45.0.0.1 24
[r5]int LoopBack 0
[r5-LoopBack0]ip address 172.16.2.1 24
[r6]int s4/0/0
[r6-Serial4/0/0]ip address 46.0.0.1 24
[r6]int LoopBack 0
[r6-LoopBack0]ip address 172.16.3.1 24
[r6]int GigabitEthernet 0/0/0
[r6-GigabitEthernet0/0/0]ip address 172.16.65.1 29
[r7]int g0/0/0
[r7-GigabitEthernet0/0/0]ip address 47.0.0.1 24
[r7]int g0/0/1
[r7-GigabitEthernet0/0/1]ip address 172.16.97.1 29
[r7]int LoopBack 0
[r7-LoopBack0]ip address 172.16.4.1 24
[r8]int g0/0/0
[r8-GigabitEthernet0/0/0]ip address 172.16.97.2 29
[r8]int g0/0/1
[r8-GigabitEthernet0/0/1]ip address 172.16.97.9 29
[r8]int LoopBack 0
[r8-LoopBack0]ip address 172.16.98.1 24
[r9]int g0/0/0
[r9-GigabitEthernet0/0/0]ip address 172.16.97.10 29
[r9]int g0/0/1
[r9-GigabitEthernet0/0/1]ip address 172.16.129.1 29
[r9]int LoopBack 0
[r9-LoopBack0]ip address 172.16.130.1 24
[r10]int g0/0/0
[r10-GigabitEthernet0/0/0]ip address 172.16.129.2 29
[r10]int LoopBack 0
[r10-LoopBack0]ip address 172.16.131.1 24
[r11]int g0/0/0
[r11-GigabitEthernet0/0/0]ip address 172.16.65.2 29
[r11]int g0/0/1
